Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

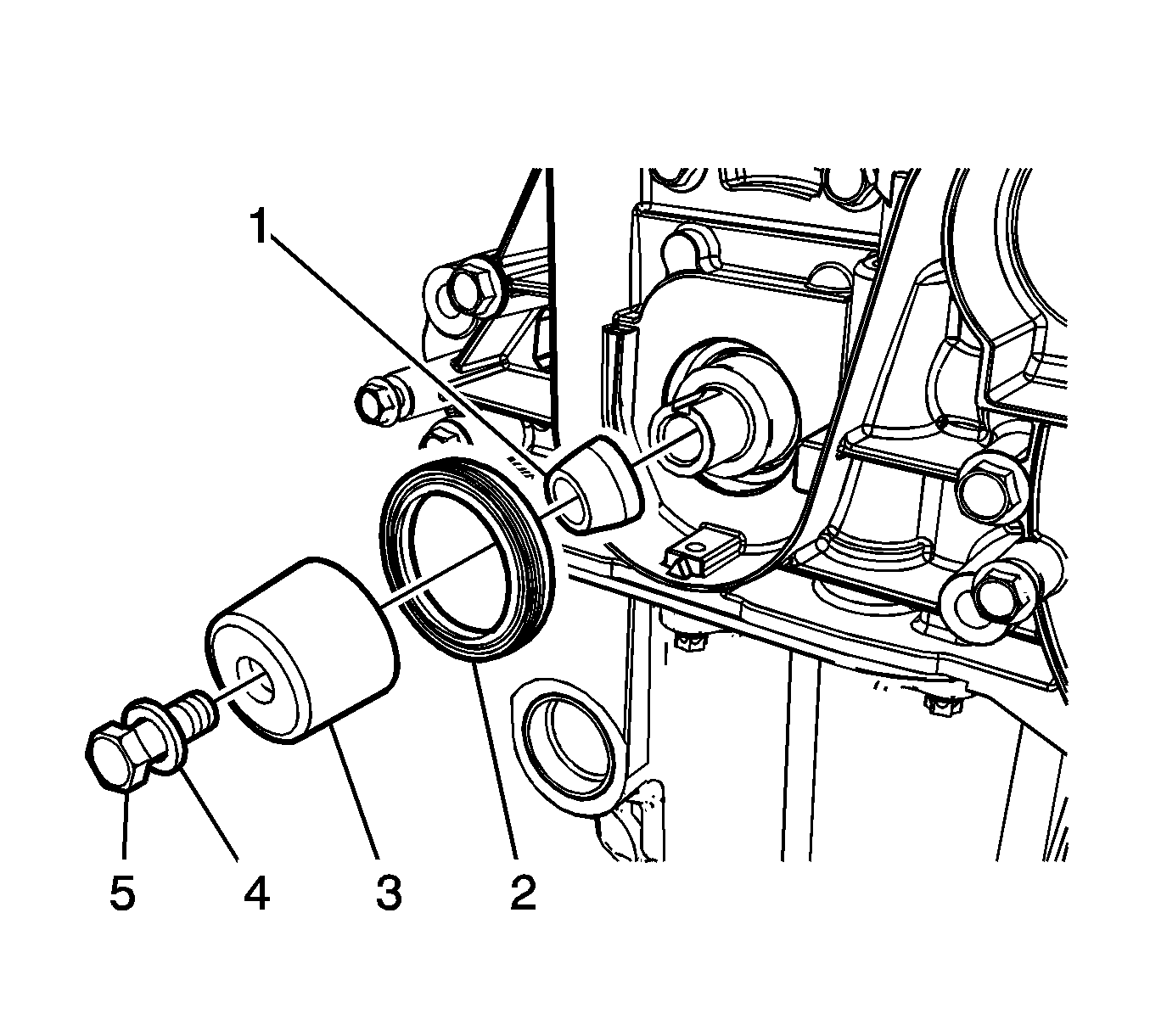

    Fig 1: Installing Crankshaft Front Oil Seal Ring
    GM2049598Courtesy of GENERAL MOTORS CORP.
  1. Attach the installer inside sleeve (1).
  2. Attach the crankshaft front oil seal ring to the inside sleeve (1).
  3. Attach the installer outside sleeve (2).
  4. Install the crankshaft bolt (4) and washer (3).
  5. Install the crankshaft sprocket.
  6. Install the timing belt. Refer to Timing Belt Replacement .
