Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

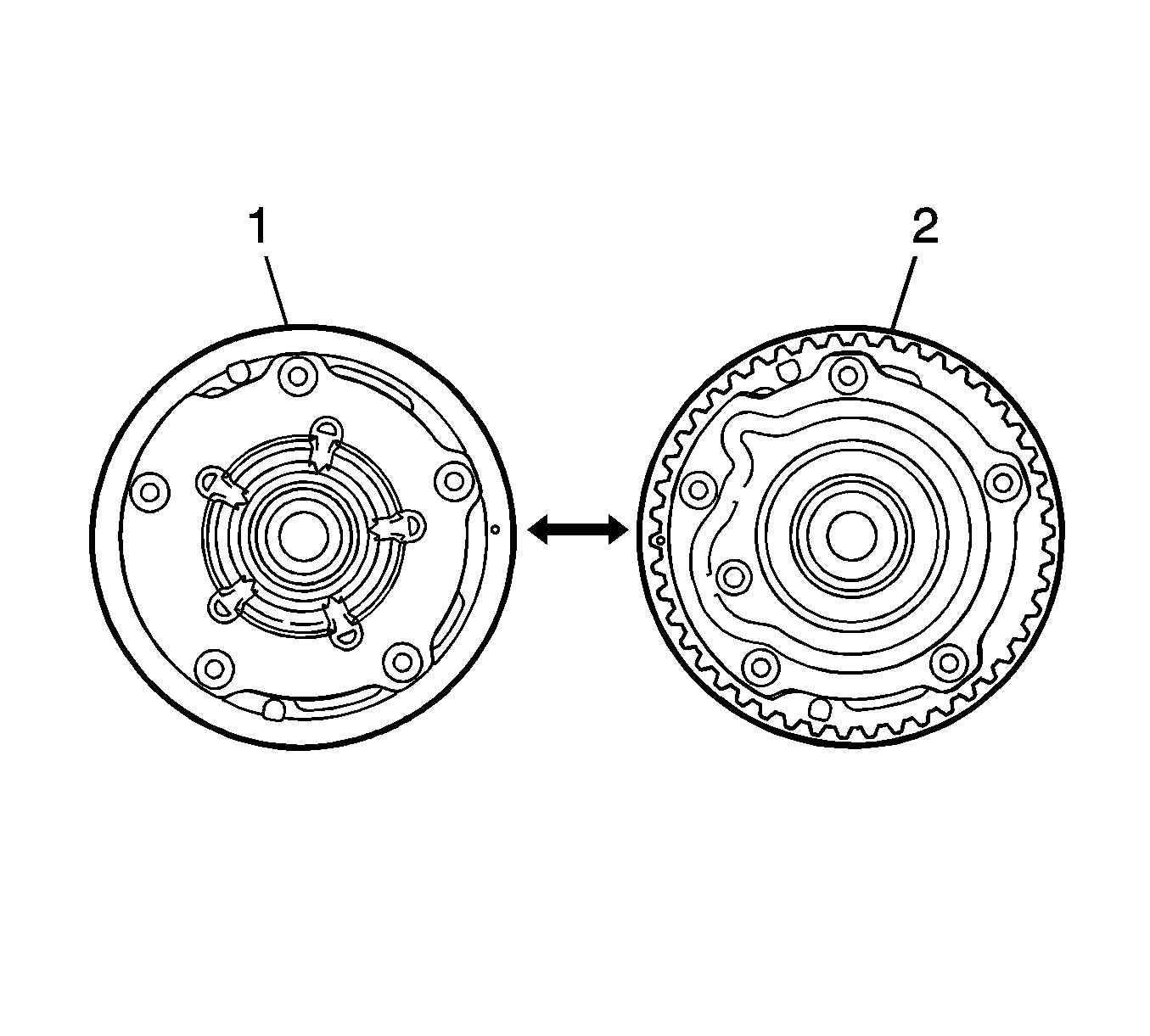

    Fig 1: Intake/Exhaust Adjusters
    GM2049384Courtesy of GENERAL MOTORS CORP.
    NOTE: Ensure the location and direction of the intake/exhaust adjusters when removed.
  1. Install the camshaft adjusters (1, 2).

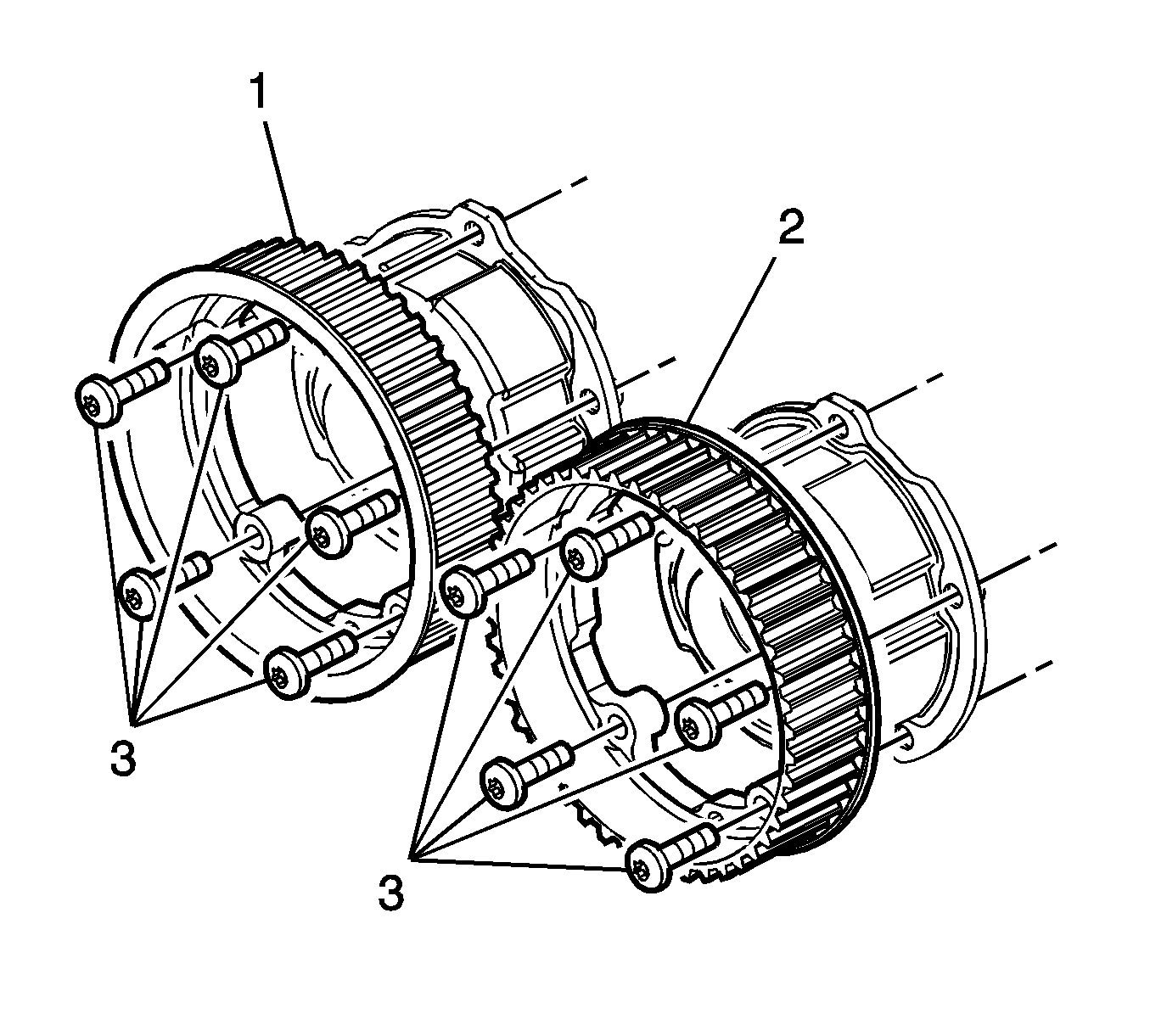

    2. Fig 2: Camshaft Adjusters & Bolts
    GM2049383Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the camshaft adjuster bolts (3) and tighten to 65 N.m +120° +15° (47.9 lb ft +120° +15° ).
