Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

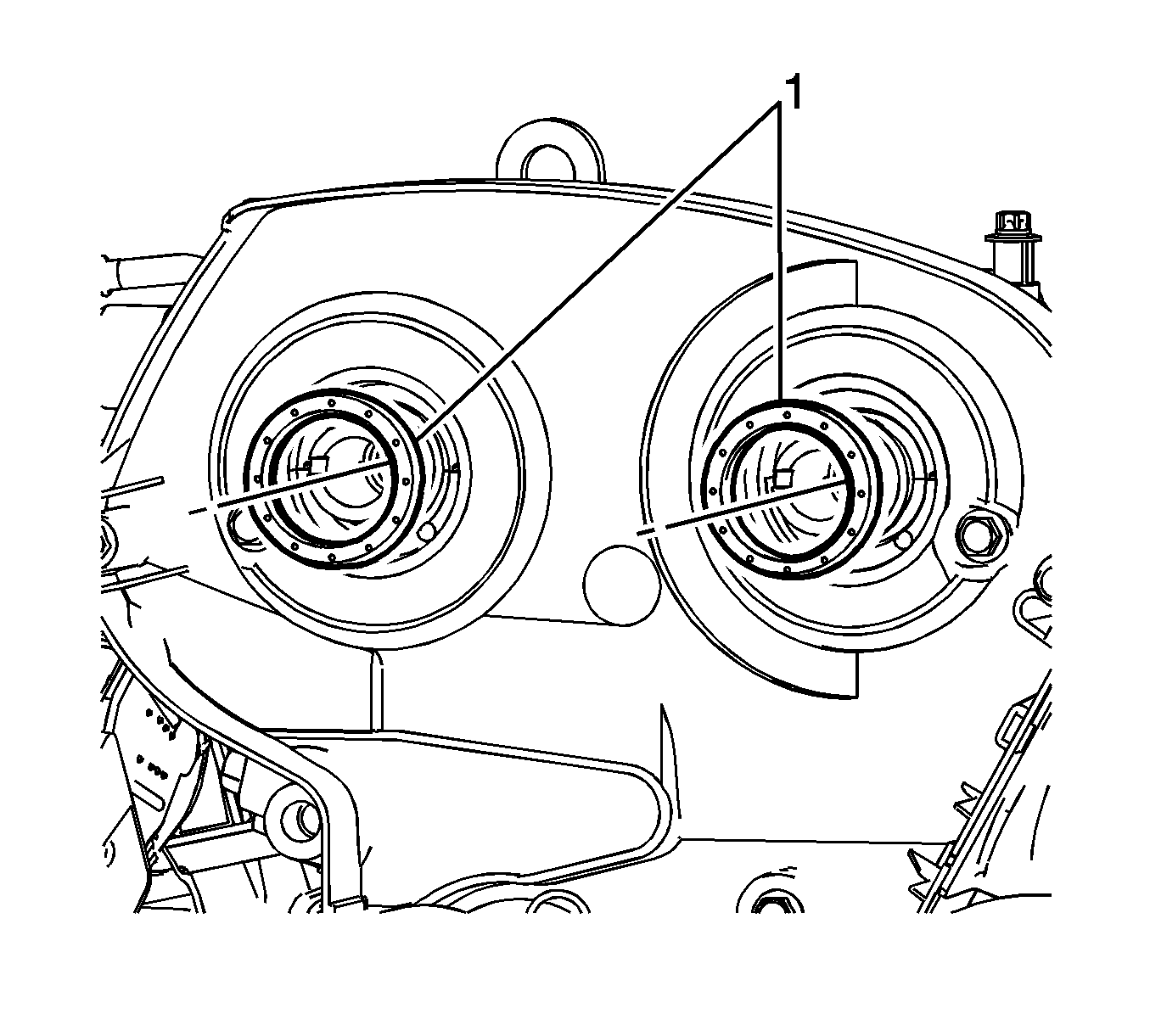

    Fig 1: Camshaft Seal Rings
    GM2049386Courtesy of GENERAL MOTORS CORP.
    NOTE: Do not reuse the camshaft seal ring.
  1. Install the camshaft seal ring (1) with new one.

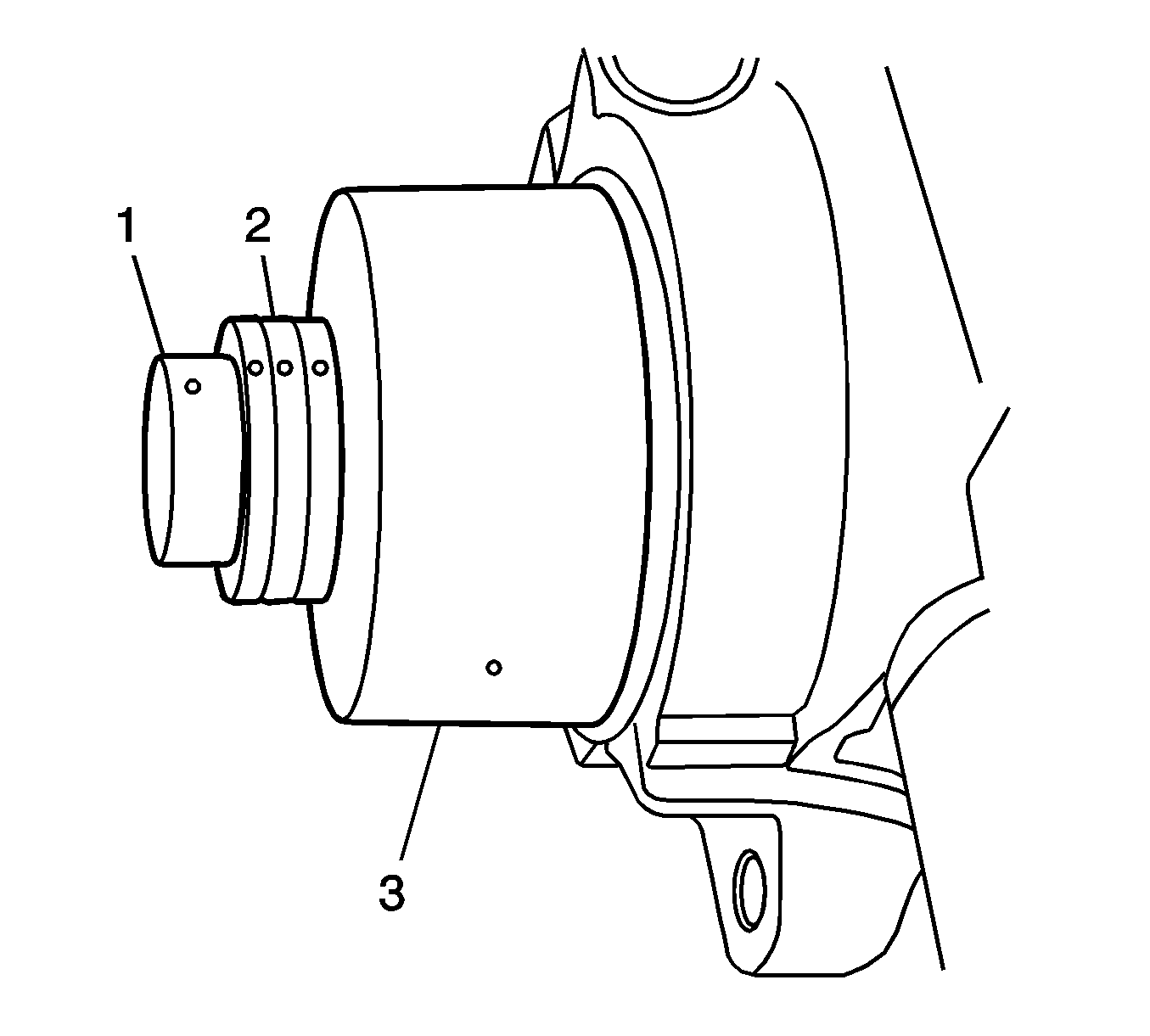

    2. Fig 2: Camshaft Installer, Shims & Camshaft Bolt
    GM2049387Courtesy of GENERAL MOTORS CORP.
  2. Install the KM-422:  installer (3) with shims (2), with a total thickness of approximately 10 mm and tighten the camshaft bolt (1) manually.
  3. Remove the KM-422:  installer.
  4. Install the camshaft intake and exhaust sprockets. Refer to Camshaft Intake Sprocket with Actuator Replacement  and Camshaft Exhaust Sprocket with Actuator Replacement .
