Camshaft Cleaning and Inspection

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Measuring Camshaft Lift

Courtesy of GENERAL MOTORS CORP.

Measure the camshaft lift.
Replace the camshaft if the measured value is not as specified.
Specification: The specification is 46.3 mm (1.8228 in).

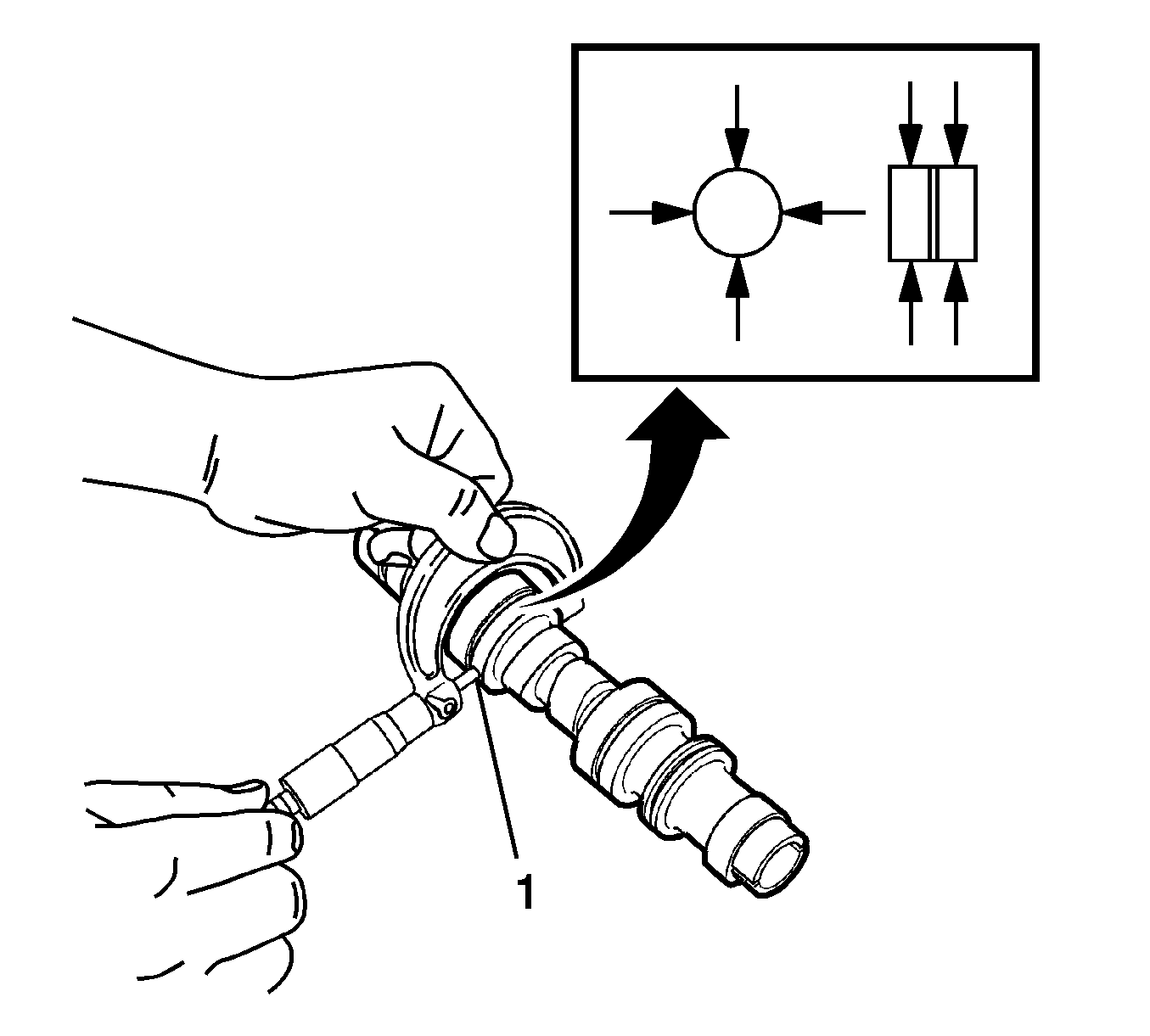

Fig 2: Measuring Outer Diameter Of Camshaft Journal

Courtesy of GENERAL MOTORS CORP.

Measure the outer diameter of each journal (1) at the 4 different places.
Replace the camshaft if the measured value is not as specified.
Specification: The specification is 27.939-27.960 mm (1.1000-1.1008 in).

Fig 3: Measuring Straightness Of Camshaft

Courtesy of GENERAL MOTORS CORP.

Measure the straightness of the camshaft using a dial gauge.
Replace the camshaft if the measured value is over the specified limit.
Specification: The specification limit is 0.04 mm (0.0016 in).

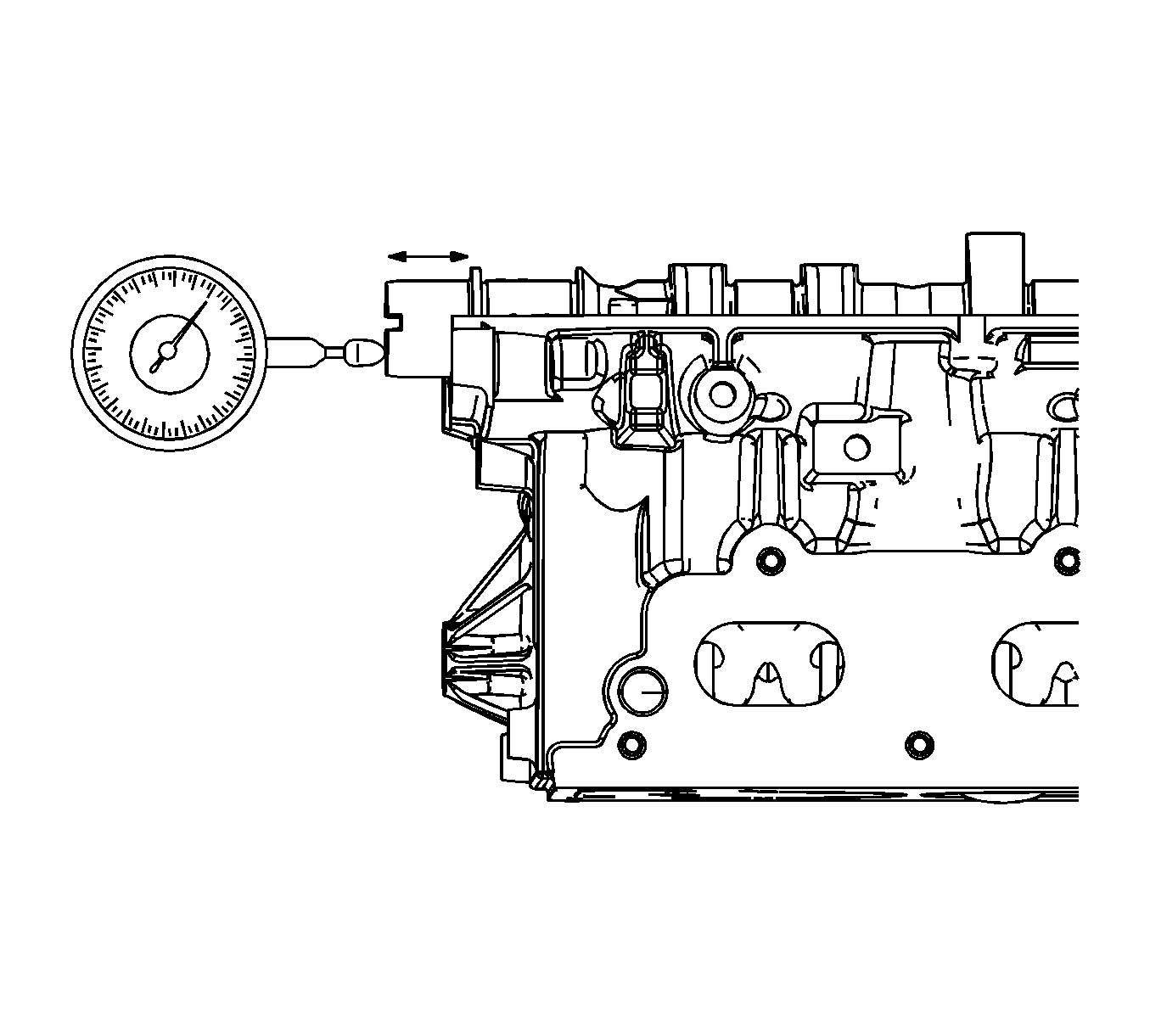

Fig 4: Measuring Camshaft Endplay

Courtesy of GENERAL MOTORS CORP.

Measure the camshaft endplay using a dial gauge.
Replace the camshaft if the measured value is over the specified limit.
Specification: The specification limit is 0.130-.215 mm (0.0051-.0085 in).

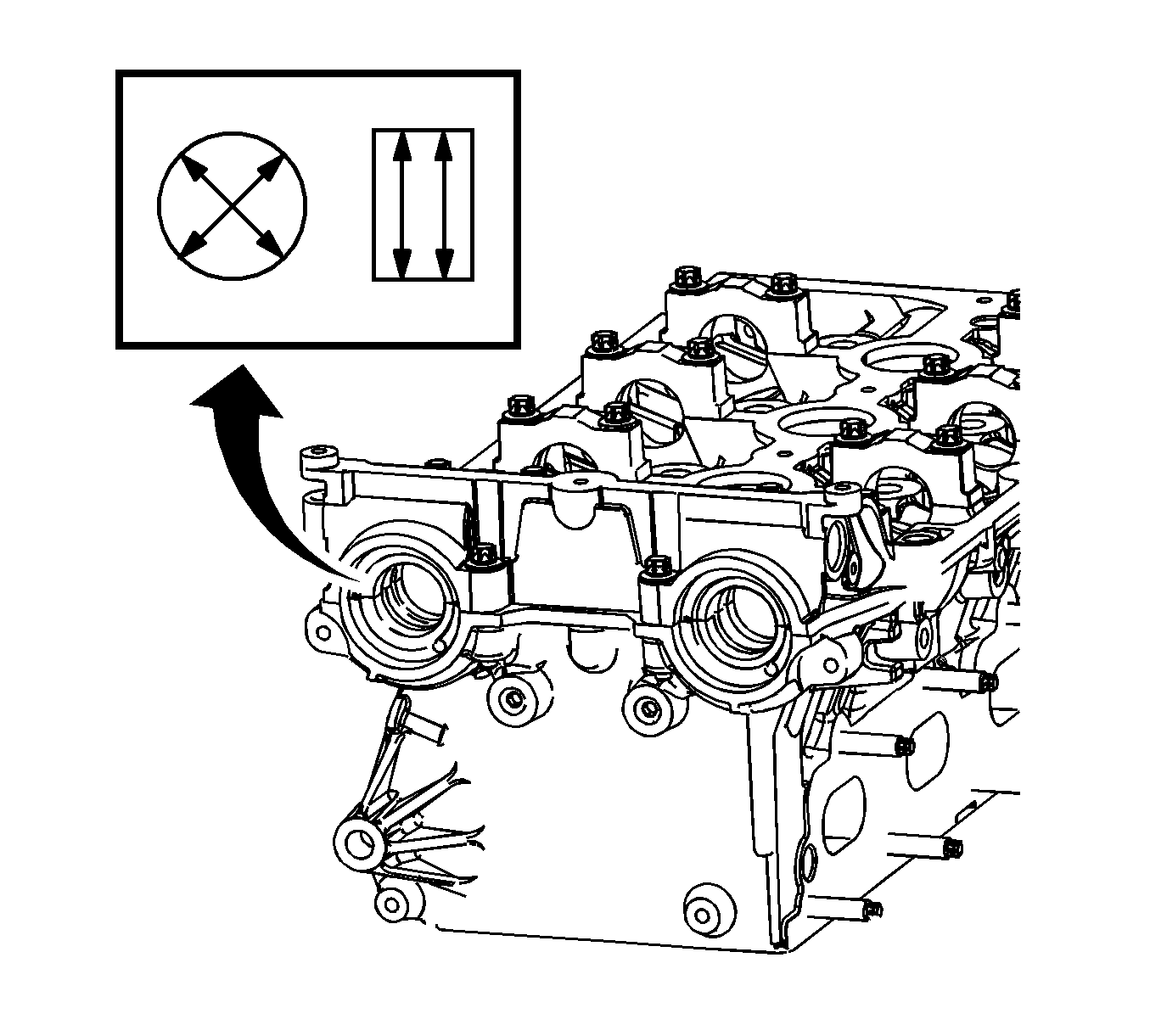

Fig 5: Measuring Inner Diameter Of Cylinder Head Journal

Courtesy of GENERAL MOTORS CORP.

Measure the inner diameter of the cylinder head journal at the 2 places.
Specification: The specification limit is 28.000-28.021 mm (1.1024-1.1032 in).
If necessary, replace cylinder head.
