Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

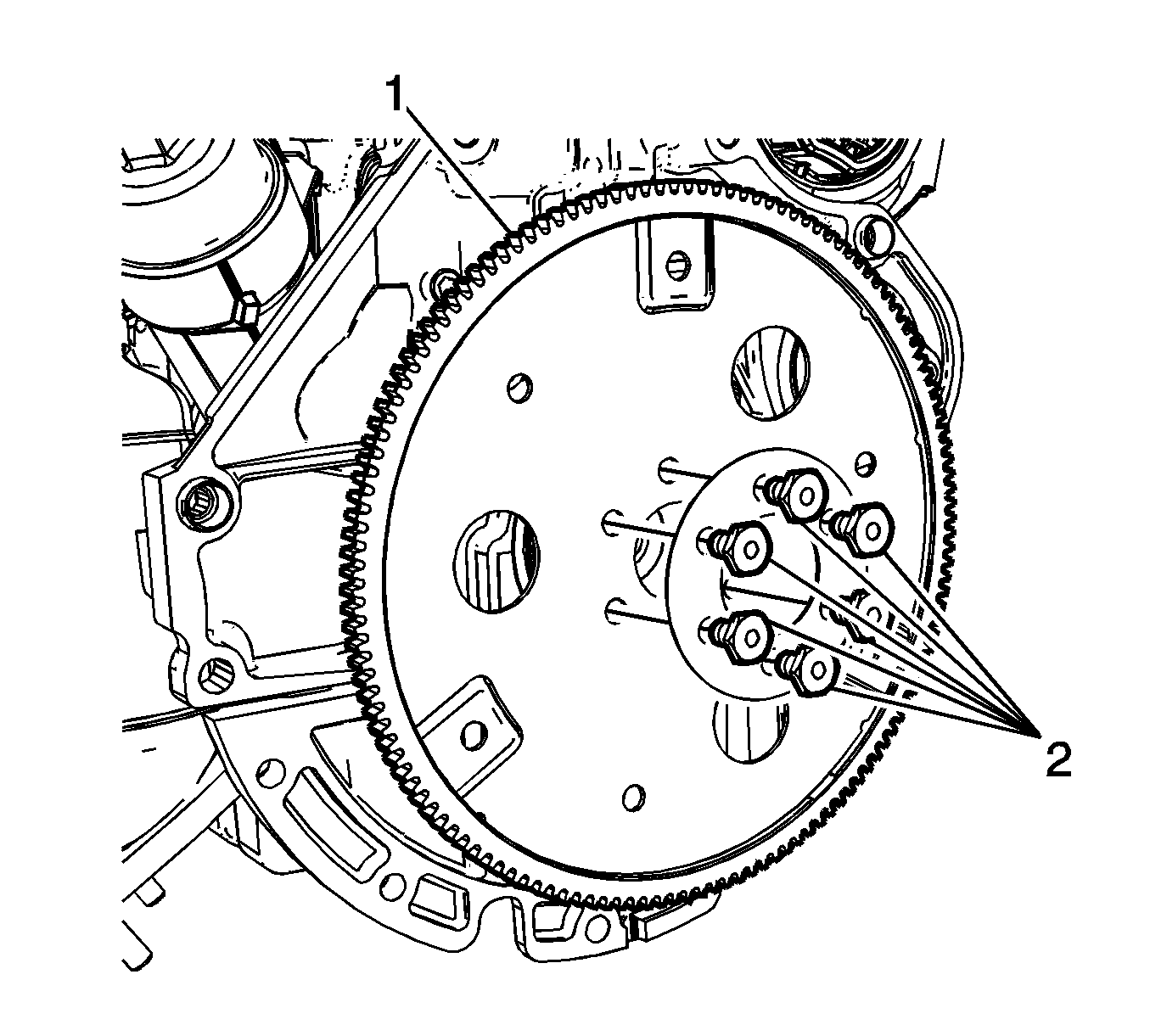

    Fig 1: Flexible Plate & Bolts
    GM2049592Courtesy of GENERAL MOTORS CORP.
  1. Install the flexible plate (1).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the flexible plate bolts (2).

    Tighten:  Tighten the flexible plate bolts (2) to 35 N.m +30° +15° (25.8 lb ft +30° +15°).

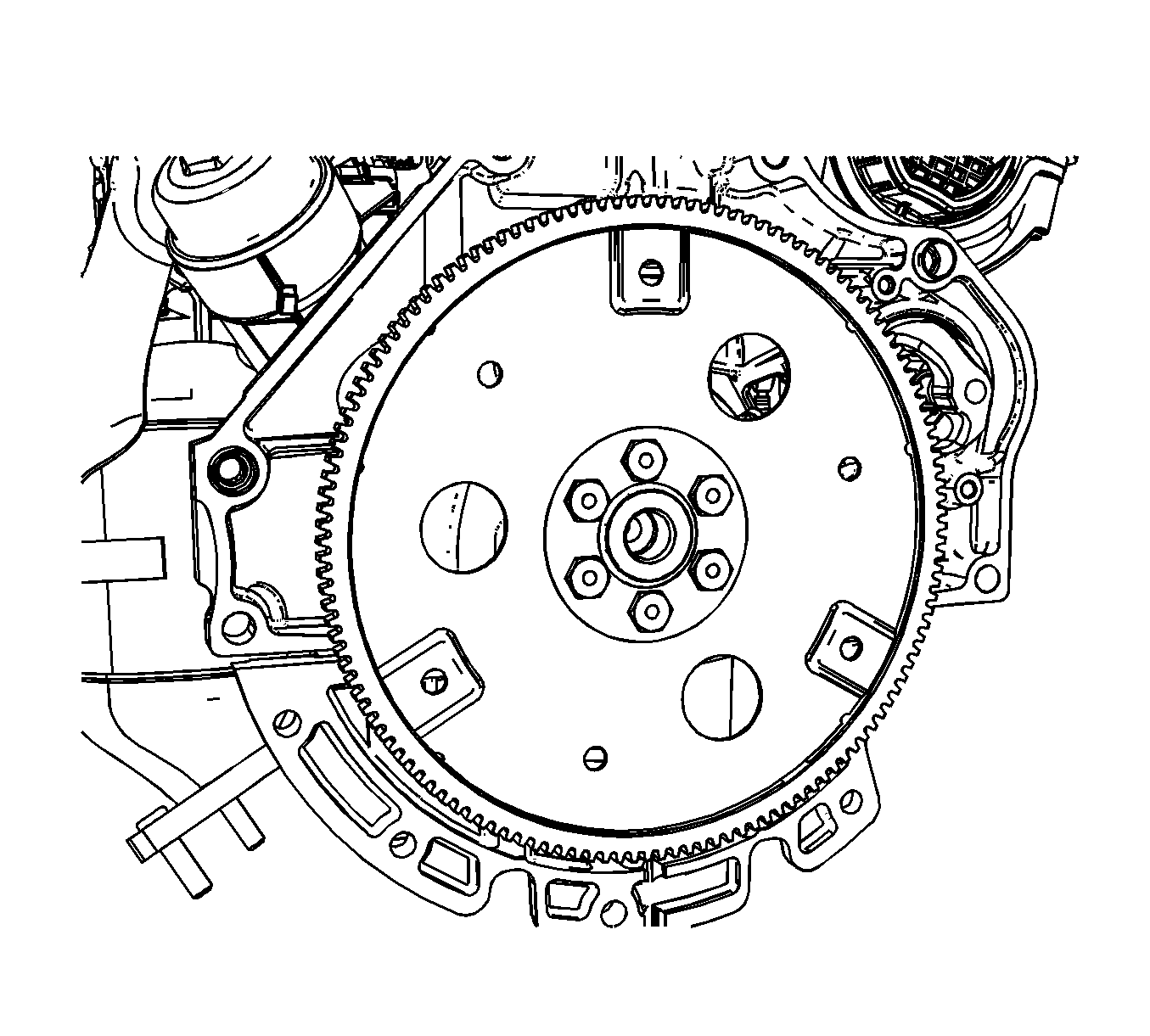

    3. Fig 2: Flexible Plate
    GM2049587Courtesy of GENERAL MOTORS CORP.
  3. Remove KM-6625:  locking device to block the crankshaft.
  4. Install the automatic transmission. Refer to Transmission Replacement .
  5. Remove J 28647-B:  Engine Support Fixture.
