Removal Procedure

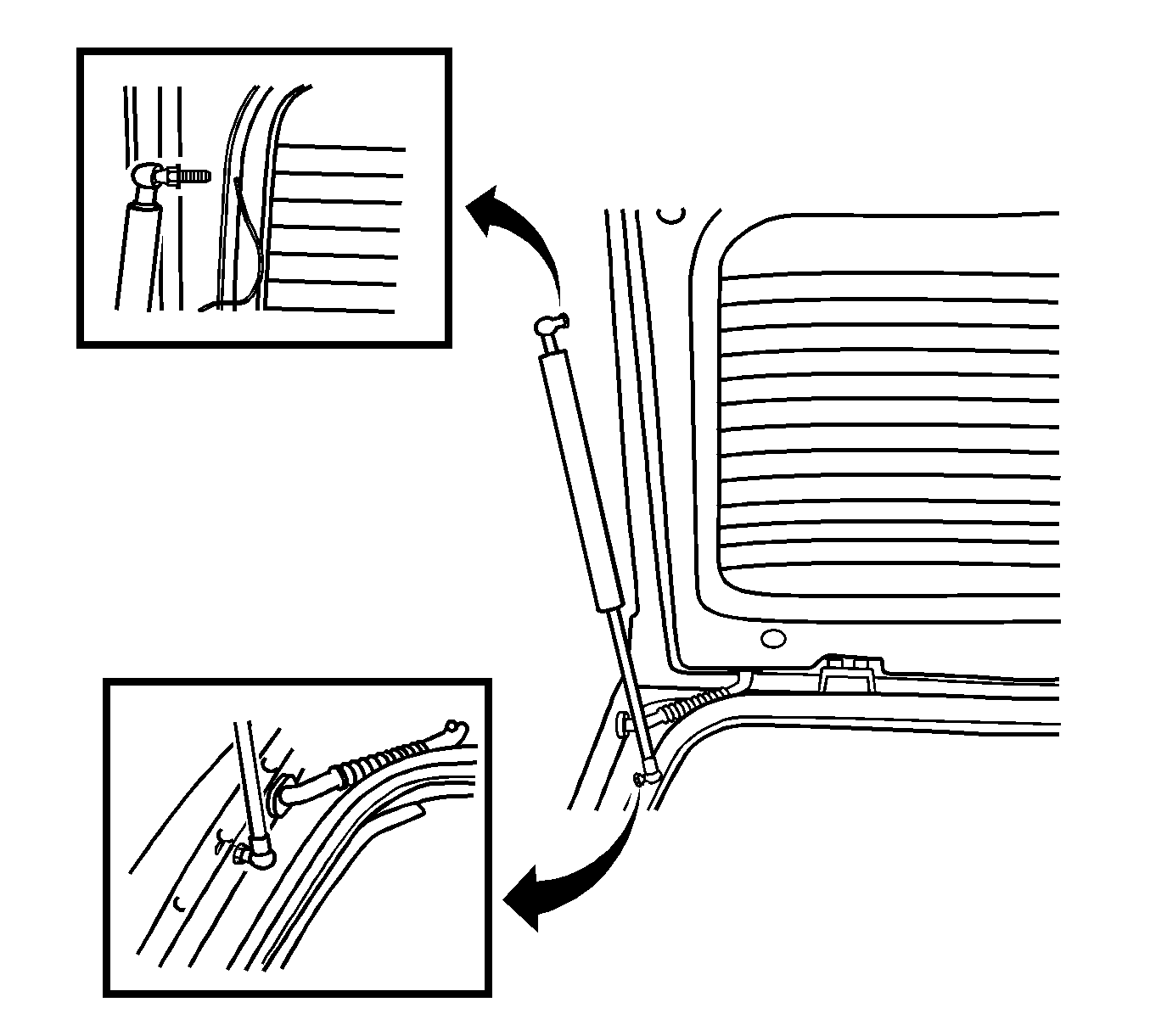

    Fig 1: View of Gas Support Assembly From Hatchback Door and Body
    GM1252093Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Liftgate Assist Rod Caution .
  1. Open and suitably support the hatchback door.
  2. Unscrew and remove the gas support assembly from the hatchback door and the body.
