Removal Procedure

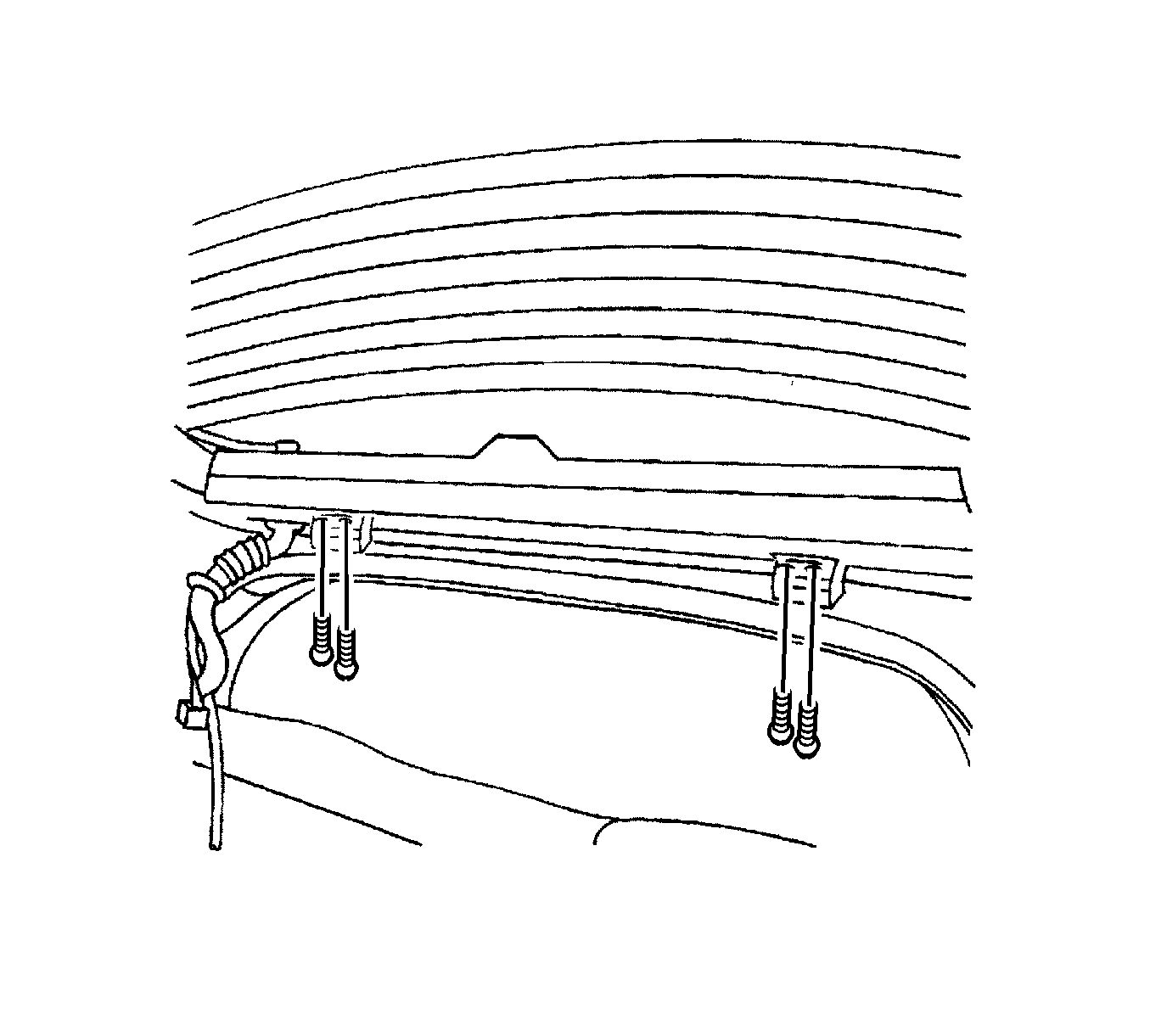

    Fig 1: View of Hatchback Door, Bolts, and Hinges
    GM1252092Courtesy of GENERAL MOTORS CORP.
  1. Open and suitably support the hatchback door.
  2. Disconnect the hatchback door grommet, the electrical connector, and the washer hose.
  3. Remove the gas support assemblies from the hatchback door and the body. Refer to Liftgate Strut Replacement .
  4. With the aid of another technician, remove the bolts and the hatchback door from the hinges.
