Installation Procedure

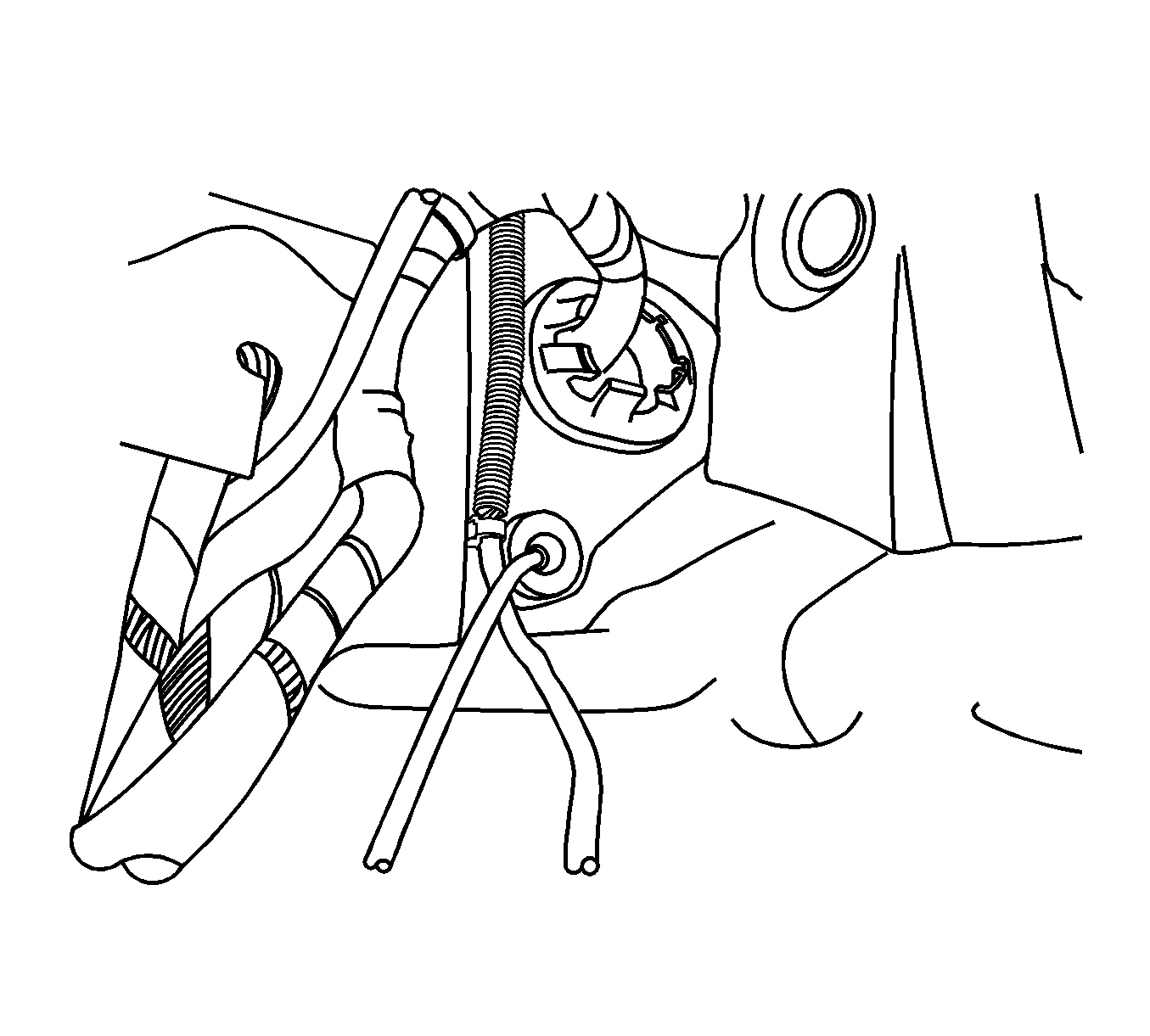

    Fig 1: Hood Release Cable
    GM1719812Courtesy of GENERAL MOTORS CORP.
  1. Install the cable from inside the vehicle.
  2. Install the cable to the hood release handle.

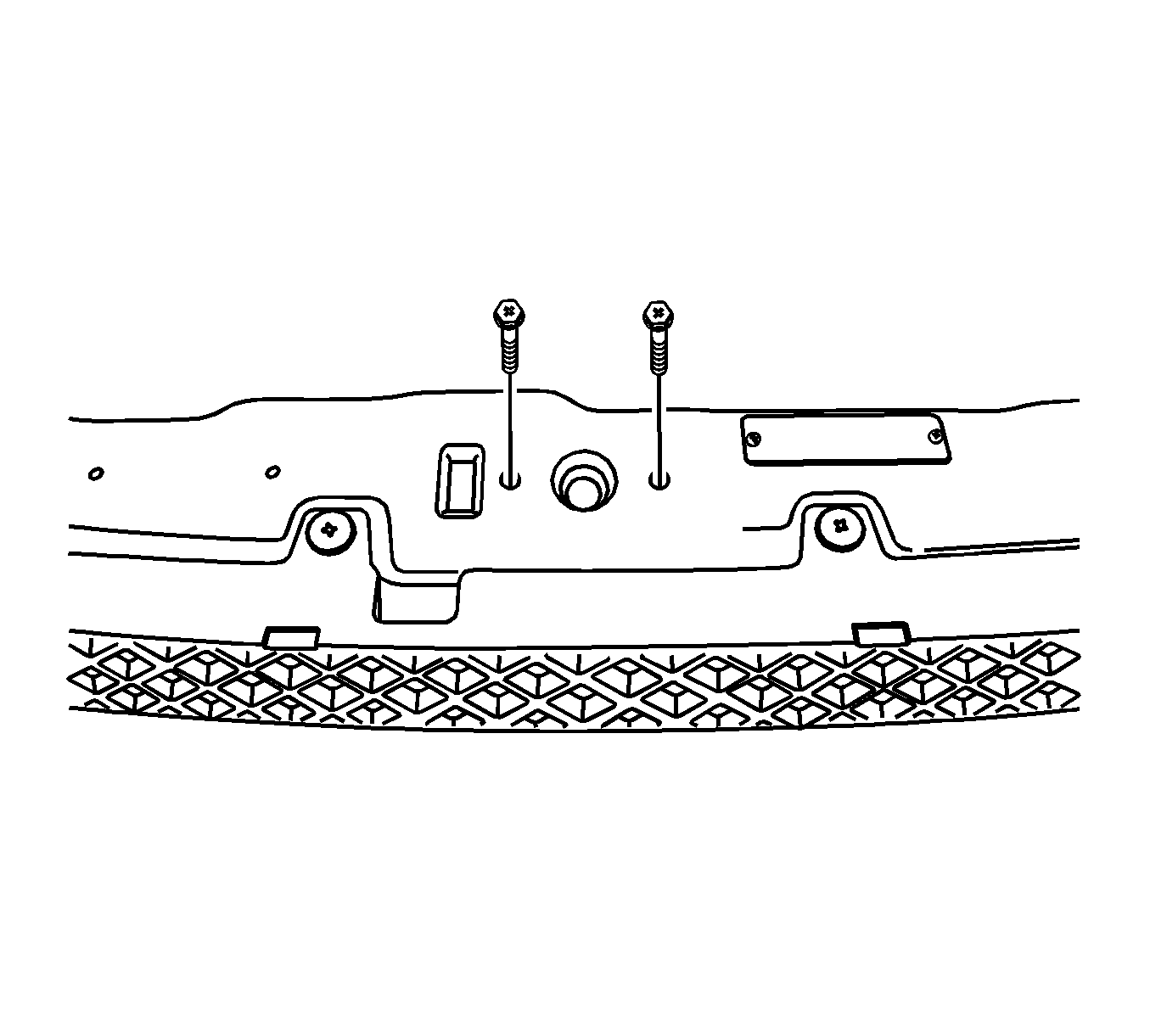

    3. Fig 2: Hood Secondary Latch
    GM1719808Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Install the screws and the hood secondary latch and tighten to 8 N.m (71 lb in).

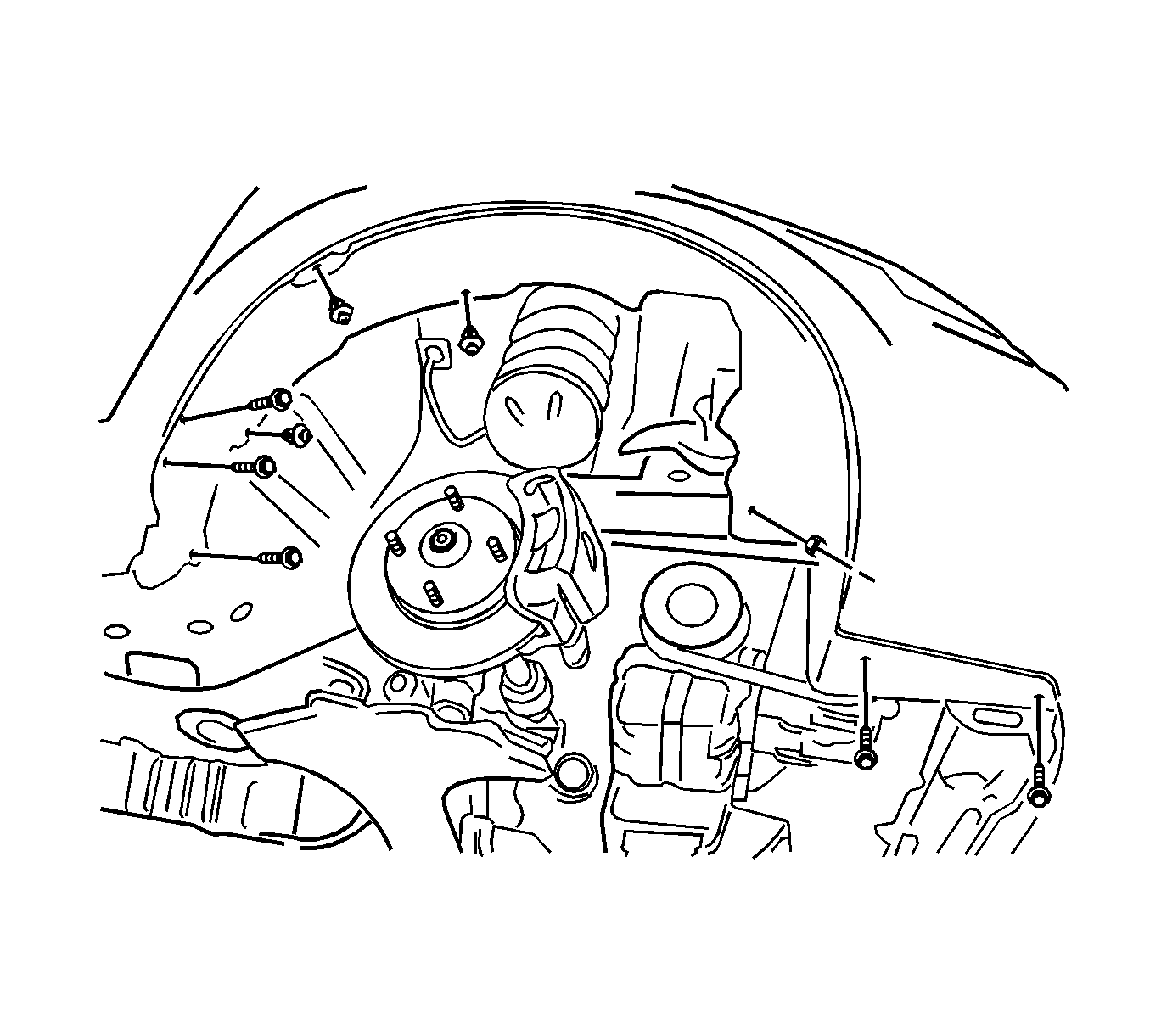

    4. Fig 3: View of Screws and Splash Shield
    GM1252066Courtesy of GENERAL MOTORS CORP.
  4. Install the splash shield with the screws and tighten to 1.5 N.m (13 lb in).

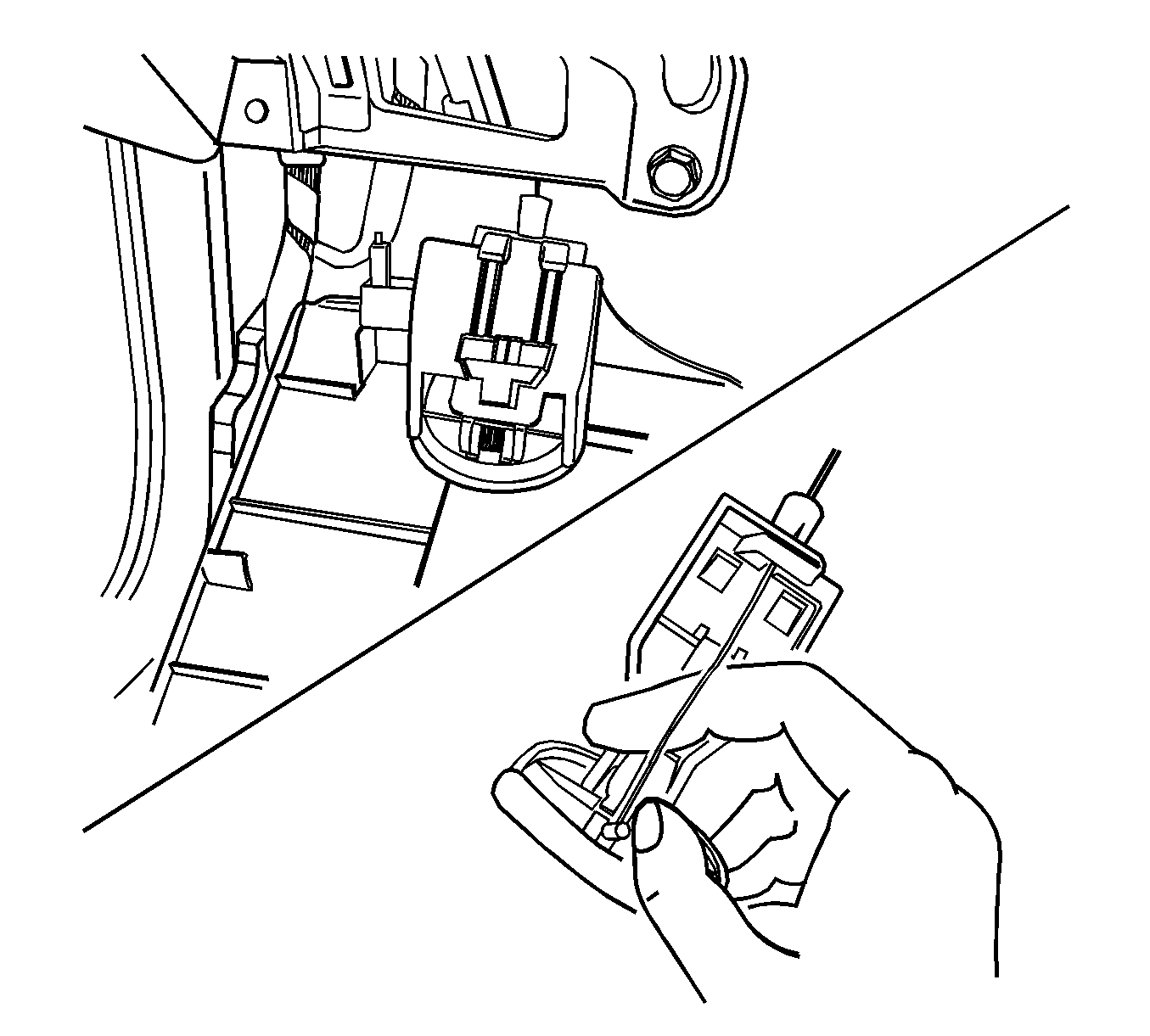

    5. Fig 4: View of Screws and Hood Release Handle From Instrument Panel
    GM1252065Courtesy of GENERAL MOTORS CORP.
  5. Install the front wheel. Refer to Tire and Wheel Removal and Installation .
  6. Lower the vehicle.
  7. Install the hood release on the instrument panel with the screws and tighten to 1.5 N.m (13 lb in).
