Installation Procedure

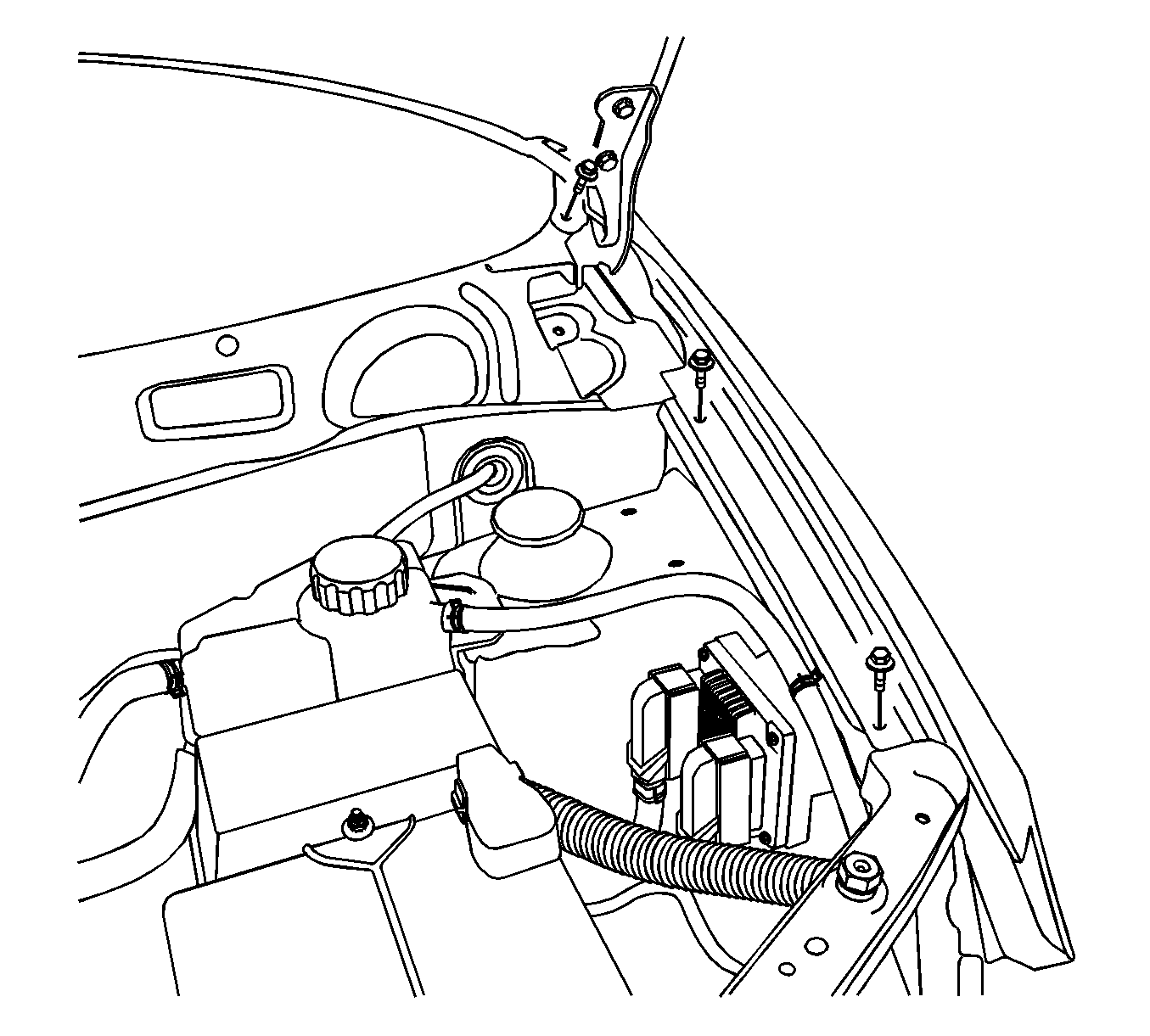

    Fig 1: Bolts Along The Top Of Fender
    GM1719824Courtesy of GENERAL MOTORS CORP.
  1. Install the fender.
  2. Install the repeater lamp. Refer to Repeater Lamp Replacement .
    3. CAUTION: Refer to Fastener Caution .
  3. Install the bolts along the top of the fender and tighten to 10 N.m (89 lb in).

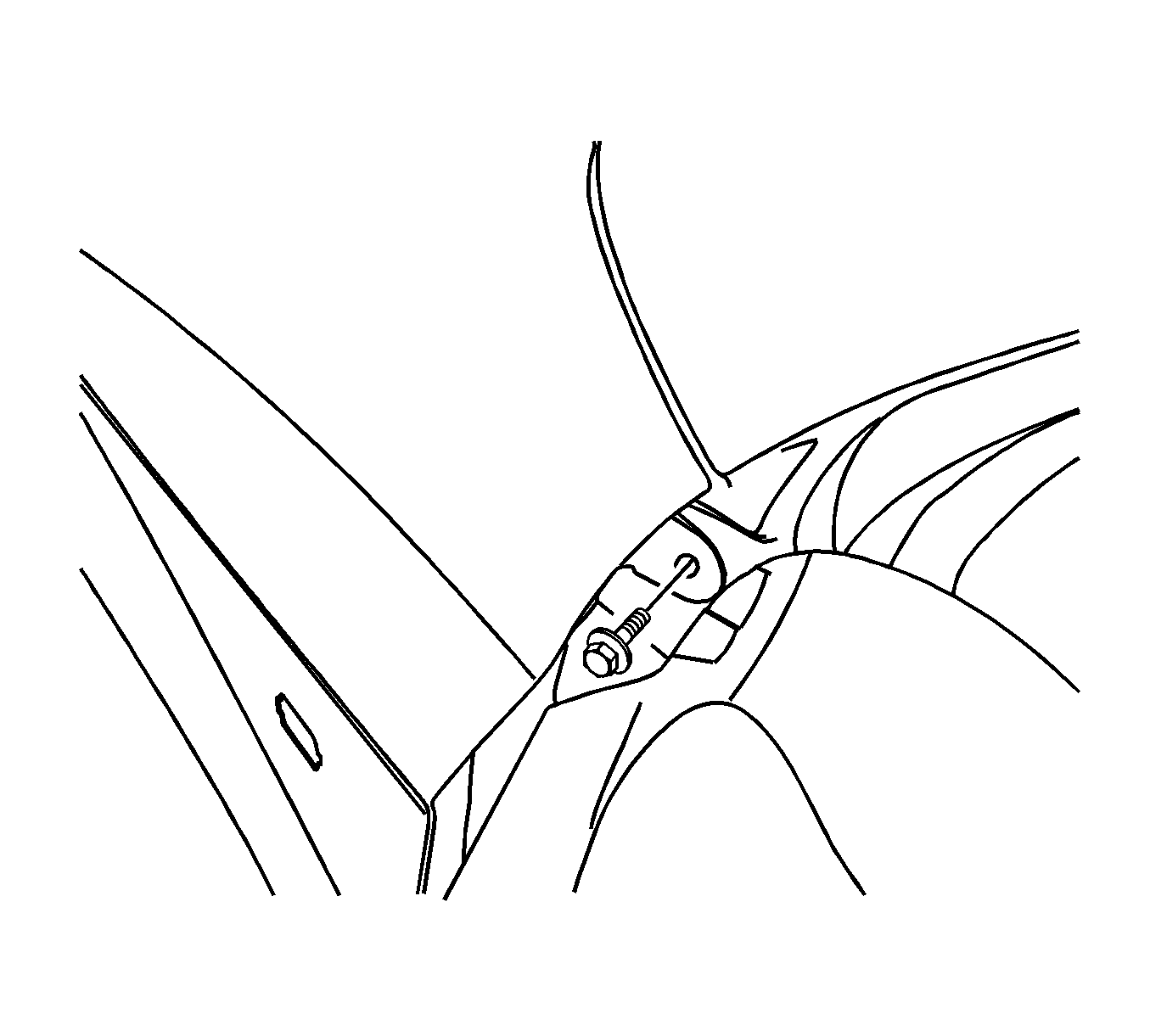

    4. Fig 2: Bolt At Base Of Windshield Pillar
    GM1719822Courtesy of GENERAL MOTORS CORP.
  4. Install the bolt at the base of the windshield pillar and tighten to 8 N.m (71 lb in).
  5. Install the air inlet panel. Refer to Air Inlet Grille Panel Replacement .
    6. Fig 3: Screw Securing Front Bumper Fascia To Fender
    GM1719820Courtesy of GENERAL MOTORS CORP.
  6. Install the bolts at the base of the fender and tighten to 10 N.m (89 lb in).

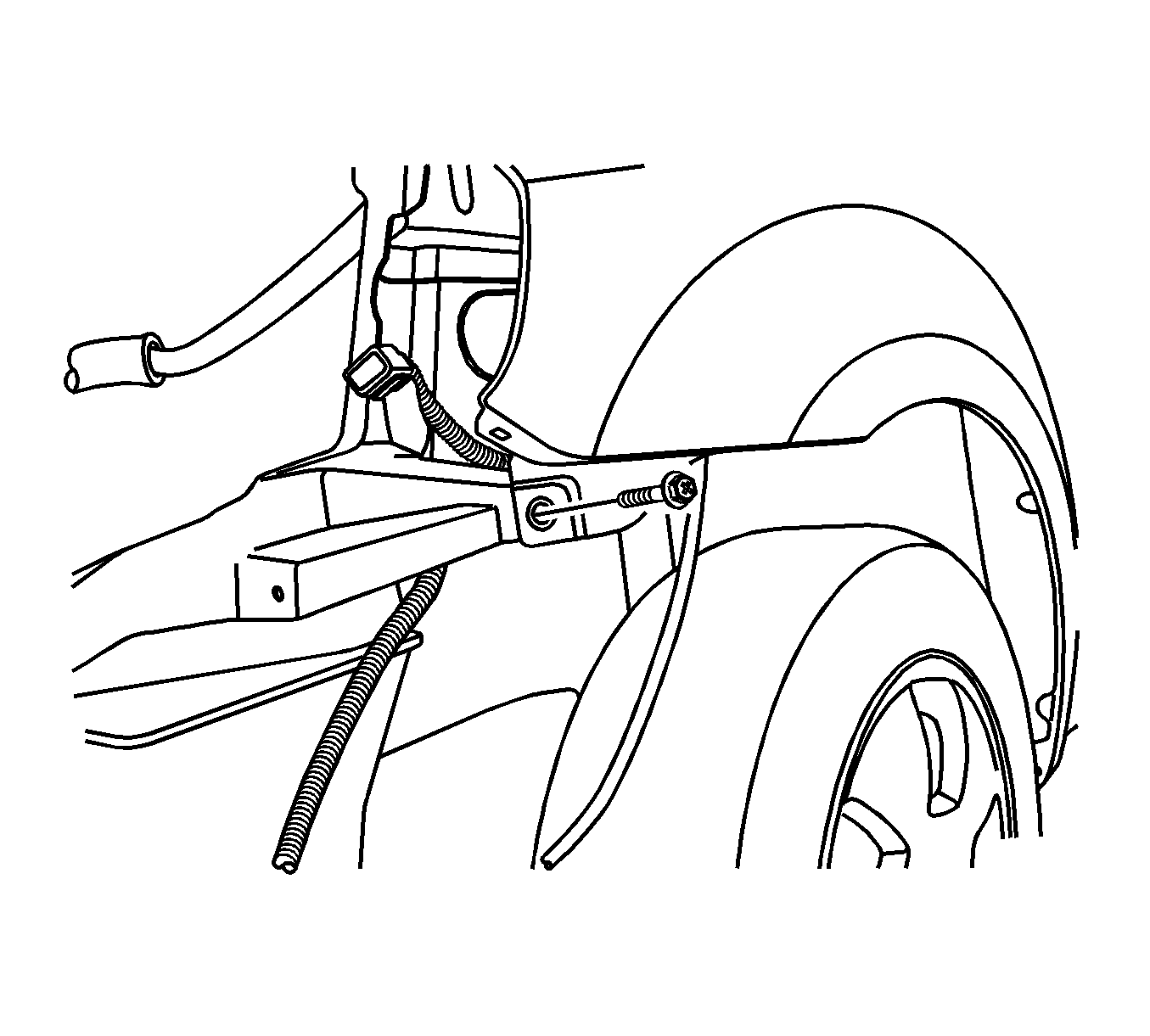

    7. Fig 4: Screws Underneath Front Bumper Fascia
    GM1719818Courtesy of GENERAL MOTORS CORP.
  7. Secure the fender to the front bumper fascia with the screw and tighten to 1.5 N.m (13 lb in).
  8. Secure the fender behind the front bumper fascia with the screws and tighten to 4 N.m (35 lb in).

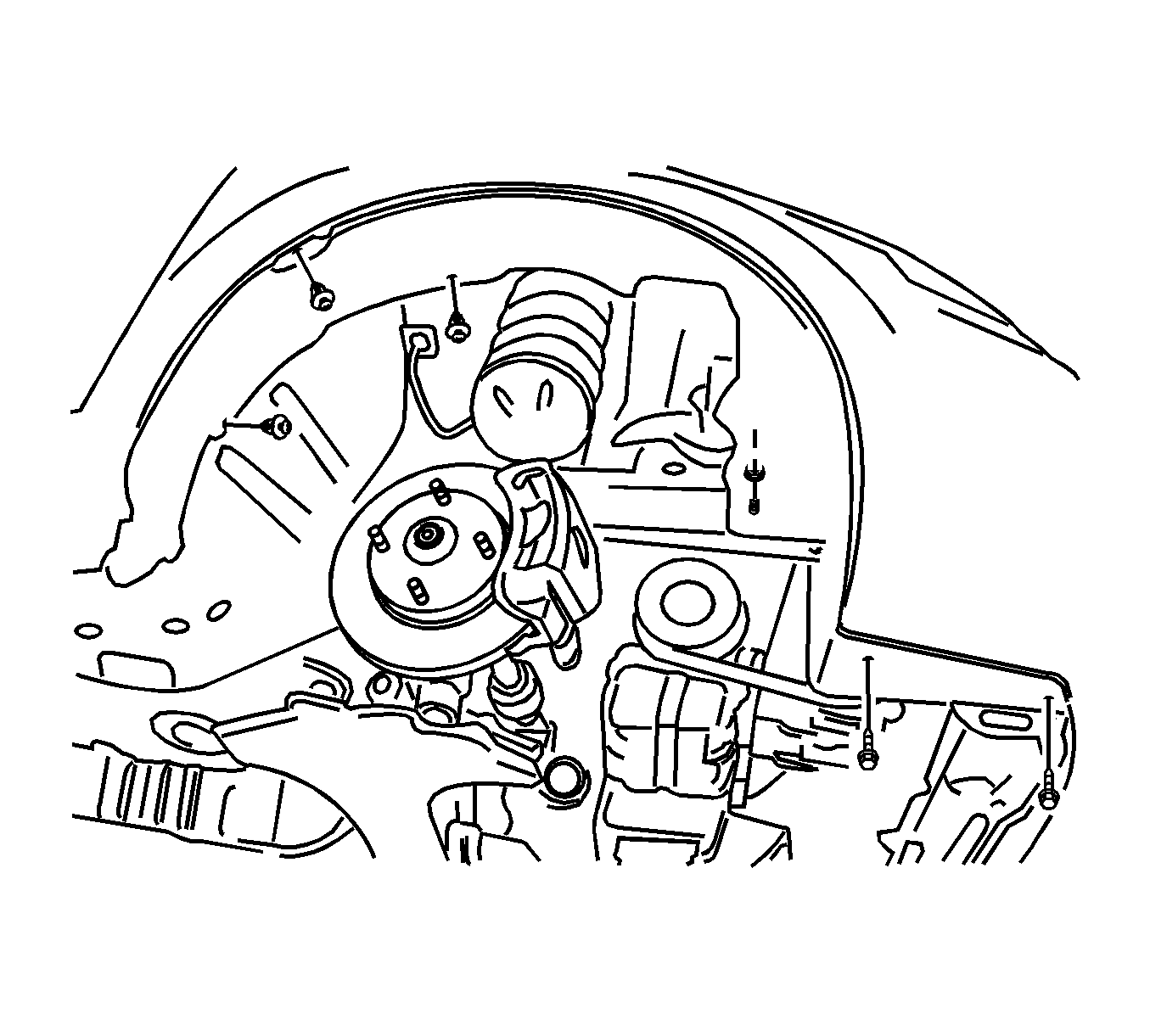

    9. Fig 5: Front Wheel Well Splash Shield
    GM1719817Courtesy of GENERAL MOTORS CORP.
  9. Install the necessary splash shield screws and tighten to 1.5 N.m (13 lb in).
  10. Install the headlamp. Refer to Headlamp Replacement (Notchback) or Headlamp Replacement (Hatchback) .
  11. Lower the vehicle.
