Installation Procedure

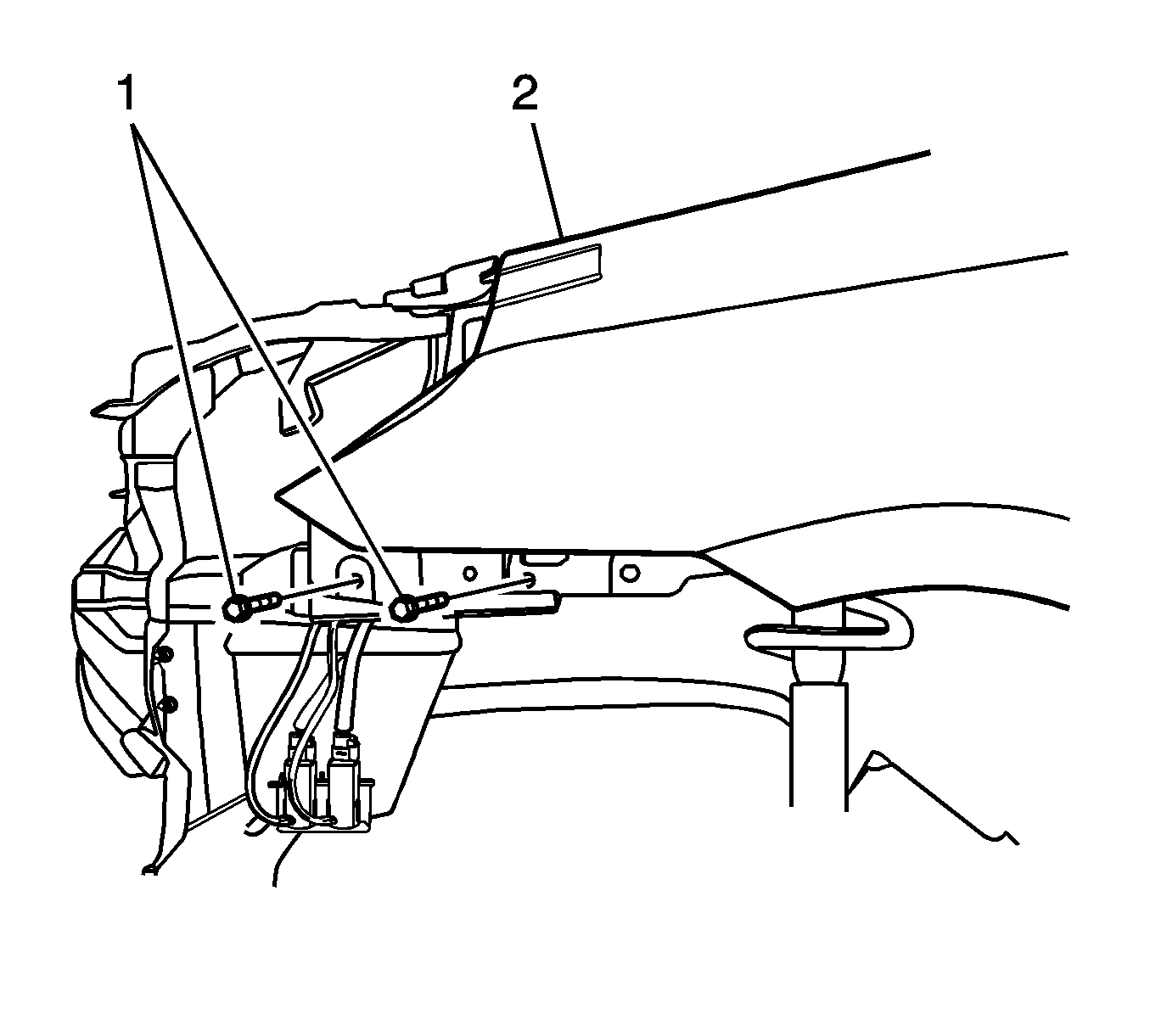

    Fig 1: Remove/Install The Front Fender Bolts
    GM2046457Courtesy of GENERAL MOTORS CORP.
  1. Install the fender (2) to the vehicle.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the front fender bolts (1) and tighten to 8 N.m (71 lb in).
    3. Fig 2: Remove/Install The Bolt At The Base Of The Fender
    GM2046456Courtesy of GENERAL MOTORS CORP.
  3. Install the bolt (1) at the base of the fender and tighten to 8 N.m (71 lb in).

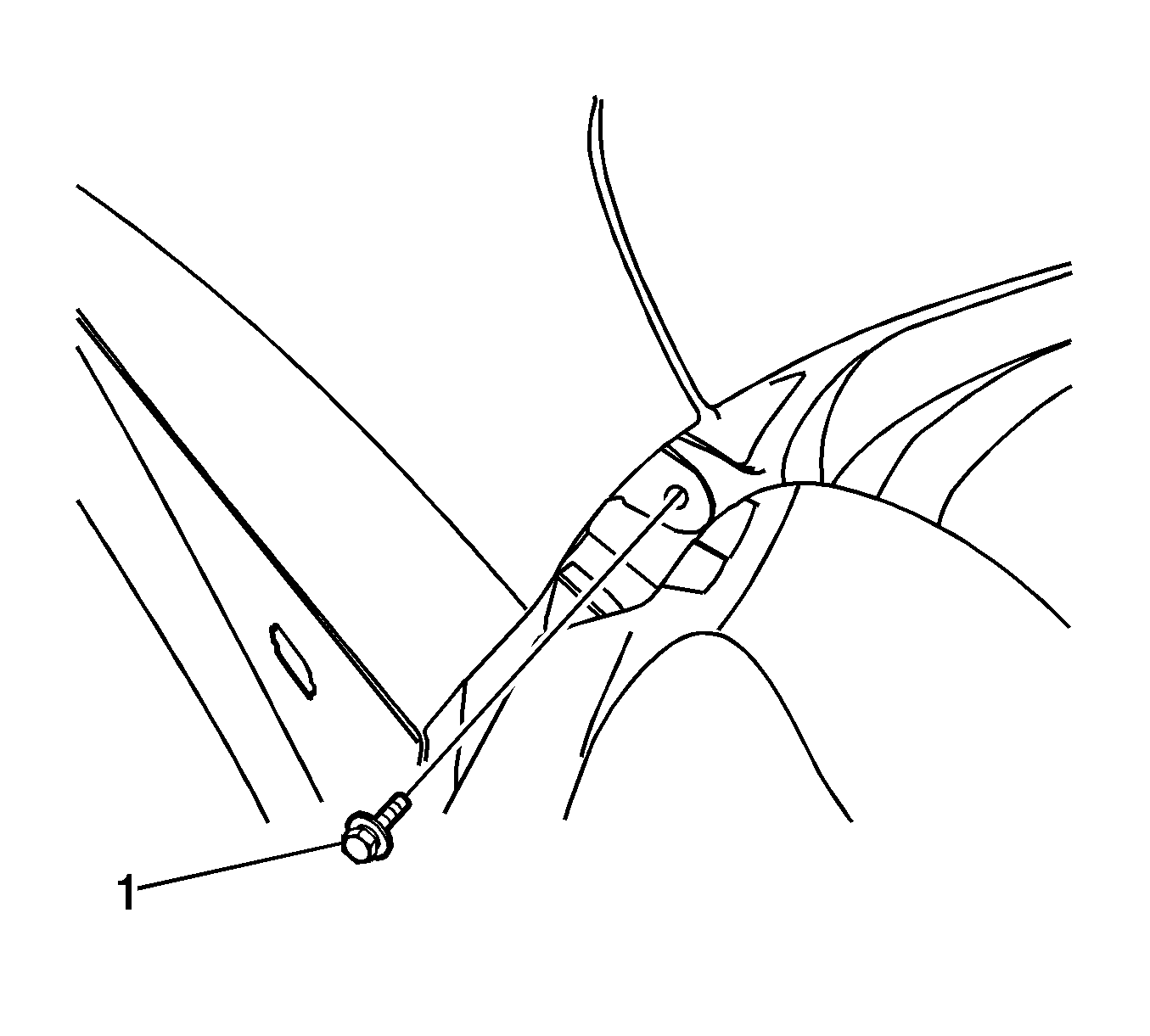

    4. Fig 3: Remove/Install The Bolt At The Base Of The Windshield Pillar
    GM2046455Courtesy of GENERAL MOTORS CORP.
  4. Install the bolt at the base of the Windshield Pillar (1) and tighten to 8 N.m (71 lb in).

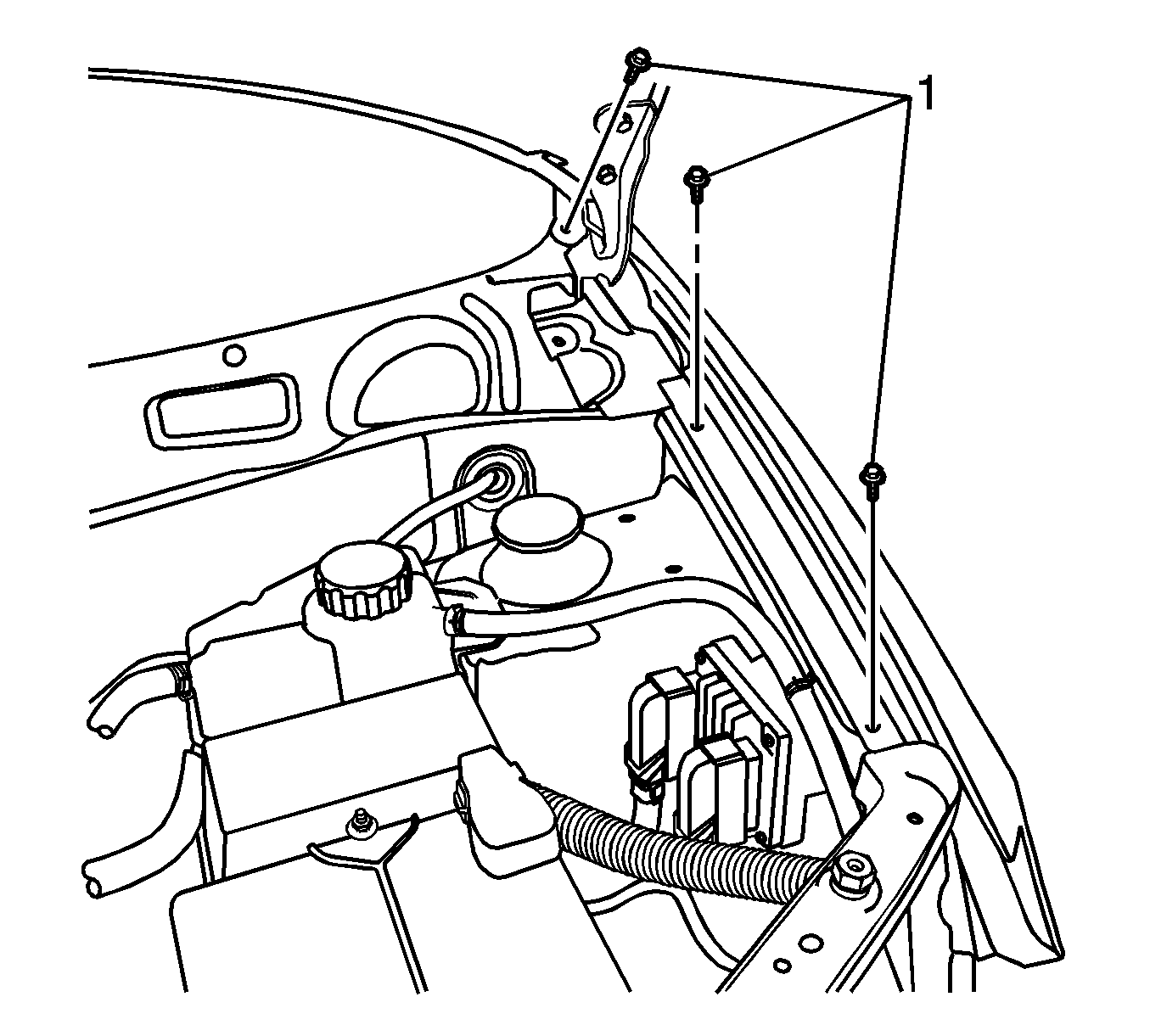

    5. Fig 4: Remove/Install The Upper Fender Bolts
    GM2046454Courtesy of GENERAL MOTORS CORP.
  5. Install the upper fender bolts (1) and tighten to 8 N.m (71 lb in).
  6. Install the side marker lamps. Refer to Front Side Marker Lamp Replacement .
  7. Install the left side of the air inlet panel. Refer to Air Inlet Grille Panel Replacement .
  8. Install the front fascia. Refer to Front Bumper Fascia Replacement (Hatchback) or Front Bumper Fascia Replacement (Notchback) .
  9. Install the fascia grille. Refer to Fascia Grille Replacement (Notchback) or Fascia Grille Replacement (Hatchback) .

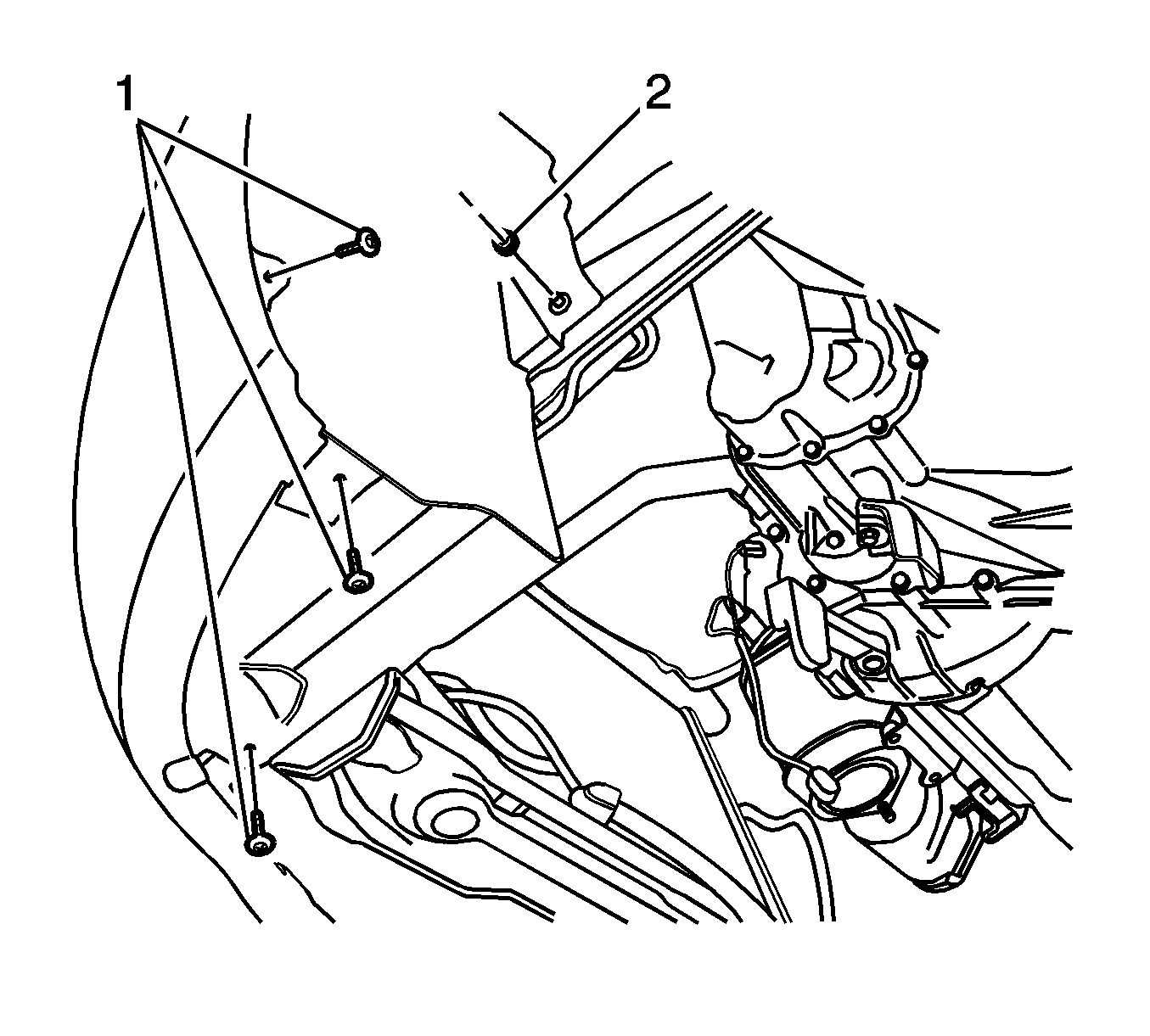

    10. Fig 5: Remove/Install The Fender Liner Nuts
    GM2046453Courtesy of GENERAL MOTORS CORP.
  10. Install the fender liner nuts (2) and screws (1).

    Tighten:  Tighten the fender liner nuts to 13 N.m (113 lb in).

    Tighten:  Tighten the fender liner bolts to 1.5 N.m (13 lb in).

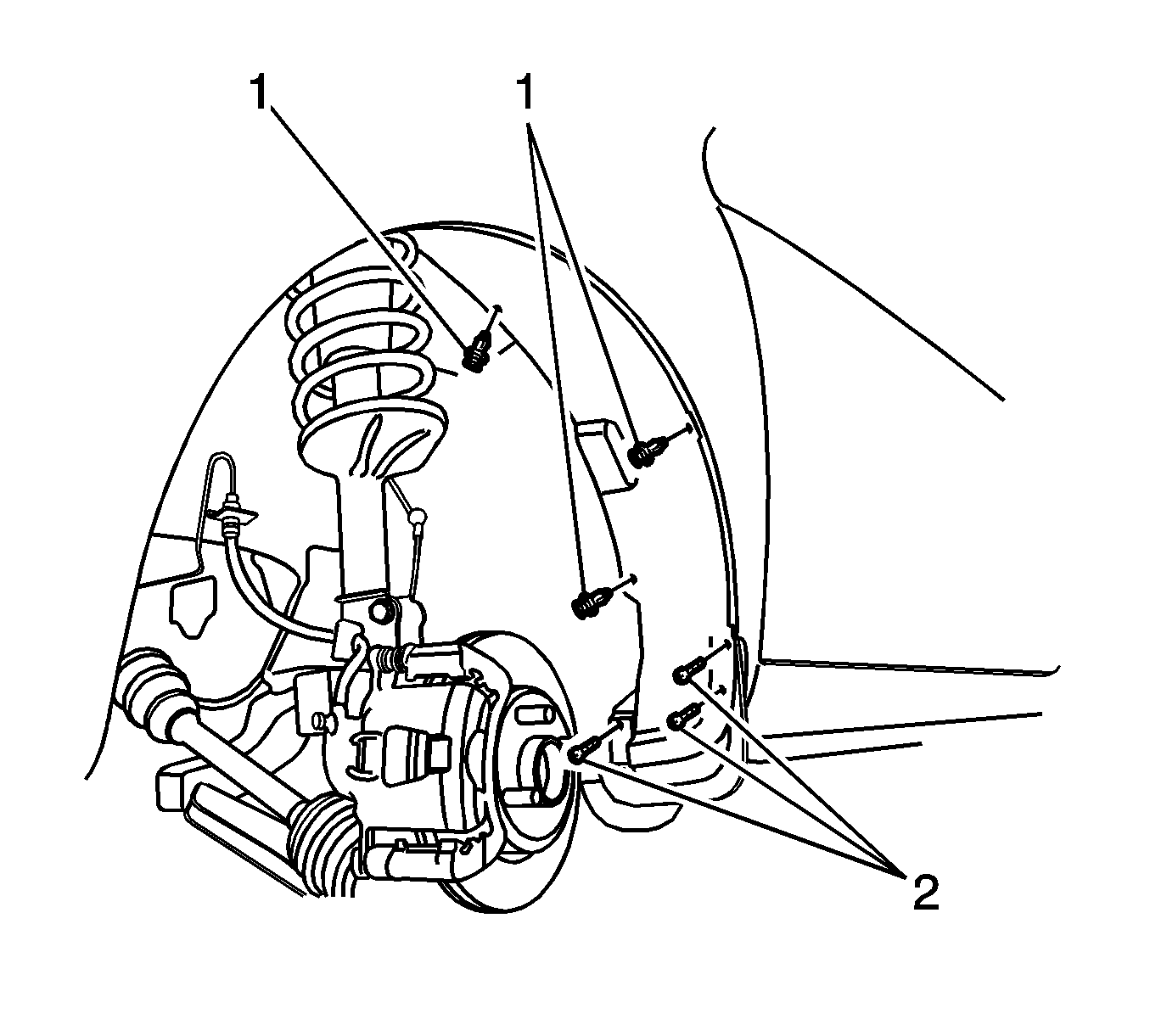

    11. Fig 6: Remove/Install The Fender Liner To Mud Guard Bolts
    GM2046452Courtesy of GENERAL MOTORS CORP.
  11. Install the fender liner clips (1).
  12. Install the fender liner to mud guard bolts (2) and tighten to 1.5 N.m (13 lb in.
  13. Install the front wheel. Refer to Tire and Wheel Removal and Installation .
  14. Lower the vehicle.
