Installation Procedure

Fig 1: View Of Fluid Cooler Inlet Pipe, Bolt & Transaxle

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution

Install the fluid cooler inlet pipe fitting nut into the transaxle and tighten to 35 N.m (26 Ib ft).
Install the fluid cooler inlet pipe bolt into the transaxle and tighten to 9 N.m (80 Ib in).

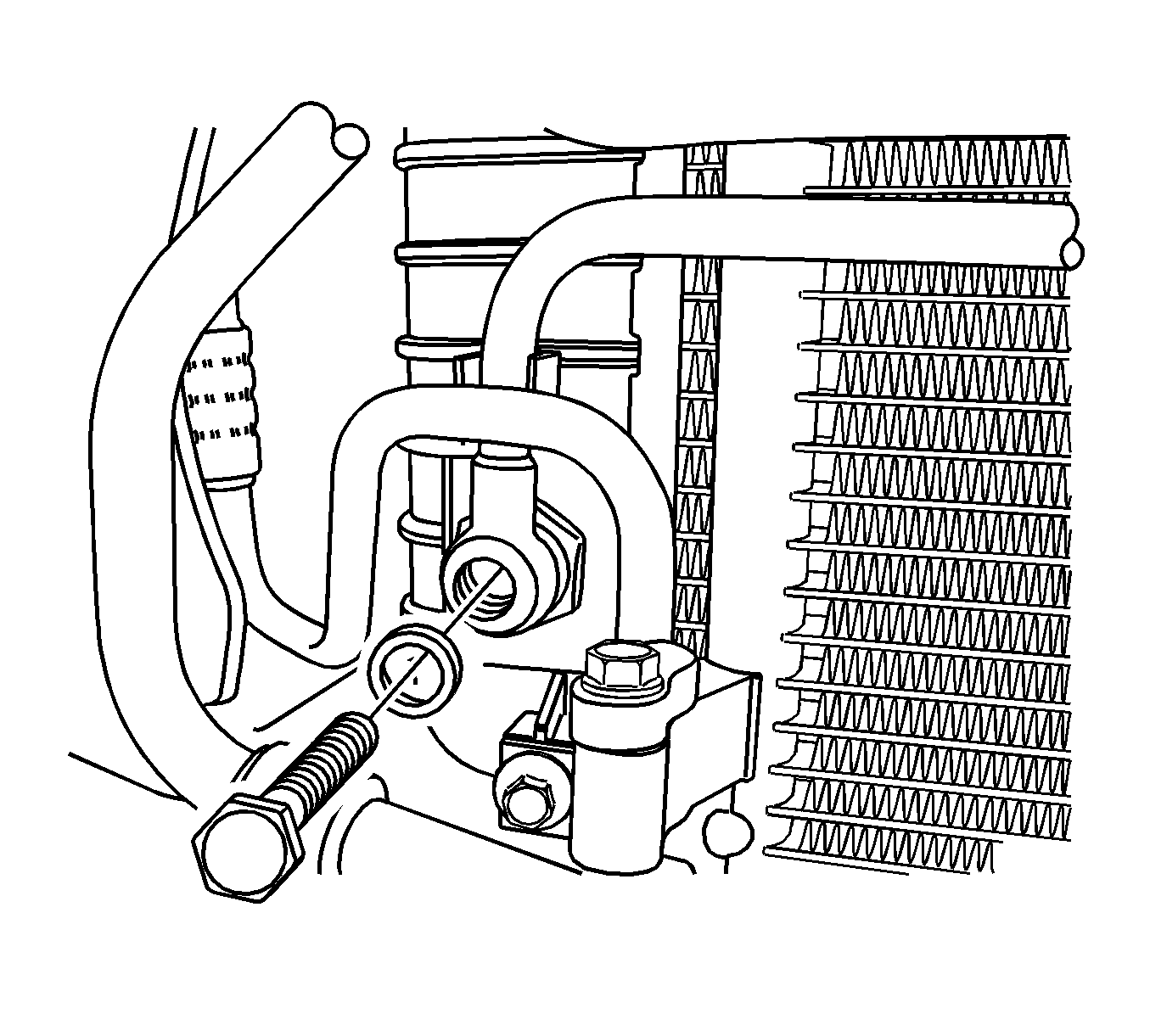

Fig 2: Inlet Pipe Union Bolt And Washers At Radiator

Courtesy of GENERAL MOTORS CORP.

Install the inlet and outlet pipes retaining bolt and tighten to 9 N.m (80 Ib in).
Install the inlet pipe union bolt and new washers into the radiator and tighten to 35 N.m (26 Ib ft)
Lower the vehicle.
Fill the transaxle with the fluid.
