Automatic Transmission Controls Schematics

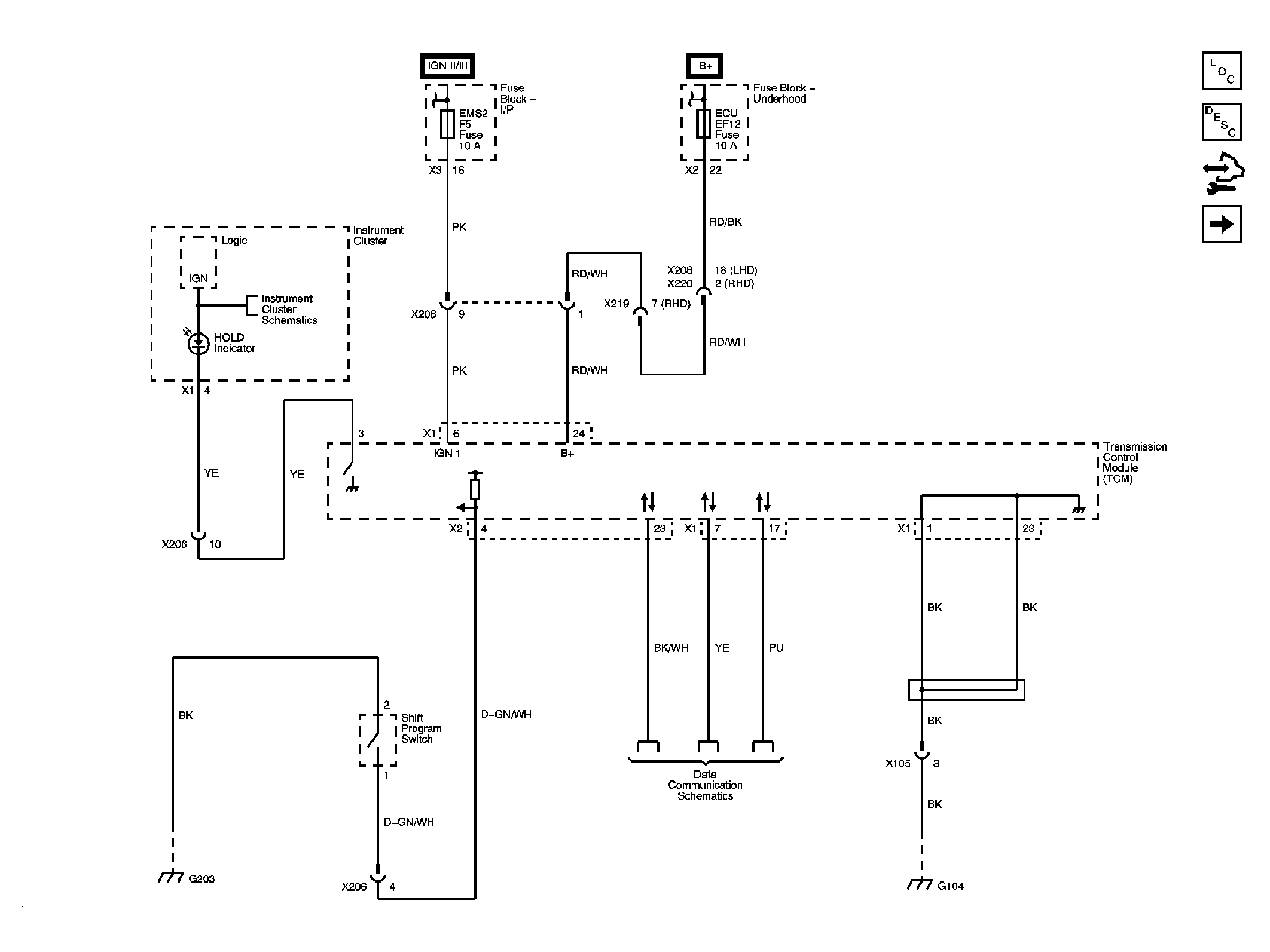

Fig 1: Power, Ground, Serial Data, Shift Program Switch

Courtesy of GENERAL MOTORS CORP.

Fig 2: Stop Lamp Switch, Transmission Solenoids

Courtesy of GENERAL MOTORS CORP.

Fig 3: Vehicle Speed Sensor, Input Speed Sensor

Courtesy of GENERAL MOTORS CORP.

Fig 4: PNP Switch

Courtesy of GENERAL MOTORS CORP.
