Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

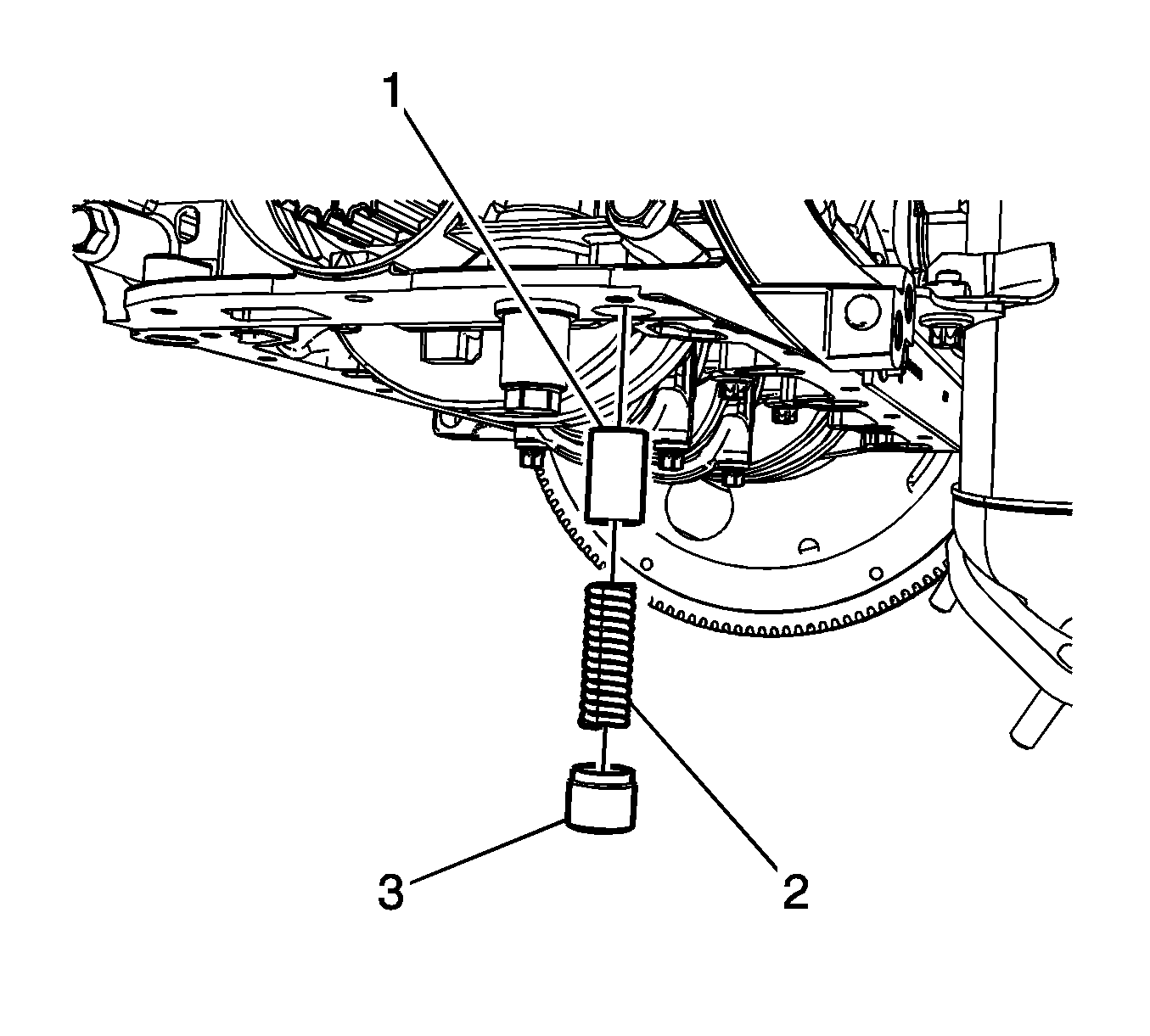

    Fig 1: Oil Pressure Relief Valve Plug, Spring & Piston (Secondary)
    GM2049579Courtesy of GENERAL MOTORS CORP.
  1. Clean the plug thread, spring and piston.
  2. Install the valve piston (1).
  3. Install the valve spring (2).
    4. CAUTION: Refer to Fastener Caution .
  4. Install the oil overpressure relief valve plug (3).

    Tighten:  Tighten the oil pressure relief valve plug to 10 N.m (88.5 lb in).

  5. Install the oil pan. Refer to Oil Pan Replacement .
