G3 Automatic
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Antilock Brake System
>>
Schematic and Routing Diagrams
>>
Antilock Brake System Schematics
Antilock Brake System Schematics

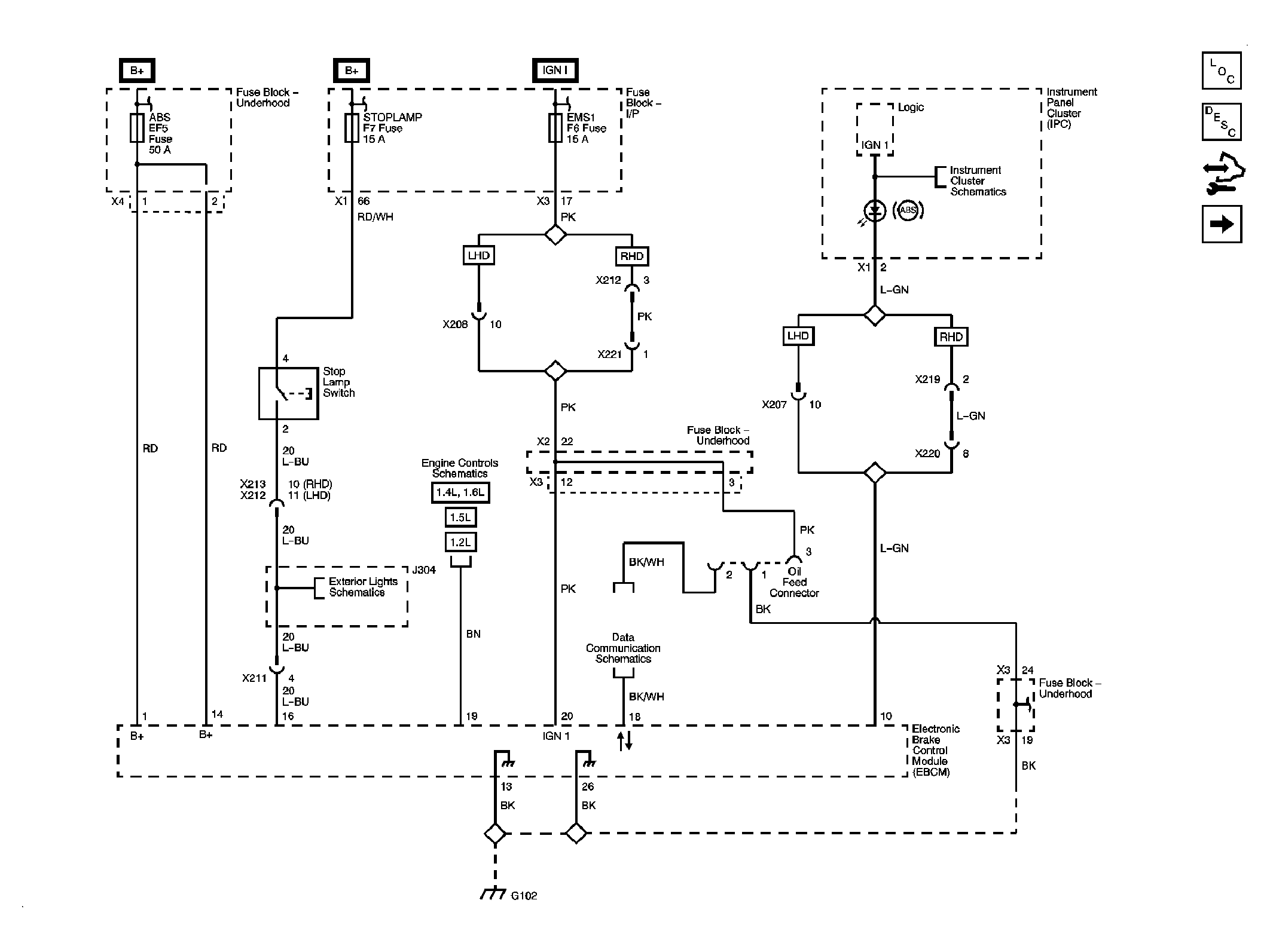

Fig 1: Power, Ground, Serial Data, Stop Lamp, Indicator (Hatchback)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
