Theft Deterrent System Schematics

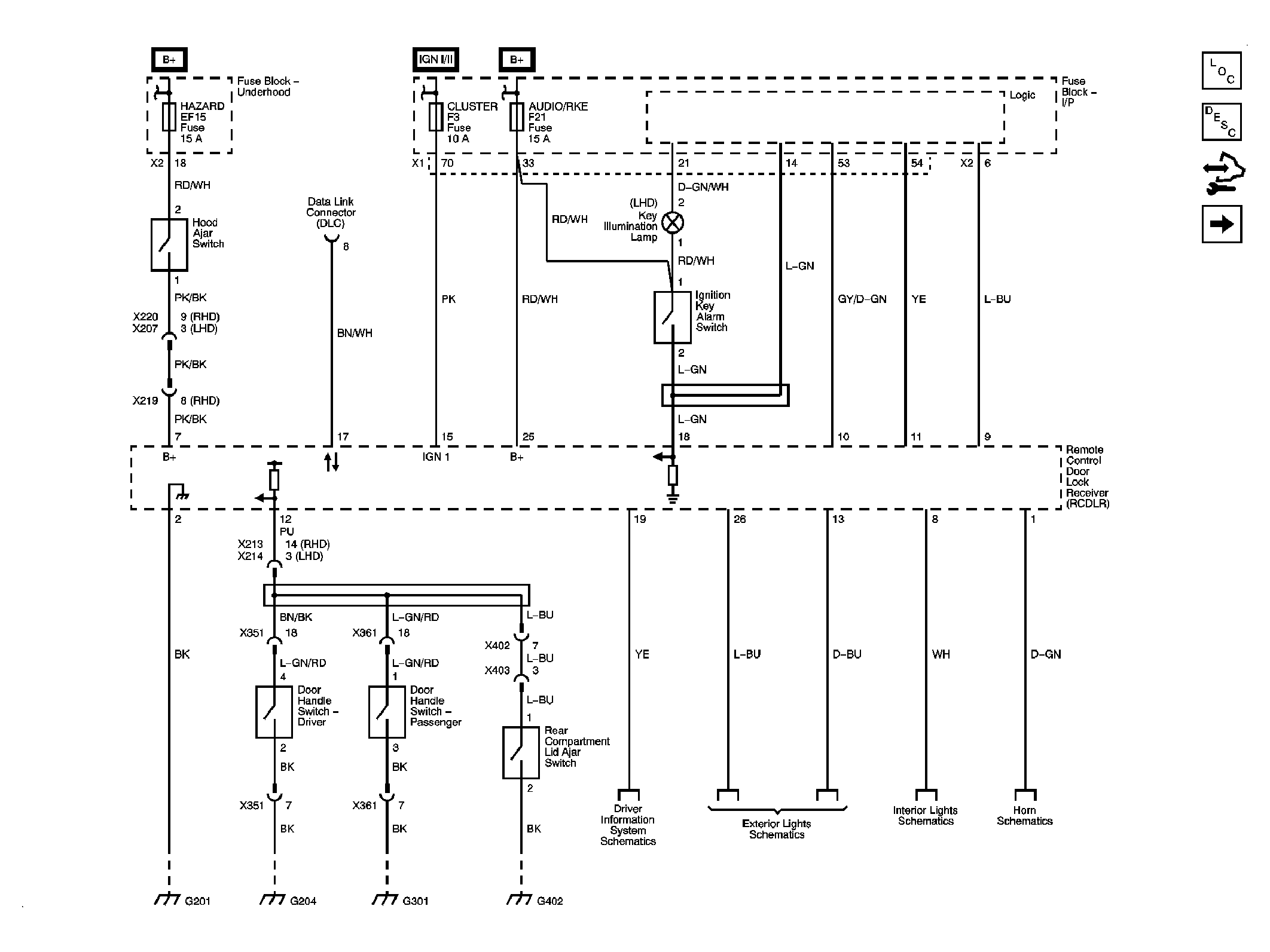

Fig 1: Hatchback

GM2053927

Courtesy of GENERAL MOTORS CORP.

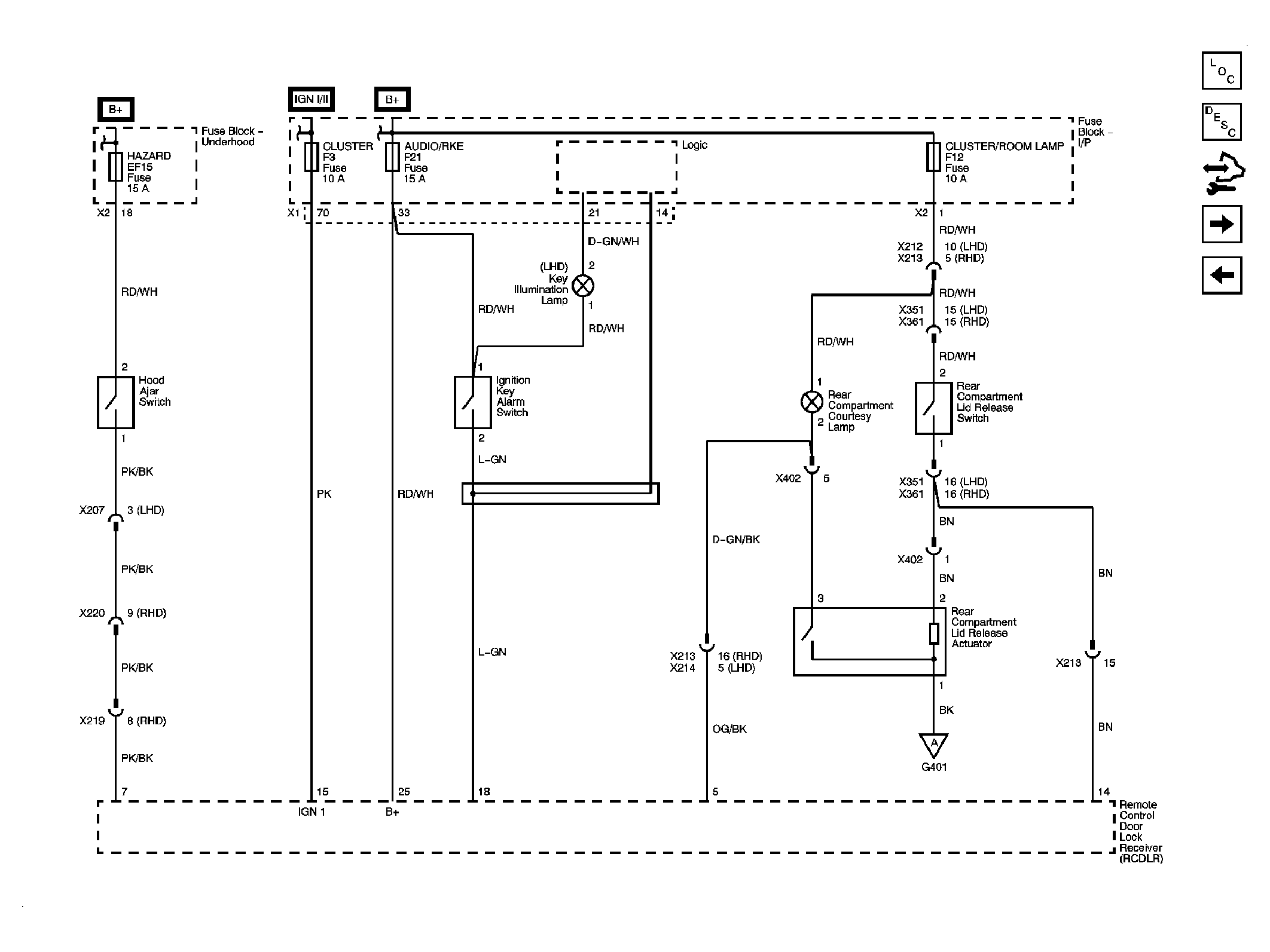

Fig 2: Notchback (1 of 2)

GM2053928

Courtesy of GENERAL MOTORS CORP.

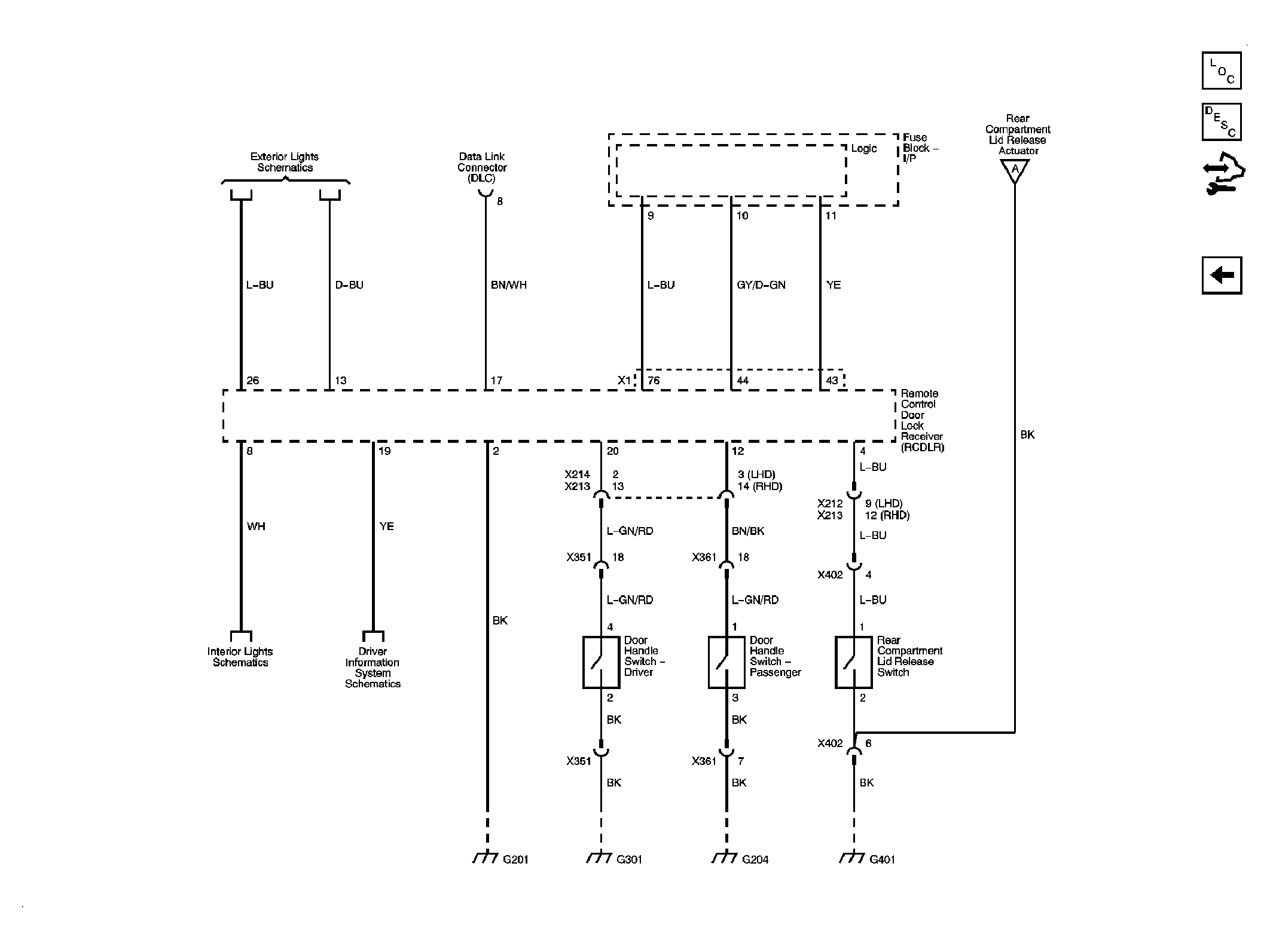

Fig 3: Notchback (2 of 2)

GM2053929

Courtesy of GENERAL MOTORS CORP.
