Vent Hose Replacement

WARNING: This page is about a different car, the 2008 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

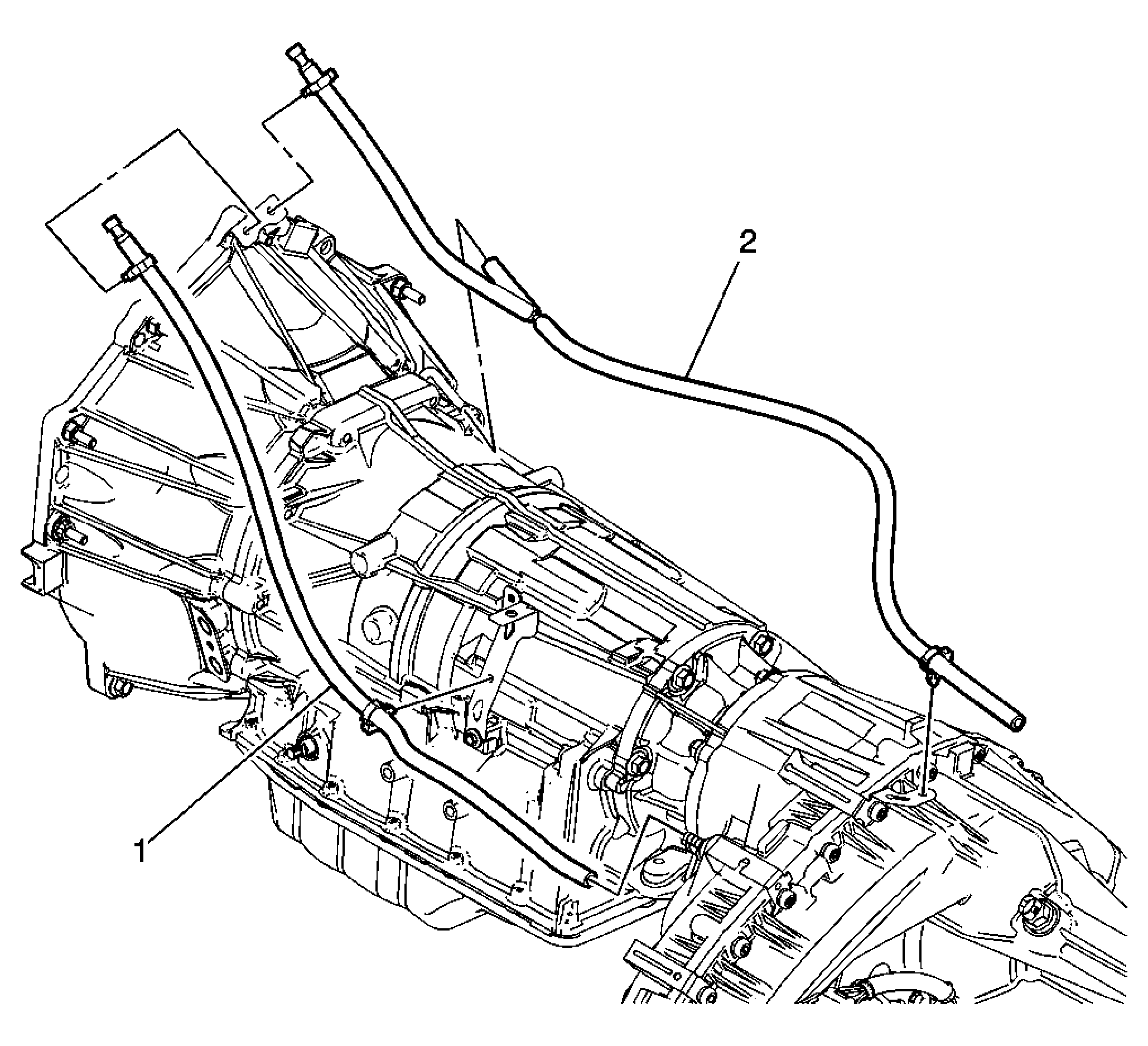

Fig 1: Vent Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Transfer Case Vent Hose Procedure Disconnect hose retainers from transmission. Disconnect hose from transfer case.
2	Transmission Vent Hose Procedure Disconnect hose retainers from transmission and transfer case. Disconnect hose from transmission.

Callout

Component Name

Preliminary Procedure:
Raise the vehicle. Refer to Lifting and Jacking the Vehicle .

Transfer Case Vent Hose

Procedure

Disconnect hose retainers from transmission.
Disconnect hose from transfer case.

Transmission Vent Hose

Procedure

Disconnect hose retainers from transmission and transfer case.
Disconnect hose from transmission.
