Transmission Fluid Filler Tube and Seal Replacement
WARNING: This page is about a different car, the 2008 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

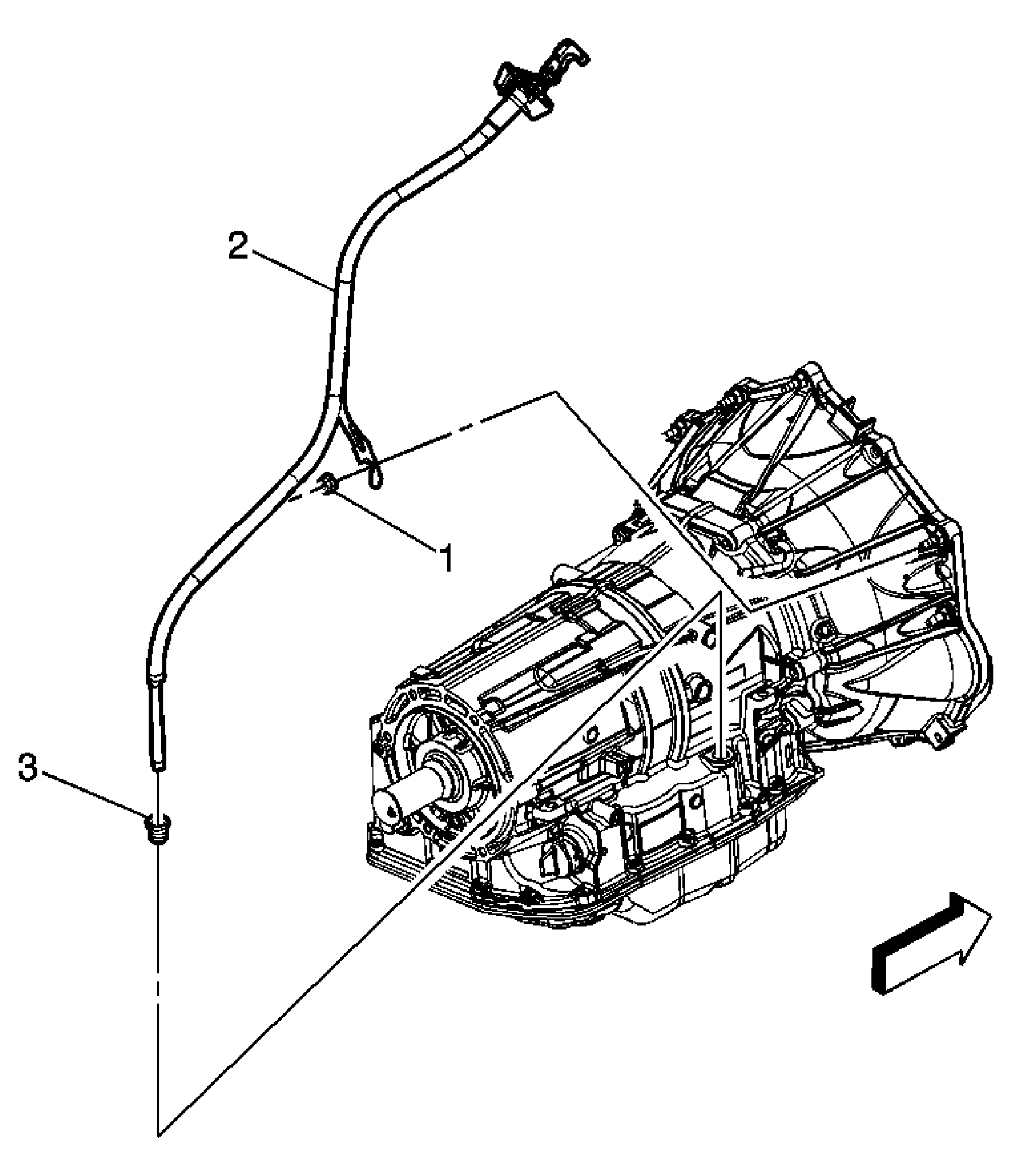

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the transmission. Refer to Transmission Replacement . |
|
| 1 | Transmission Fluid Filler Tube Nut
NOTE:
Refer to Fastener Notice
.
Tighten: 18 N.m (13 lb ft) |
| 2 | Transmission Fluid Filler Tube Seal |
| 3 | Transmission Fluid Filler Tube |
