Automatic Transmission Control Indicator Replacement
WARNING: This page is about a different car, the 2008 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

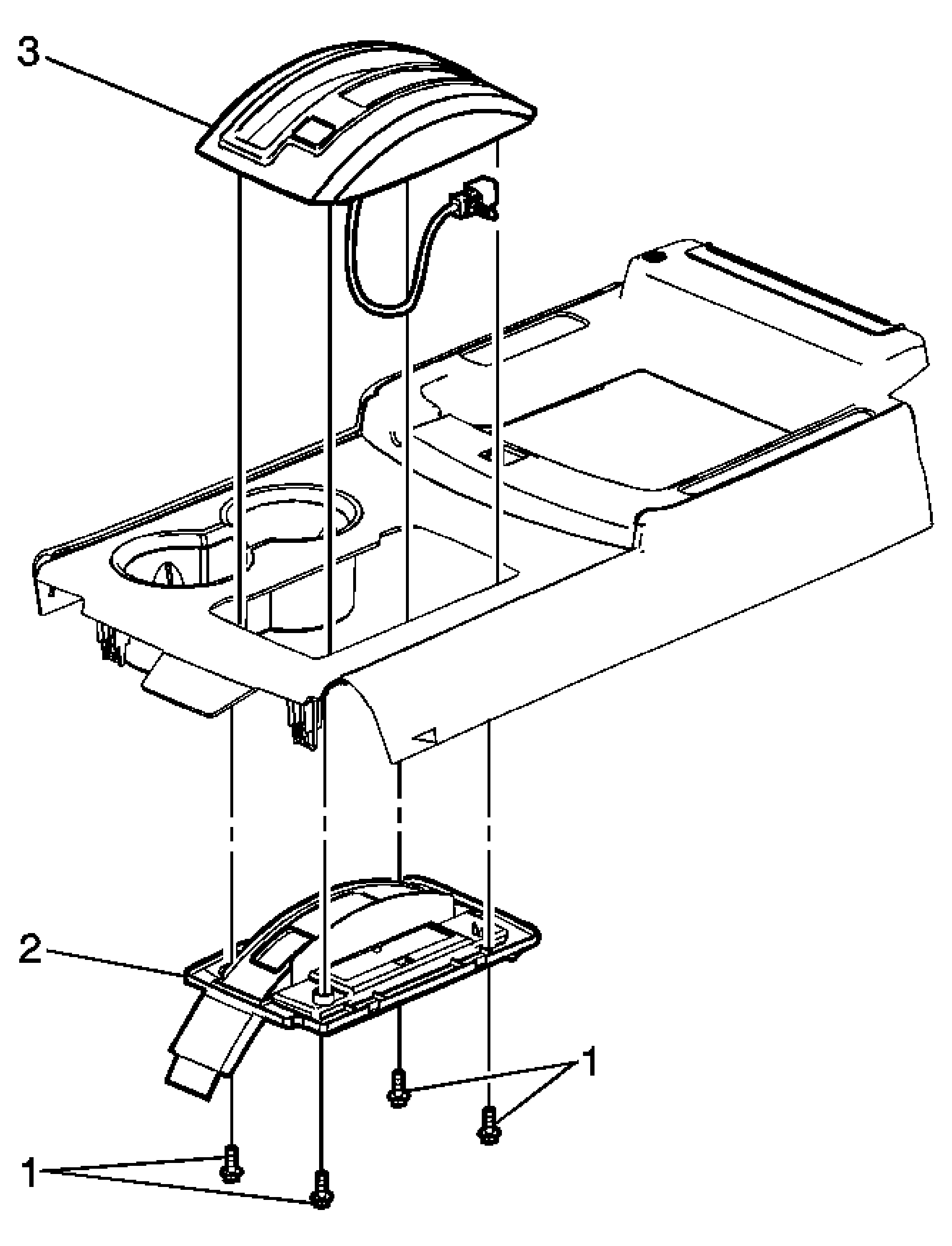

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the console shift lever bezel. Refer to Console Shift Lever Bezel Replacement . |
|
| 1 | Transmission Control Indicator Screw
NOTE:
Refer to Fastener Notice
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Transmission Control Indicator Base |
| 3 | Transmission Control Indicator |
