Drive Range, Fifth Gear Default - A/T System Hydraulic Diagram

WARNING: This page is about a different car, the 2008 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

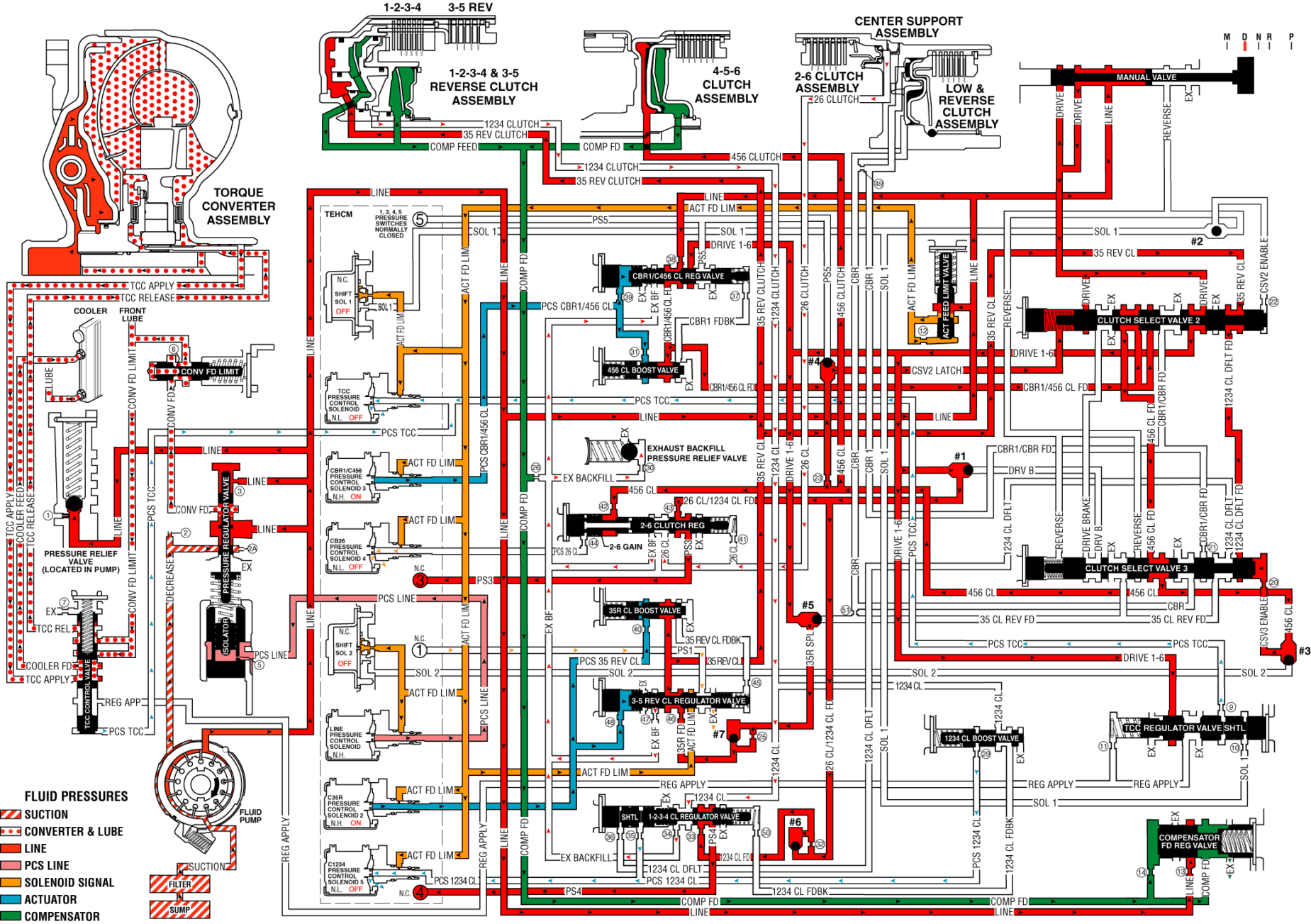

Fig 1: Drive Range, Fifth Gear Default
GM1694505Courtesy of GENERAL MOTORS CORP.
