Body Rear Corner Upper Garnish Molding Replacement

WARNING: This page is about a different car, the 2008 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

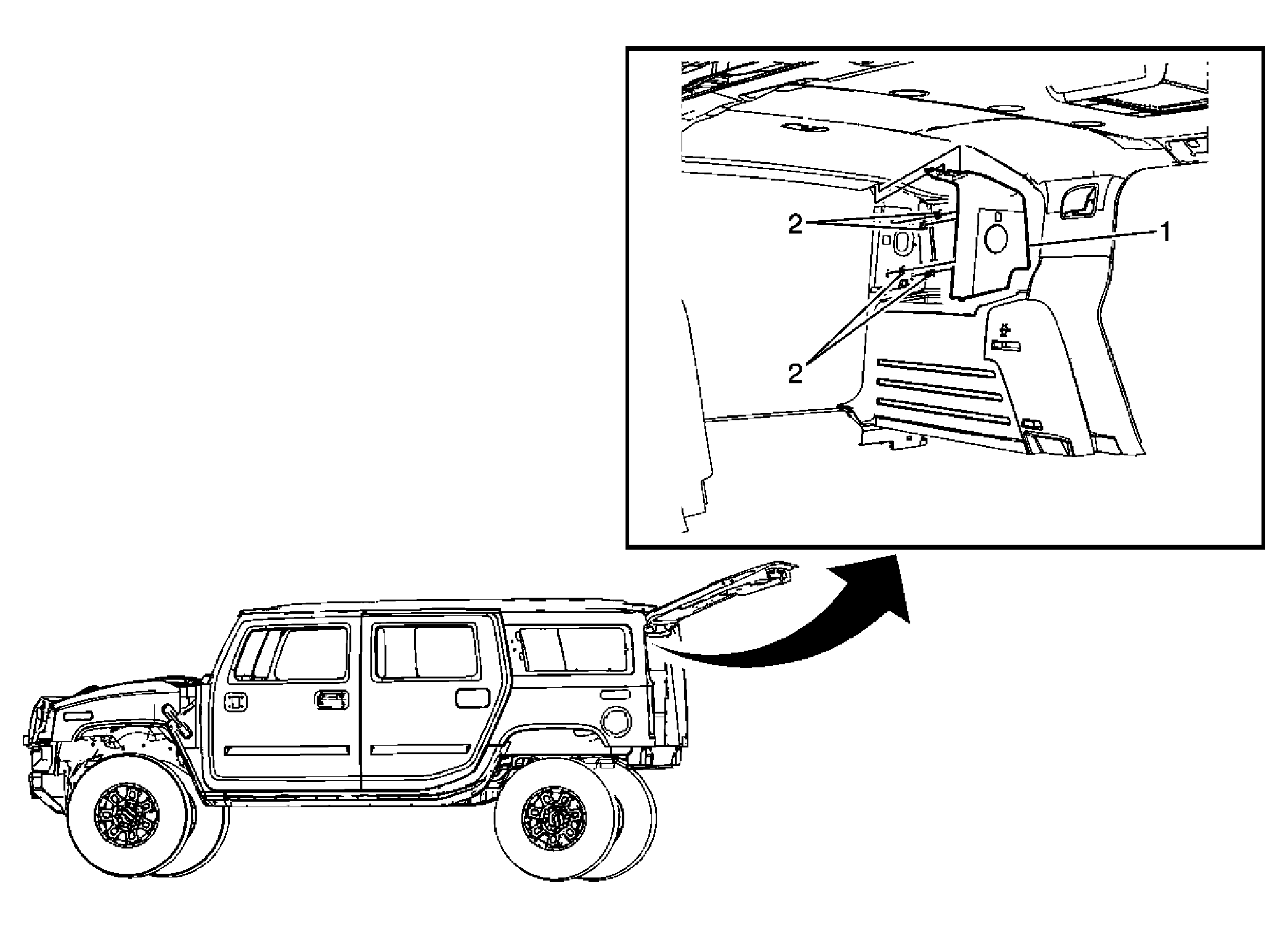

Fig 1: Body Rear Corner Upper Garnish Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the back body opening garnish molding. Refer to Back Body Opening Garnish Molding Replacement (SUT) .
1	Rear Upper Garnish Molding Assembly Procedure Grasp the garnish molding and pull it forward in vehicle disengaging the clips securing it to the body. Disconnect the electrical connections. When replacing the rear upper garnish molding assembly, transfer all necessary components.
2	Retainer Clips (Qty: 4)

Callout

Component Name

Preliminary Procedure:
Remove the back body opening garnish molding. Refer to Back Body Opening Garnish Molding Replacement (SUT) .

Rear Upper Garnish Molding Assembly

Procedure

Grasp the garnish molding and pull it forward in vehicle disengaging the clips securing it to the body.
Disconnect the electrical connections.
When replacing the rear upper garnish molding assembly, transfer all necessary components.

Retainer Clips (Qty: 4)
