Automatic Transmission Controls Schematics

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

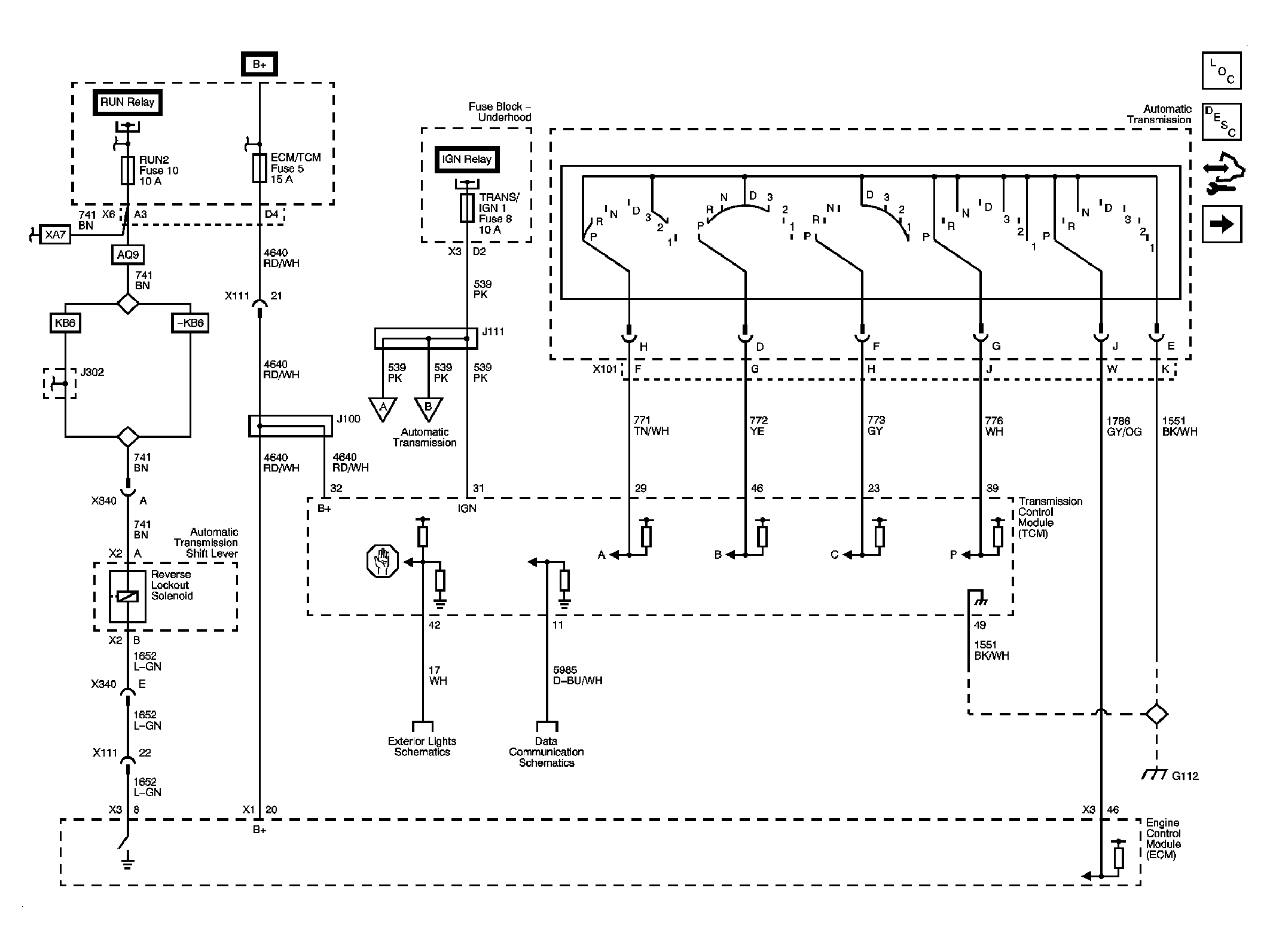

Fig 1: TCM Power and Ground
GM2082431Courtesy of GENERAL MOTORS CORP.

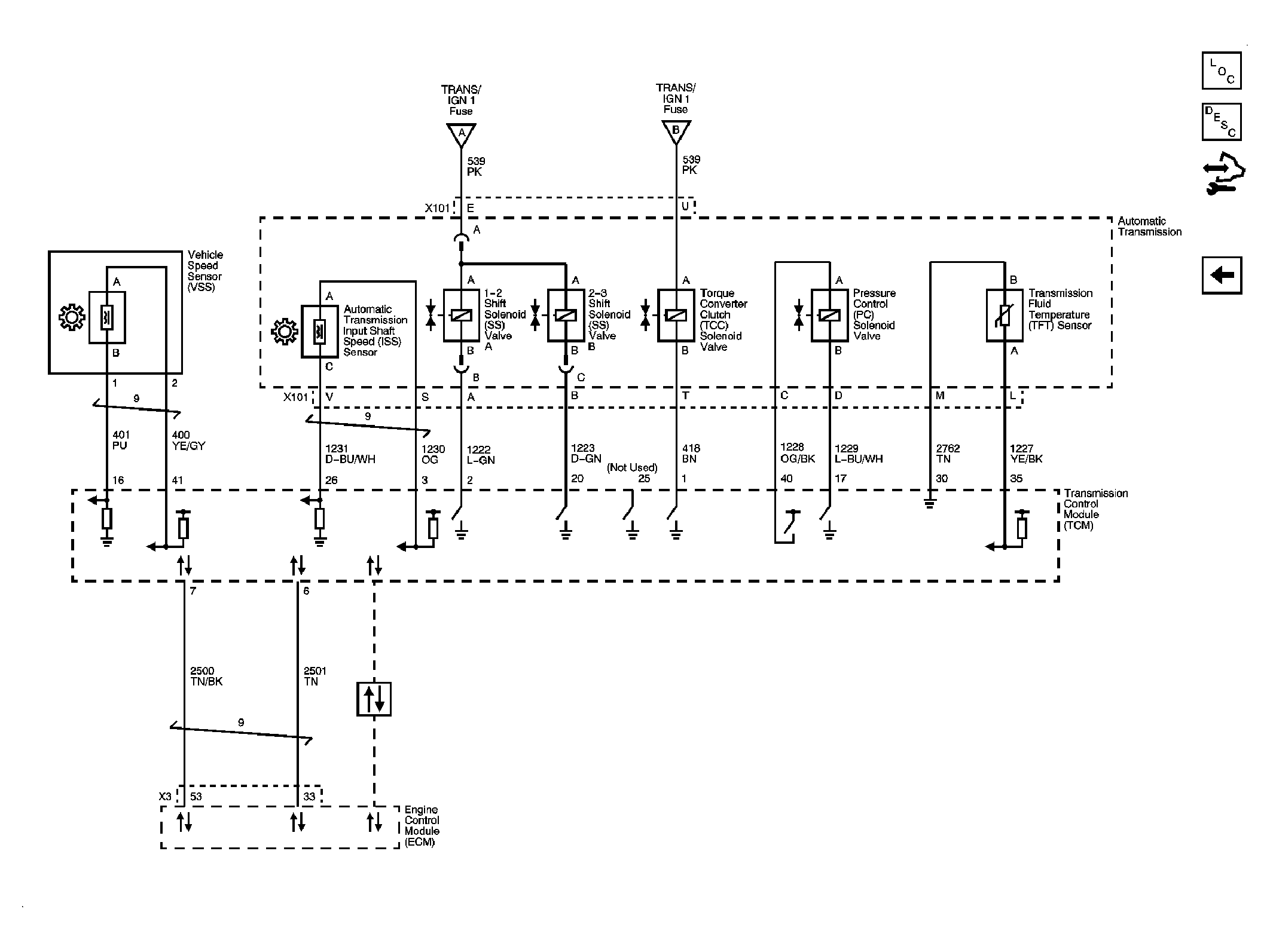

Fig 2: Transmission Solenoids and VSS
GM2082432Courtesy of GENERAL MOTORS CORP.
