Installation Procedure

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Mount to Frame Bolts & Nuts
    GM521324Courtesy of GENERAL MOTORS CORP.
  1. Install the mount (1).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the mount attaching bolts (3) and nut (2) securing the mount to the frame.

    Tighten:  Tighten the bolts and nut to 50 N.m (37 lb ft).

  3. Lower the transmission in position.

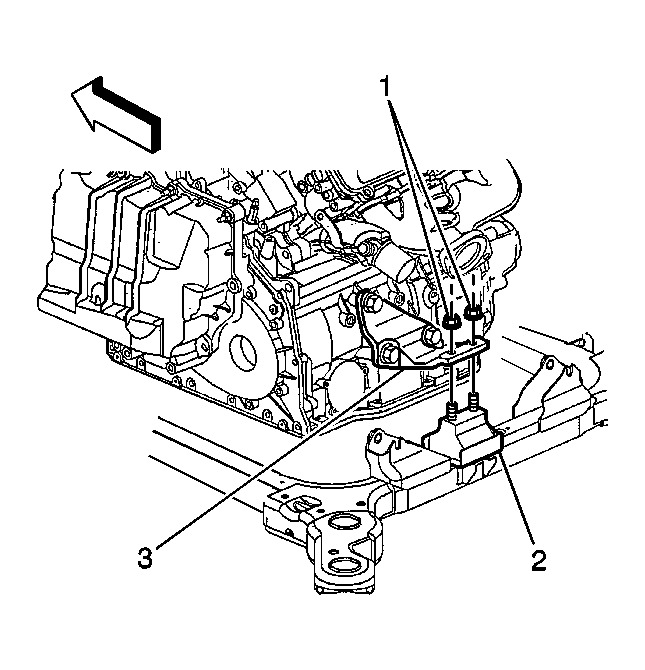

    4. Fig 2: View Of Engine Mount
    GM521323Courtesy of GENERAL MOTORS CORP.
  4. Install the nuts (1) to the mount (2) and mount bracket (3).

    Tighten:  Tighten the mount nut to 50 N.m (37 lb ft).

  5. Remove the engine assembly support jack.
  6. Lower the vehicle.
