Installation Procedure

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

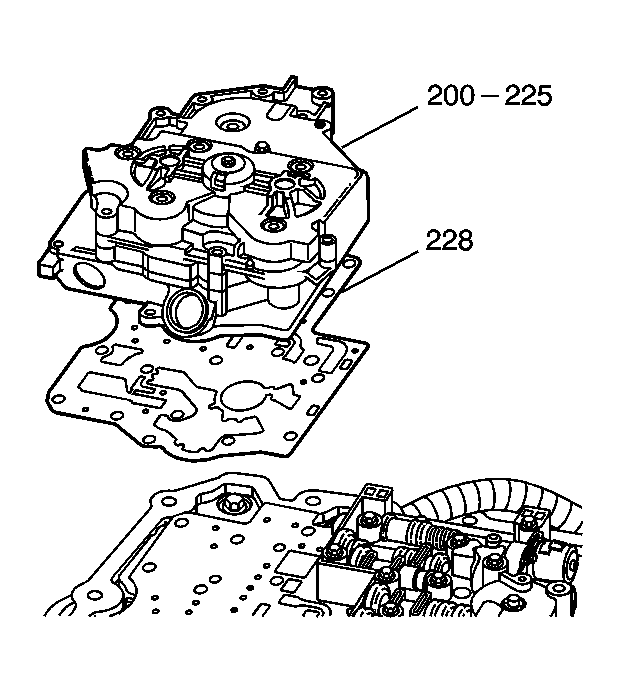

Fig 1: View Of Scavenge, Primary And Secondary Pump Assemblies

Courtesy of GENERAL MOTORS CORP.

Install the J 39068: guide pins into the case.
Install the new gasket (228).
Install the pump assembly (200-225).

Fig 2: Identifying Scavenge Pump Bolts

Courtesy of GENERAL MOTORS CORP.

Apply pipe thread sealant, GM P/N 12346004 to pump bolt threads before installation.
Hand start all of the bolts (229, 231, 232, 233, 234, 235, 331).

Fig 3: Identifying Pump Housing Bolts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Remove the guide pins, install the remaining bolts and tighten to 11-13 N.m (8.0-9.5 lb ft).
