Installation Procedure

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

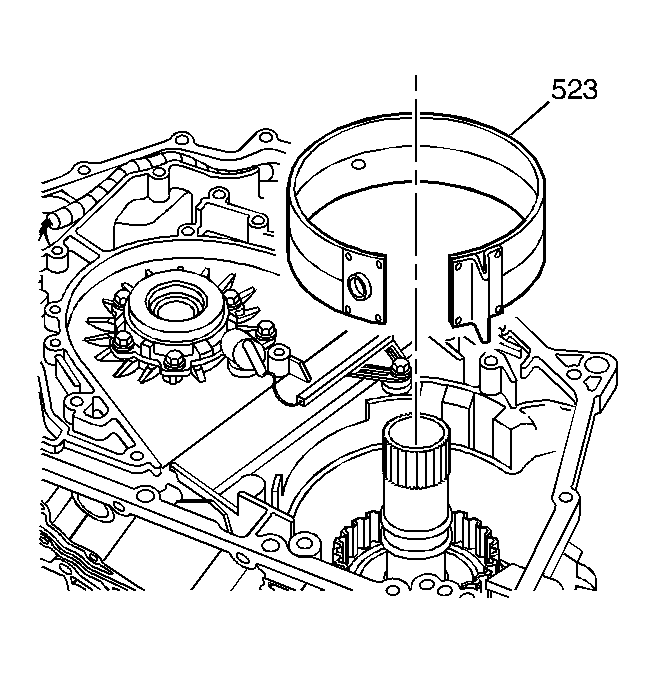

    Fig 1: Identifying Fourth Band
    GM11947Courtesy of GENERAL MOTORS CORP.
  1. Install the fourth band (523) into the case. Seat the band properly onto the anchor pin with the seat of the servo pin toward the servo bore in the case.

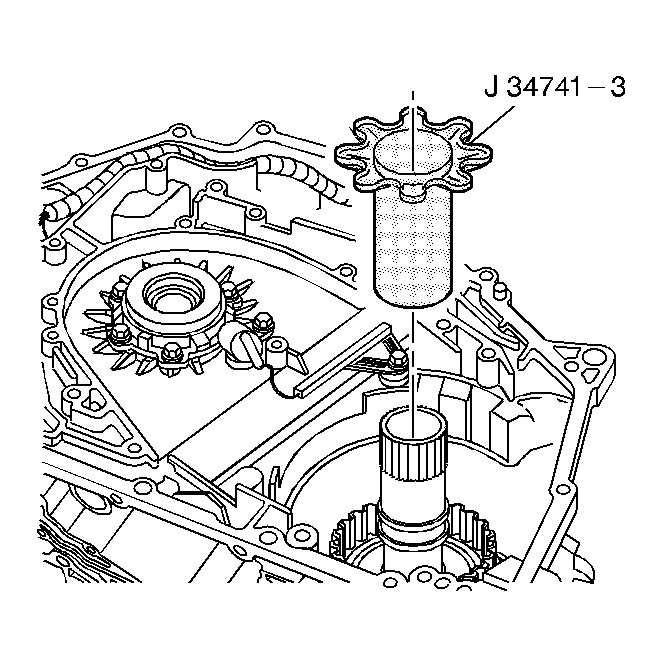

    2. Fig 2: View Of J 34741-3 Over Input Shaft Oil Seal Rings
    GM15455Courtesy of GENERAL MOTORS CORP.
    NOTE: Leave the J 34741-3:  seal sizer in place until the reverse clutch and housing assembly is ready to be installed.
  2. Install the J 34741-3:  seal sizer over the input shaft oil seal rings. Use a twisting motion to install the J 34741-3:  seal sizer. The J 34741-3:  seal sizer must contact the third clutch housing hub.
