Driver Seat Schematics

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

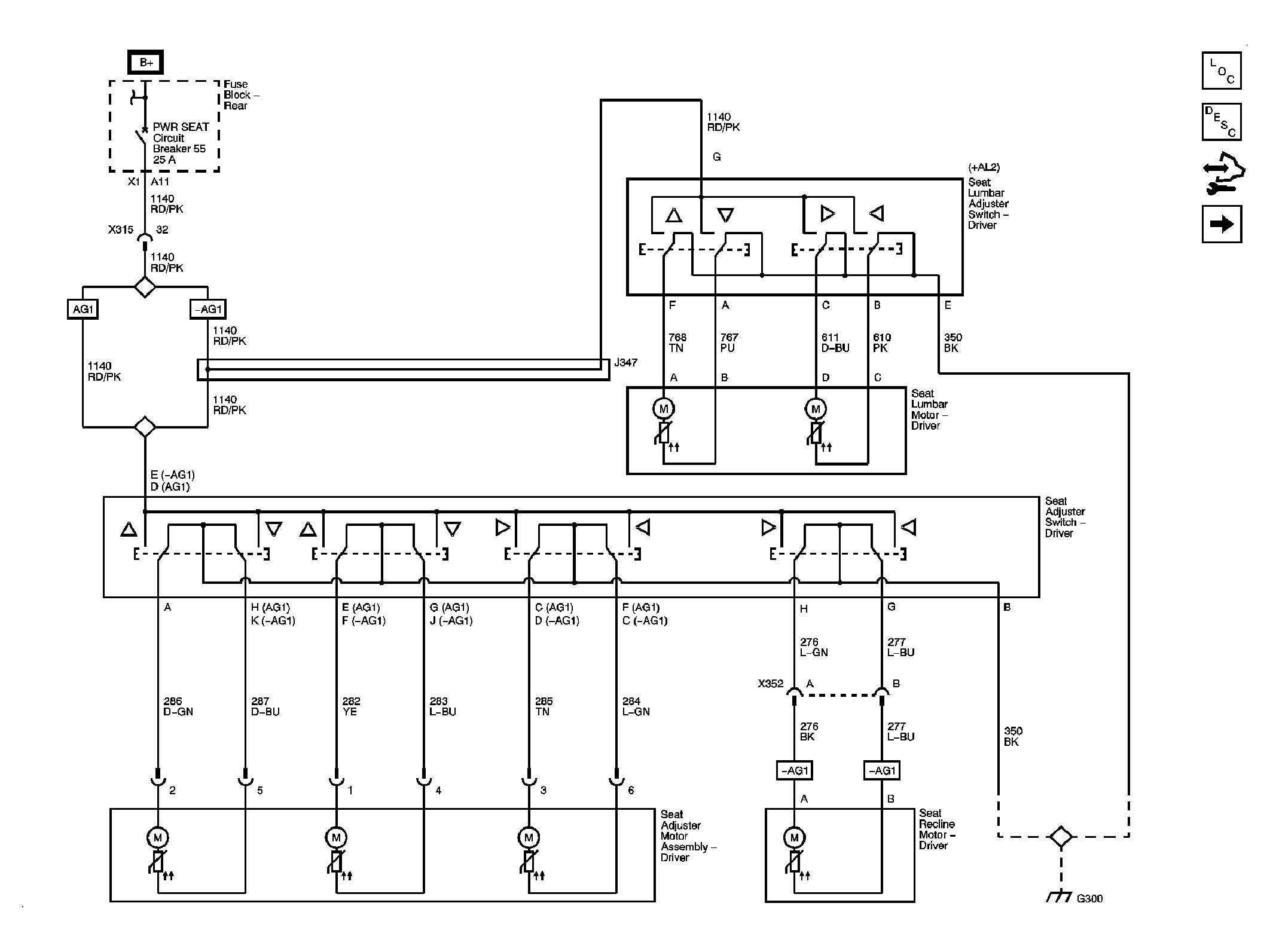

Fig 1: Driver Seat Schematic Without A45

Courtesy of GENERAL MOTORS CORP.

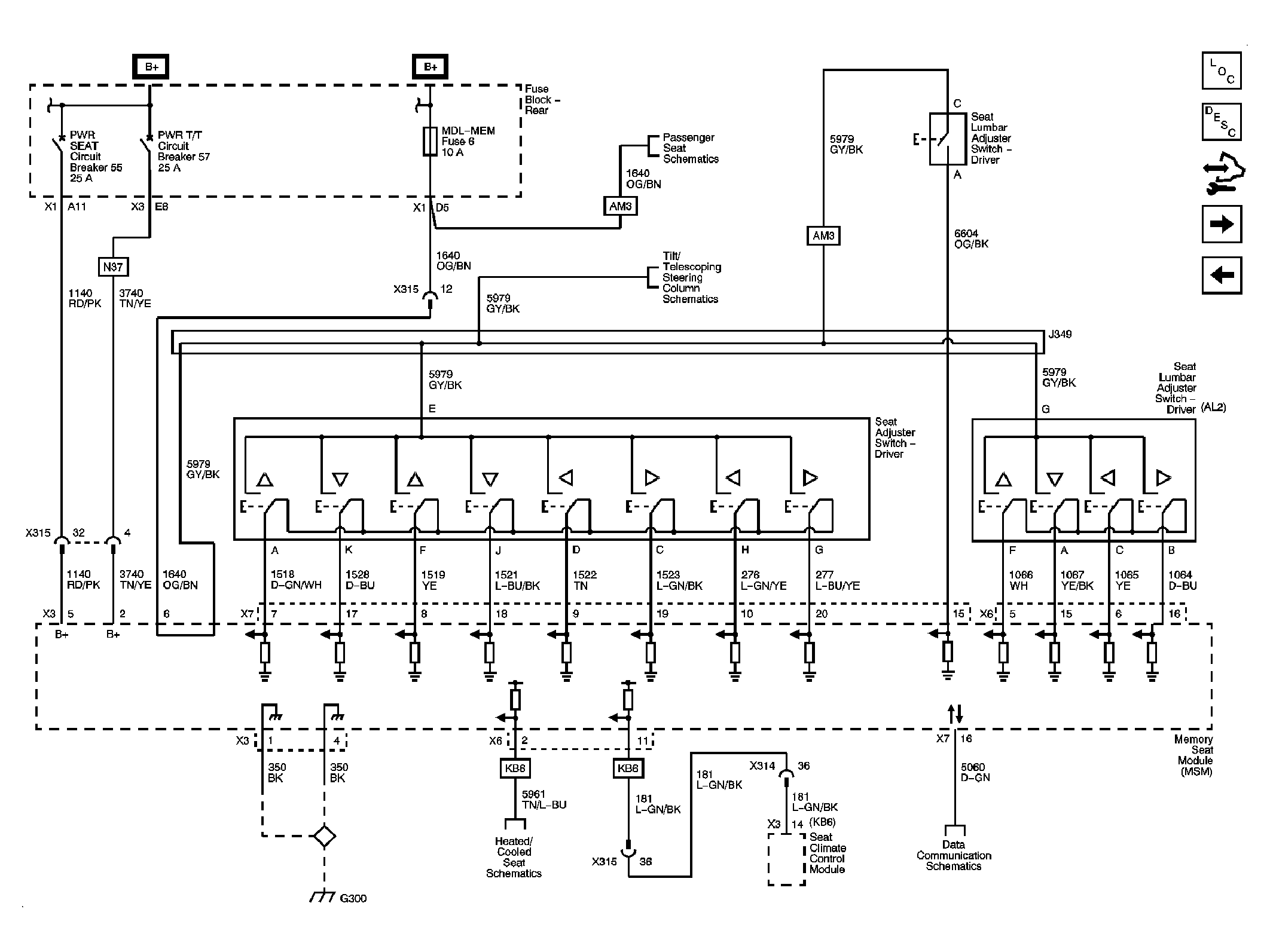

Fig 2: Driver Seat Schematic A45

Courtesy of GENERAL MOTORS CORP.

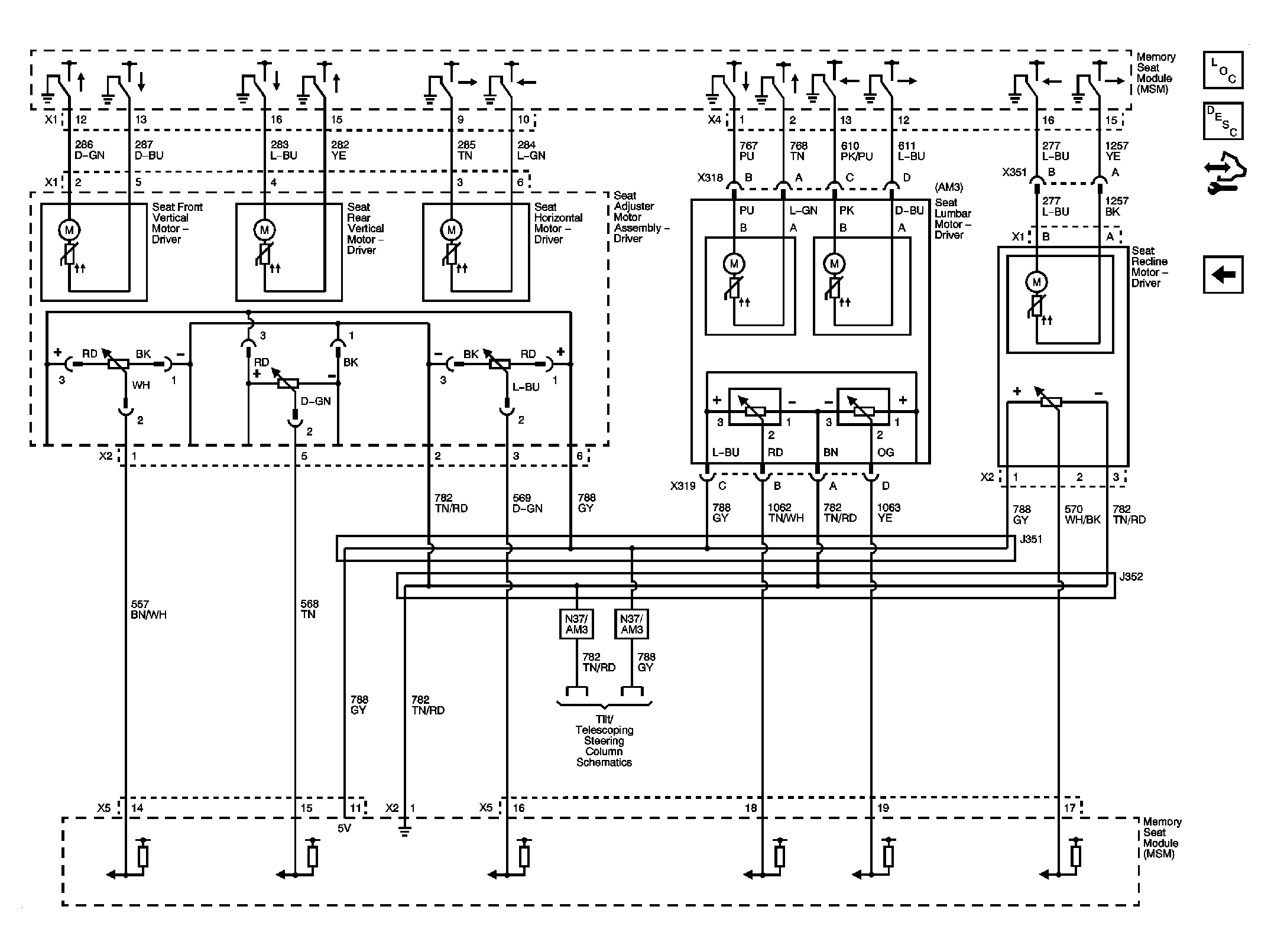

Fig 3: Position Sensors

Courtesy of GENERAL MOTORS CORP.
