Heated/Cooled Seat Schematics

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

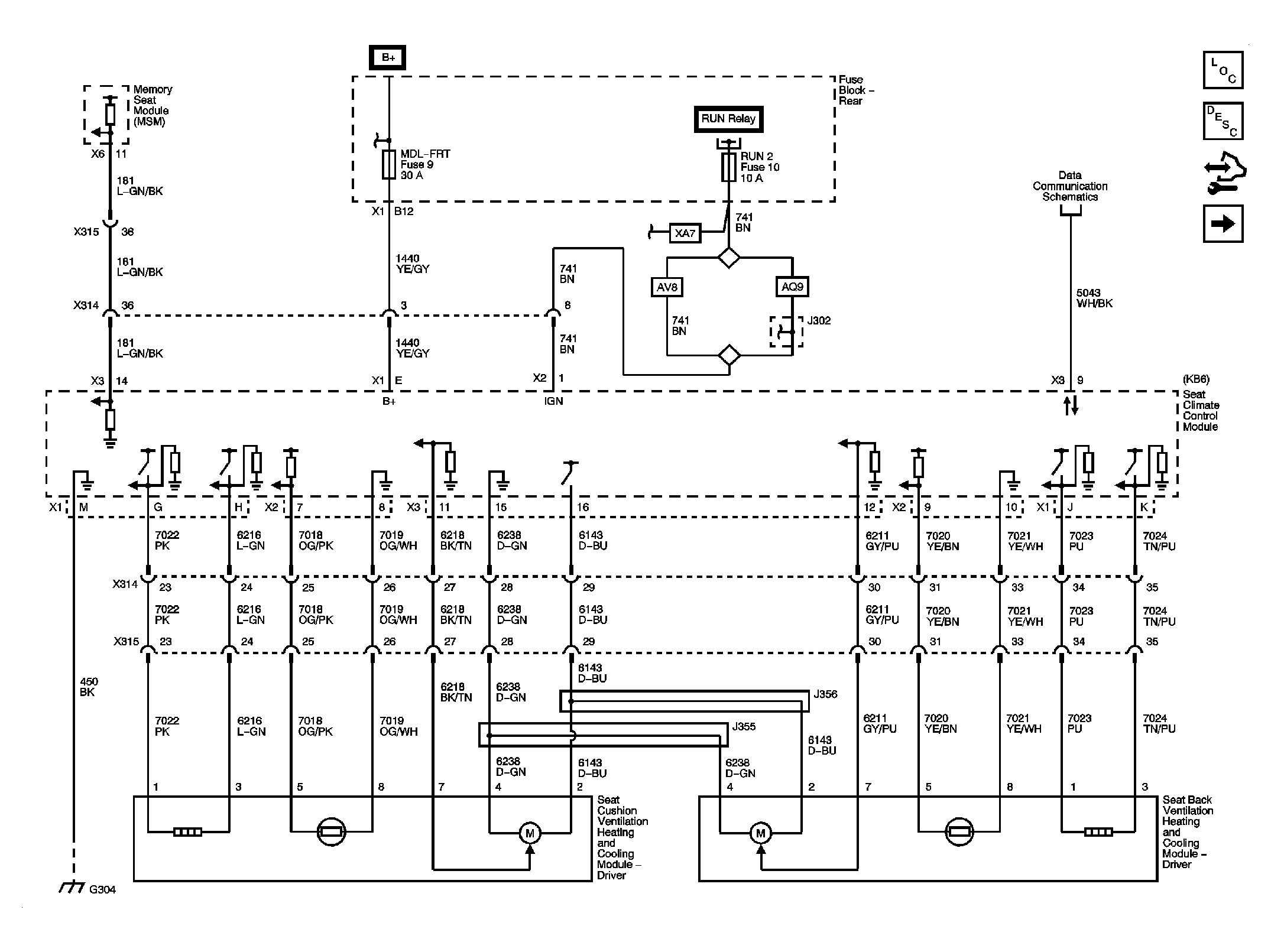

Fig 1: Driver Heated and Cooled Seat (KB6)

Courtesy of GENERAL MOTORS CORP.

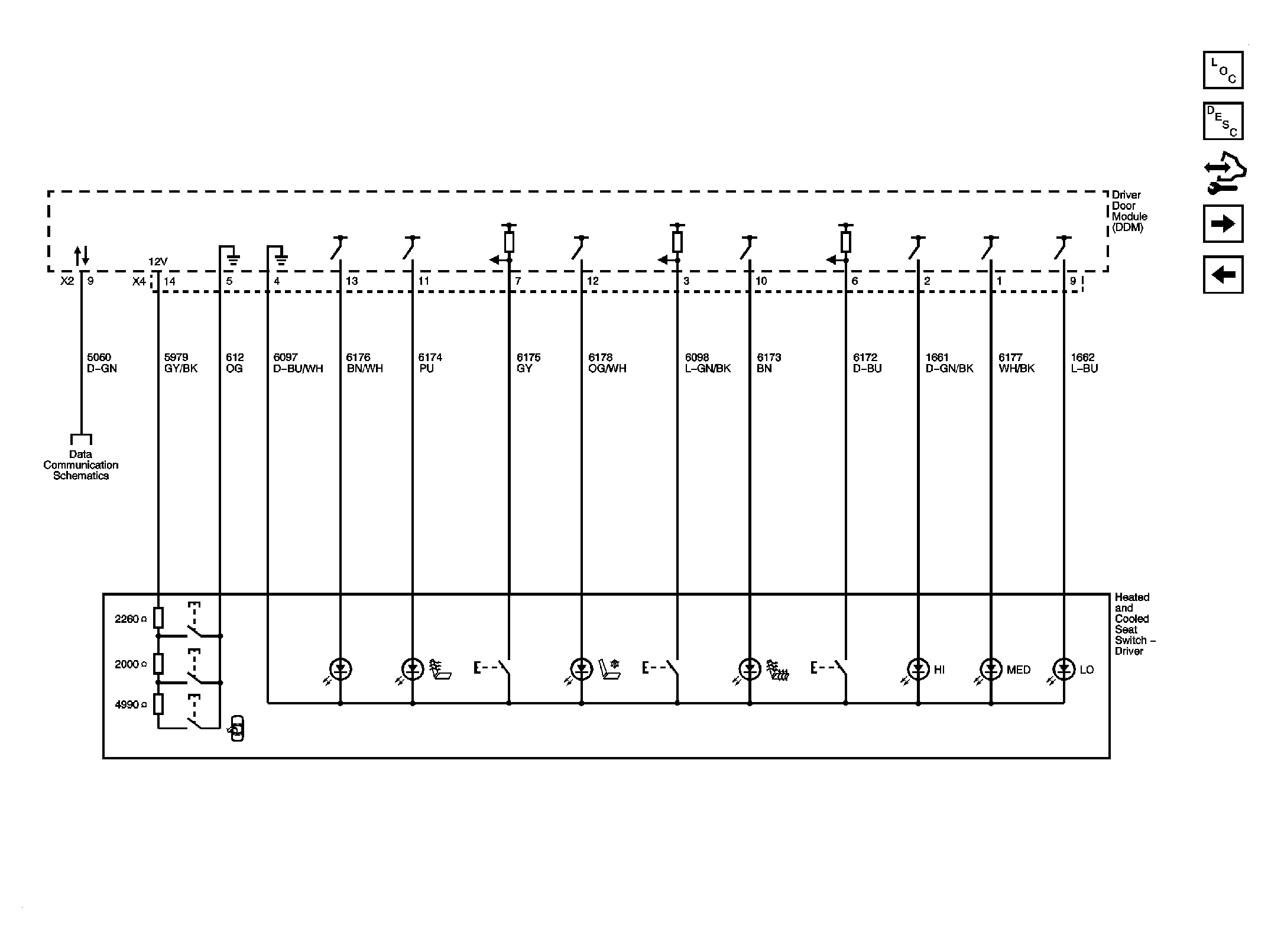

Fig 2: Driver Heated and Cooled Seat Switch (KA1 KB6)

Courtesy of GENERAL MOTORS CORP.

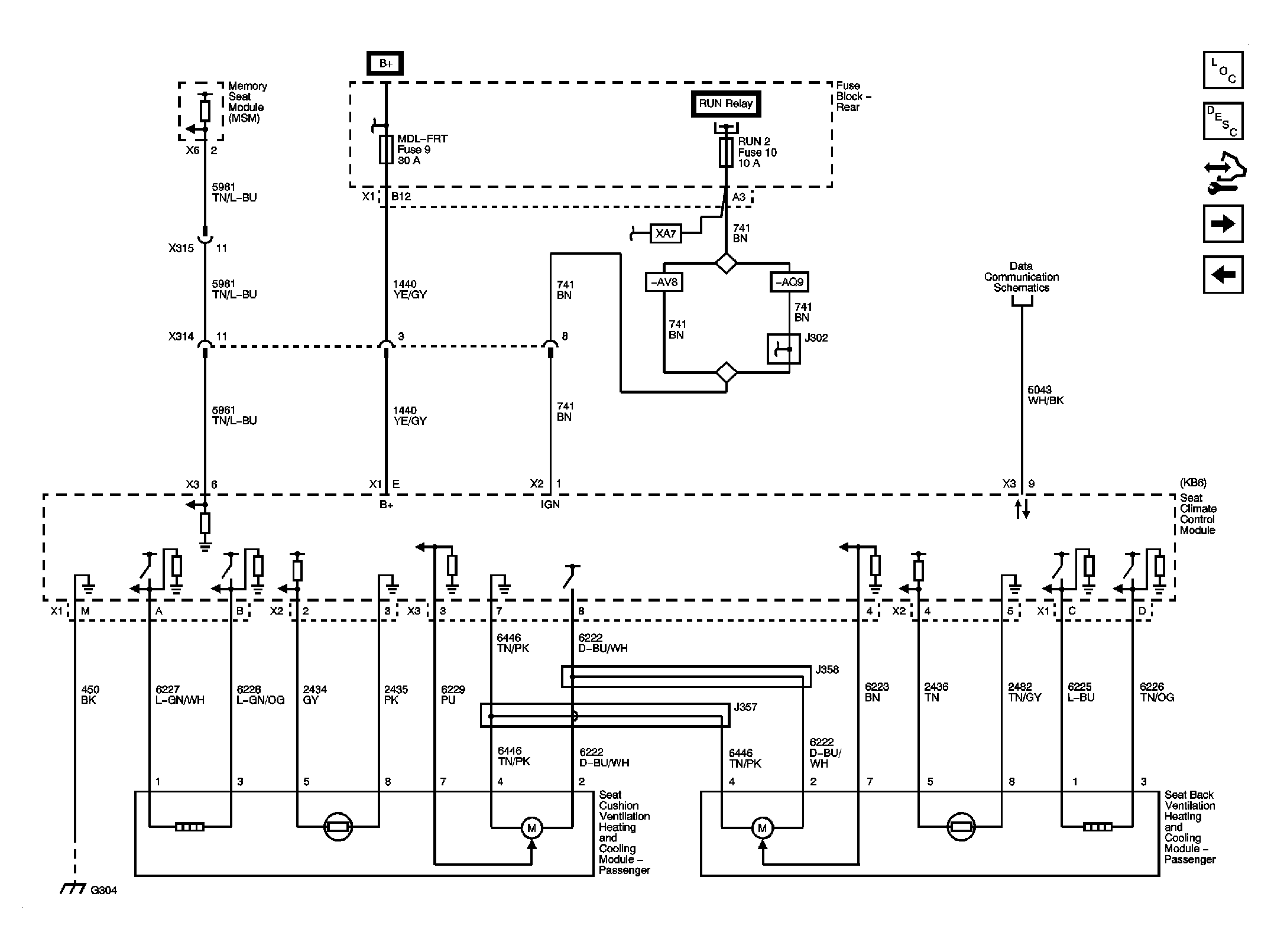

Fig 3: Passenger Heated and Cooled Seat (KB6)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Passenger Heated and Cooled Seat Switch (KA1 KB6)

Courtesy of GENERAL MOTORS CORP.

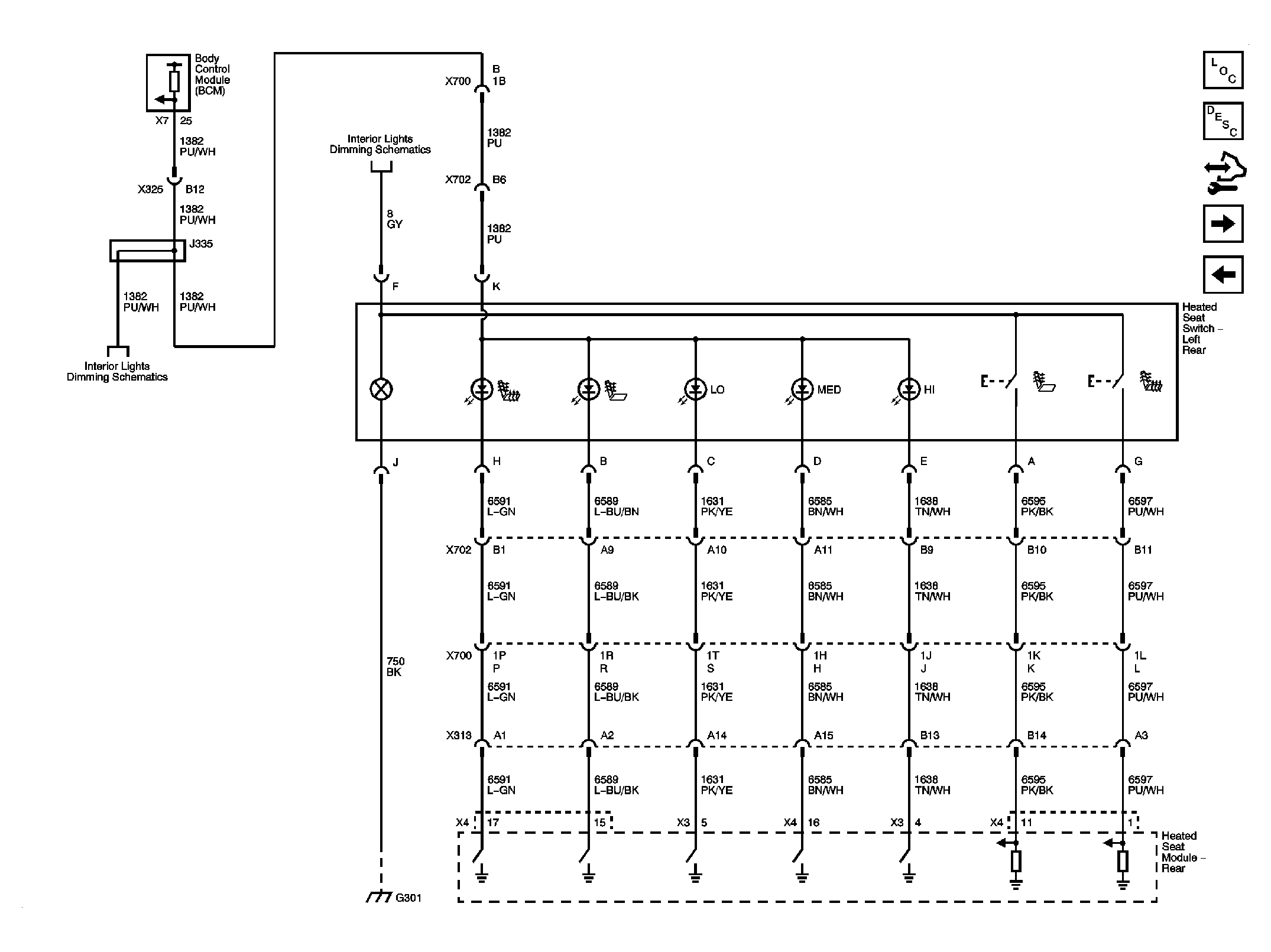

Fig 5: Left Rear Heated Seat Switch (KA6)

Courtesy of GENERAL MOTORS CORP.

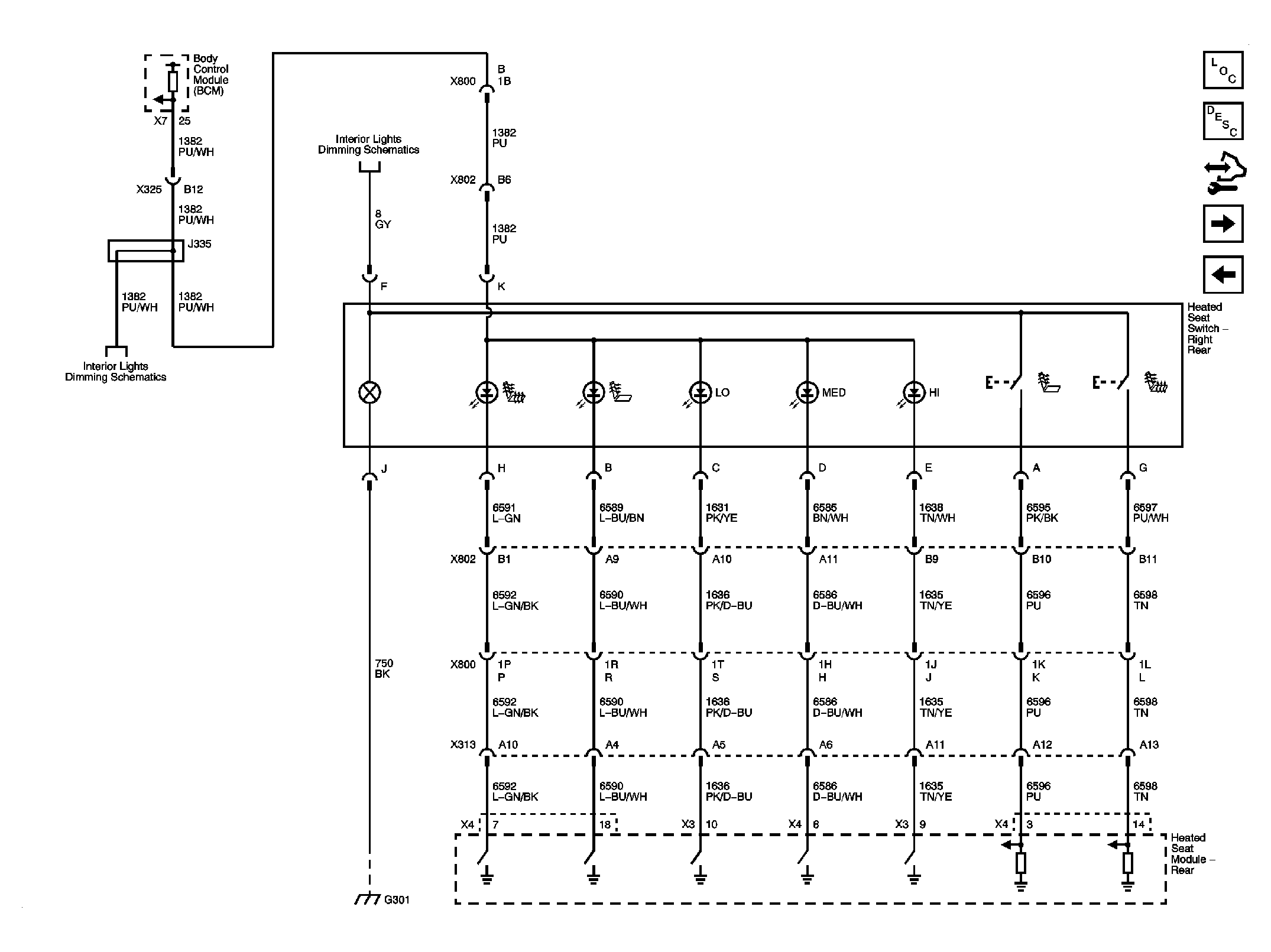

Fig 6: Right Rear Heated Seat Switch (KA6)

Courtesy of GENERAL MOTORS CORP.

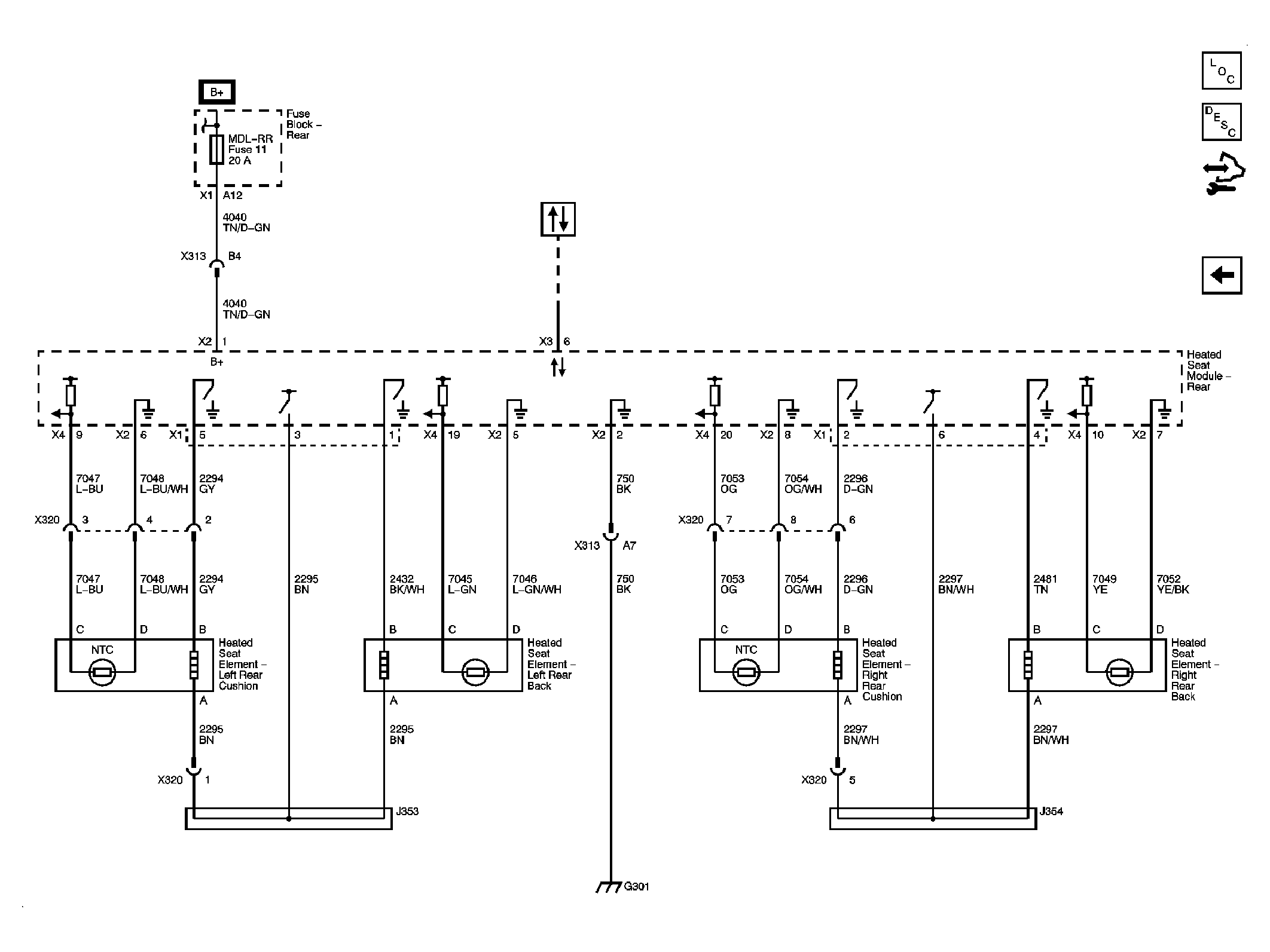

Fig 7: Rear Heated Seat Elements (KA6)

Courtesy of GENERAL MOTORS CORP.
