Driver or Passenger Seat Back Ventilation Heating and Cooling Blower Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

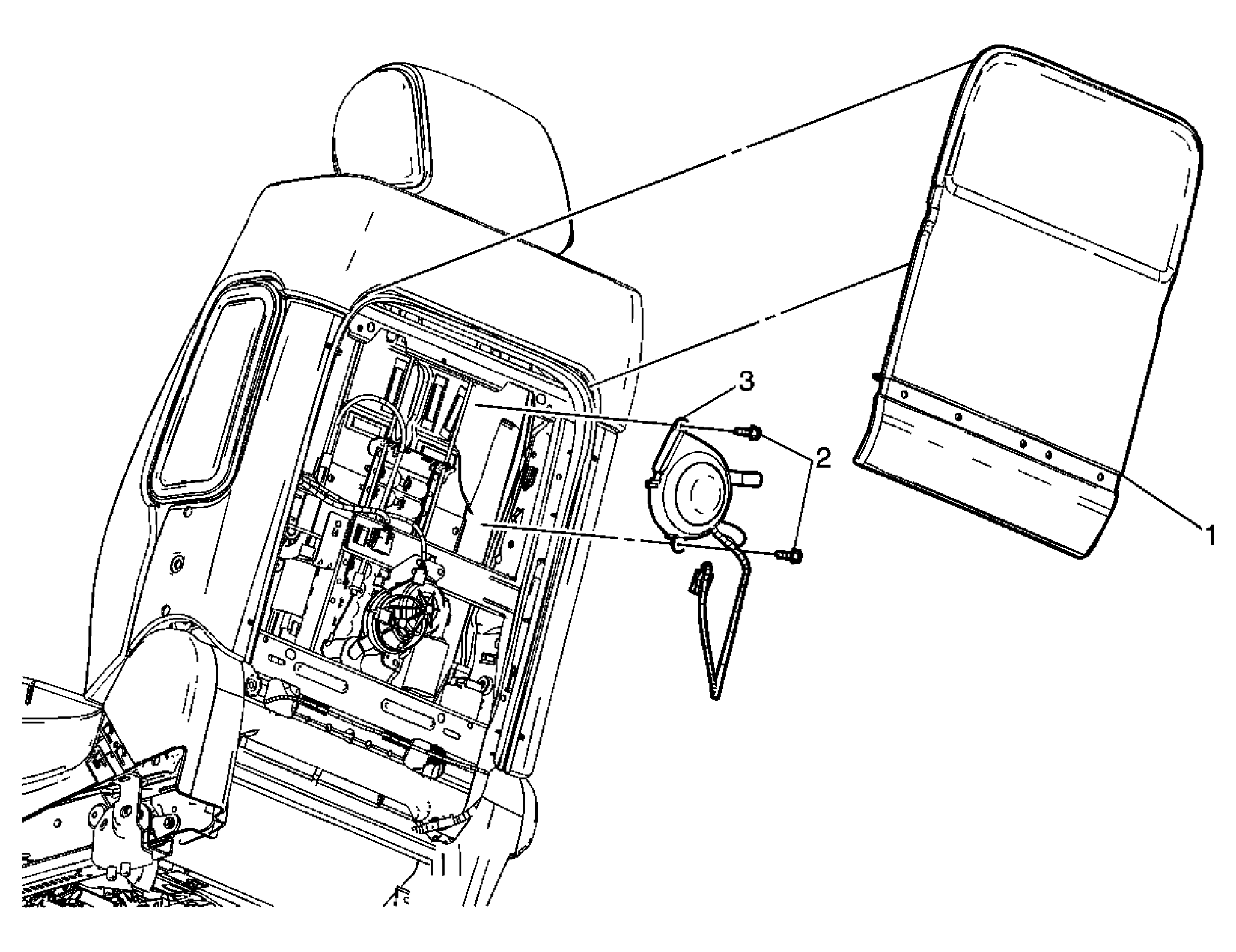

Fig 1: Driver or Passenger Seat Back Ventilation Heating and Cooling Blower
GM1572282Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Disable the SIR system. Refer to SIR Disabling and Enabling .
1 Seat Back Cushion Finish Panel
Refer to Driver or Passenger Seat Back Cushion Finish Panel Replacement .
2 Seat Back Blower Assembly Screw (Qty: 3)
3 Seat Back Blower Assembly
Tip:  Disconnect the electrical connector.
