Harness Routing Views

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

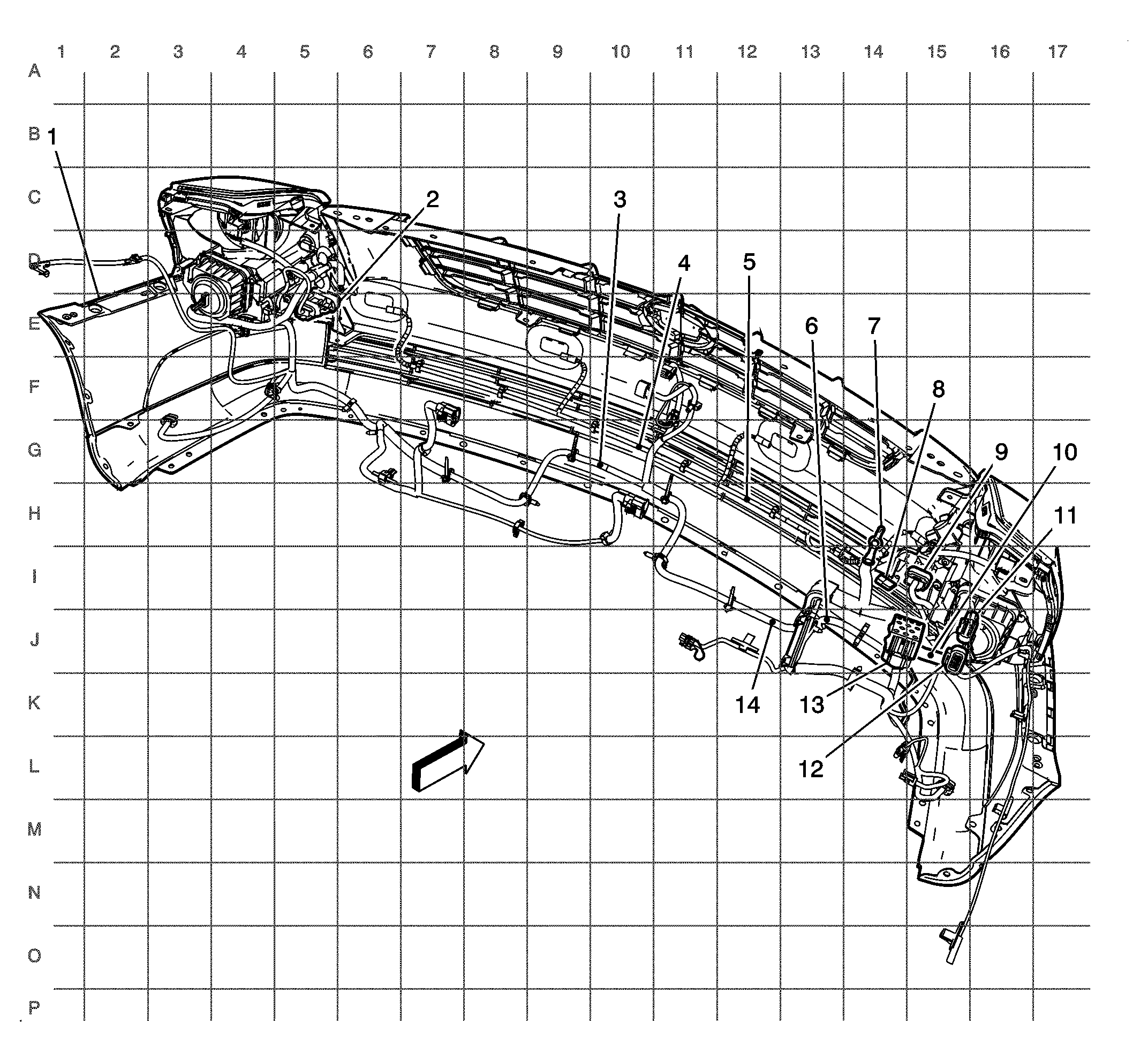

Fig 1: Front Fascia and Forward Lamp Harnesses - Domestic
GM1619131Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Fascia
2 X113
3 J107
4 J120
5 J119
6 J117
7 G104
8 X192 (UFR)
9 X114
10 J125
11 X121
12 X120
13 Fuse Block - Underhood X1
14 J118

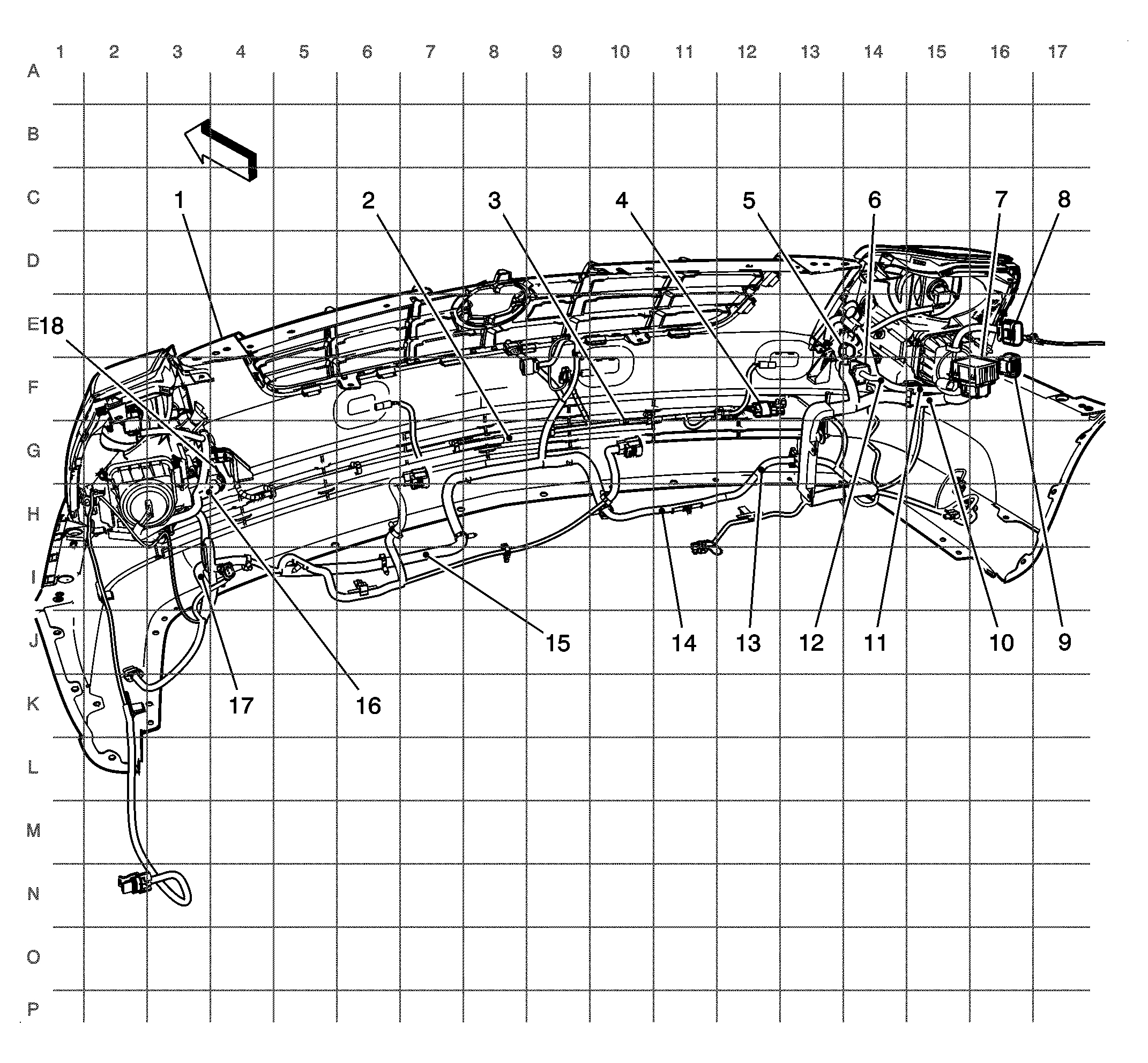

Fig 2: Front Fascia and Forward Lamp Harnesses - Export
GM1644658Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Fascia
2 J120
3 J119
4 X192 (UFR)
5 G104
6 X114
7 Fuse Block - Underhood X1
8 X121
9 X120
10 J125
11 J124
12 J123
13 J117
14 J118
15 J107
16 J121
17 J122
18 J124

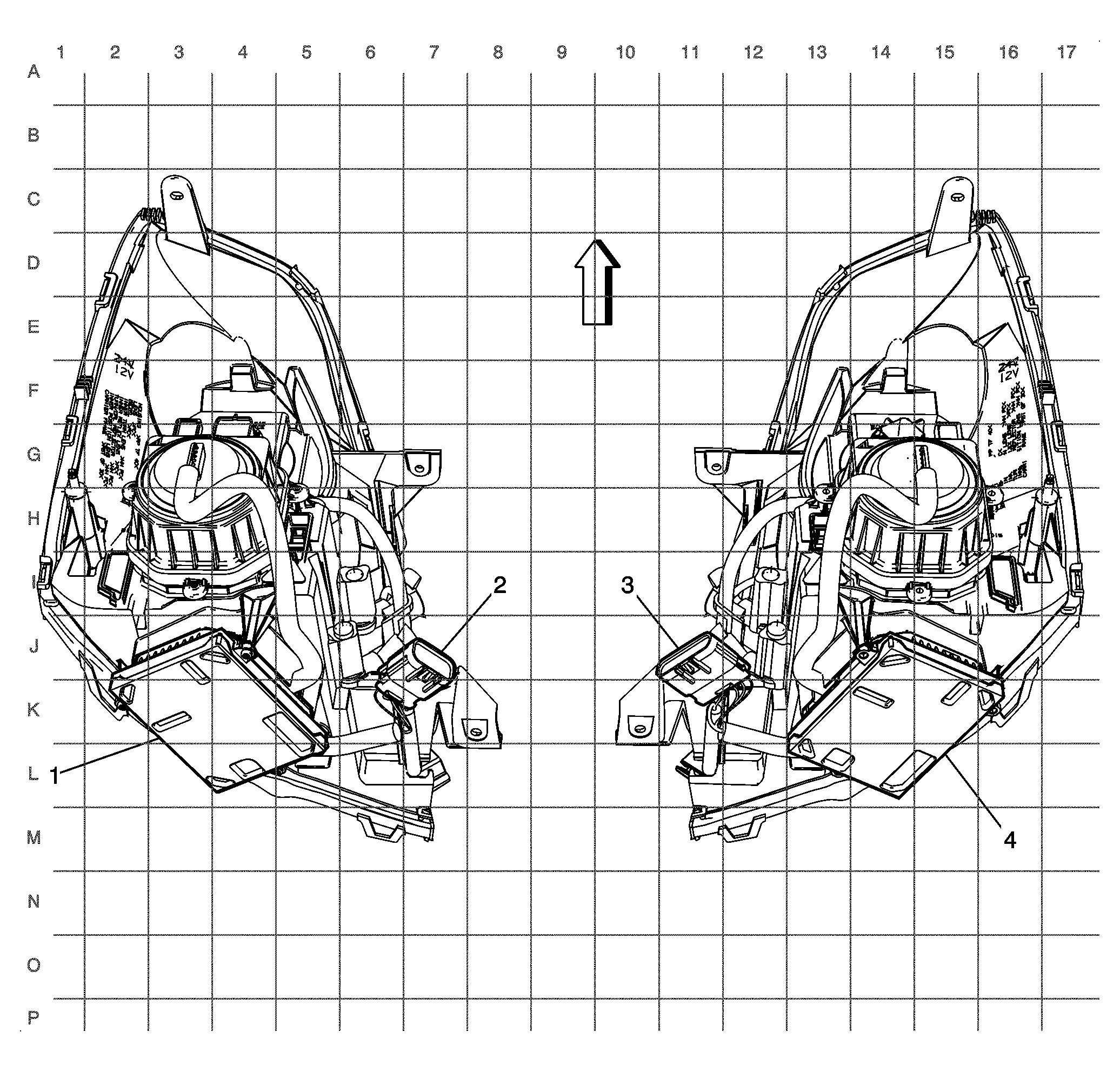

Fig 3: Headlamp Assemblies
GM1860642Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp Ballast-Left (-T72)
2 X114
3 X113
4 Headlamp Ballast-Right (-T72)

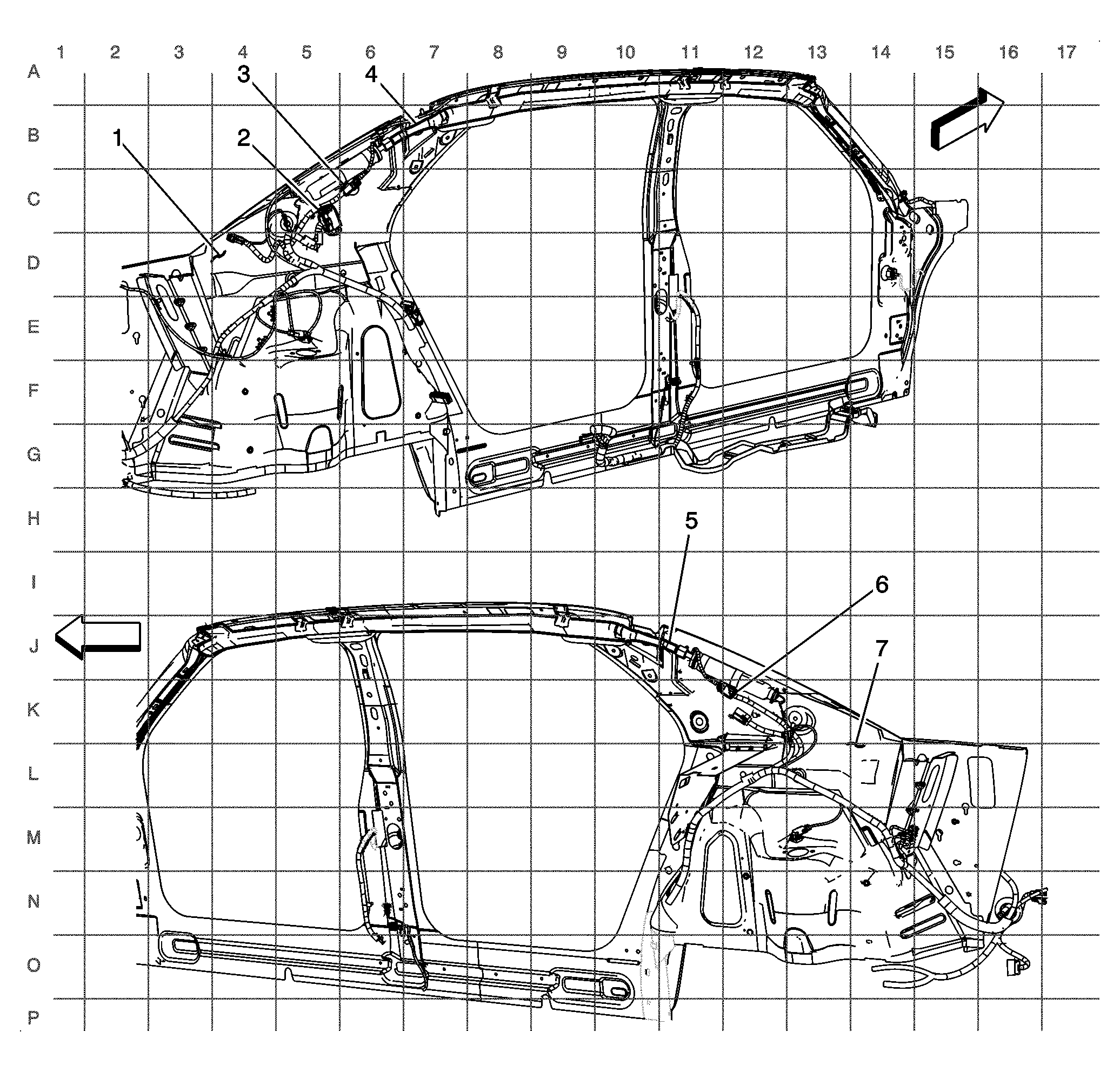

Fig 4: View Of Left and Right C-Pillars Harnesses Routing Views
GM1860582Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inner Frame-Left
2 X321
3 X304 (AYO)
4 Inflatable Restraint Roof Rail Module - Left (AY0)
5 Inflatable Restraint Roof Rail Module - Right (AY0)
6 X305 (AYO)
7 Inner Frame-Right

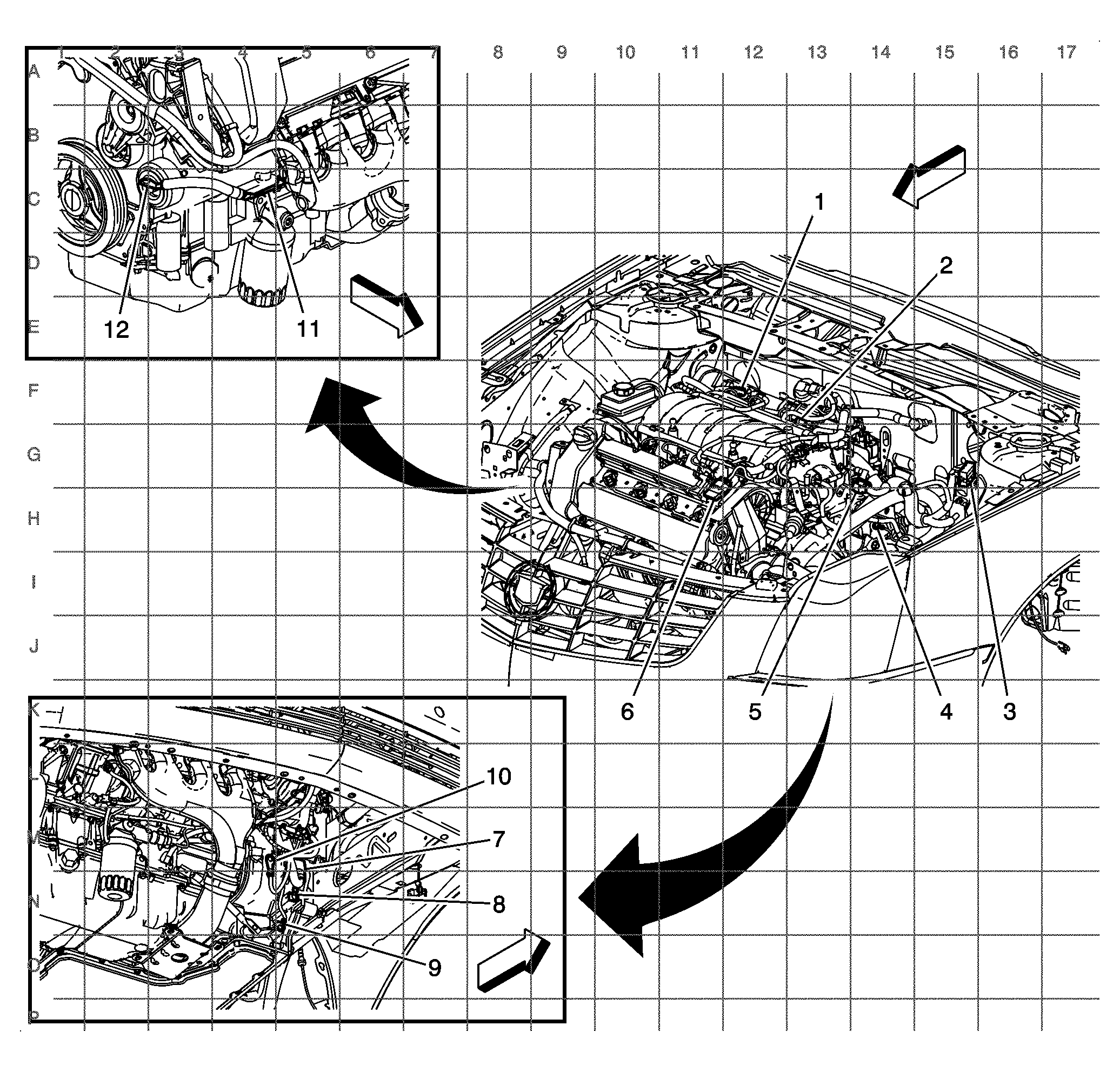

Fig 5: Engine Harness Components (L37/LD8)
GM1959621Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X140
2 X161
3 X111
4 G100
5 X138
6 X139
7 X101
8 G115
9 G112
10 G114
11 G110
12 G111

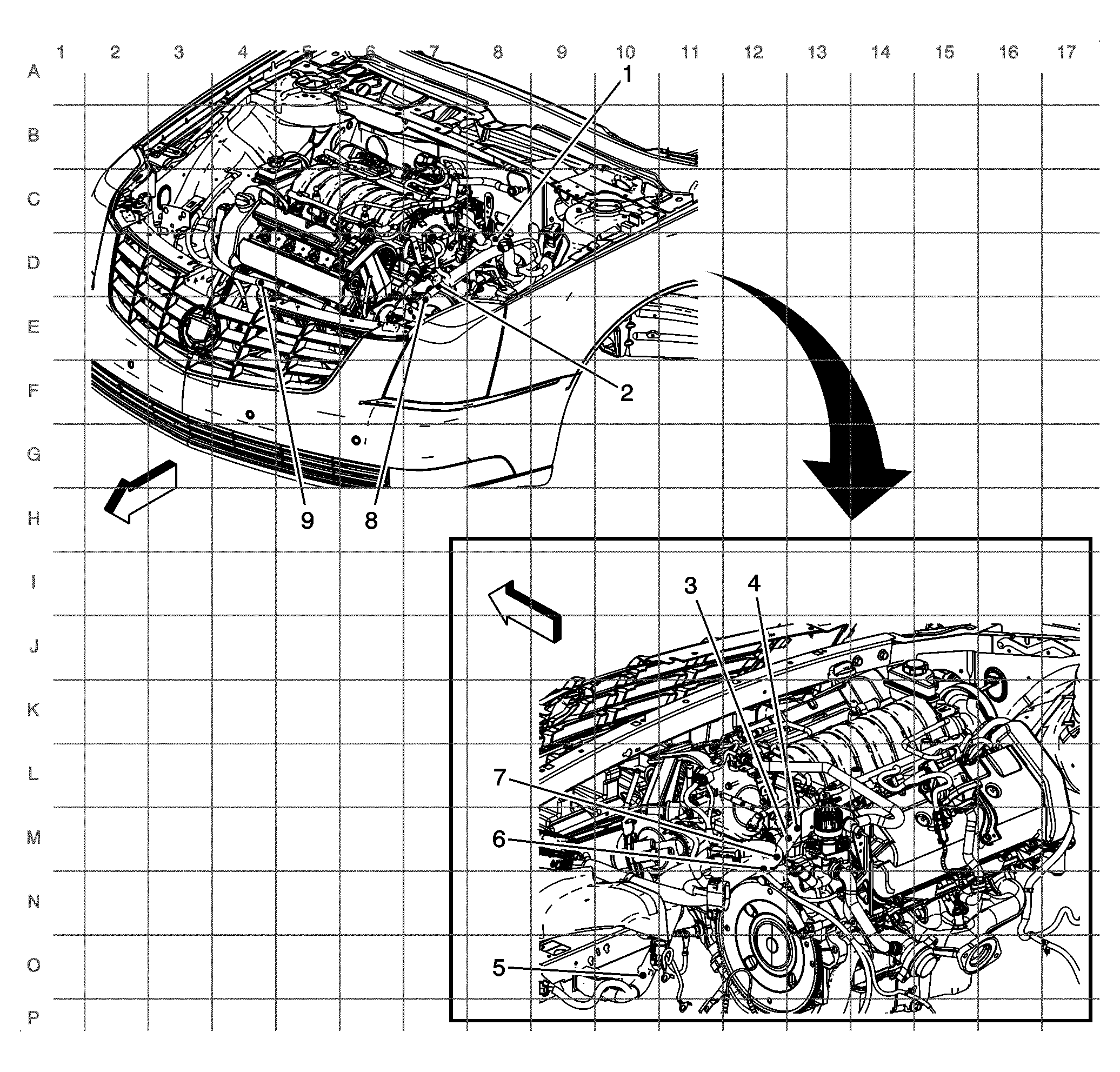

Fig 6: Locating Engine Harness Splices (L37/LD8)
GM1959675Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J104
2 J106
3 J102
4 J109
5 J108
6 J110
7 J100
8 J105
9 J111

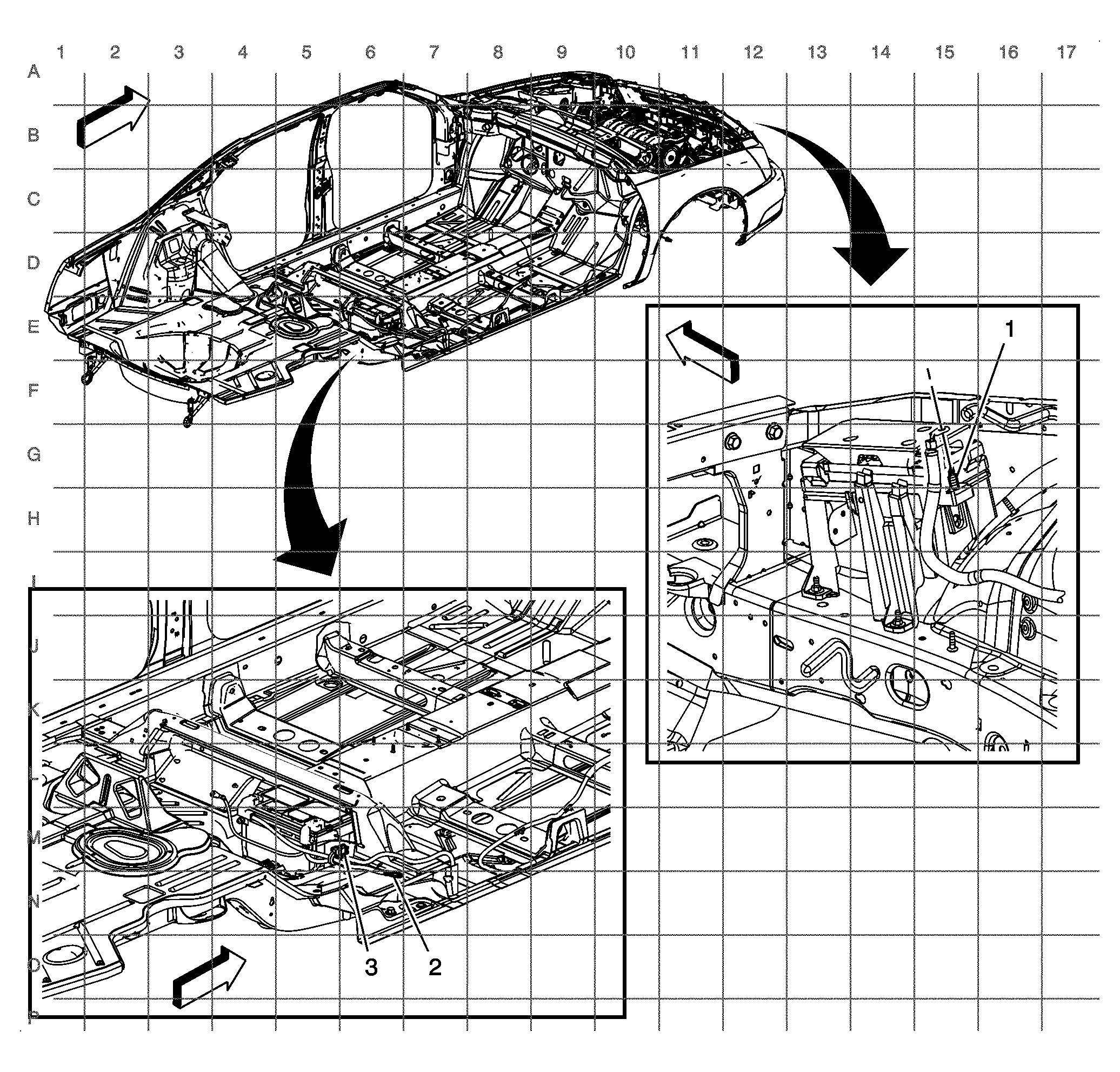

Fig 7: Start & Charge Components
GM1959701Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery Positive Voltage Stud
2 G303
3 X335 or X337 (V4U)

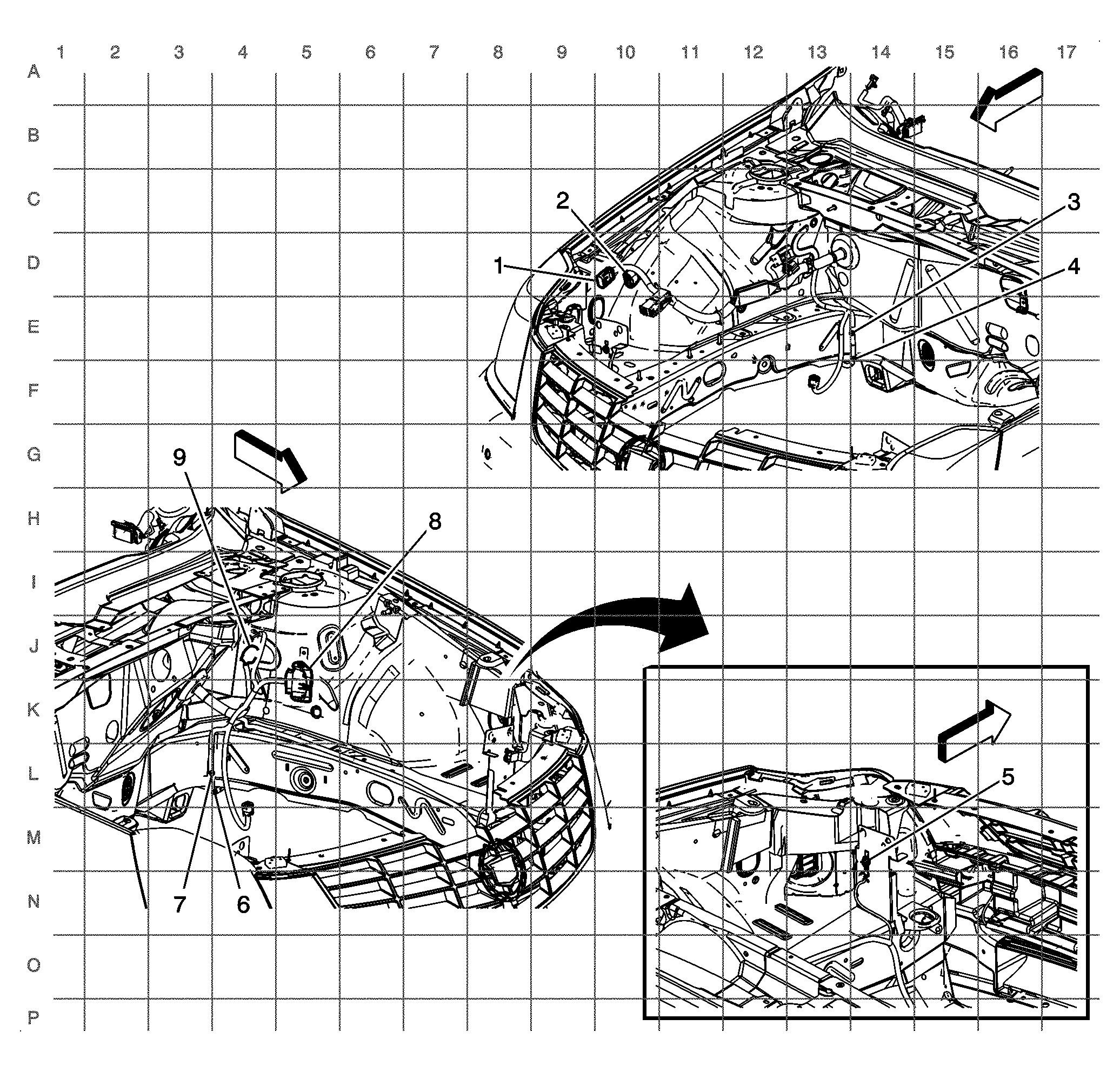

Fig 8: Engine Compartment Connectors
GM1959645Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X120
2 X121
3 J128
4 J129
5 G101
6 J126
7 J127
8 X111
9 X100

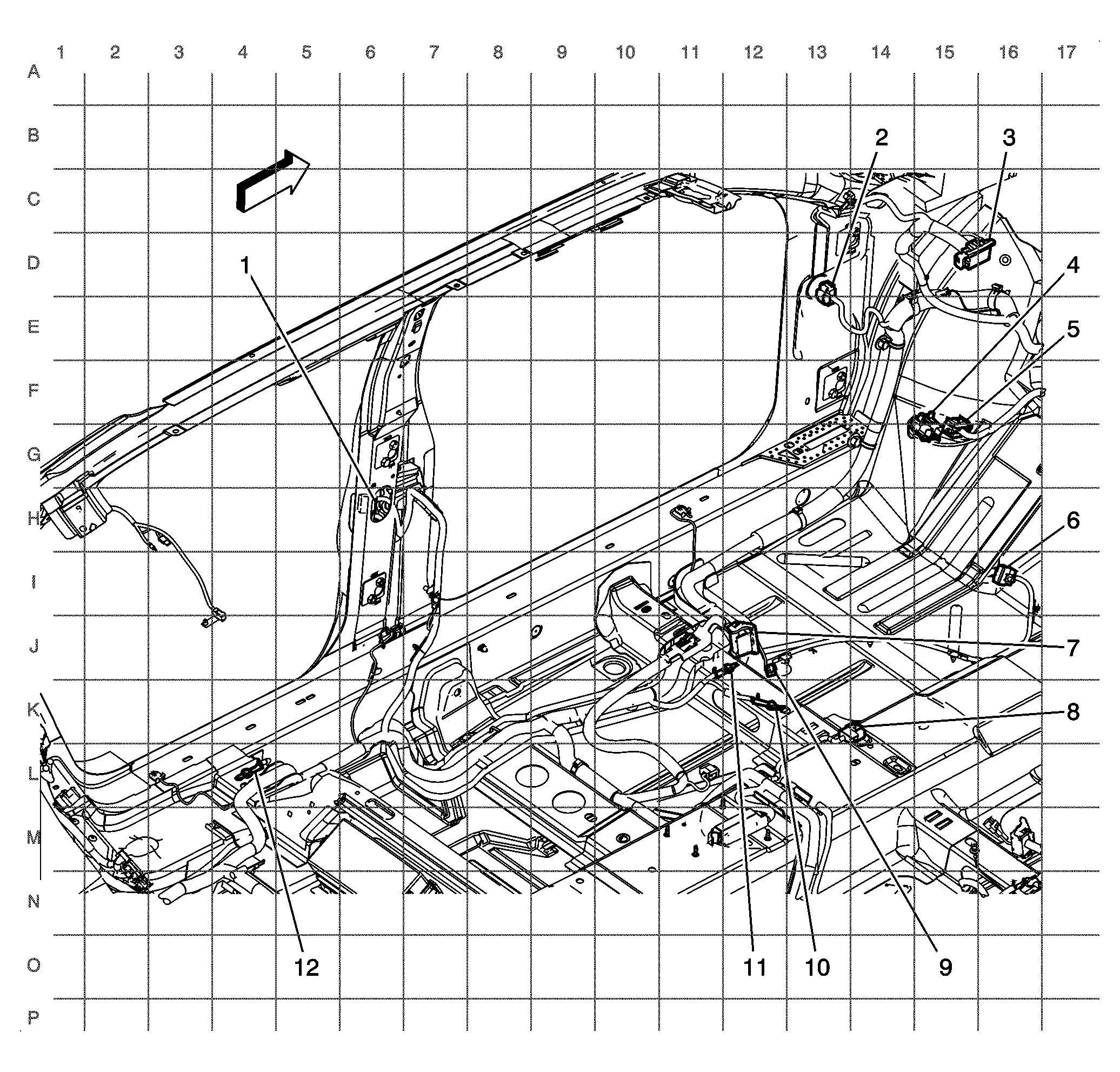

Fig 9: Body Harness Left Side Connectors
GM1959718Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X700
2 X500
3 X201
4 X202
5 X205
6 X340 (AQ9)
7 X315
8 X341 (AV8)
9 X311 (AY0)
10 G300
11 G305
12 G301

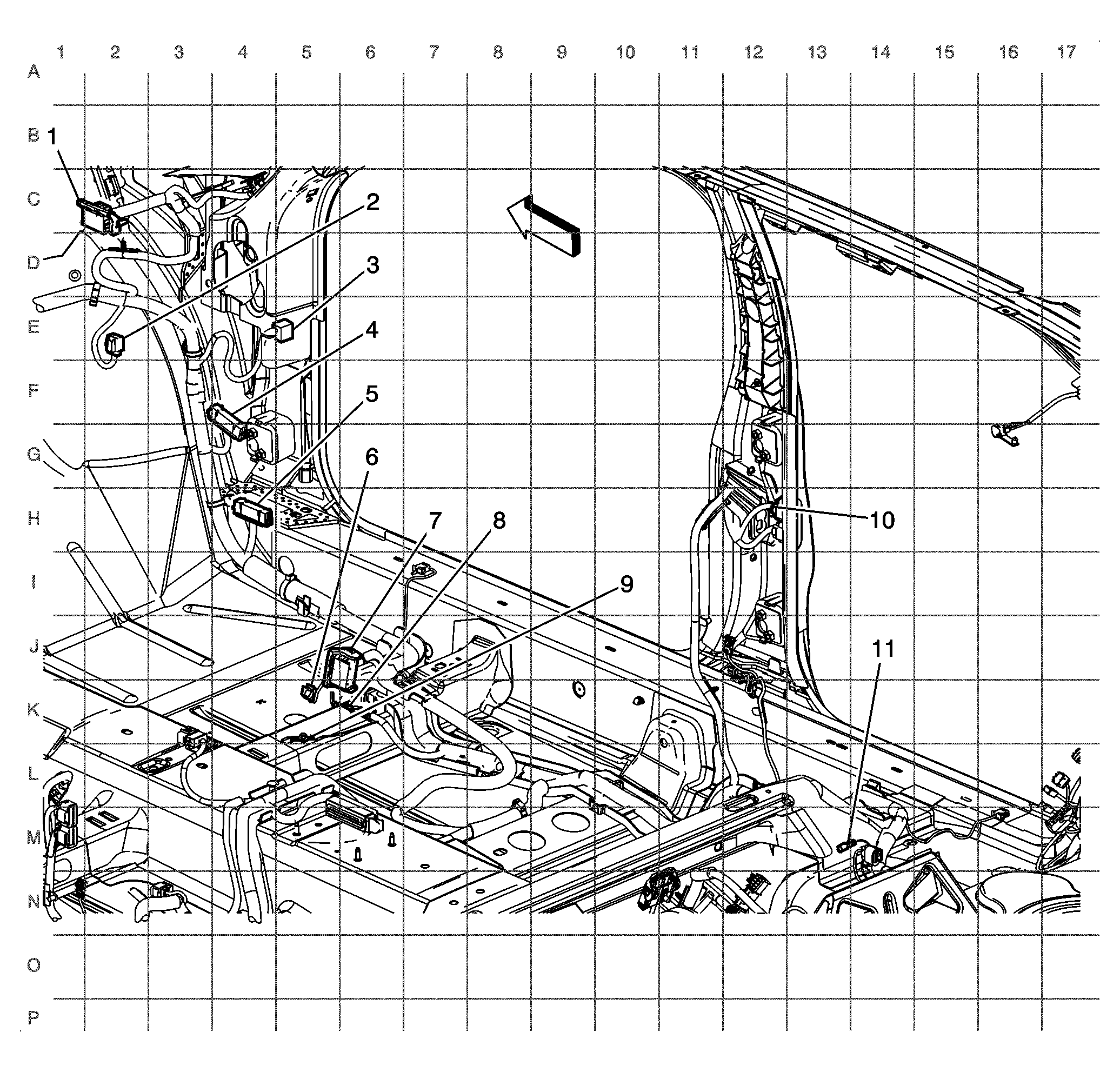

Fig 10: Body Harness Right Side Connectors
GM1959709Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X200
2 X206
3 X600
4 X325
5 X326
6 X312 (AY0)
7 X314
8 G304
9 G302
10 X800
11 X337

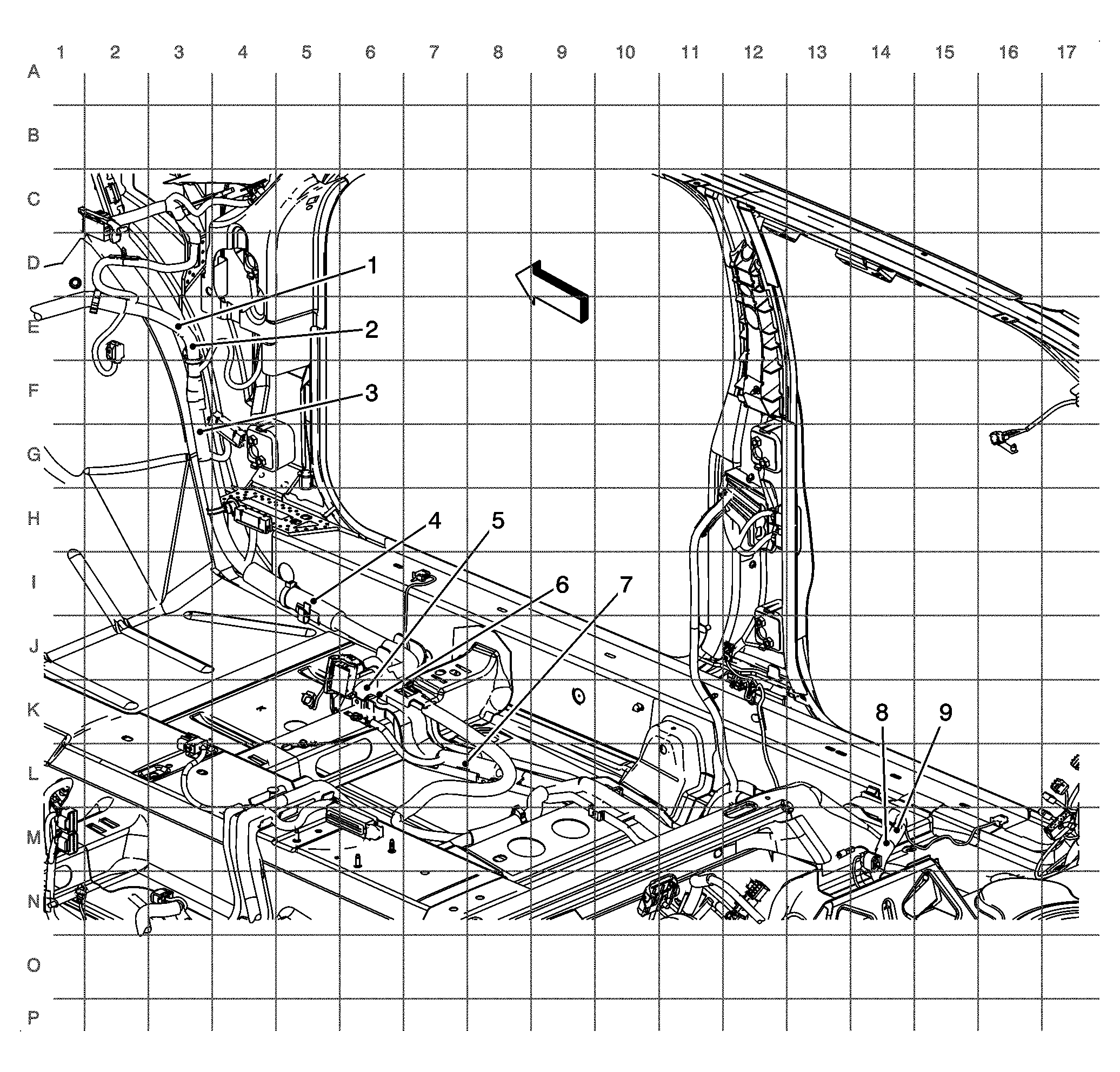

Fig 11: View Of Body Harness Right Side Splices
GM1959722Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J364
2 J377
3 J363
4 J329
5 J387
6 J335
7 J343
8 J325
9 J326

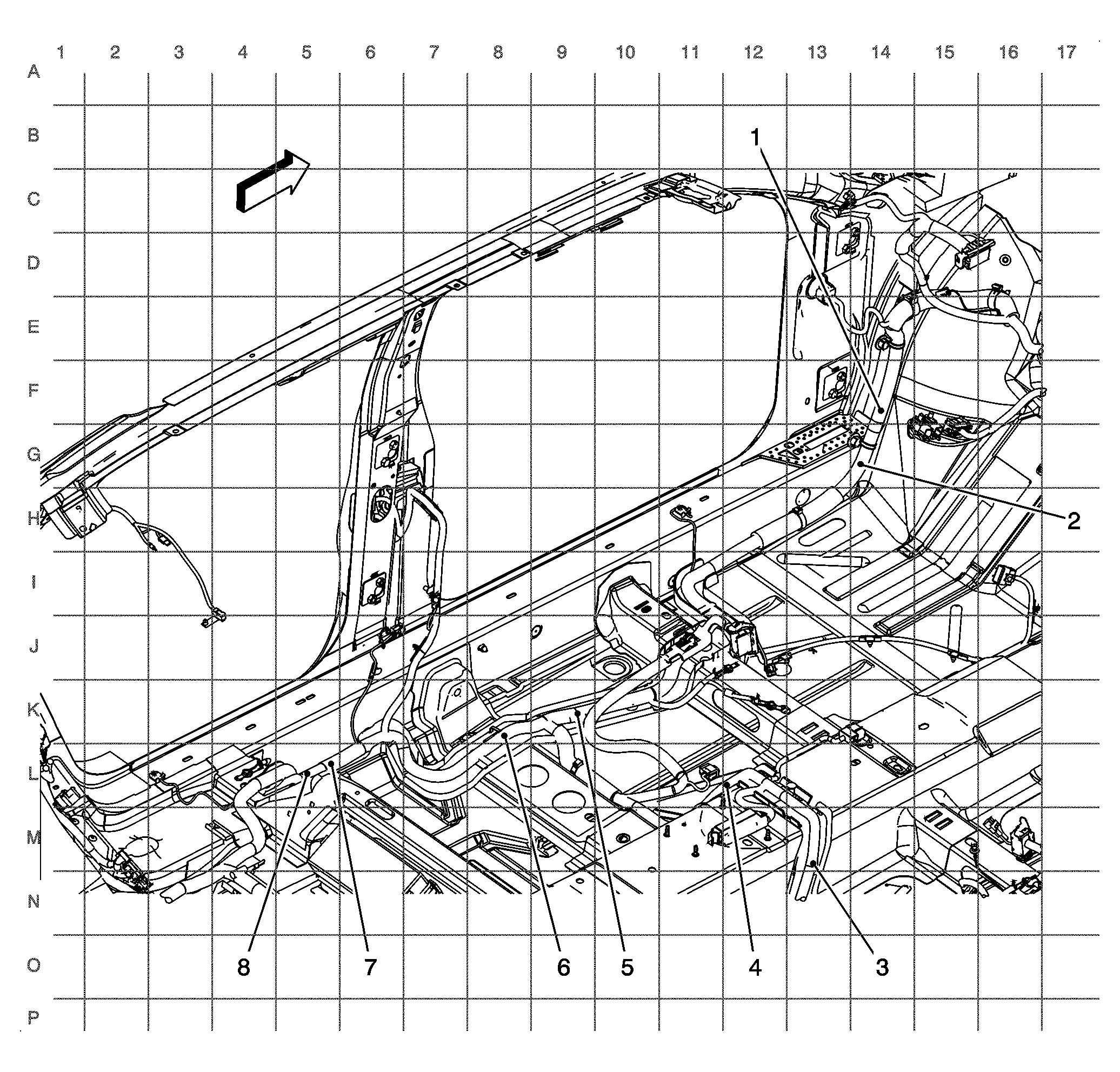

Fig 12: View Of Body Harness Left Side Splices
GM1959735Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J361
2 J362
3 J370
4 J301
5 J333
6 J350
7 J302
8 J314

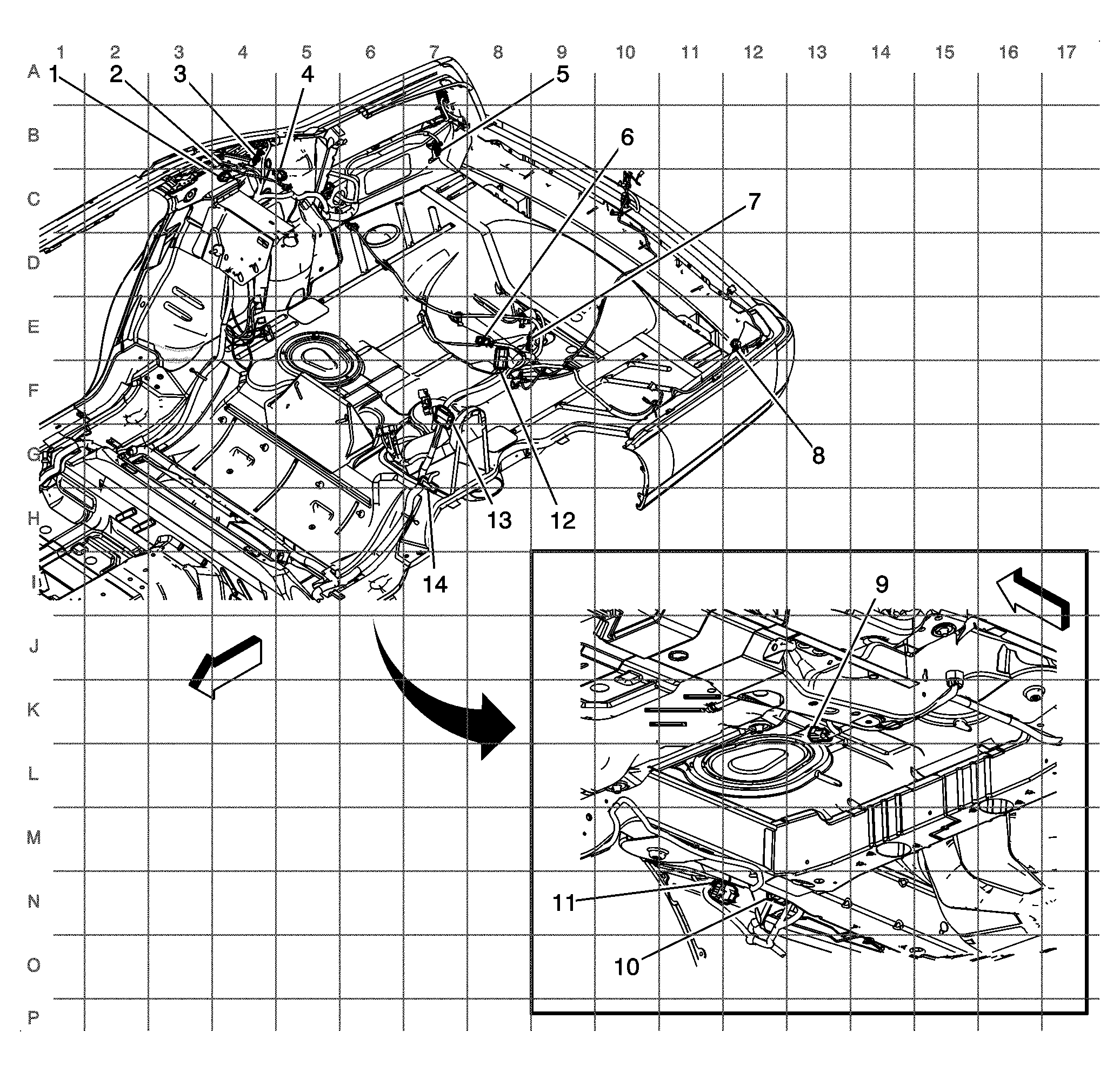

Fig 13: View Of Body Harness Rear
GM1959757Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X397 (CF5)
2 X305
3 G307
4 X395 (DE9)
5 G403
6 X304
7 G306
8 G402
9 X308
10 X309
11 X494 (UFR)
12 X321
13 X445
14 X313

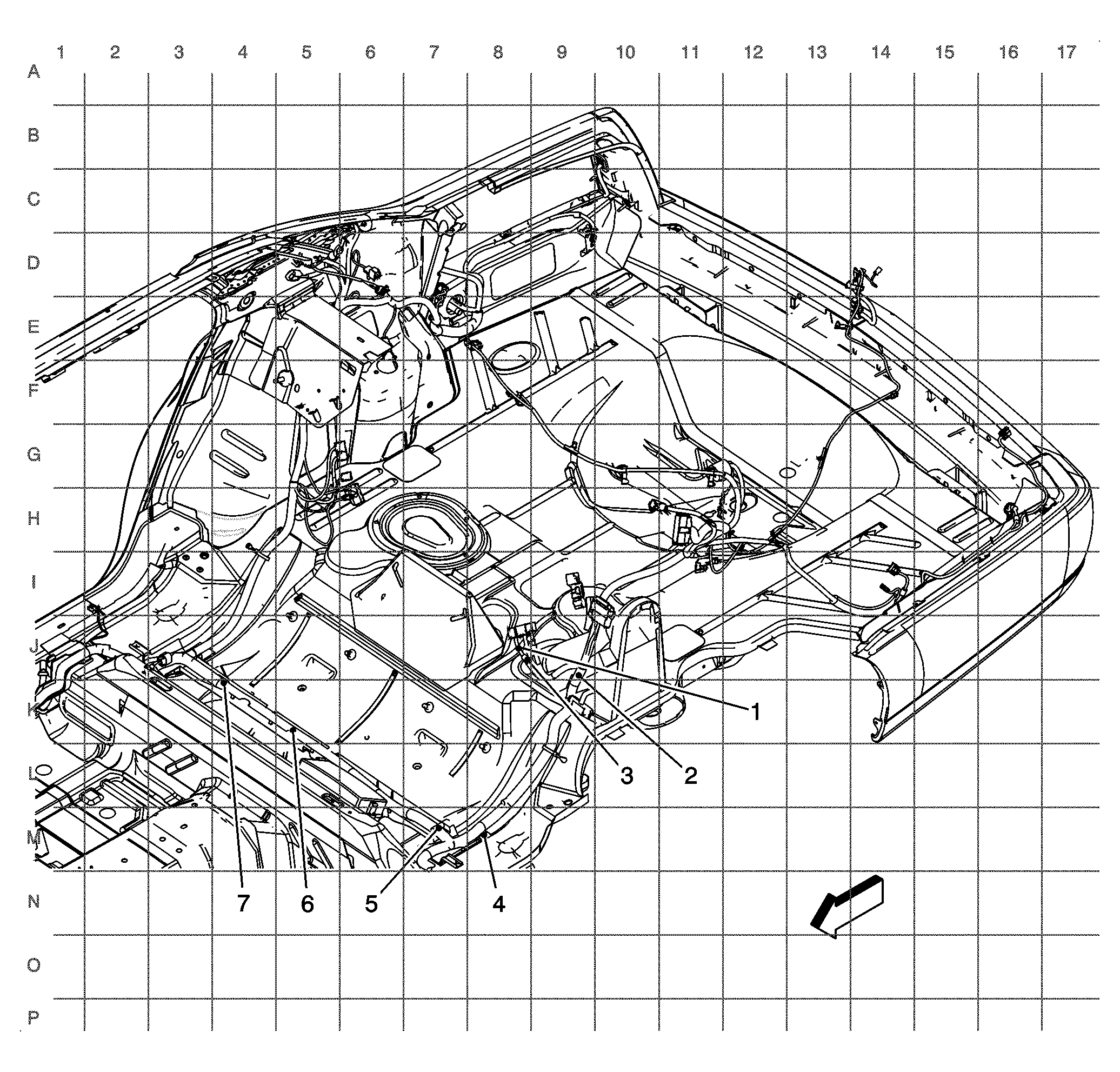

Fig 14: View Of Body Harness Rear Splices
GM1959823Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J366
2 J372
3 J365
4 JX300 Splice Pack
5 J323
6 J388
7 J337

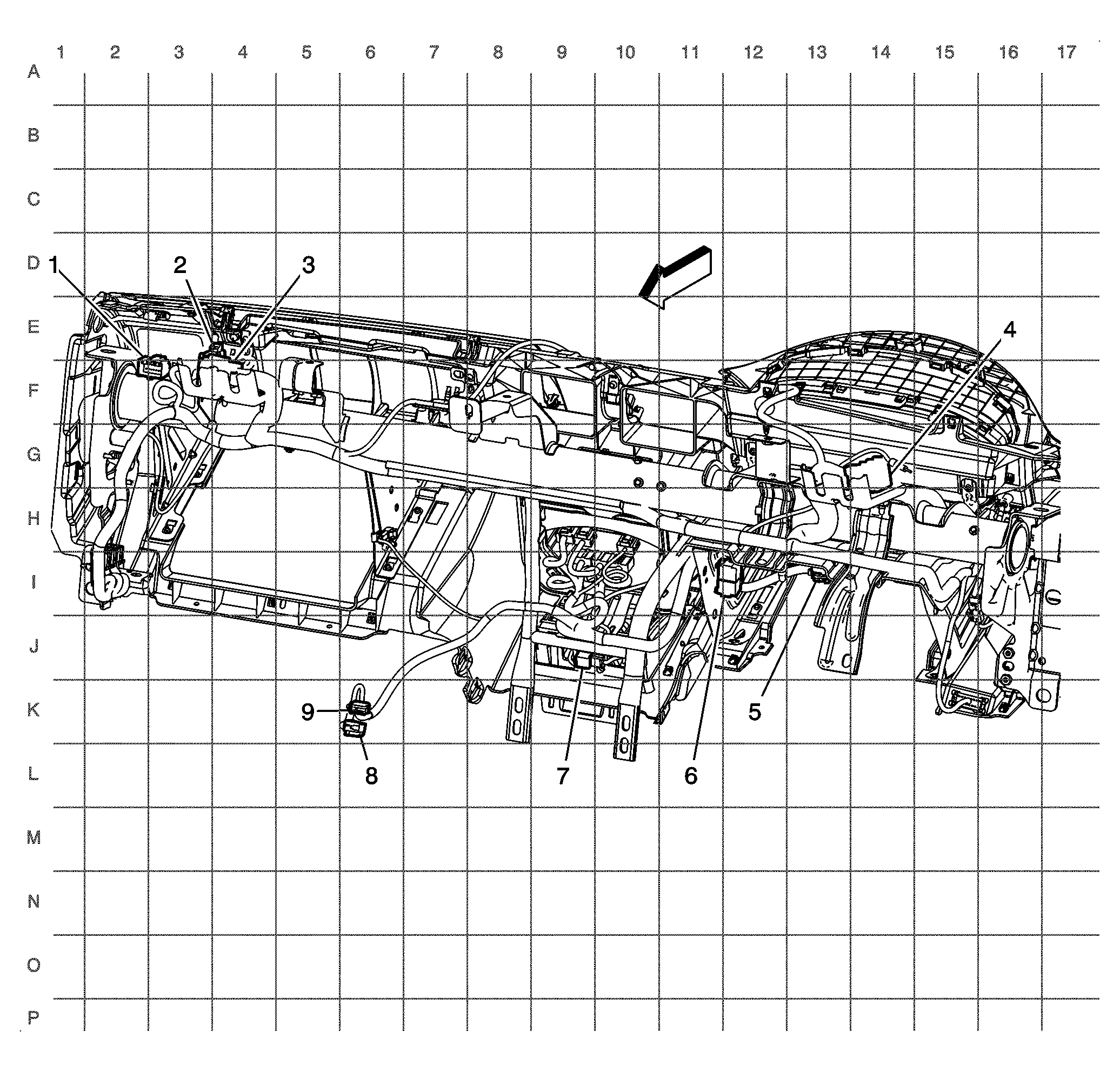

Fig 15: View Of Instrument Panel Harness
GM1959898Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X208
2 X210
3 X200
4 X201
5 X216
6 X203
7 X219 (AV8)
8 X202
9 X204 (CJ4)

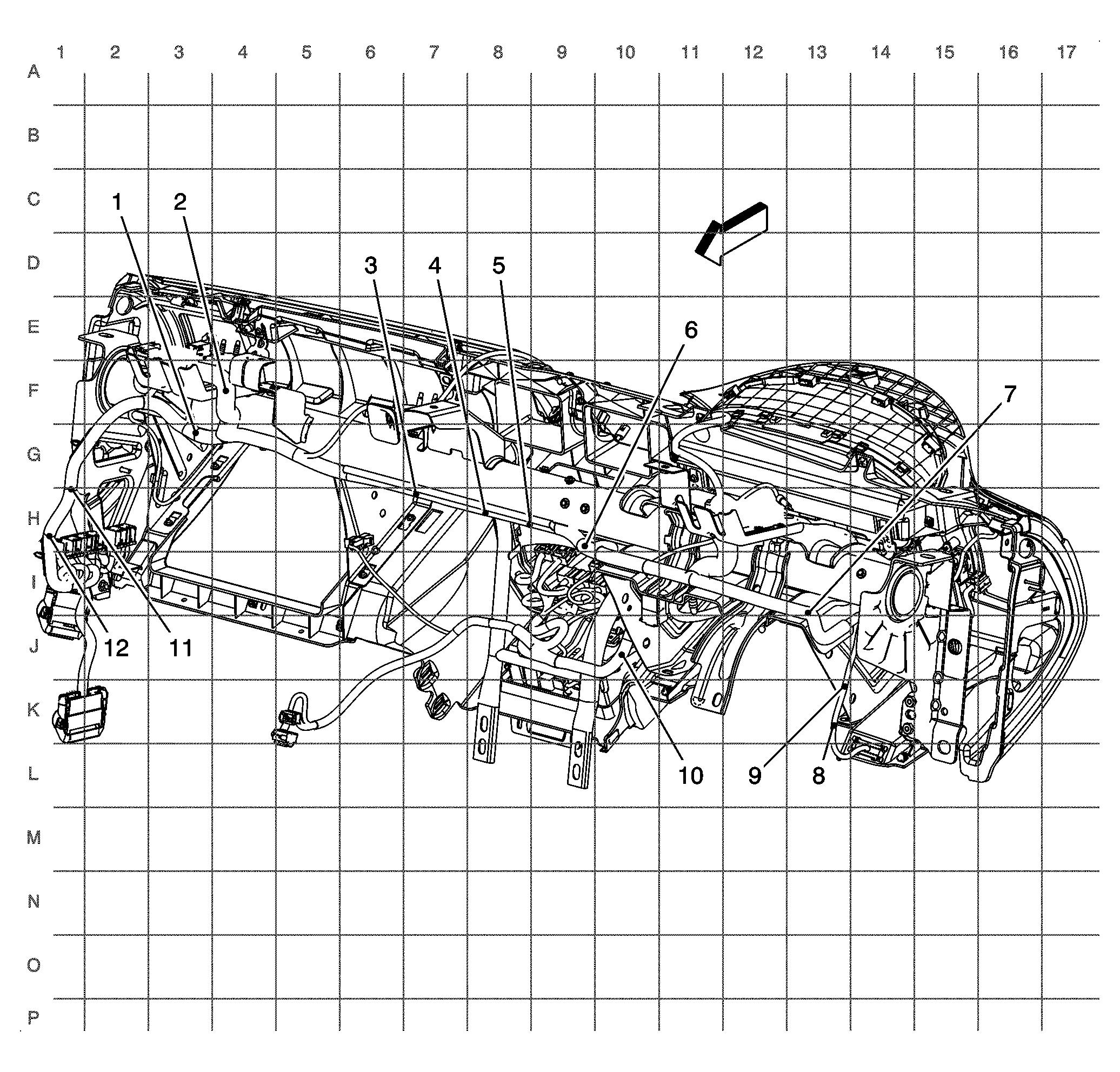

Fig 16: View Of Instrument Panel Harness Splices
GM1959900Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J206
2 J222
3 J212
4 J203
5 J210
6 J200
7 J202
8 J208
9 J207
10 J213
11 J211
12 J214

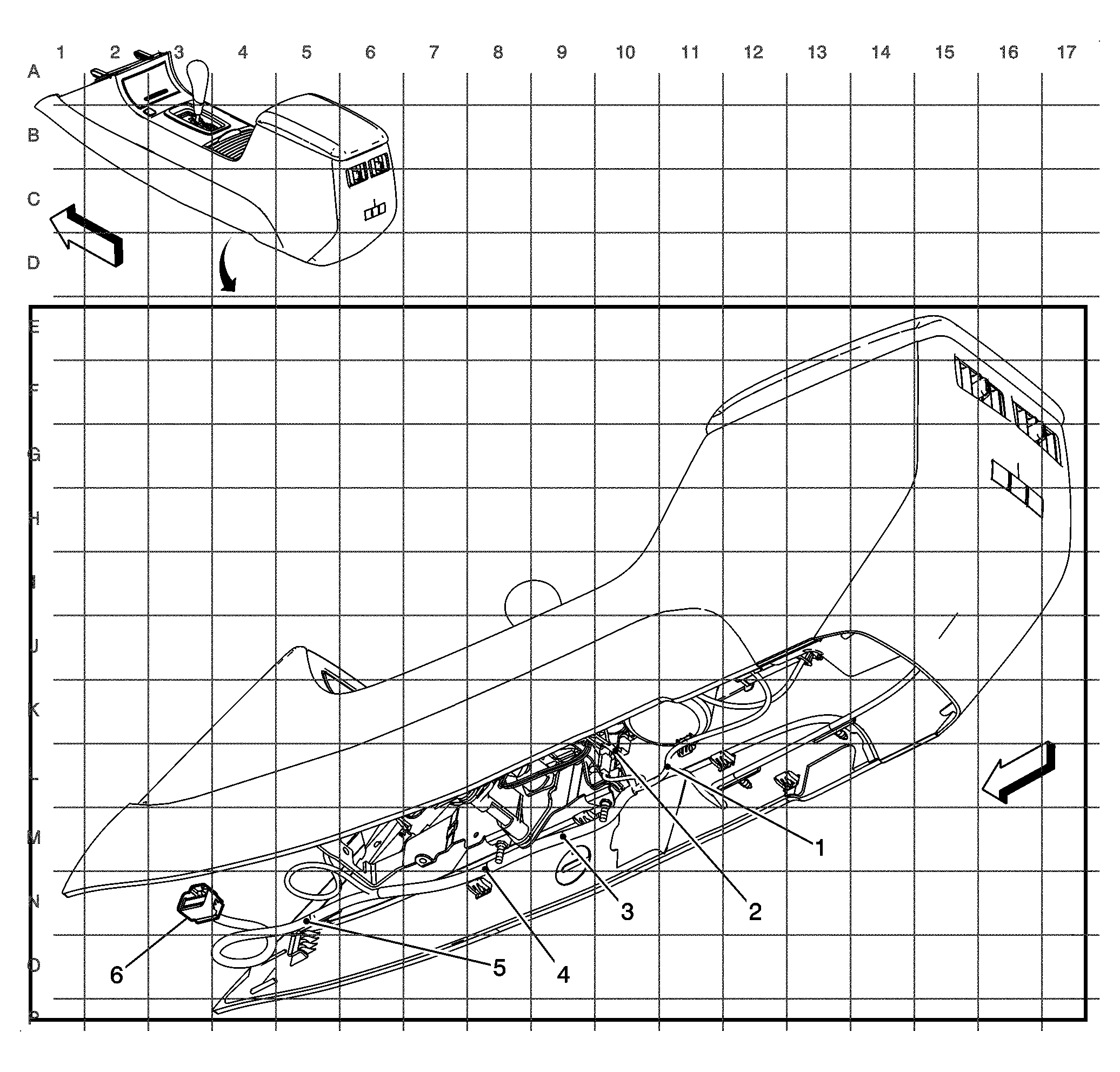

Fig 17: View Of Console Harness
GM1959925Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J307
2 J383
3 J315
4 J381
5 J369
6 X340 (AQ9)

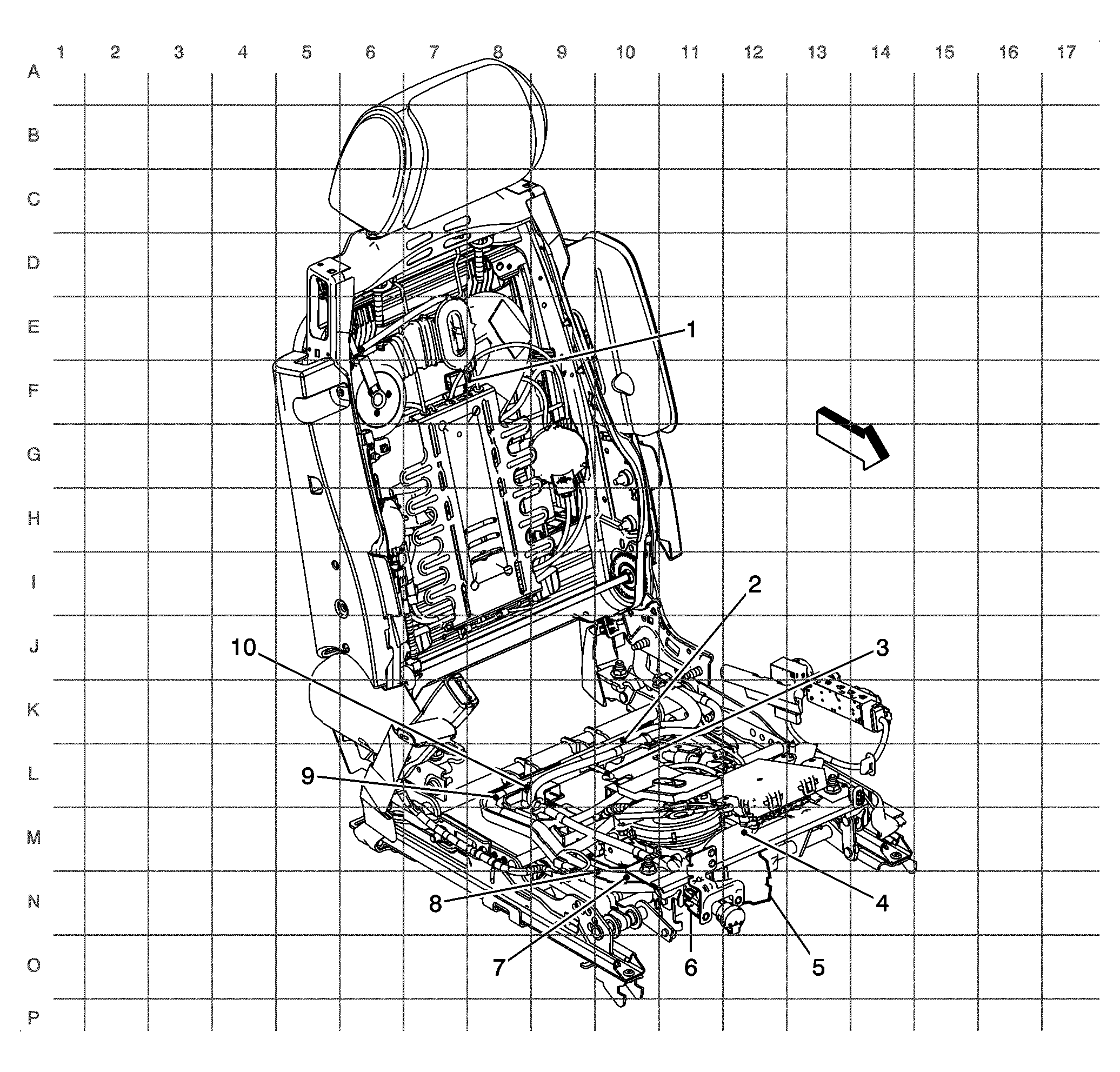

Fig 18: View Of Driver Seat Harness
GM1959930Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X318
2 J351
3 J355
4 J349
5 X315
6 X311
7 J347
8 J305
9 J356
10 J352

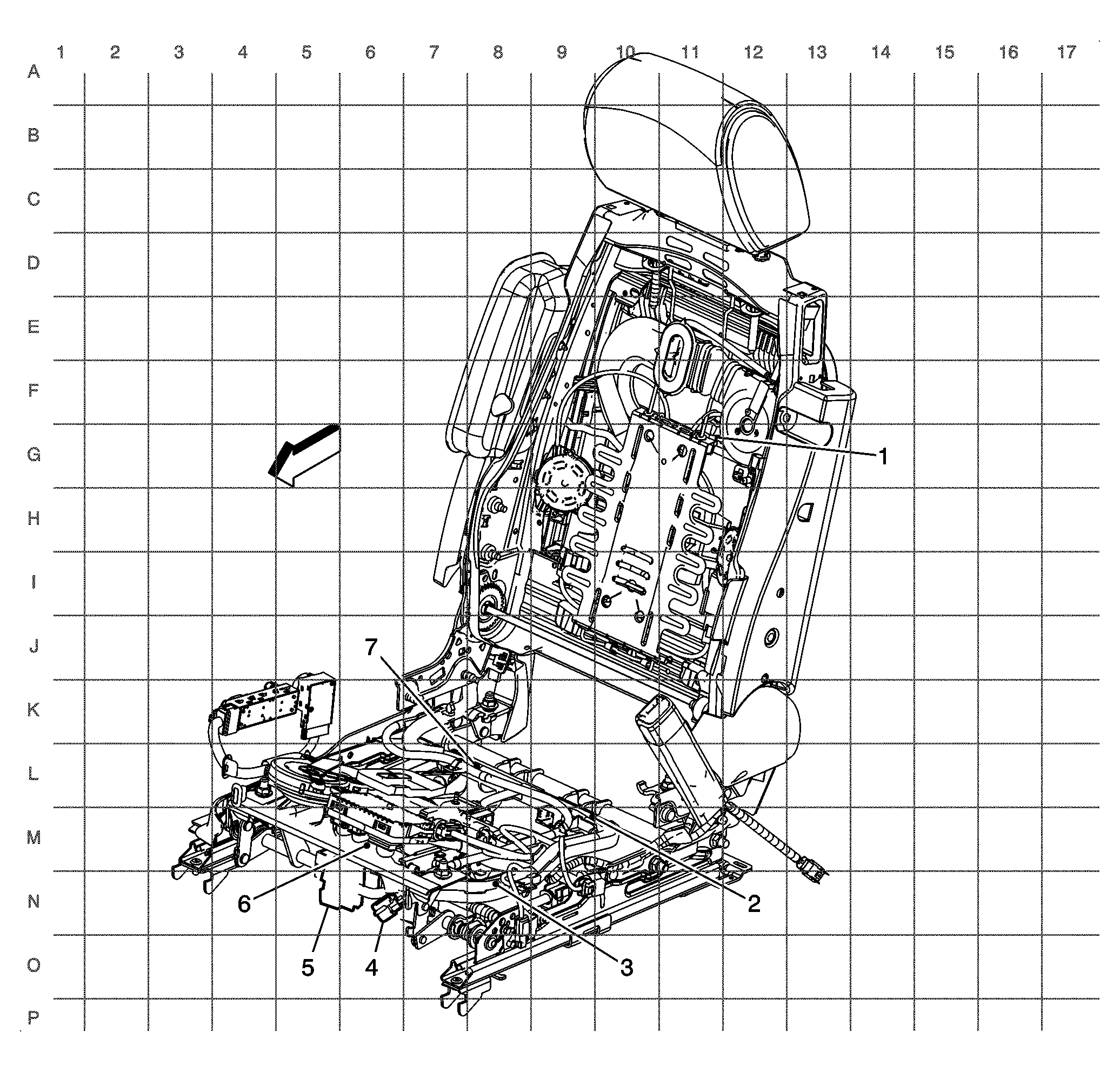

Fig 19: View Of Passenger Seat Harness
GM1959942Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X354 (AL2/AM3)
2 J357 (KB6)
3 J306
4 X312
5 X314
6 J346
7 J358

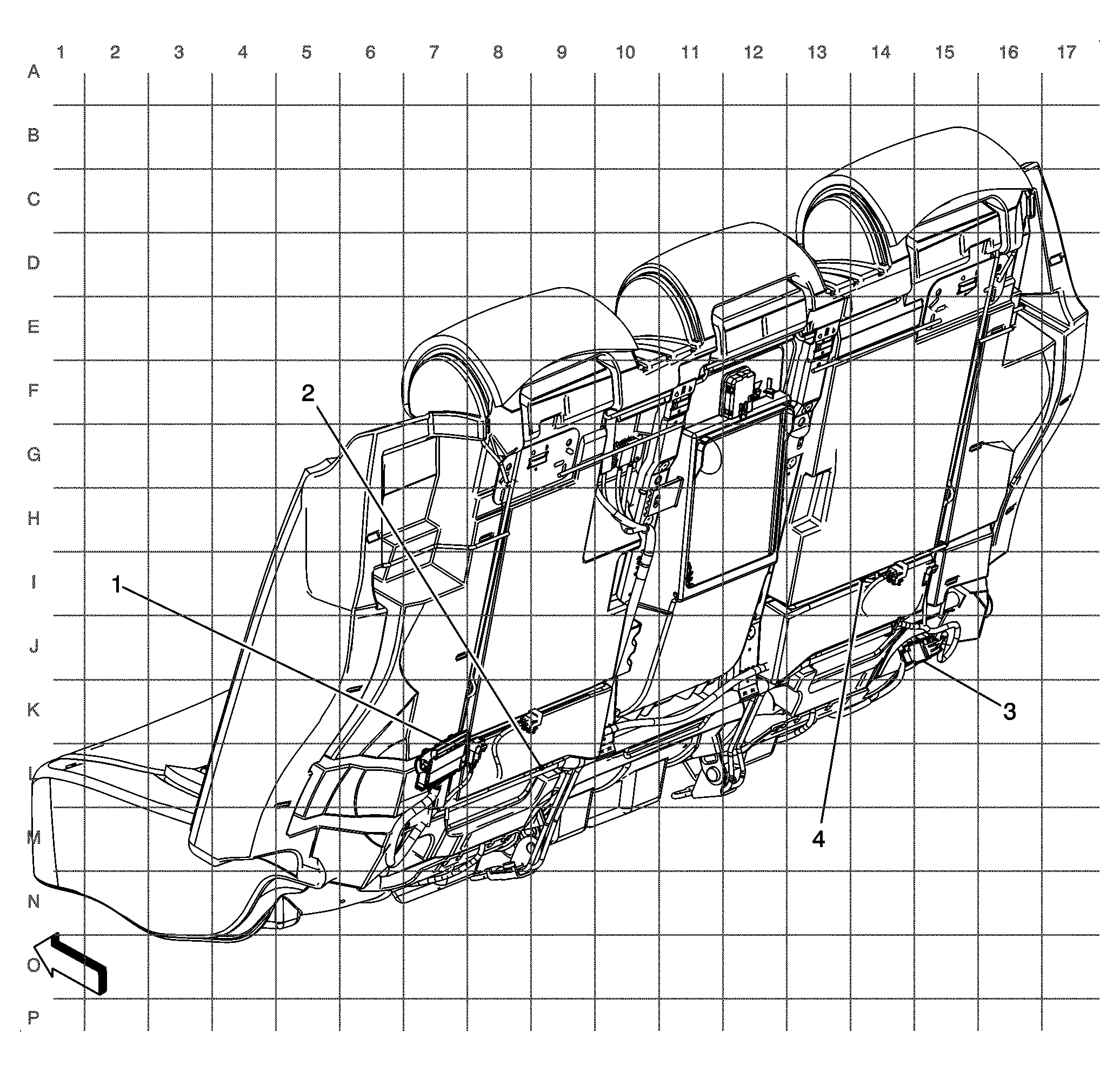

Fig 20: View Of Rear Seat Harness
GM1959970Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X313 (KA6/ARC)
2 J353
3 X320 (KA6)
4 J354

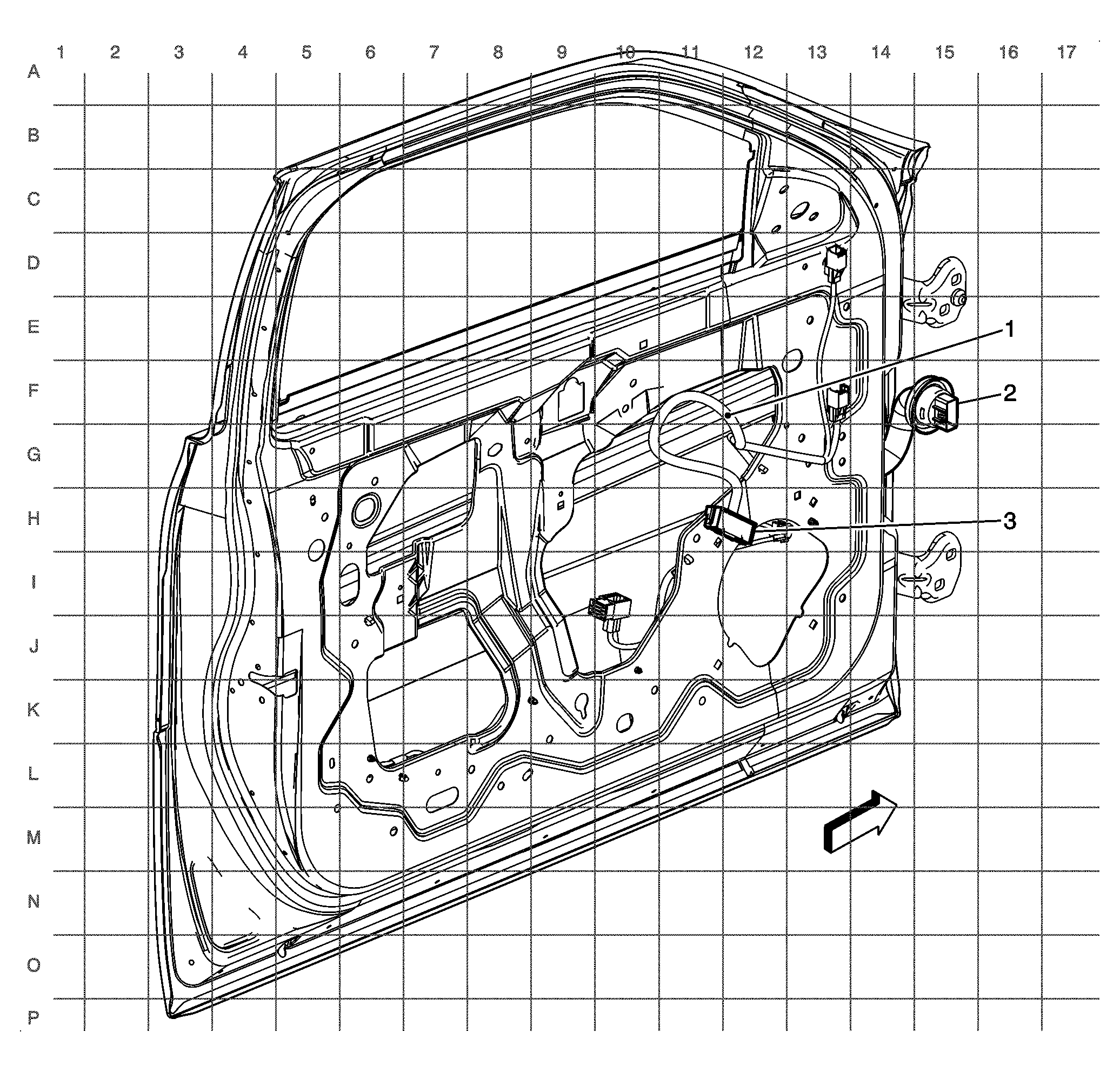

Fig 21: View Of Driver Door Harness
GM1959982Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J500
2 X500
3 X501

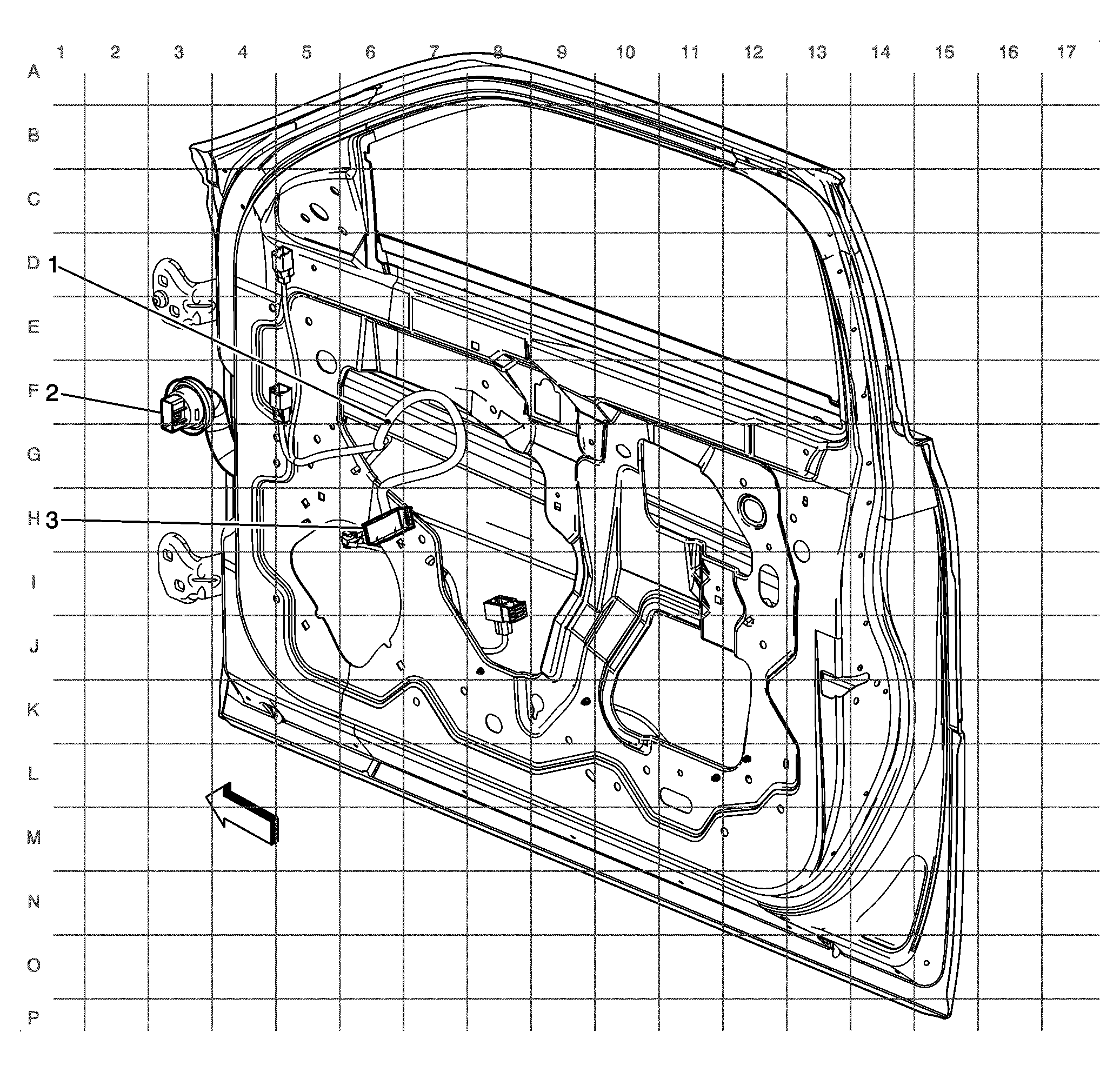

Fig 22: View Of Passenger Door Harness
GM1959993Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J600
2 X600
3 X601

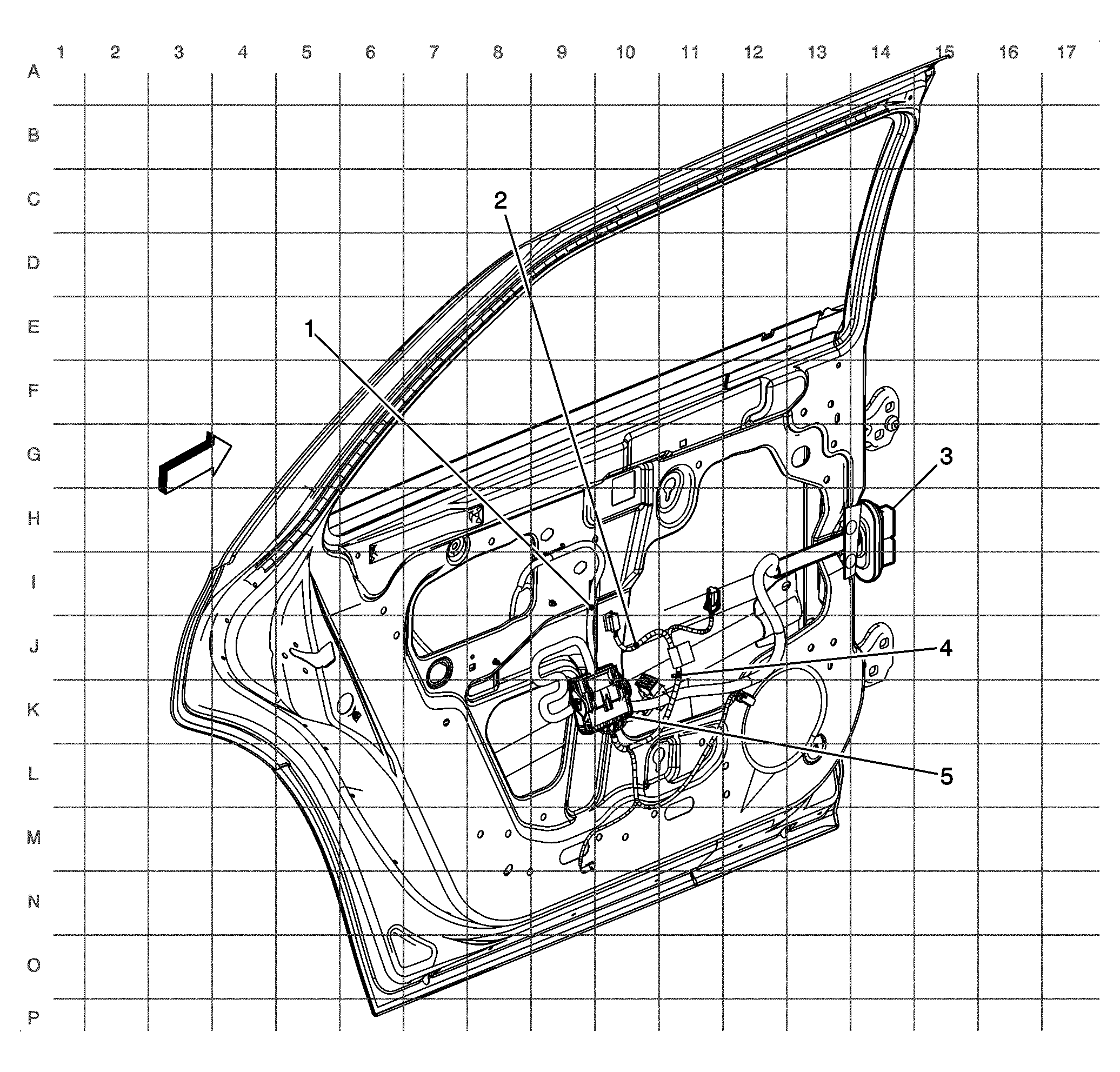

Fig 23: View Of Rear Left Side Door
GM1959999Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J700
2 J702 (KA6/ARC)
3 X700
4 J701
5 X702

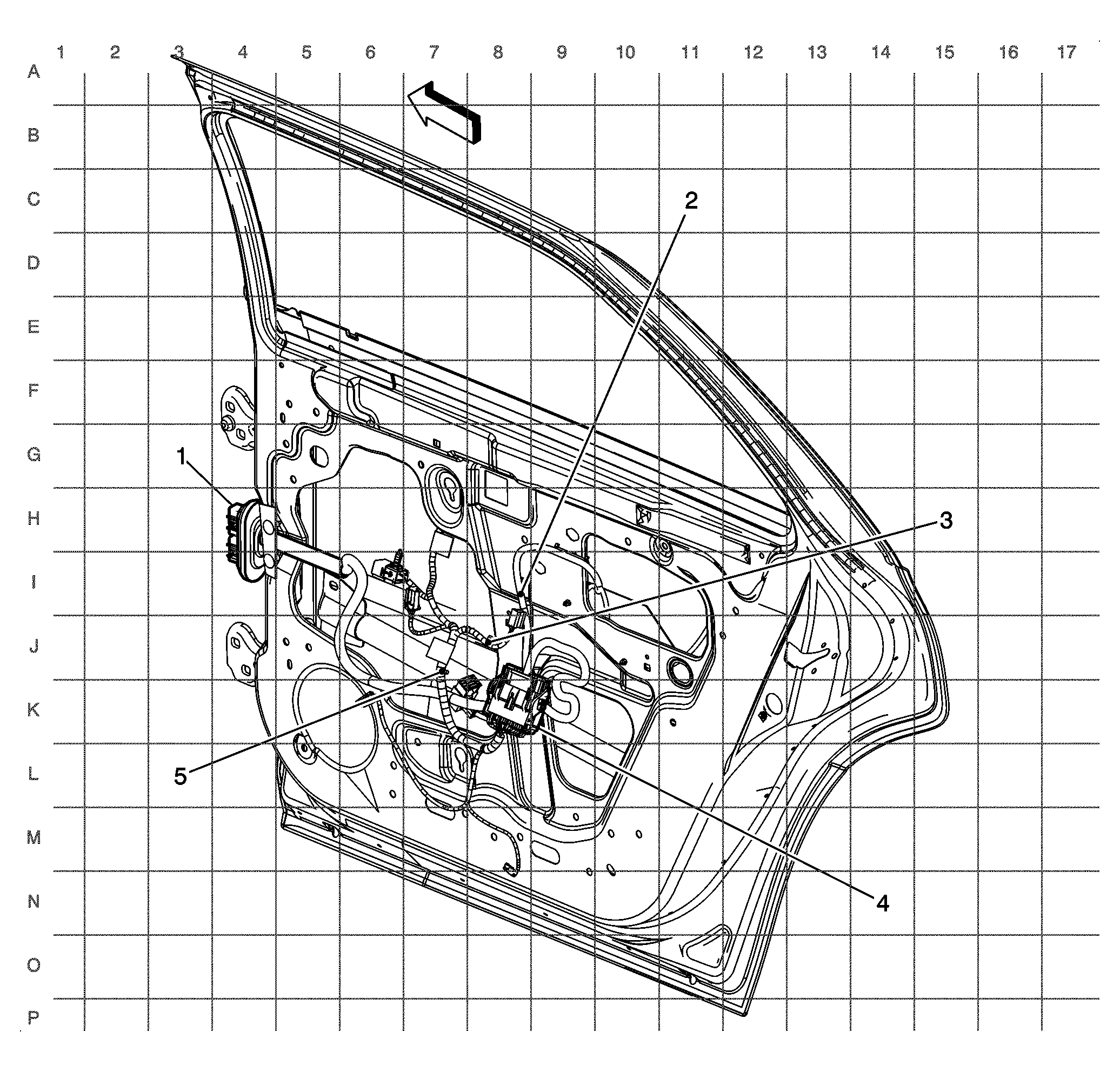

Fig 24: View Of Rear Right Side Door
GM1960005Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X800
2 J800
3 J802 (KA6/ARC)
4 X802
5 J801

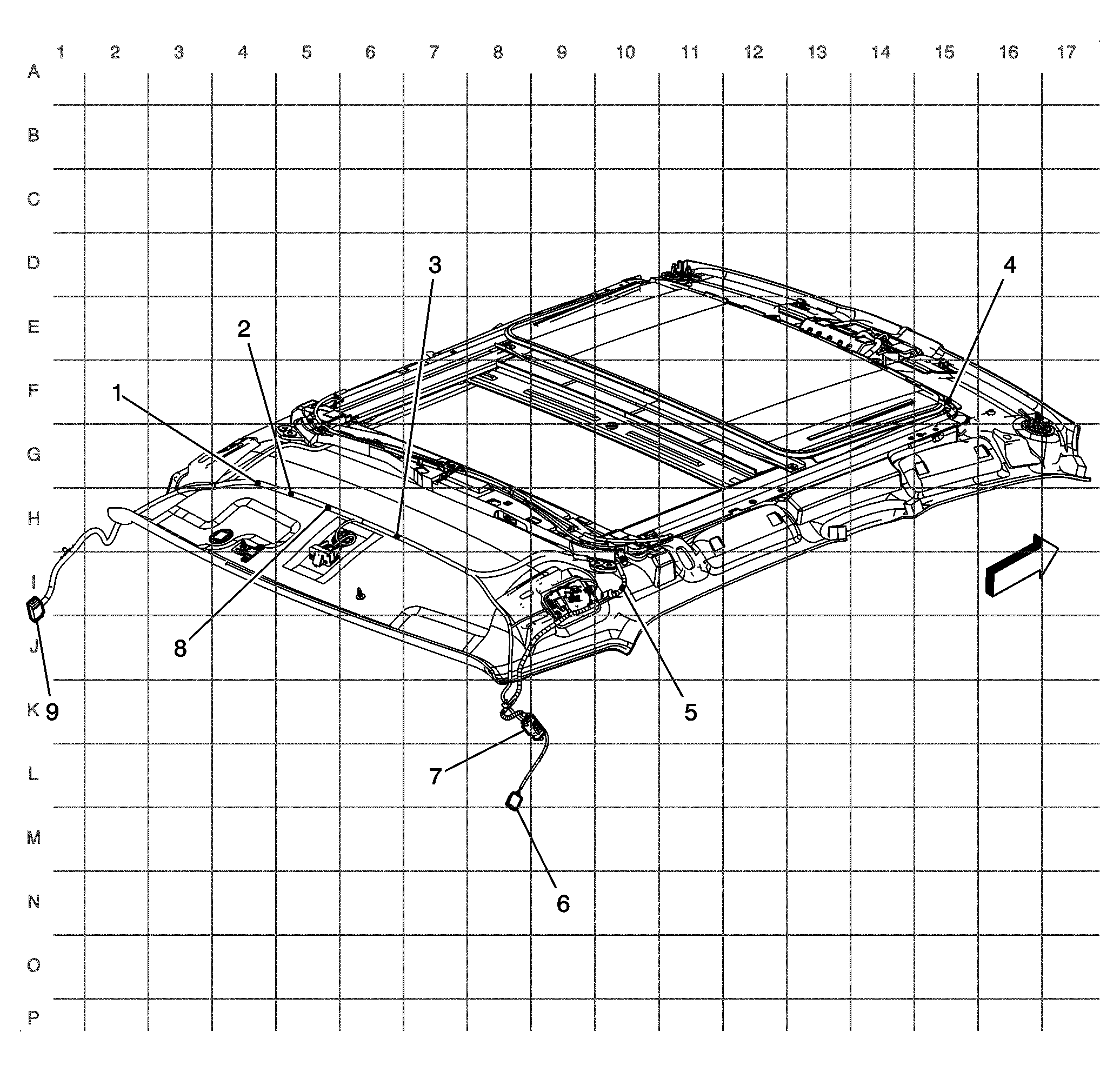

Fig 25: View Of Headliner (CF5)
GM1960024Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J312
2 J328
3 J313
4 J334
5 J338
6 X397 (CF5)
7 X399 (CF5)
8 J392
9 X321

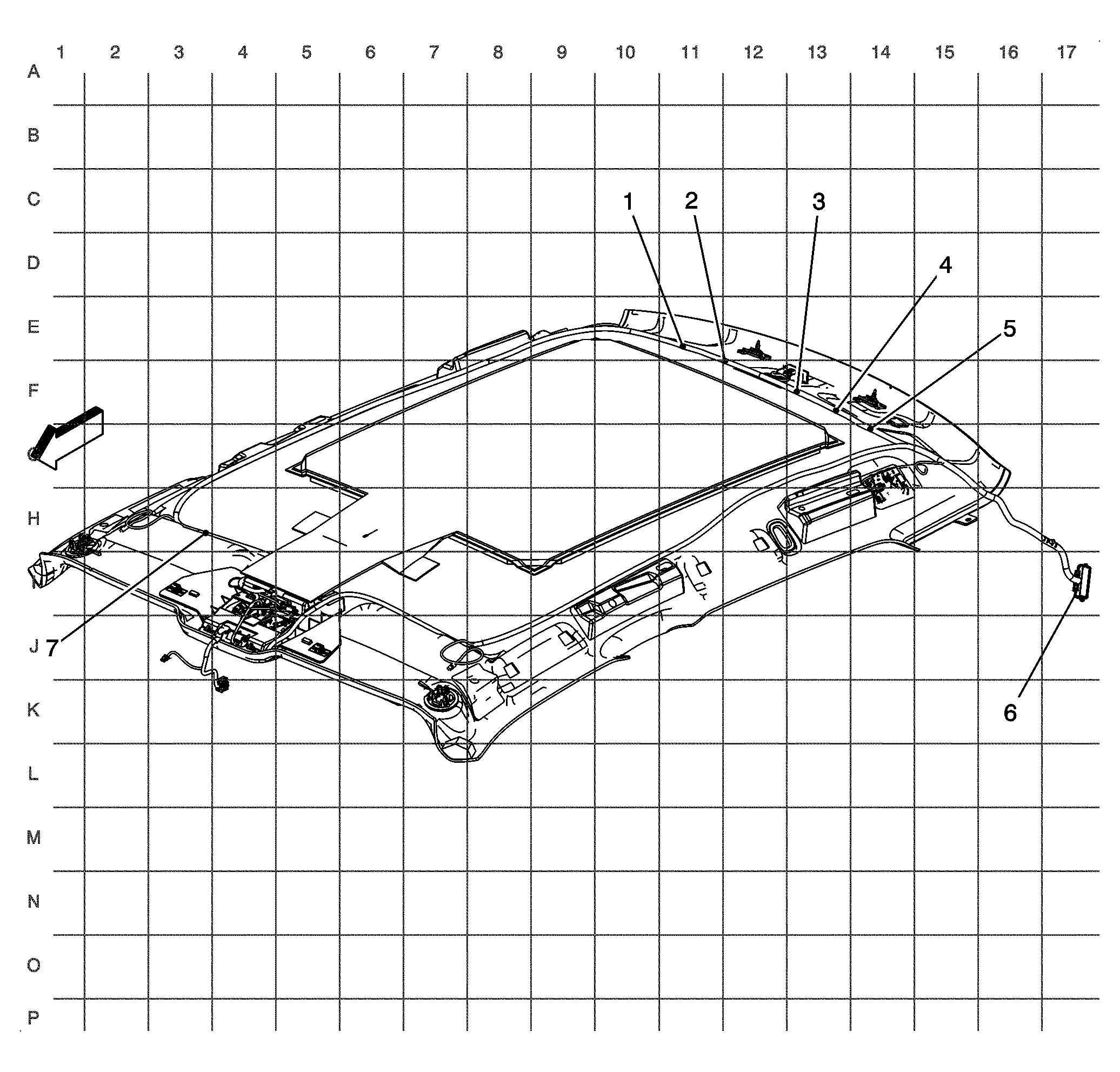

Fig 26: View Of Headliner (Except CF5)
GM1960036Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J313
2 J330
3 J392
4 J328
5 J312
6 X321
7 J334

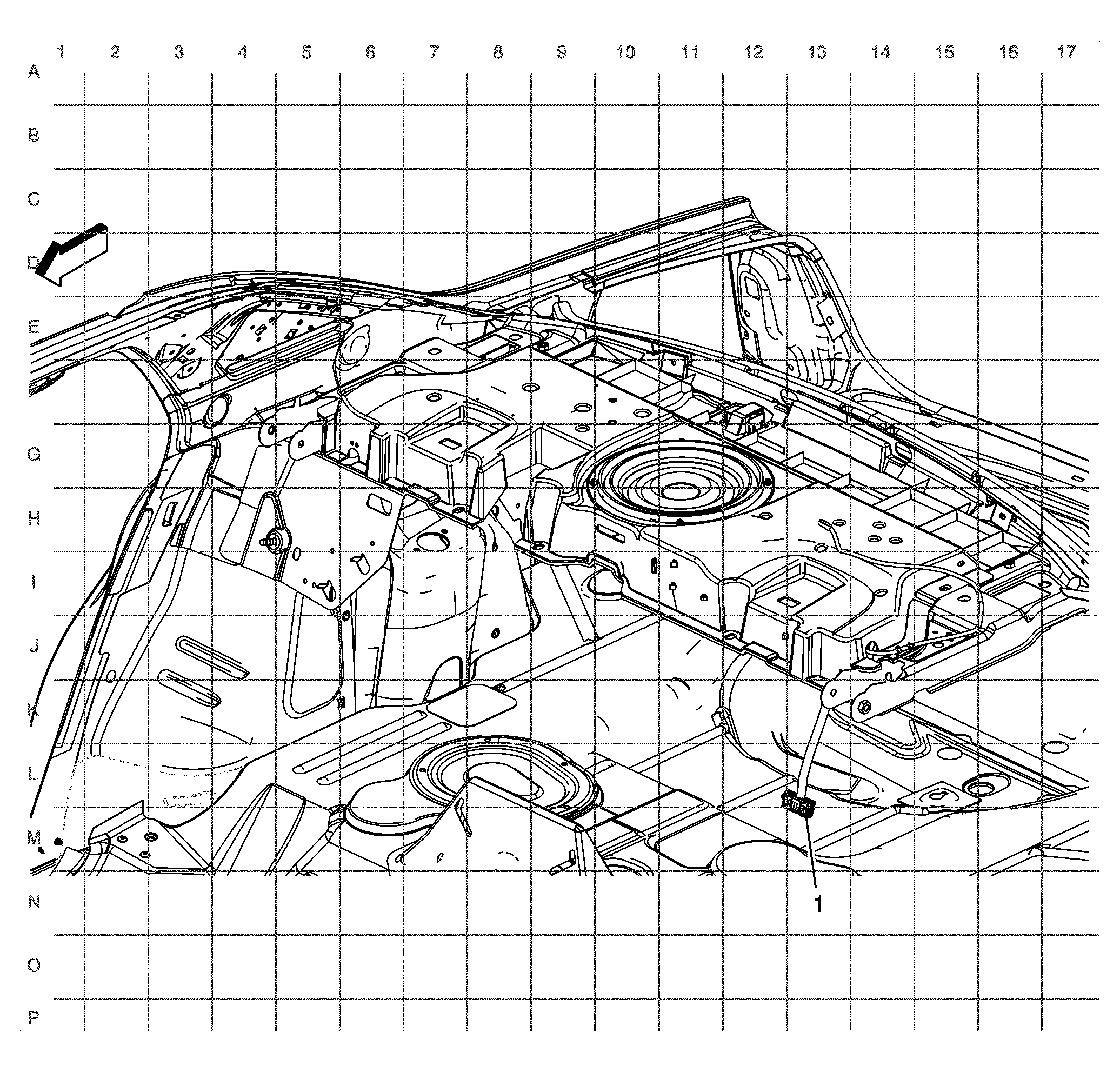

Fig 27: View Of Rear Shelf Harness
GM1960092Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X445

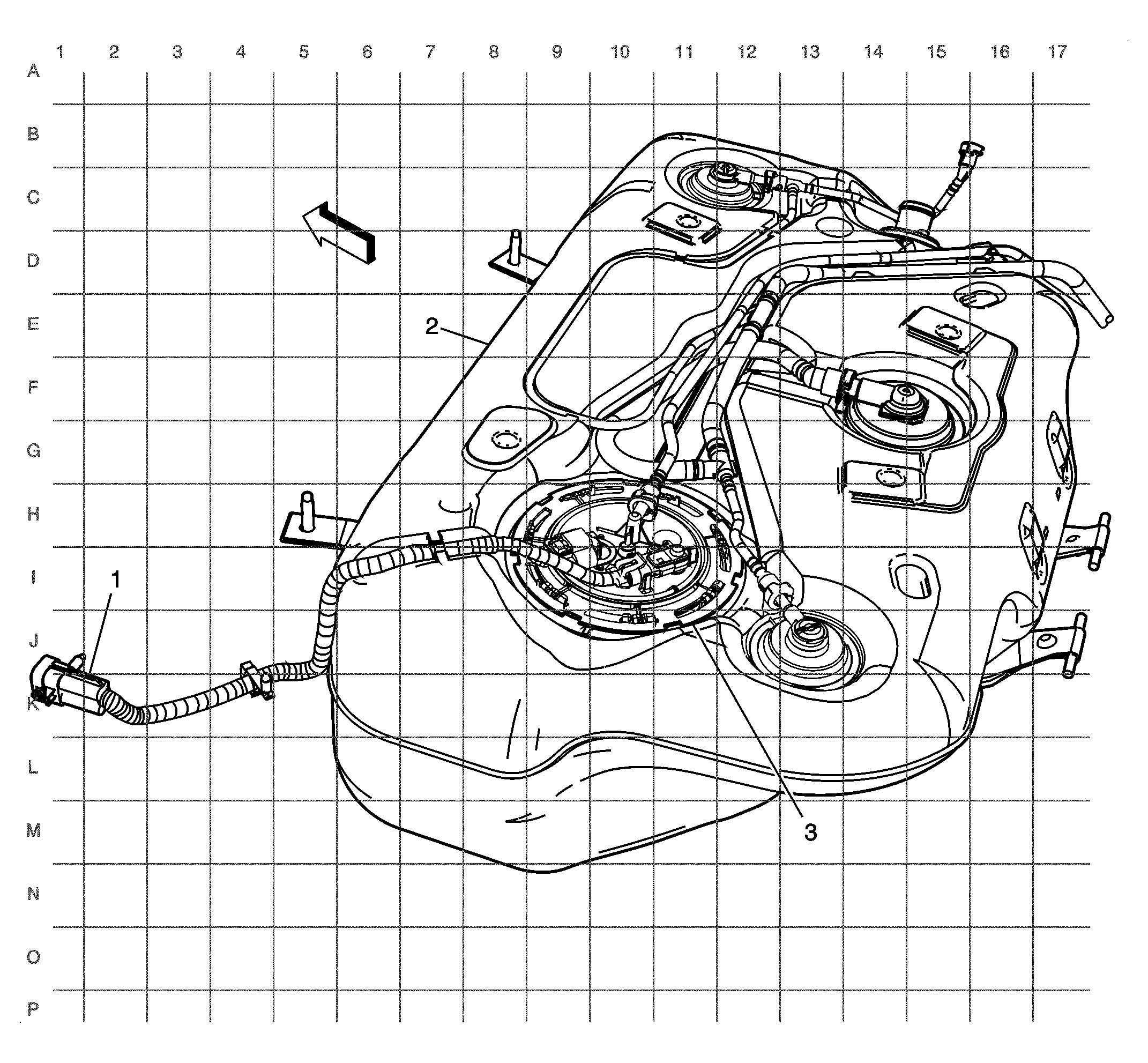

Fig 28: Fuel Tank Harness
GM1619165Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X309
2 Fuel Tank
3 Fuel Sending Unit

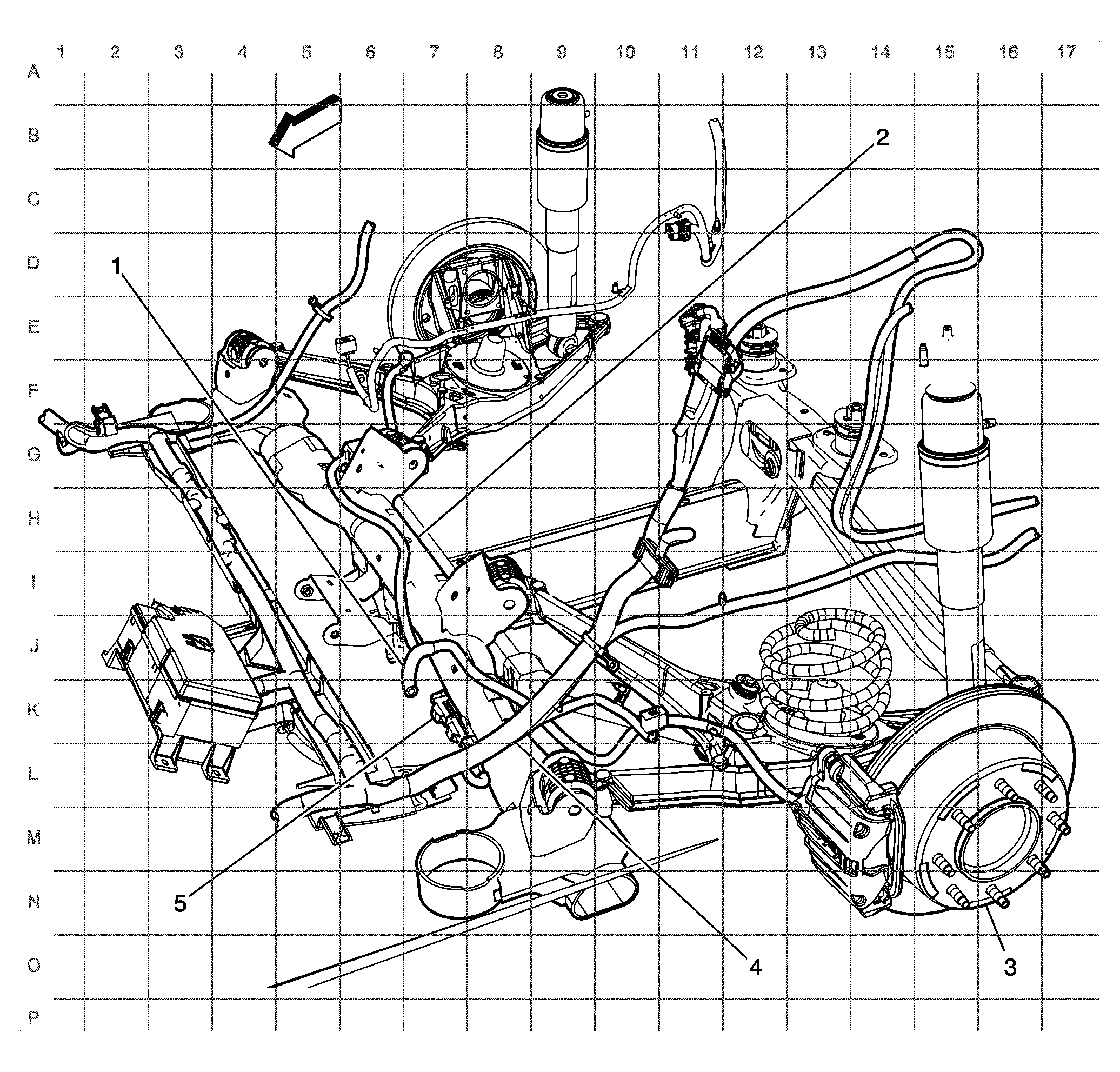

Fig 29: Top Left Side of Rear Crossmember Harnesses Routing Views
GM1860579Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Wheel Speed Sensor (WSS) Harness
2 Rear Crossmember
3 Rotor-Left Rear
4 Body Harness
5 X308

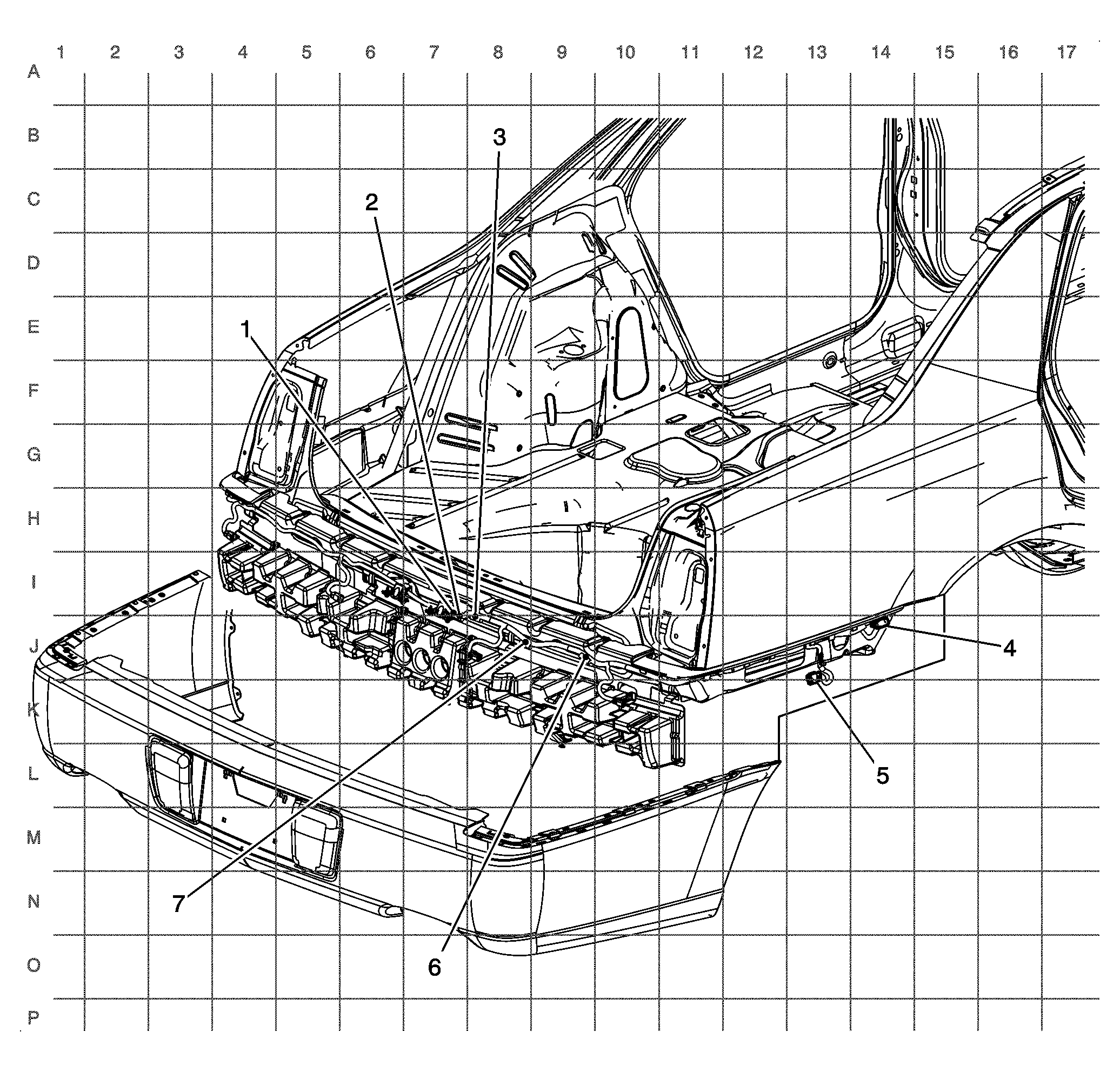

Fig 30: Rear Fascia Connectors
GM1960137Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J409
2 J404
3 J400
4 X494 (UFR/UFT)
5 X495 (-UFR)
