Ground Distribution Schematics

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

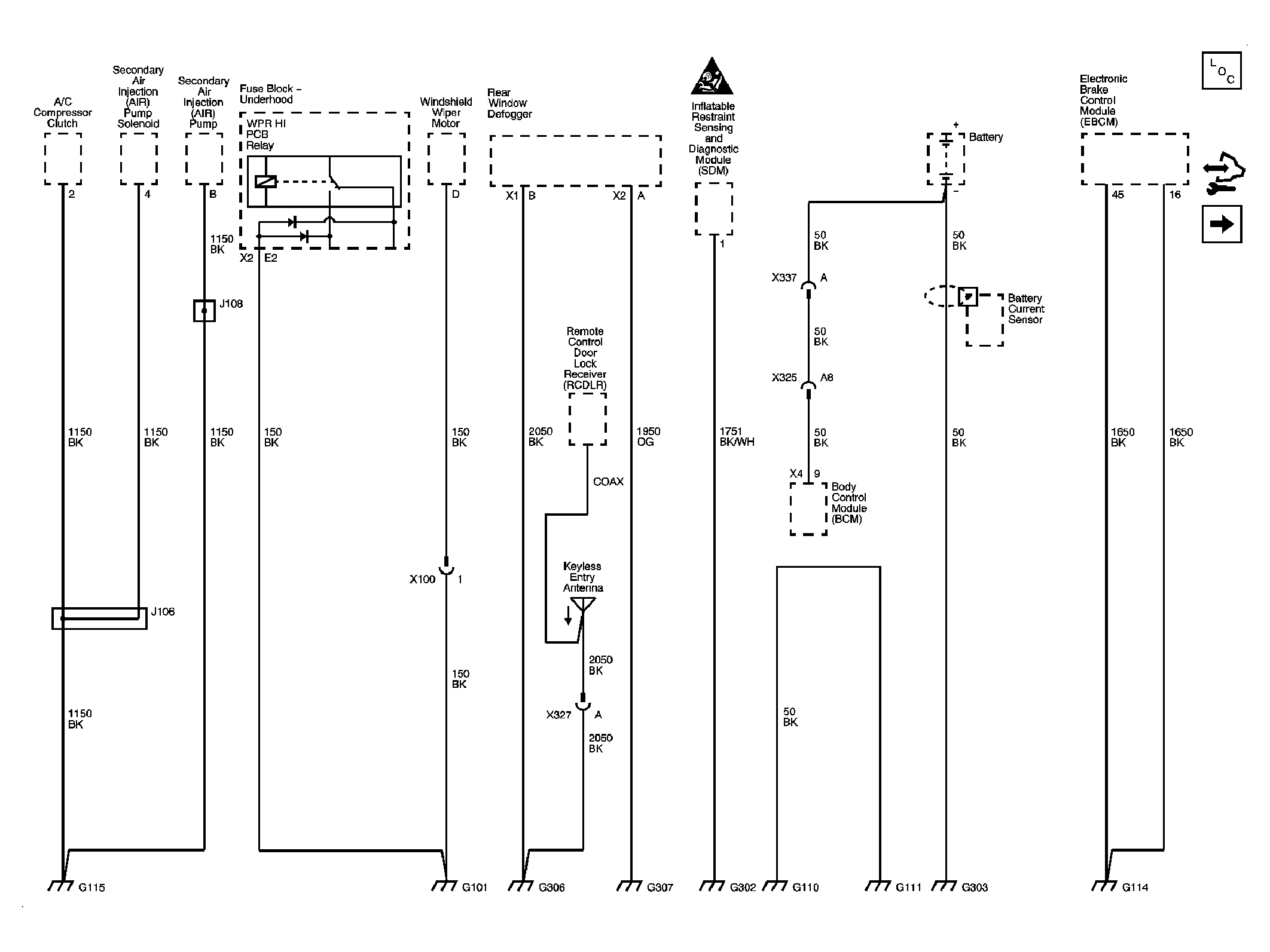

Fig 1: G101, G110, G111, G114, G115, G302, G303, G306, G307

Courtesy of GENERAL MOTORS CORP.

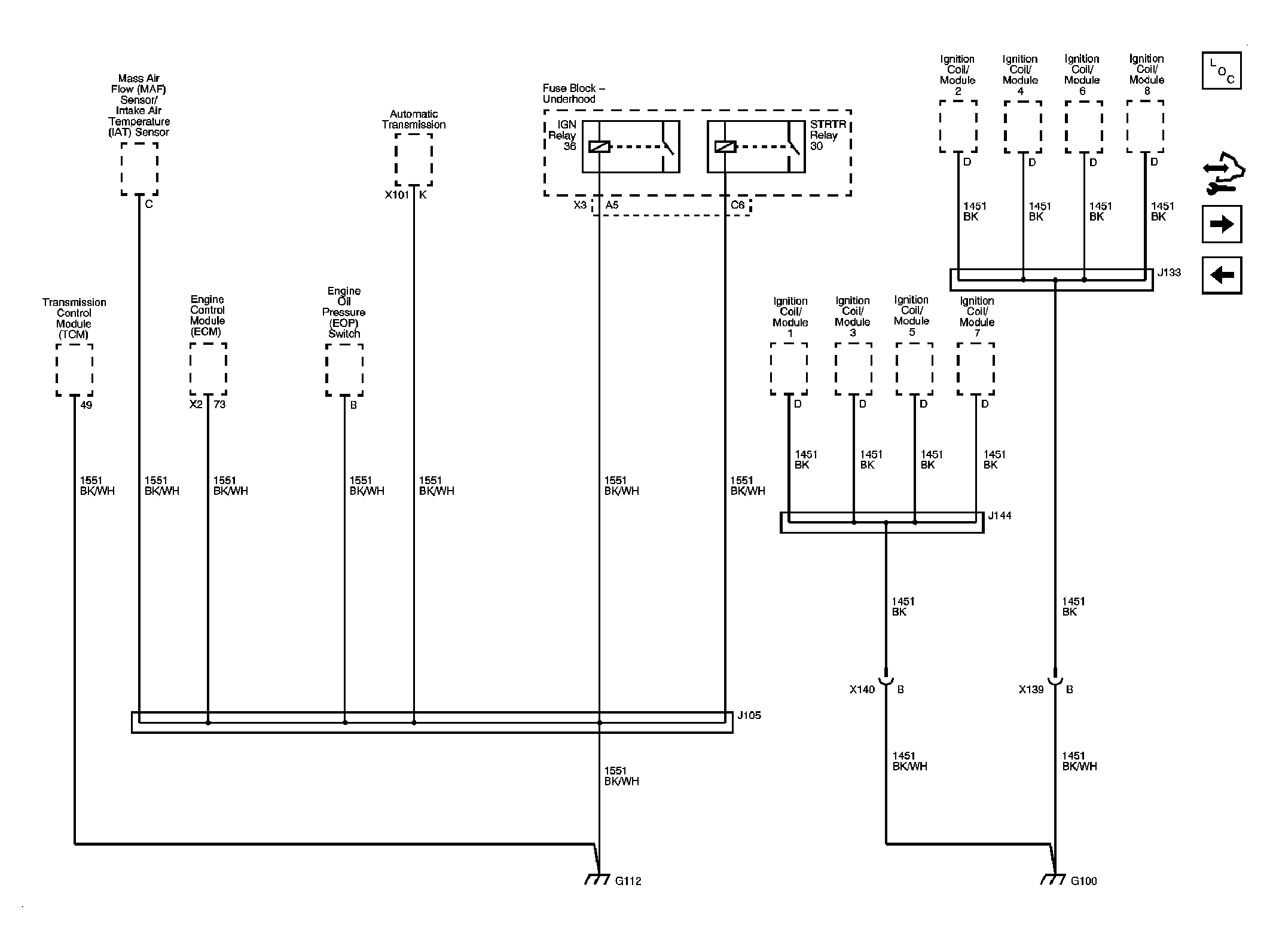

Fig 2: G100, G112

Courtesy of GENERAL MOTORS CORP.

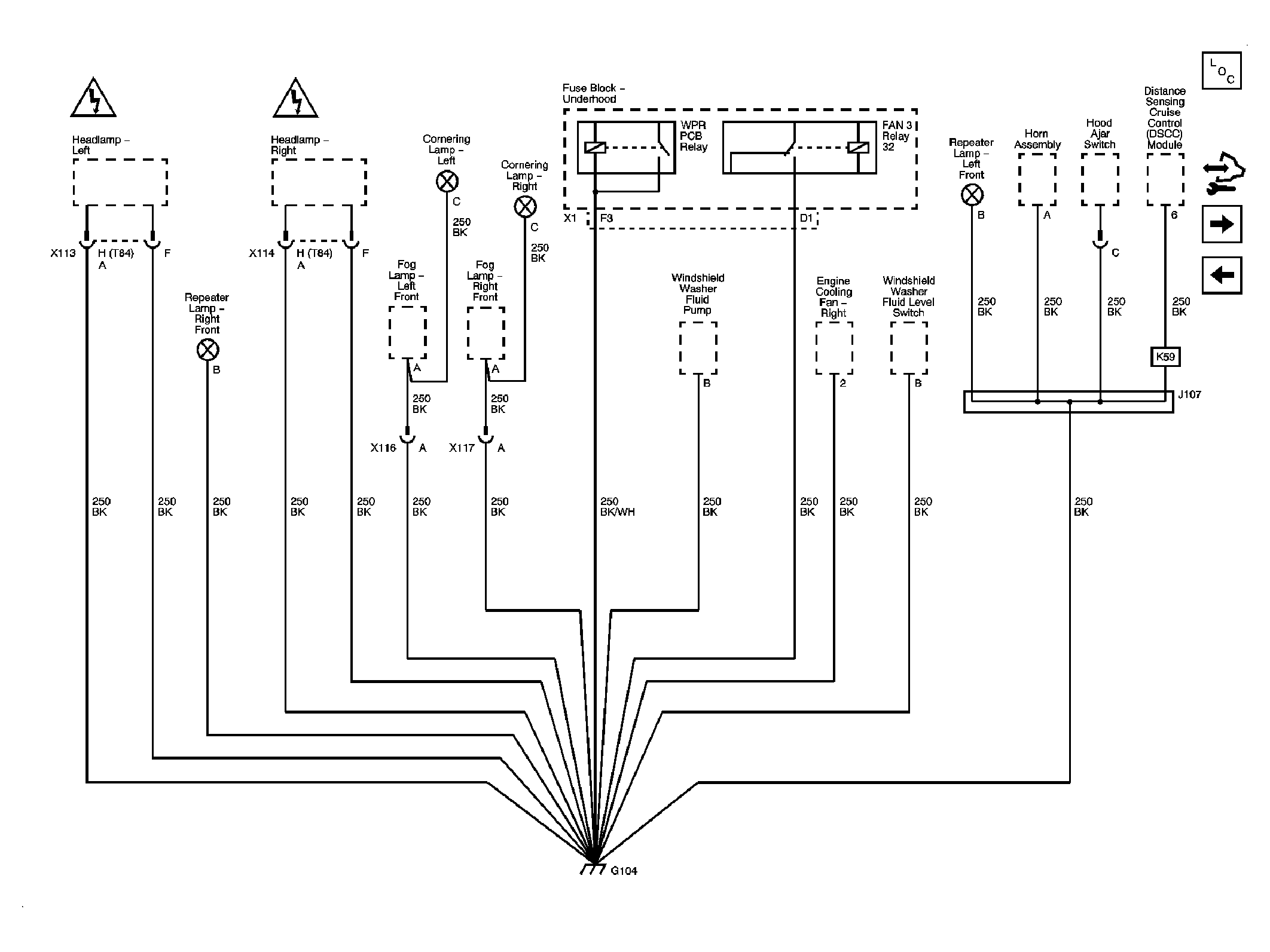

Fig 3: G104

Courtesy of GENERAL MOTORS CORP.

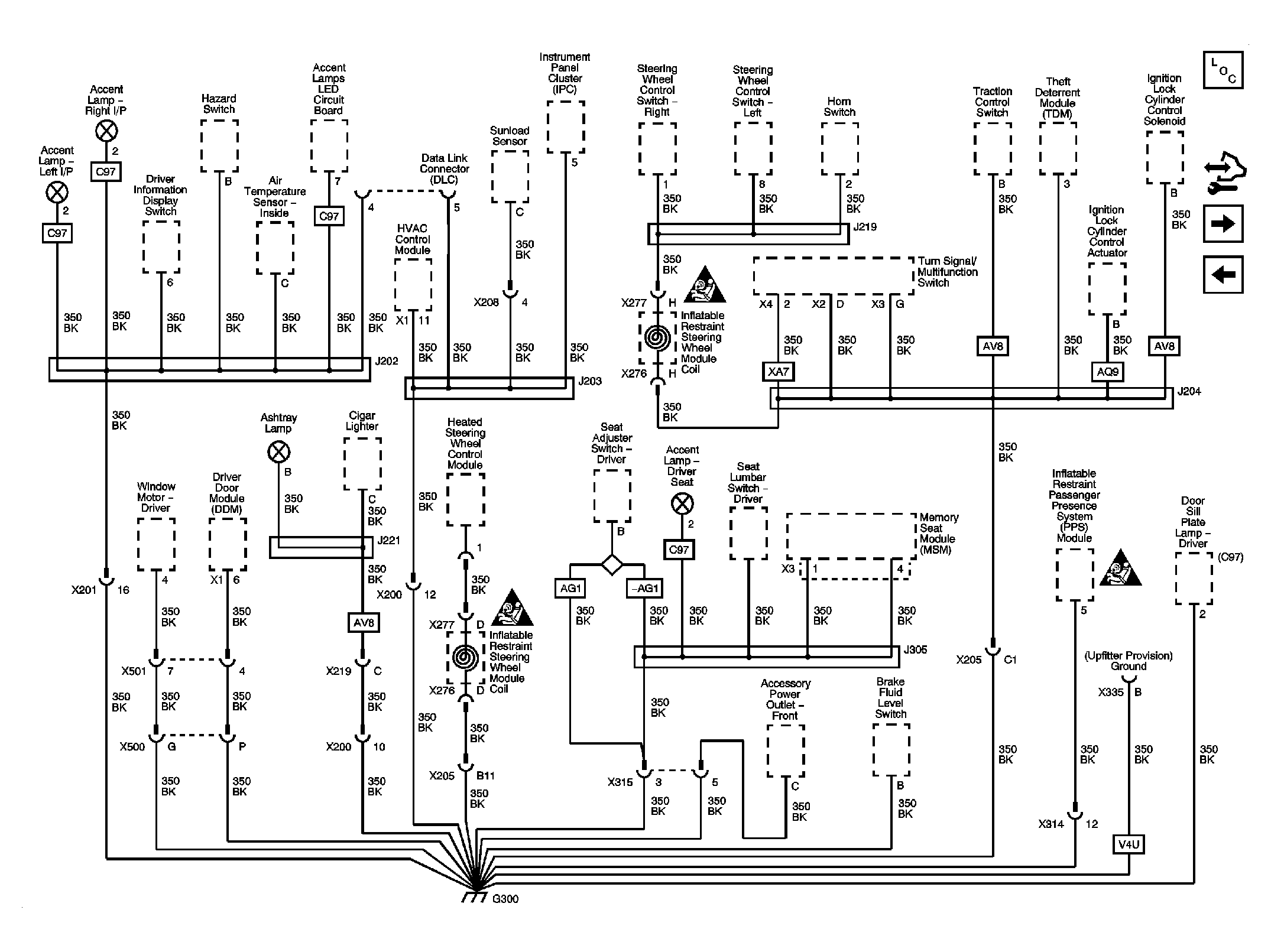

Fig 4: G300

Courtesy of GENERAL MOTORS CORP.

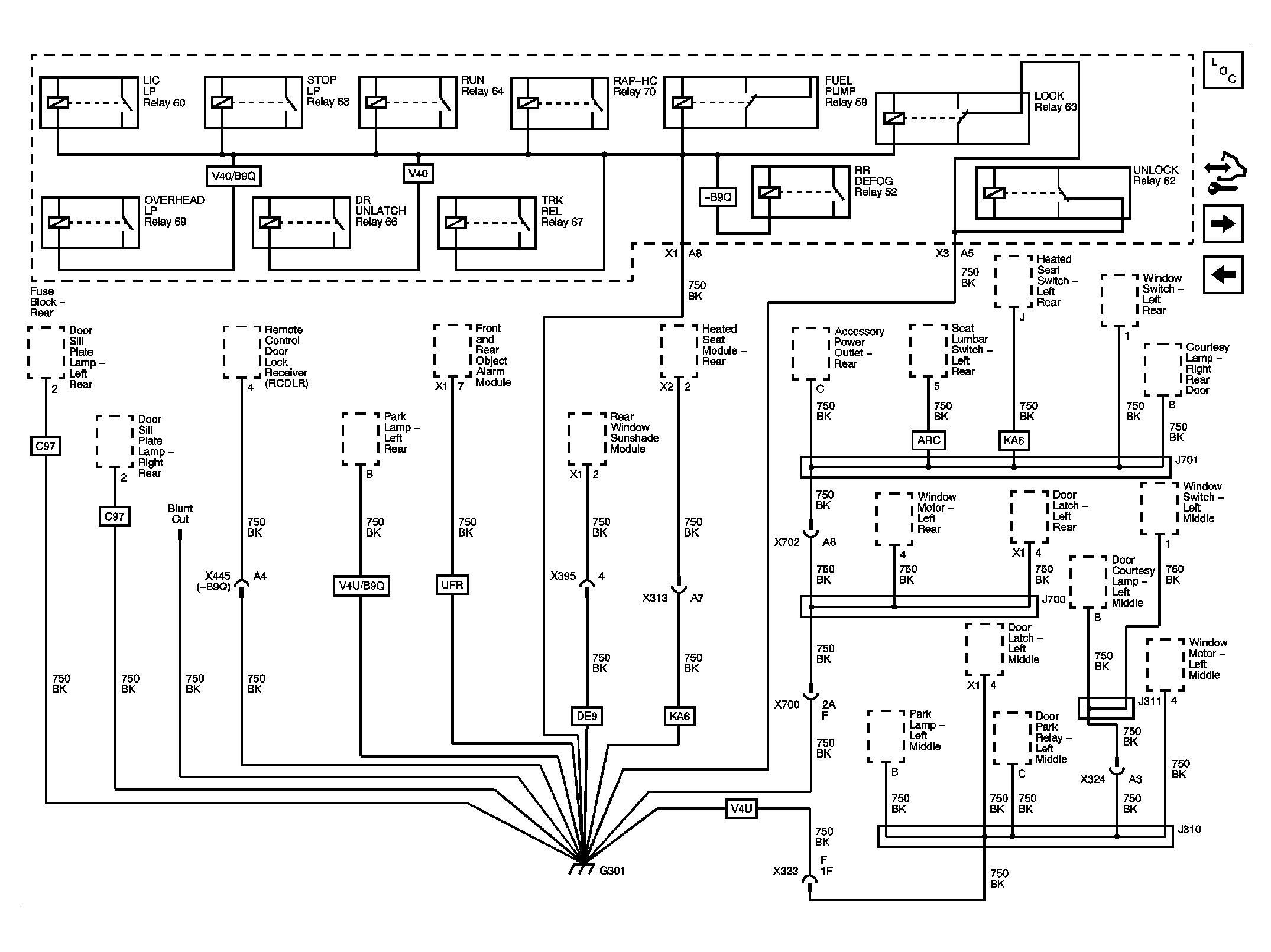

Fig 5: G301

Courtesy of GENERAL MOTORS CORP.

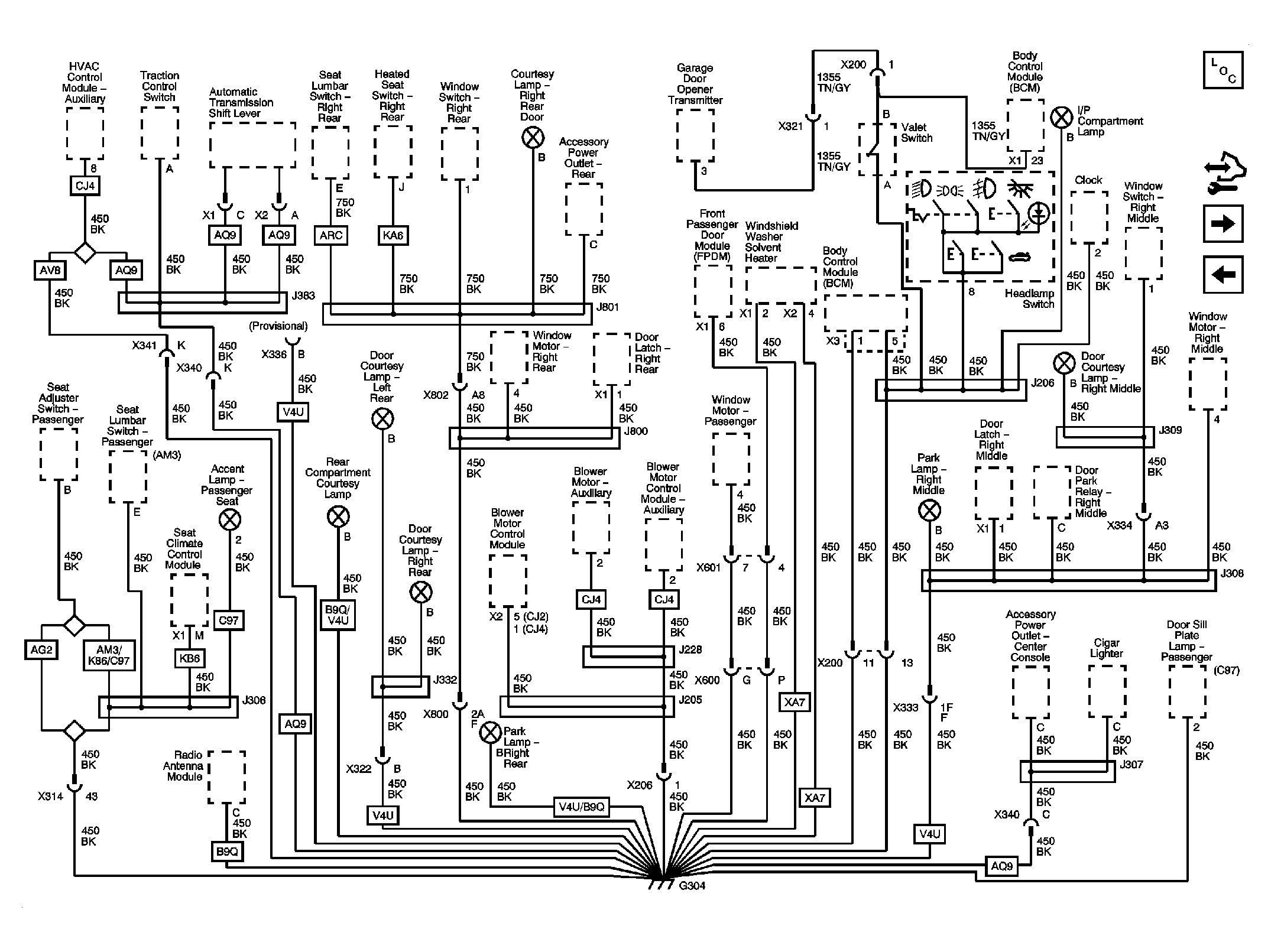

Fig 6: G304

Courtesy of GENERAL MOTORS CORP.

Fig 7: G305

Courtesy of GENERAL MOTORS CORP.

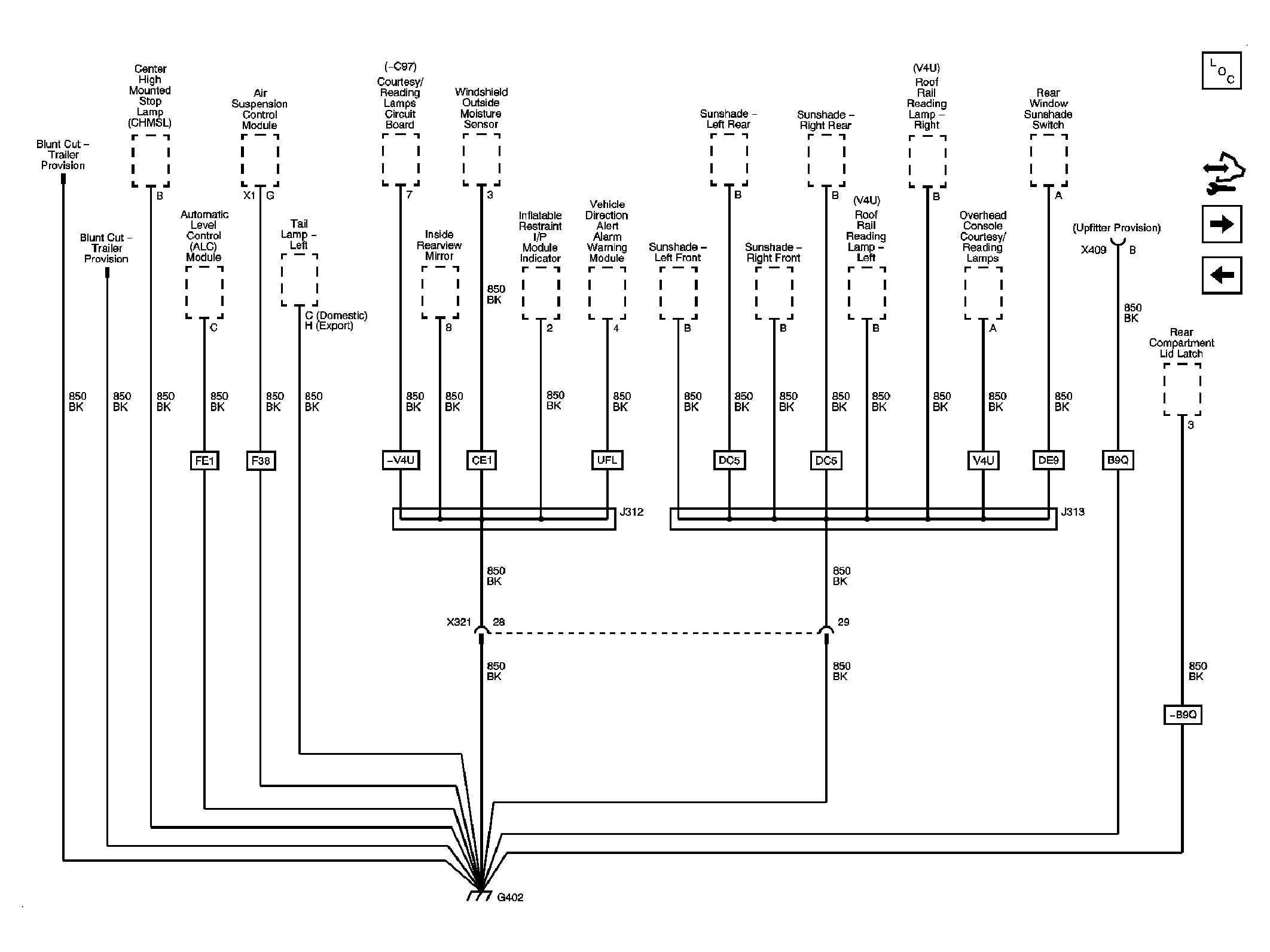

Fig 8: G402

Courtesy of GENERAL MOTORS CORP.

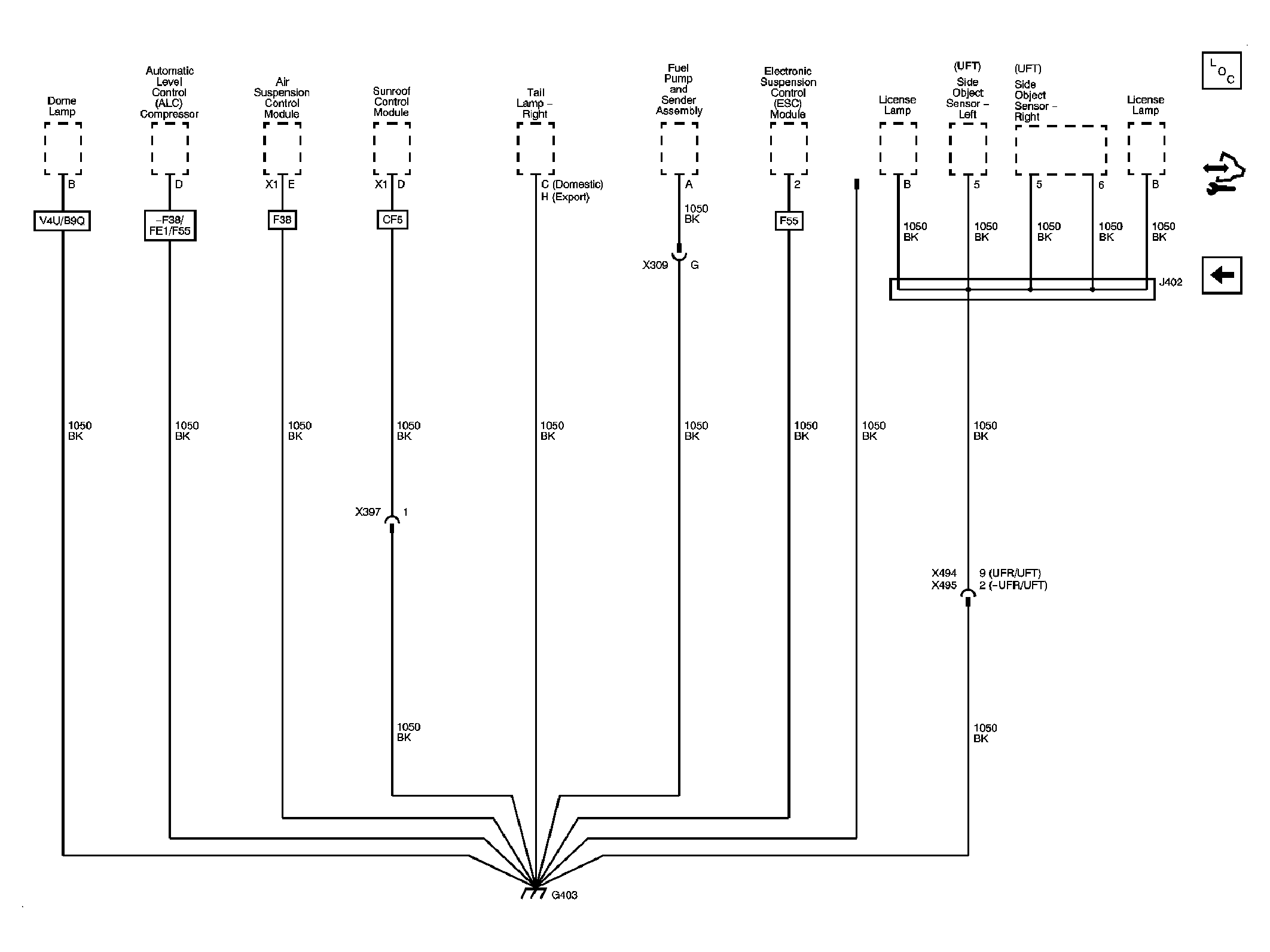

Fig 9: G403

Courtesy of GENERAL MOTORS CORP.
