Engine Controls Schematics

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

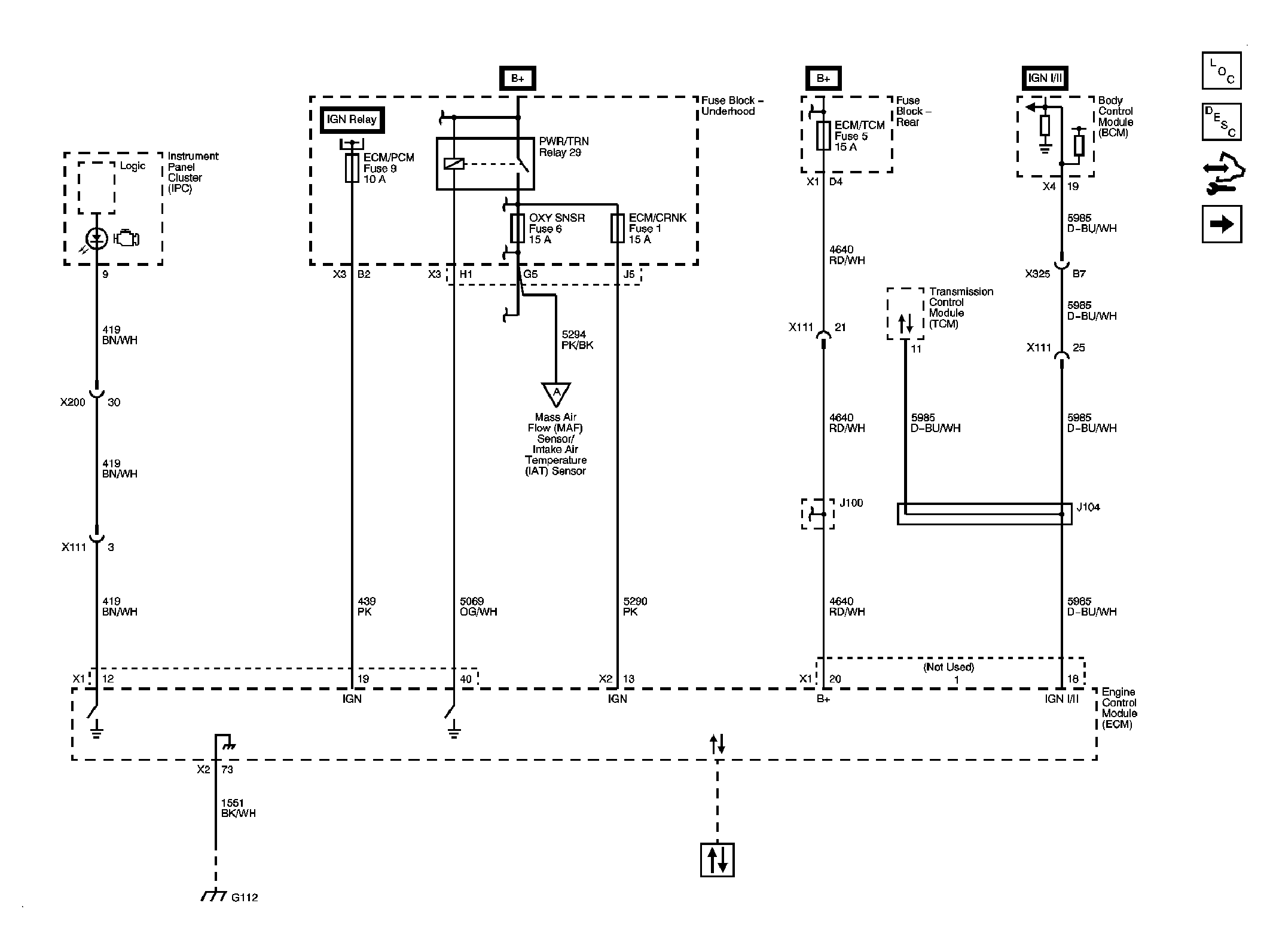

Fig 1: Power, Ground, MIL and DLC

Courtesy of GENERAL MOTORS CORP.

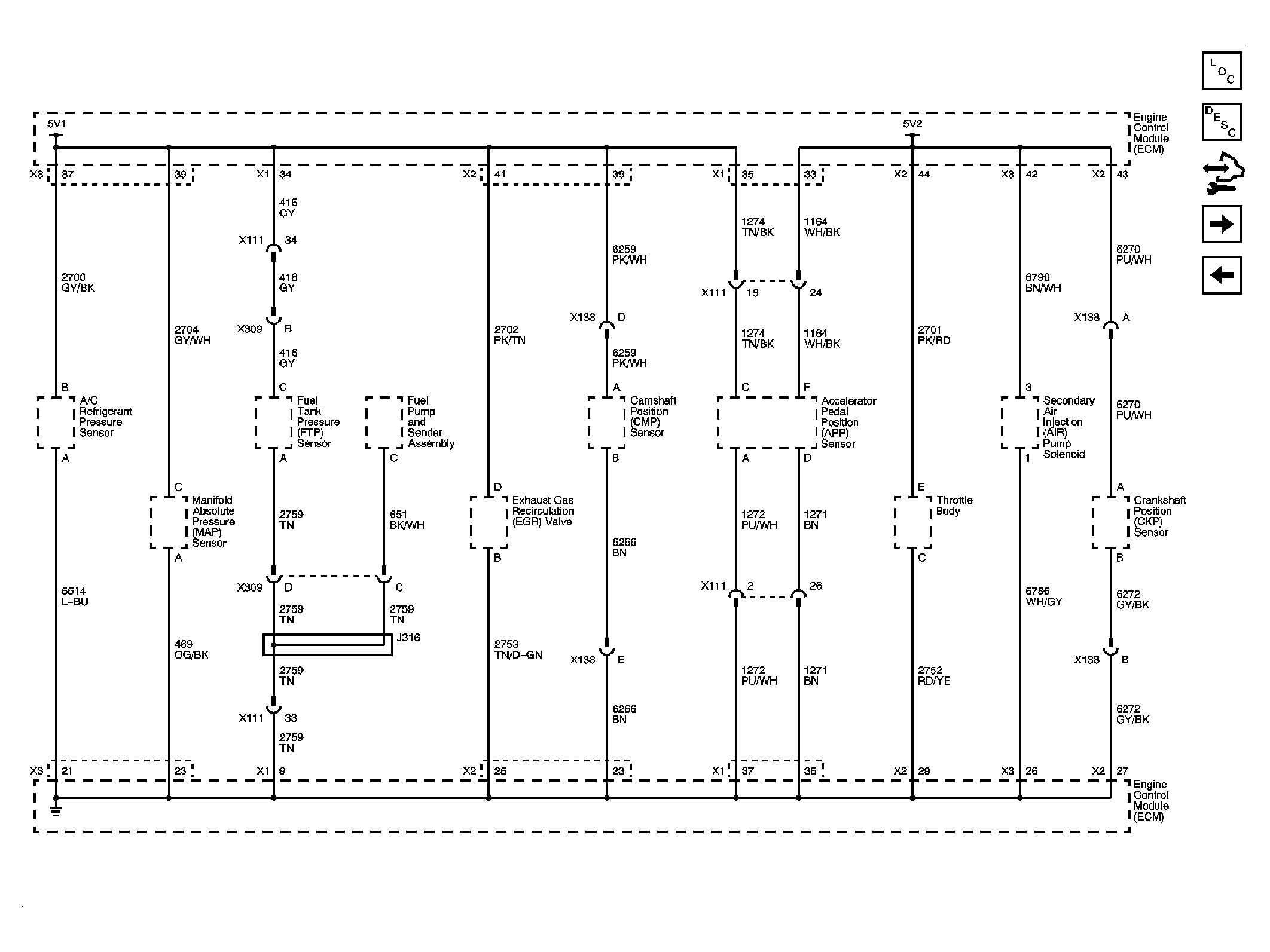

Fig 2: Engine Data Sensors, 5V Reference Bussing

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Data Sensors, Pressure, Temp and MAF/IAT

Courtesy of GENERAL MOTORS CORP.

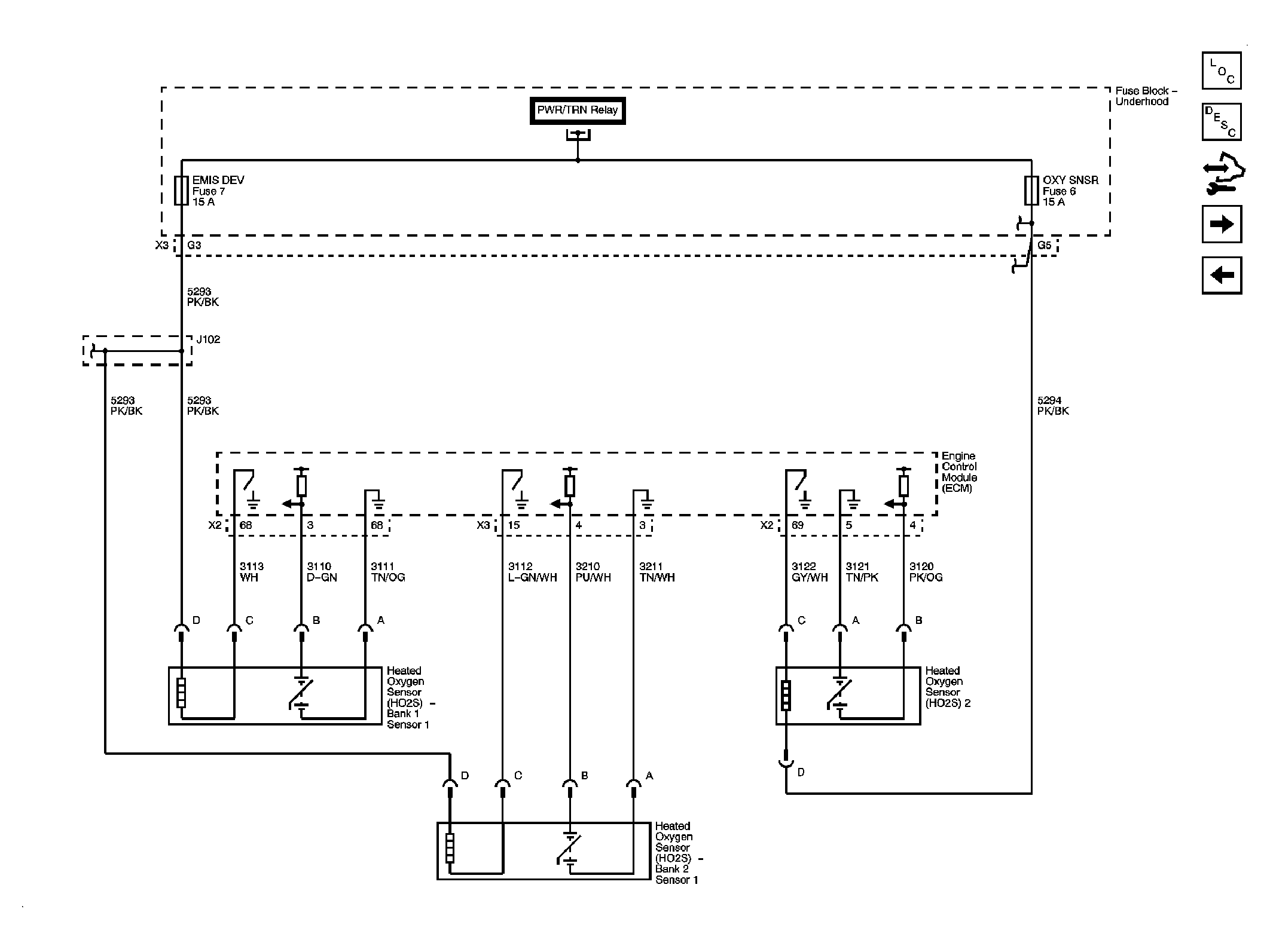

Fig 4: Engine Data Sensors, HO2S

Courtesy of GENERAL MOTORS CORP.

Fig 5: Engine Data Sensors, APP and Throttle Body Assembly

Courtesy of GENERAL MOTORS CORP.

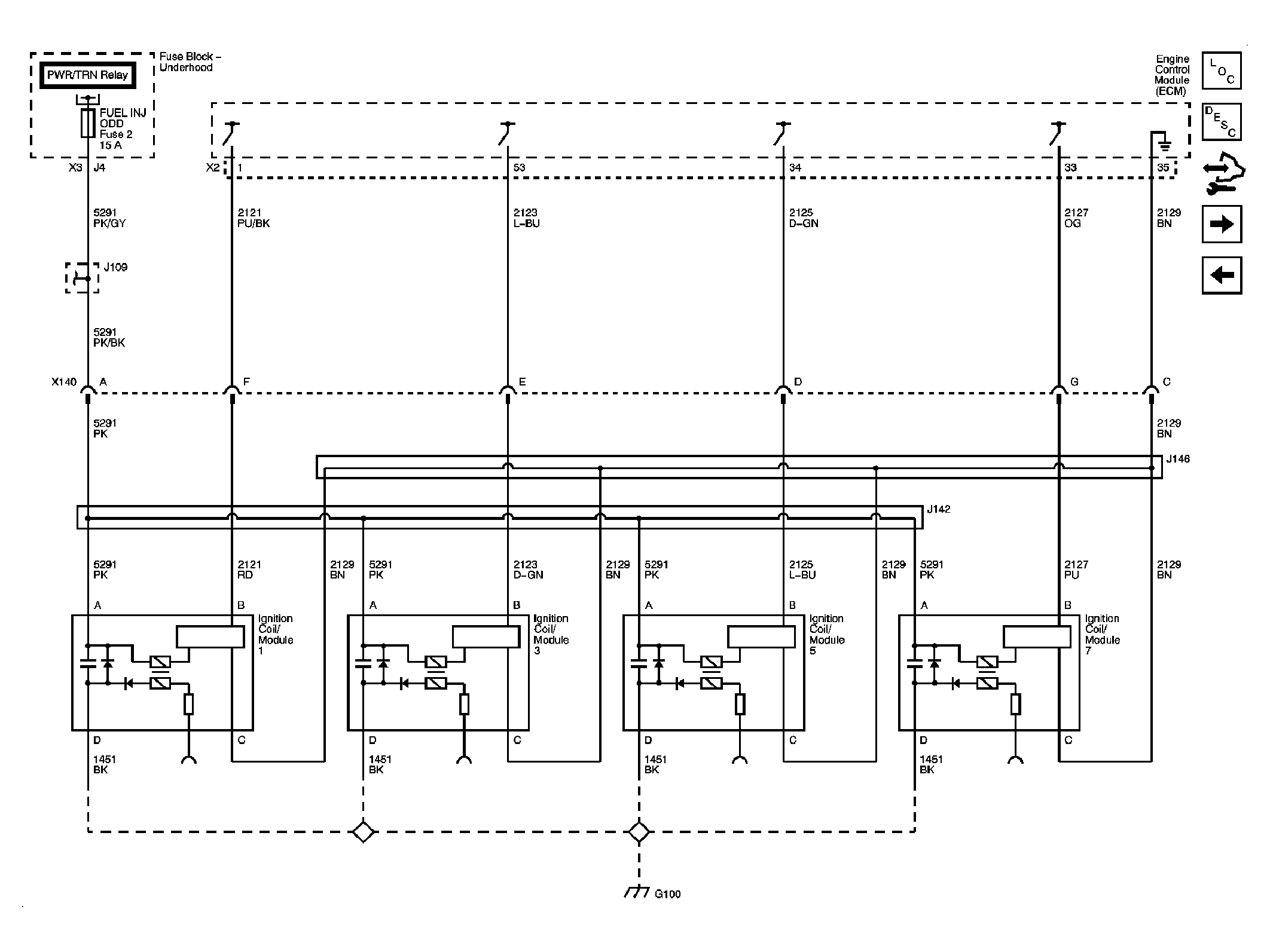

Fig 6: Ignition Controls 1 of 2

Courtesy of GENERAL MOTORS CORP.

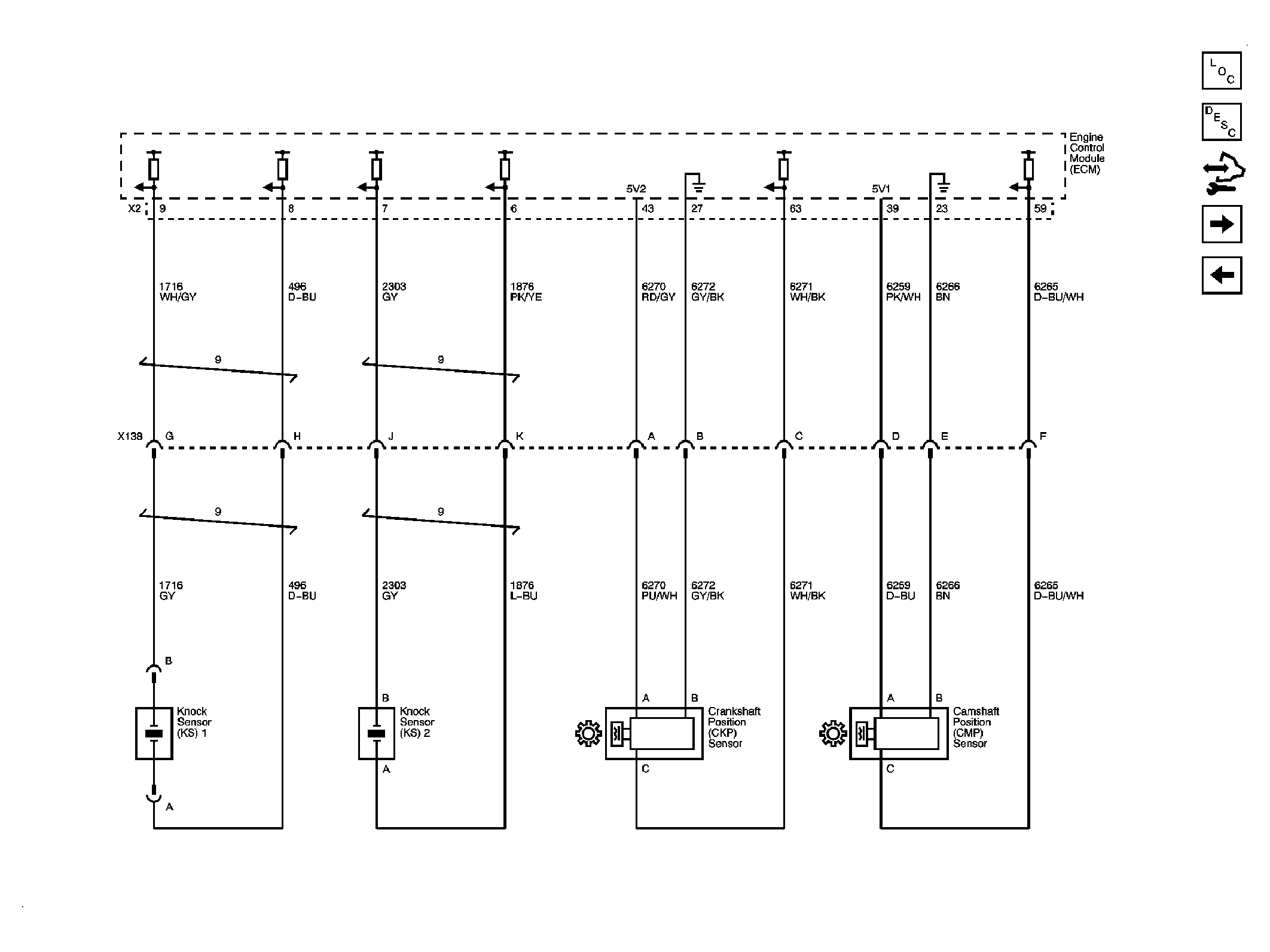

Fig 7: CKP, CMP, Knock Sensors

Courtesy of GENERAL MOTORS CORP.

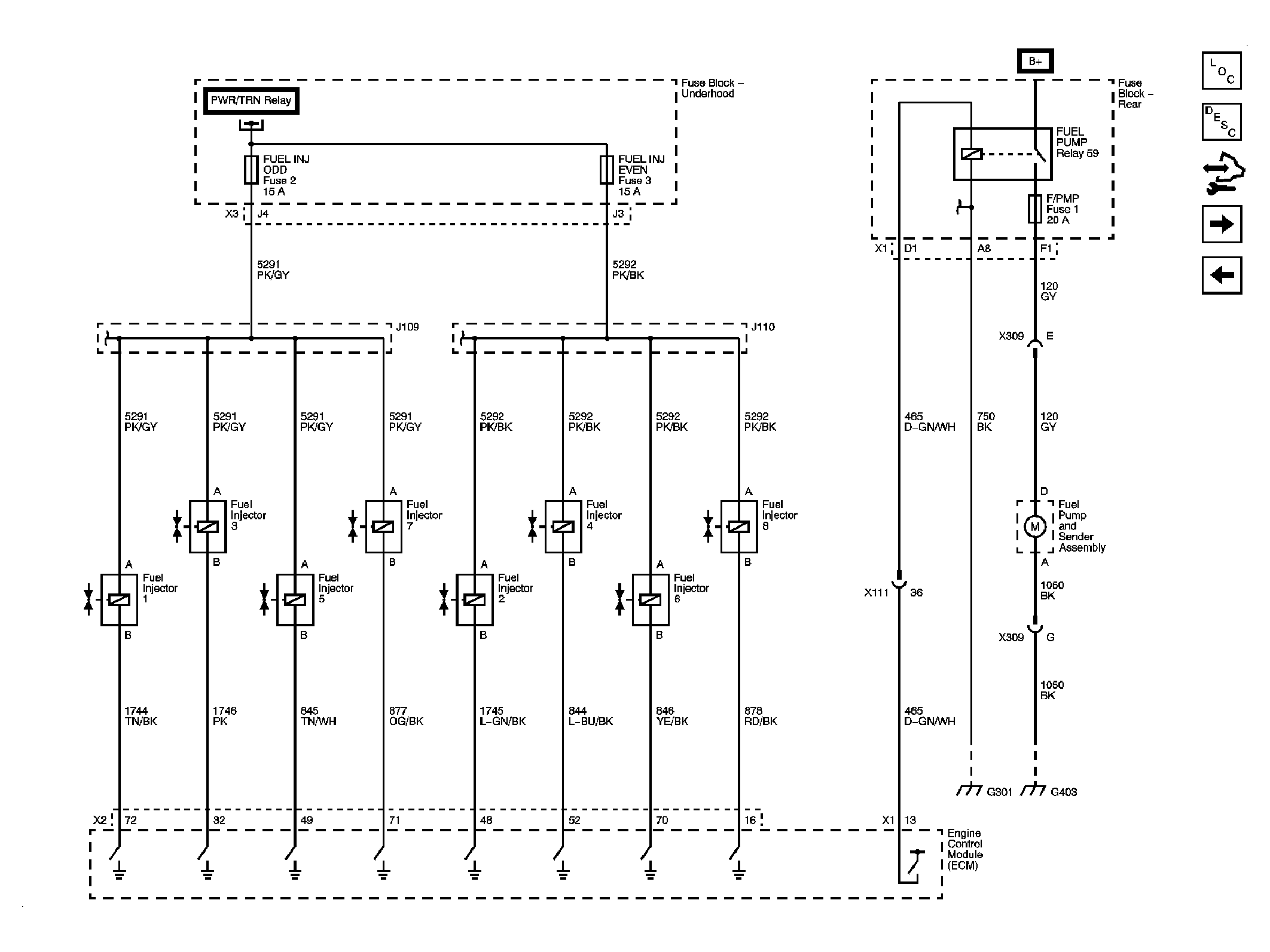

Fig 8: Fuel Controls

Courtesy of GENERAL MOTORS CORP.

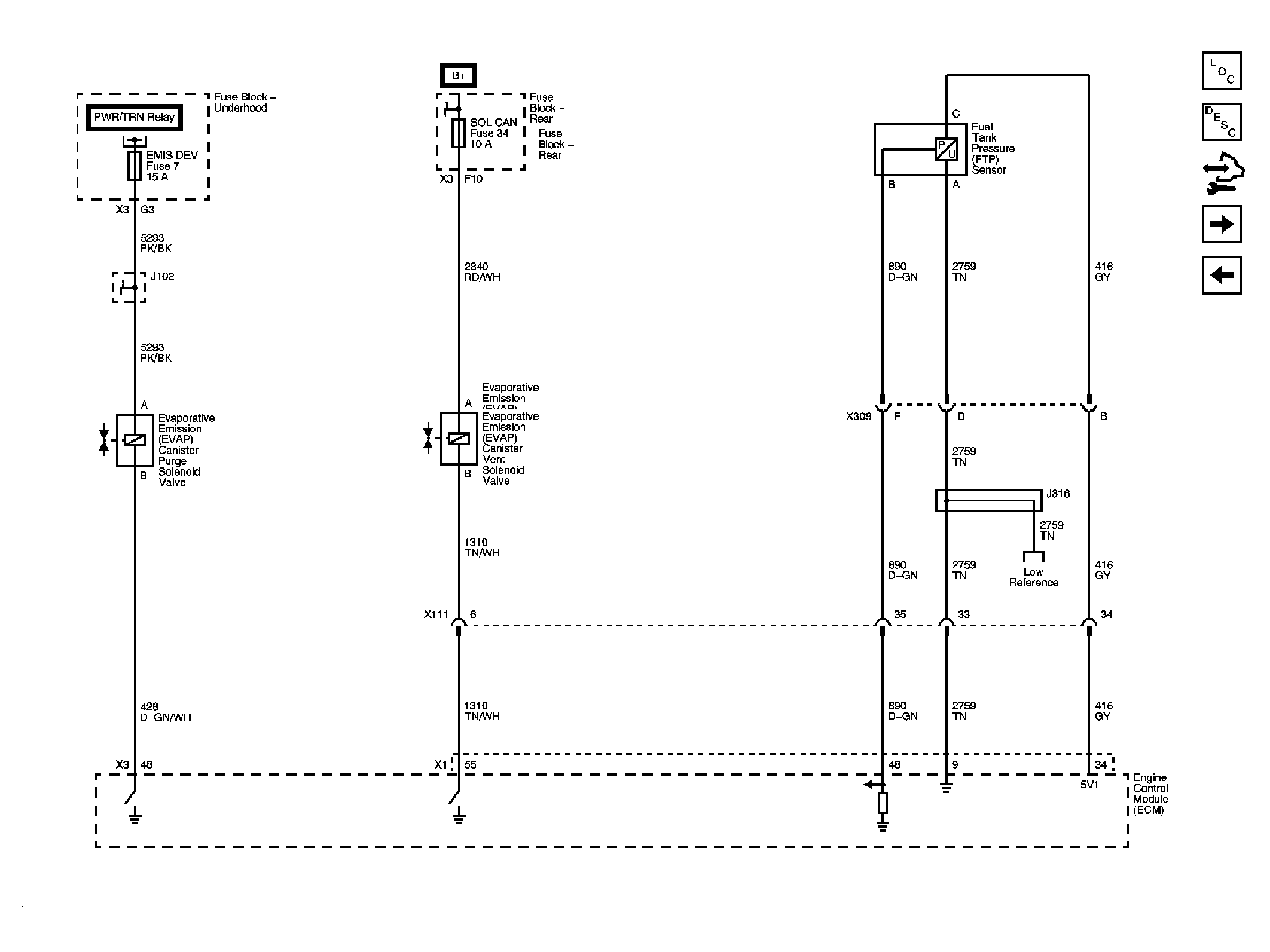

Fig 9: EVAP Controls

Courtesy of GENERAL MOTORS CORP.

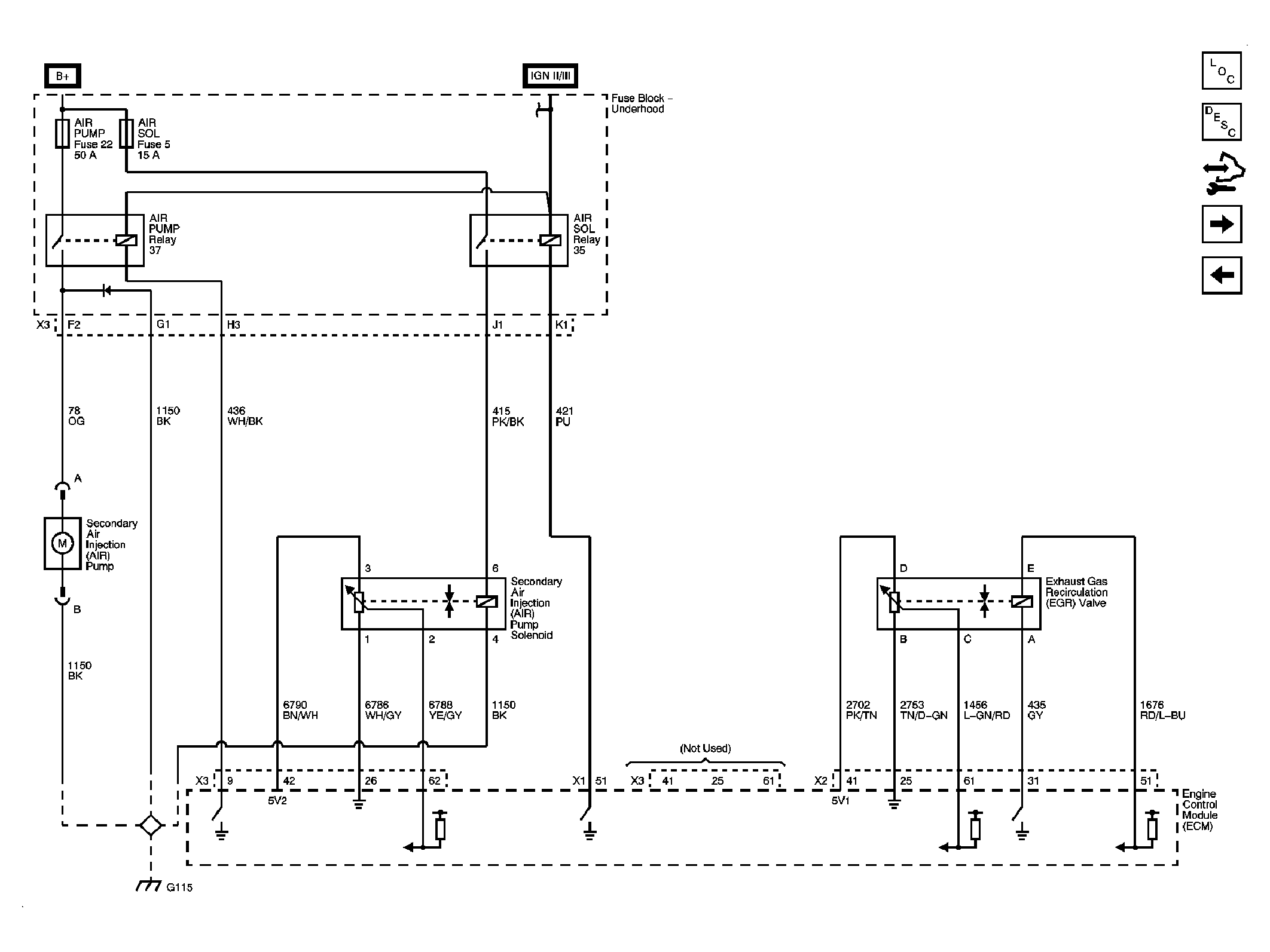

Fig 10: AIR, EGR

Courtesy of GENERAL MOTORS CORP.

Fig 11: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
