Front Wheelhouse Liner Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

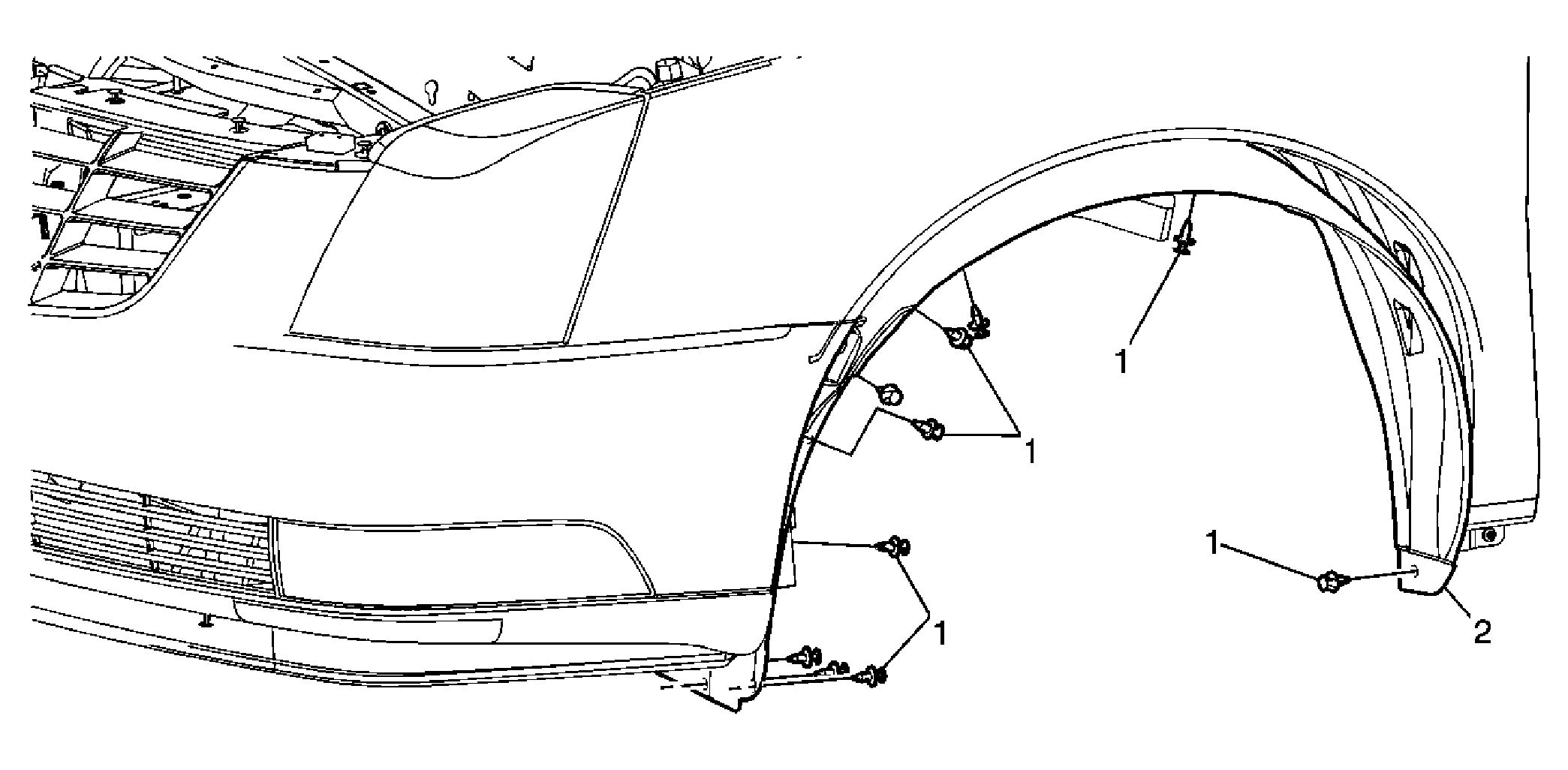

Fig 1: Front Wheelhouse Liner Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Lift and support vehicle. Refer to Lifting and Jacking the Vehicle . Remove front wheel. Refer to Tire and Wheel Removal and Installation .
1	Retainers, Front Wheelhouse Liner (Qty: 10)
2	Liner, Front Wheelhouse

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Lift and support vehicle. Refer to Lifting and Jacking the Vehicle .
Remove front wheel. Refer to Tire and Wheel Removal and Installation .

Retainers, Front Wheelhouse Liner (Qty: 10)

Liner, Front Wheelhouse
