Side Window Defogger Outlet Duct Replacement - Right Side

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

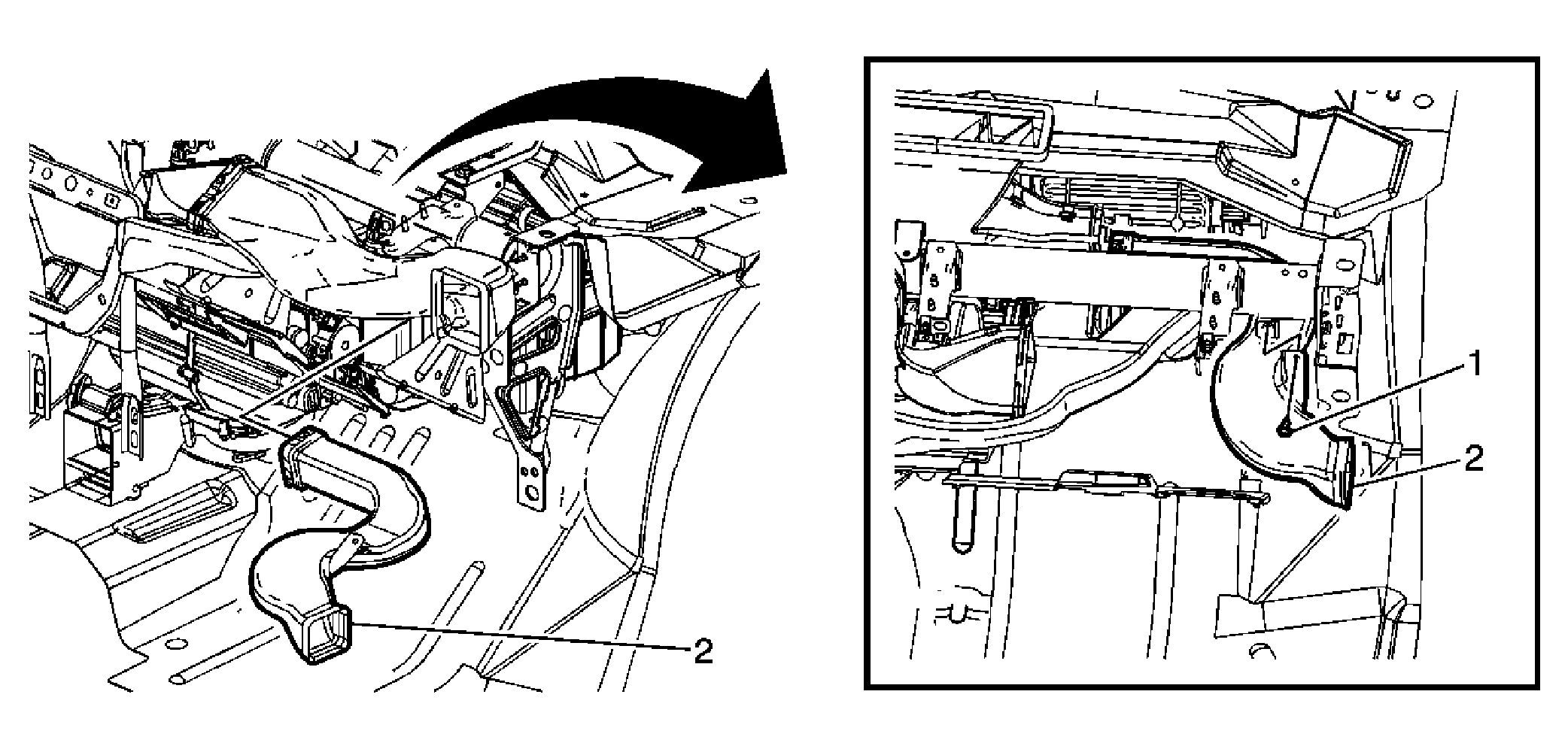

Fig 1: Defogger Outlet Duct - Side Window, RH Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement .
1	Side Window Defogger Duct - Right, Screw CAUTION: Refer to Fastener Caution . Tighten: 1 N.m (9 lb in)
2	Side Window Defogger Duct - Right
