Side Window Air Outlet Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

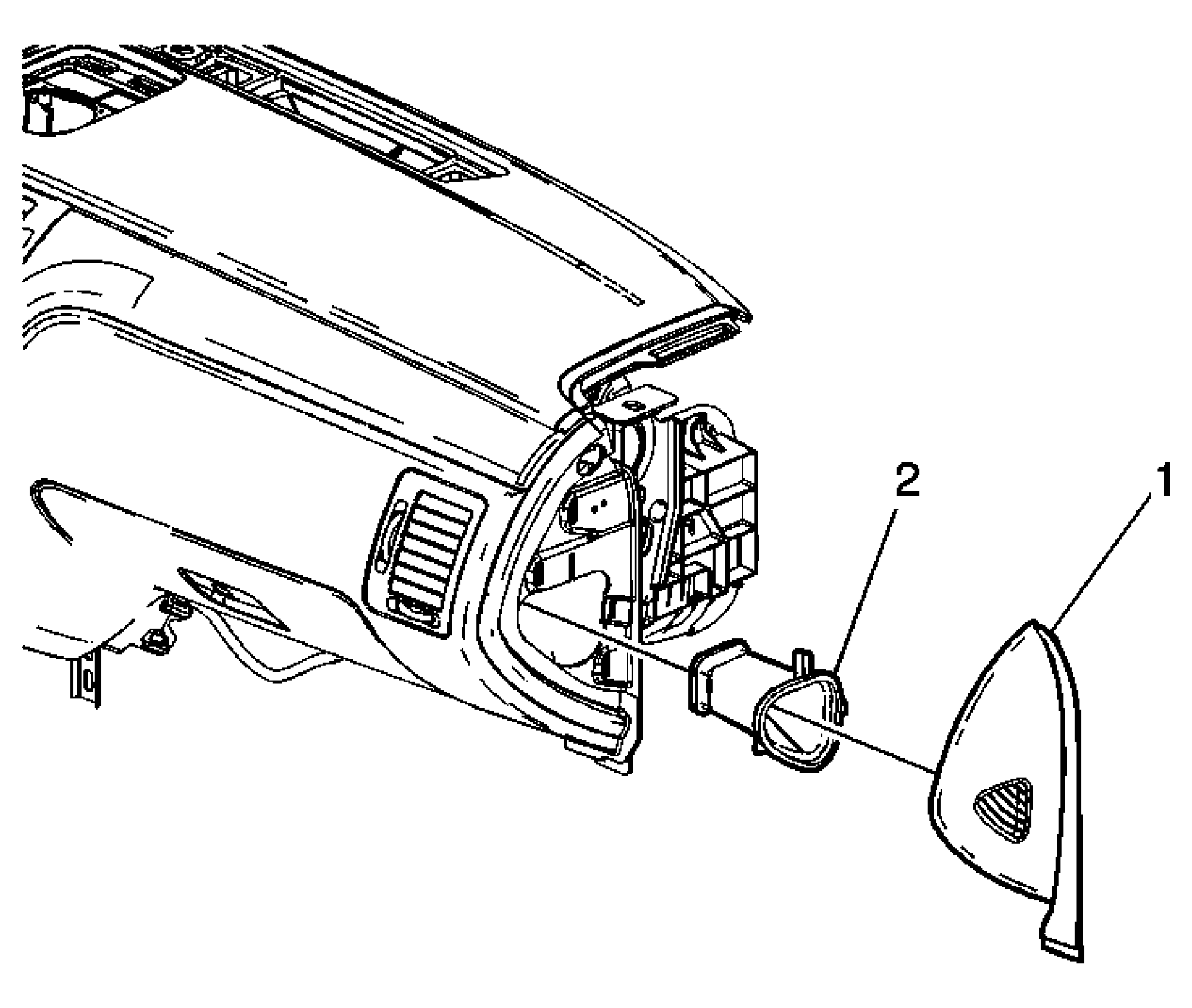

Fig 1: Air Outlet - Side Window

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Instrument Panel Side Panel Refer to Instrument Panel Outer Trim Cover Replacement - Right Side or Instrument Panel Outer Trim Cover Replacement - Left Side .
2	Side Window Defogger Outlet Duct Tip: Right side shown left similar Using a flat-bladed tool, release the tab securing the side window duct to the instrument panel.
