Instrument Panel Outer Air Outlet Replacement - Right Side
WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the right instrument panel side panel. Refer to Instrument Panel Outer Trim Cover Replacement - Right Side . |
|

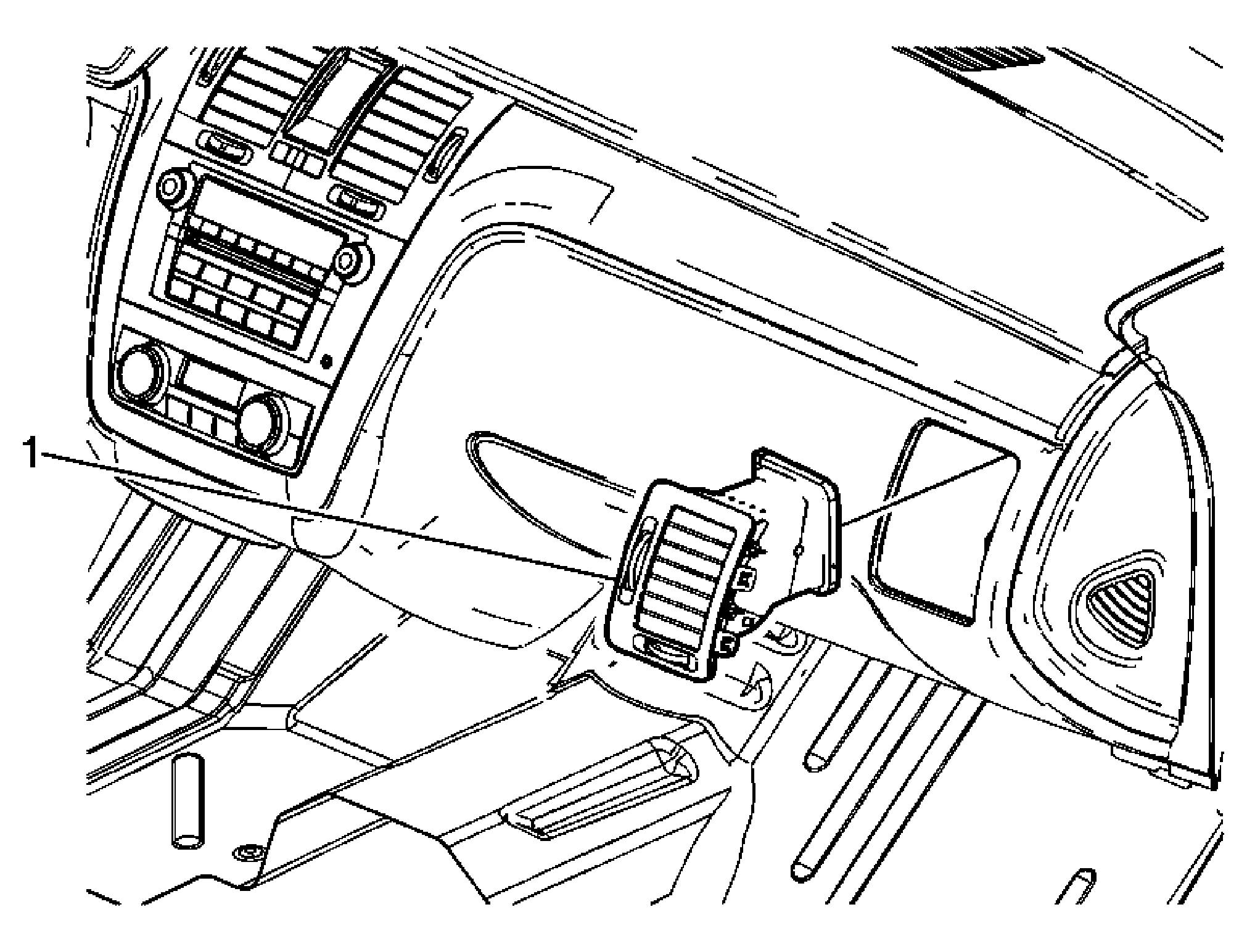

| 1 | Instrument Panel Outer Air Outlet - Right Tip: Using a flat-bladed tool, release the outer outlet from the instrument panel. |
