Instrument Panel Outer Air Outlet Replacement - Left Side

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

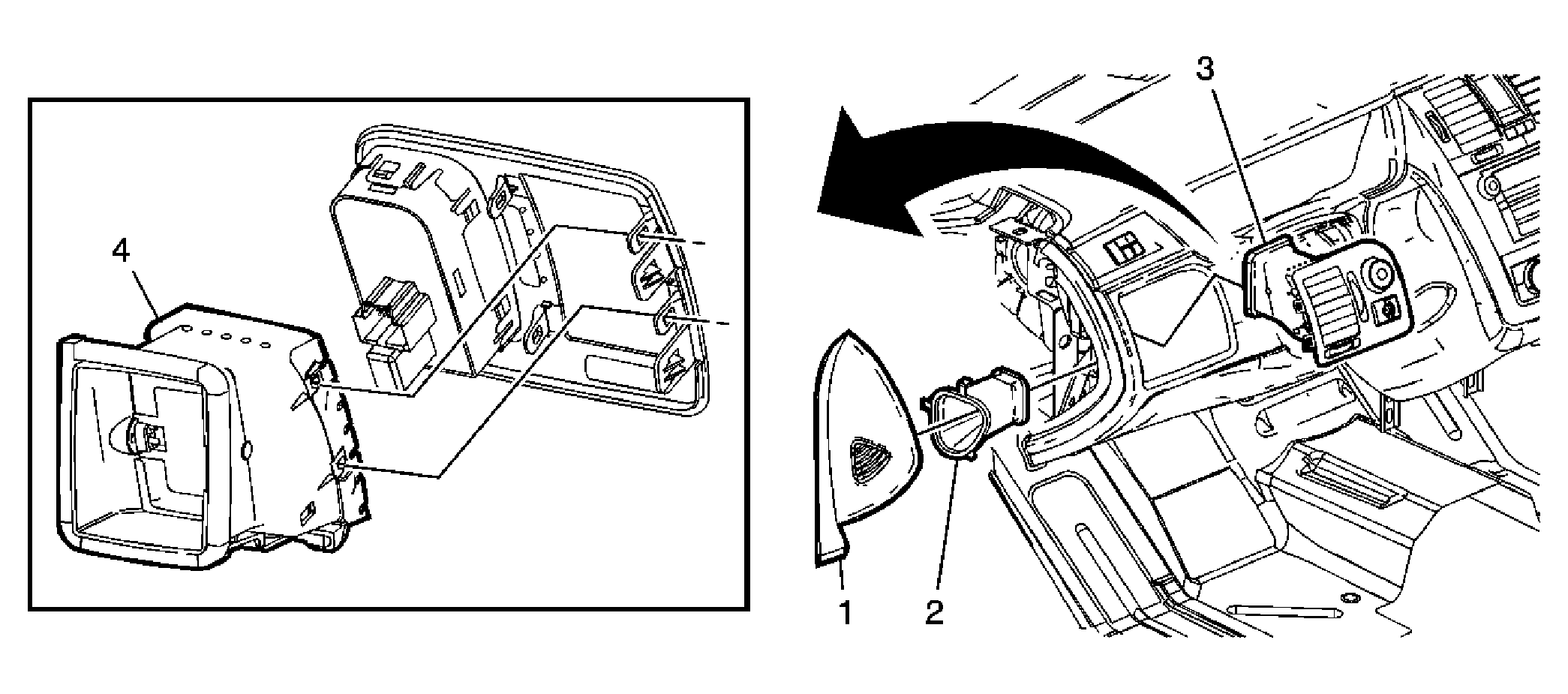

Fig 1: Air Outlet - Instrument Panel - Left

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Side Trim Panel - Left Refer to Instrument Panel Outer Trim Cover Replacement - Right Side .
2	Side Window Air Outlet Duct - Left
3	Instrument Panel Air Outlet Assembly - Left Procedure Reach through the opening in the end of the instrument panel and push the air outlet assembly to the left and outward at the same time releasing the clips securing it to the instrument panel. Disconnect the electrical connections.
4	Instrument Panel Air Outlet - Left Procedure: Unsnap the outlet from the outlet assembly.
