Blower Motor Resistor Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

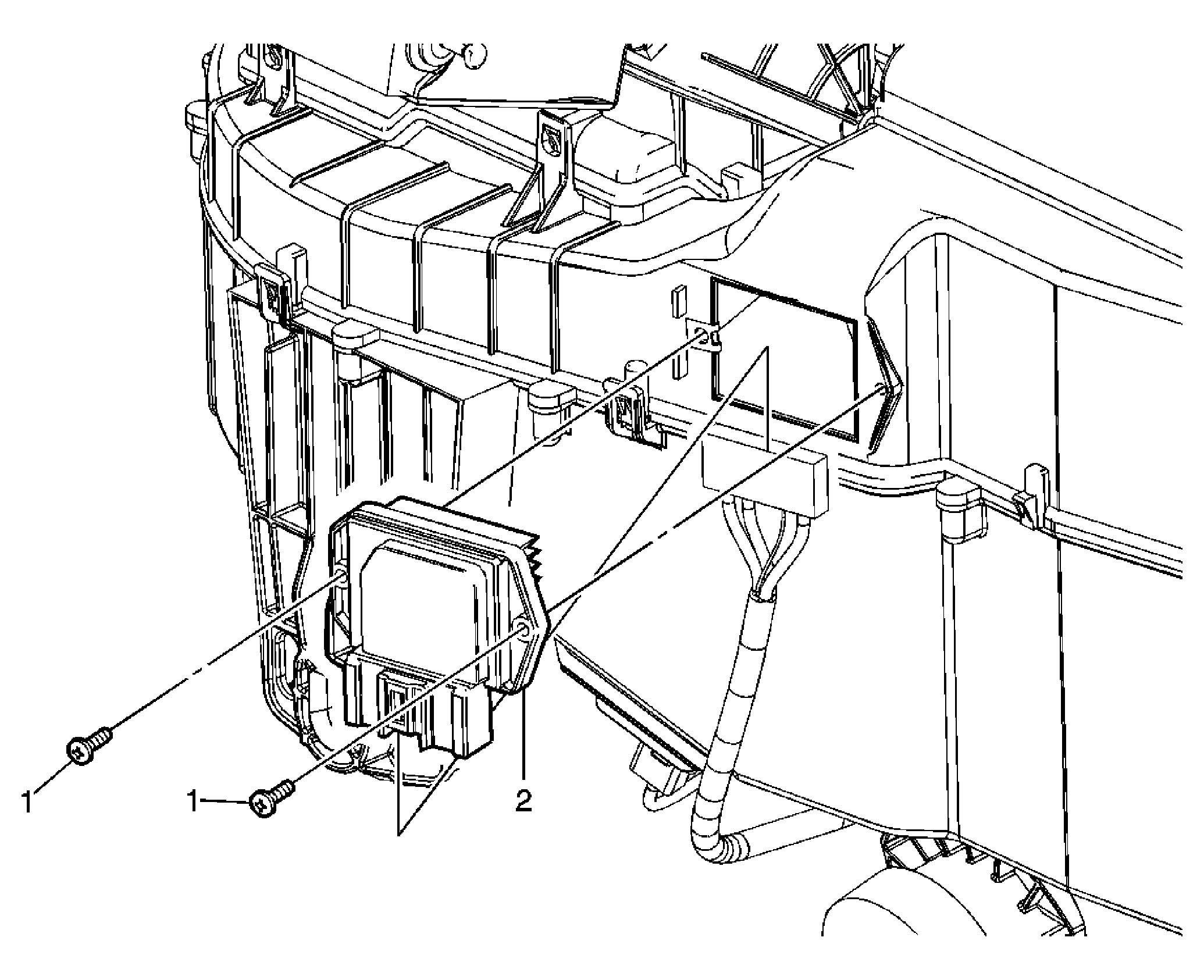

Fig 1: Blower Motor Resistor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the HVAC module. Refer to HVAC Module Assembly Replacement . Disconnect the blower motor resistor electrical connector.
1	Blower Resistor Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 1.0 N.m (9 lb in)
2	Blower Resistor

Callout

Component Name

Preliminary Procedure

Remove the HVAC module. Refer to HVAC Module Assembly Replacement .
Disconnect the blower motor resistor electrical connector.

Blower Resistor Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 1.0 N.m (9 lb in)

Blower Resistor
