Instrument Cluster Schematics

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

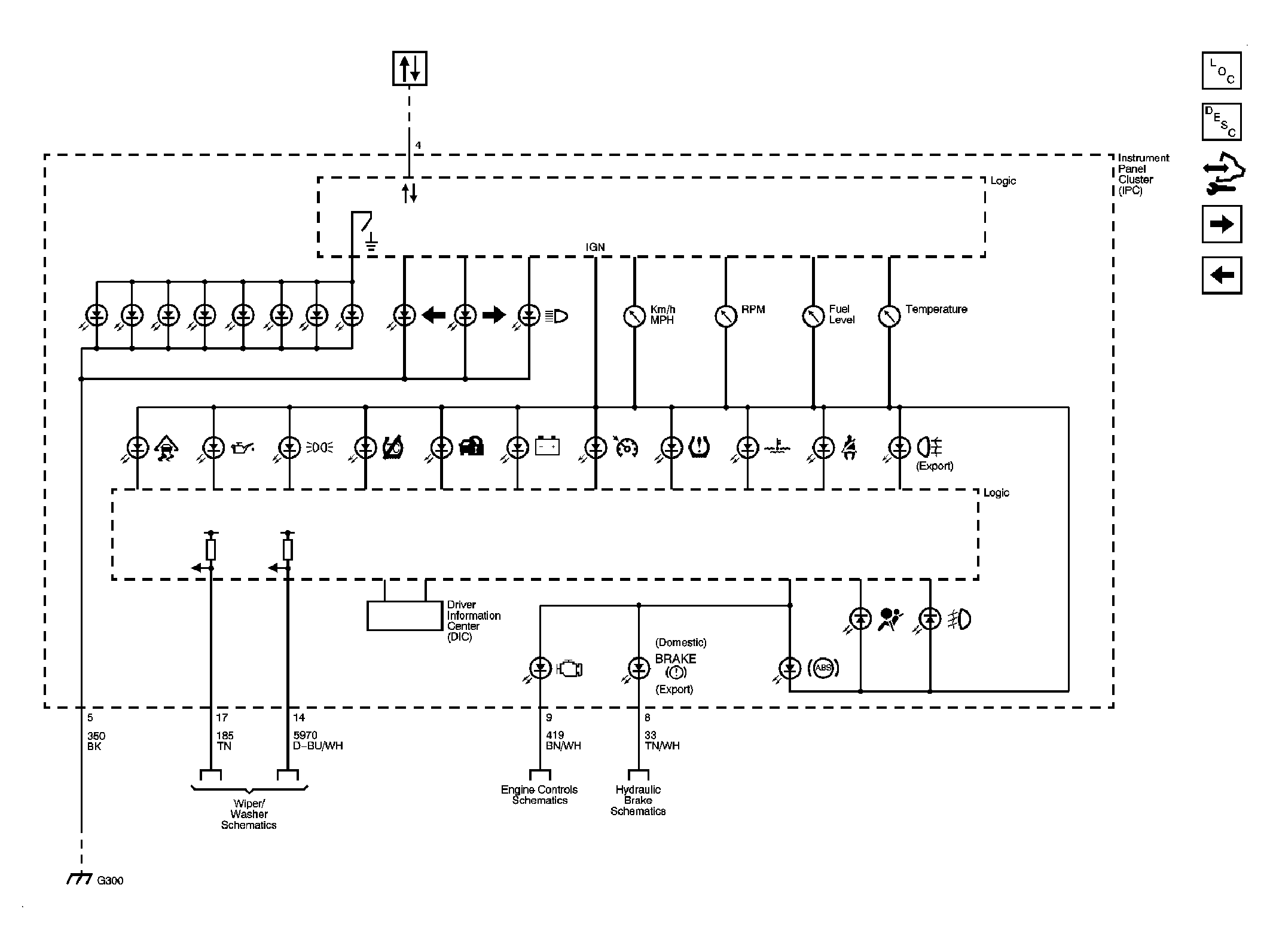

Fig 1: Power, Ground, Clock

Courtesy of GENERAL MOTORS CORP.

Fig 2: Indicators

Courtesy of GENERAL MOTORS CORP.

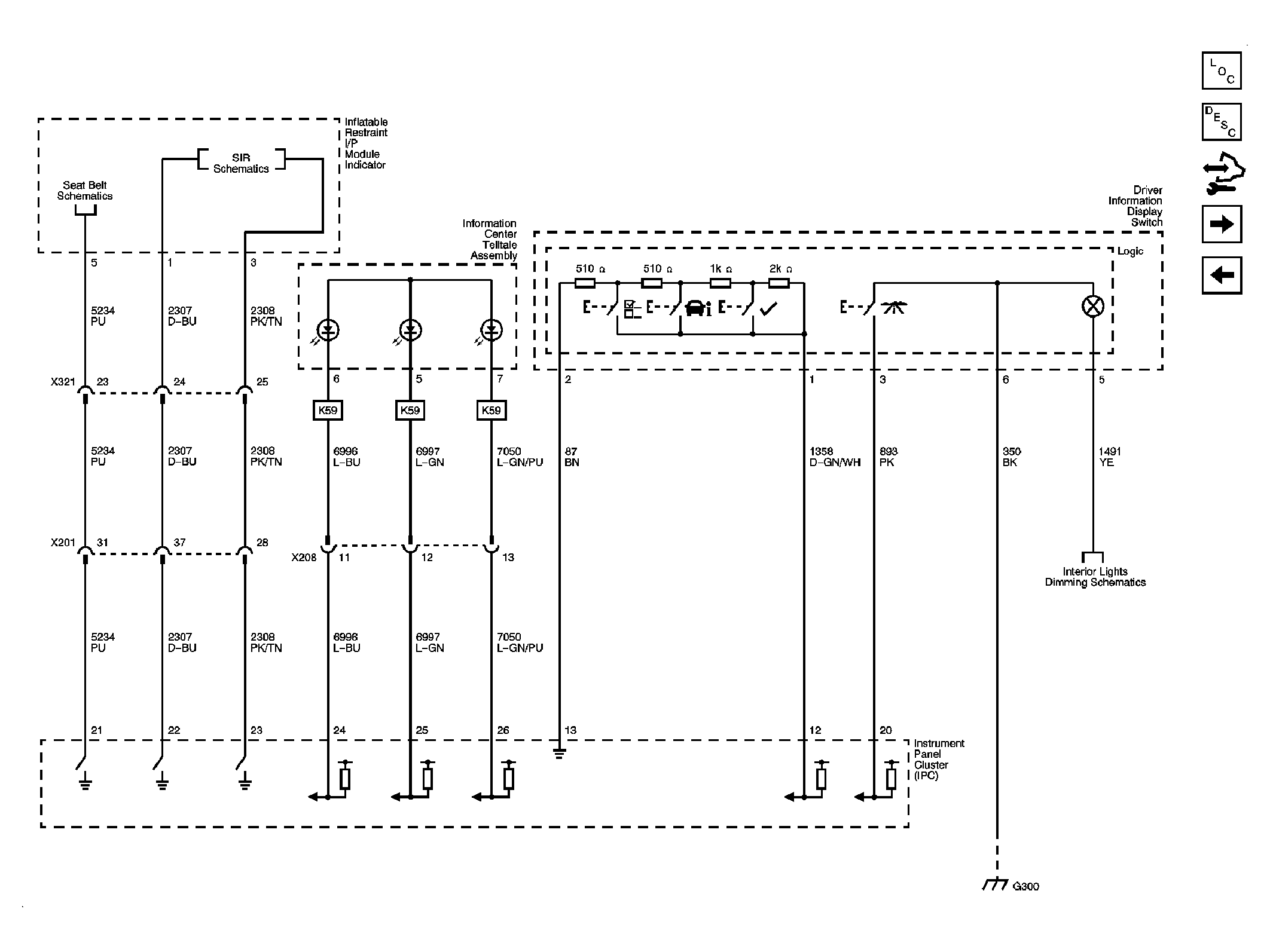

Fig 3: Inflatable Restraint I/P Module Indicator, Telltale Assembly

Courtesy of GENERAL MOTORS CORP.

Fig 4: EOP, Fuel Level Sensor

Courtesy of GENERAL MOTORS CORP.
