Moveable Window Schematics

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

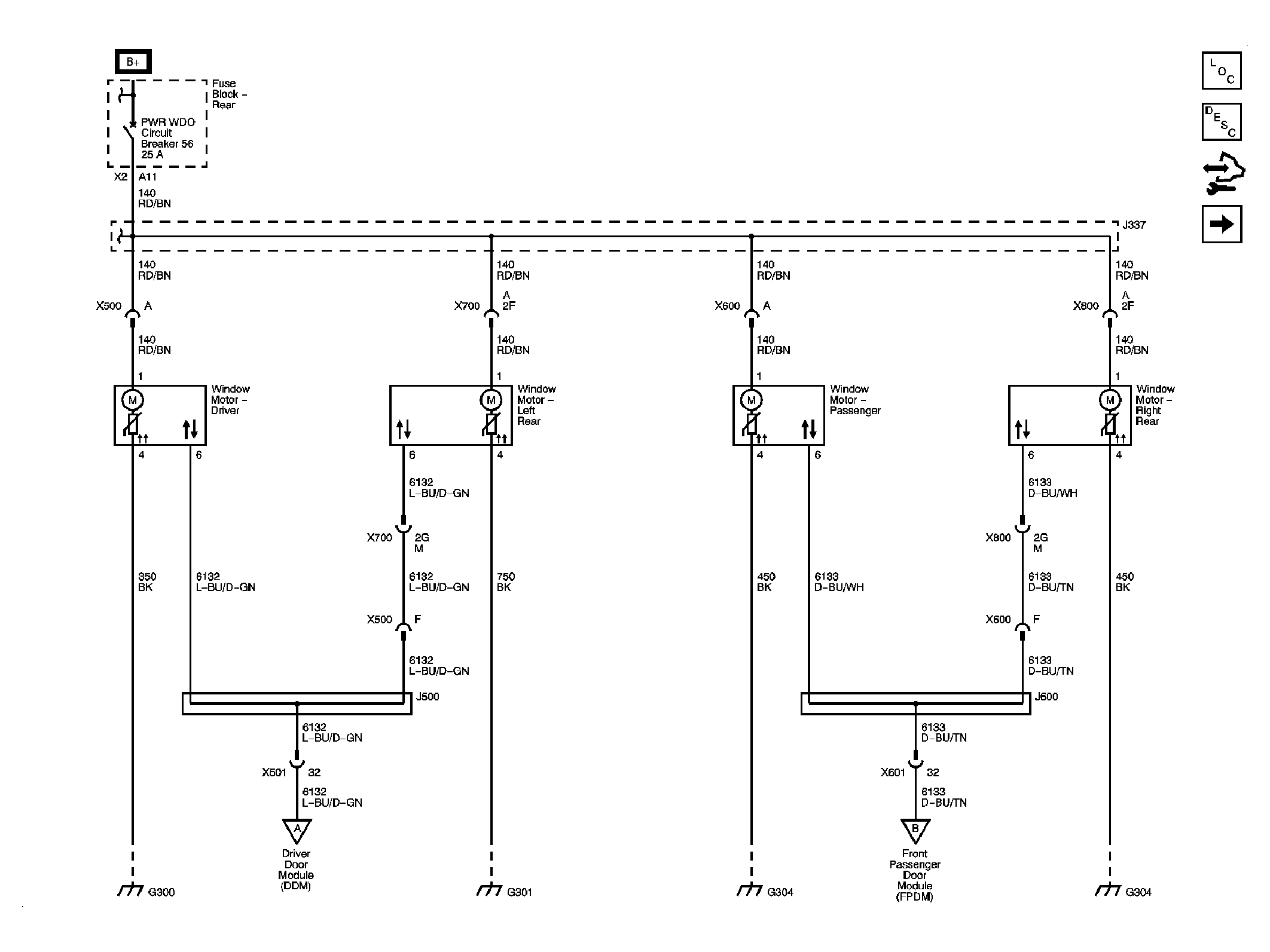

Fig 1: Window Motors

Courtesy of GENERAL MOTORS CORP.

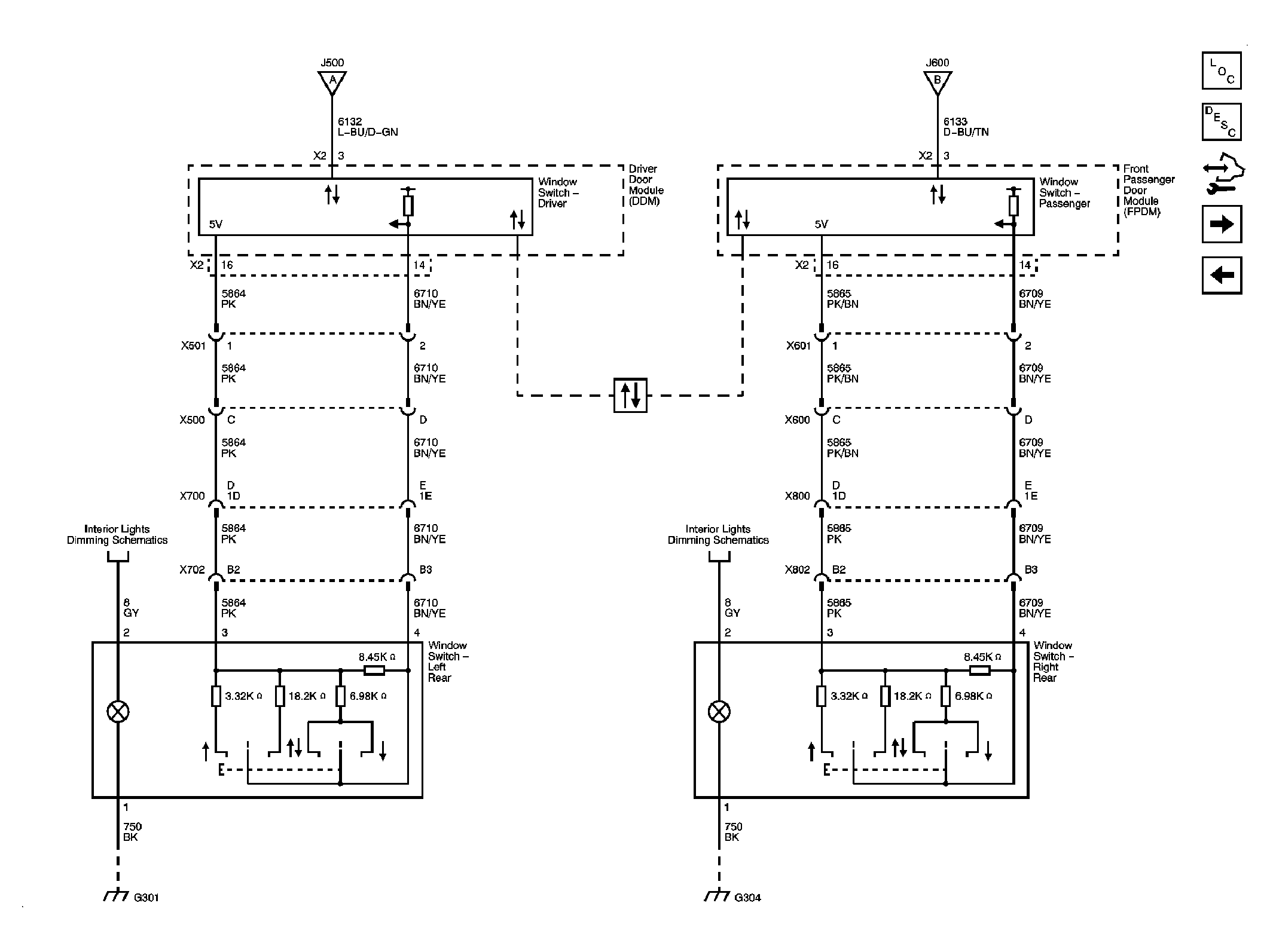

Fig 2: Window Switches

Courtesy of GENERAL MOTORS CORP.

Fig 3: Upfitter Window Provisions - V4U

Courtesy of GENERAL MOTORS CORP.
