Sunshade Replacement
WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

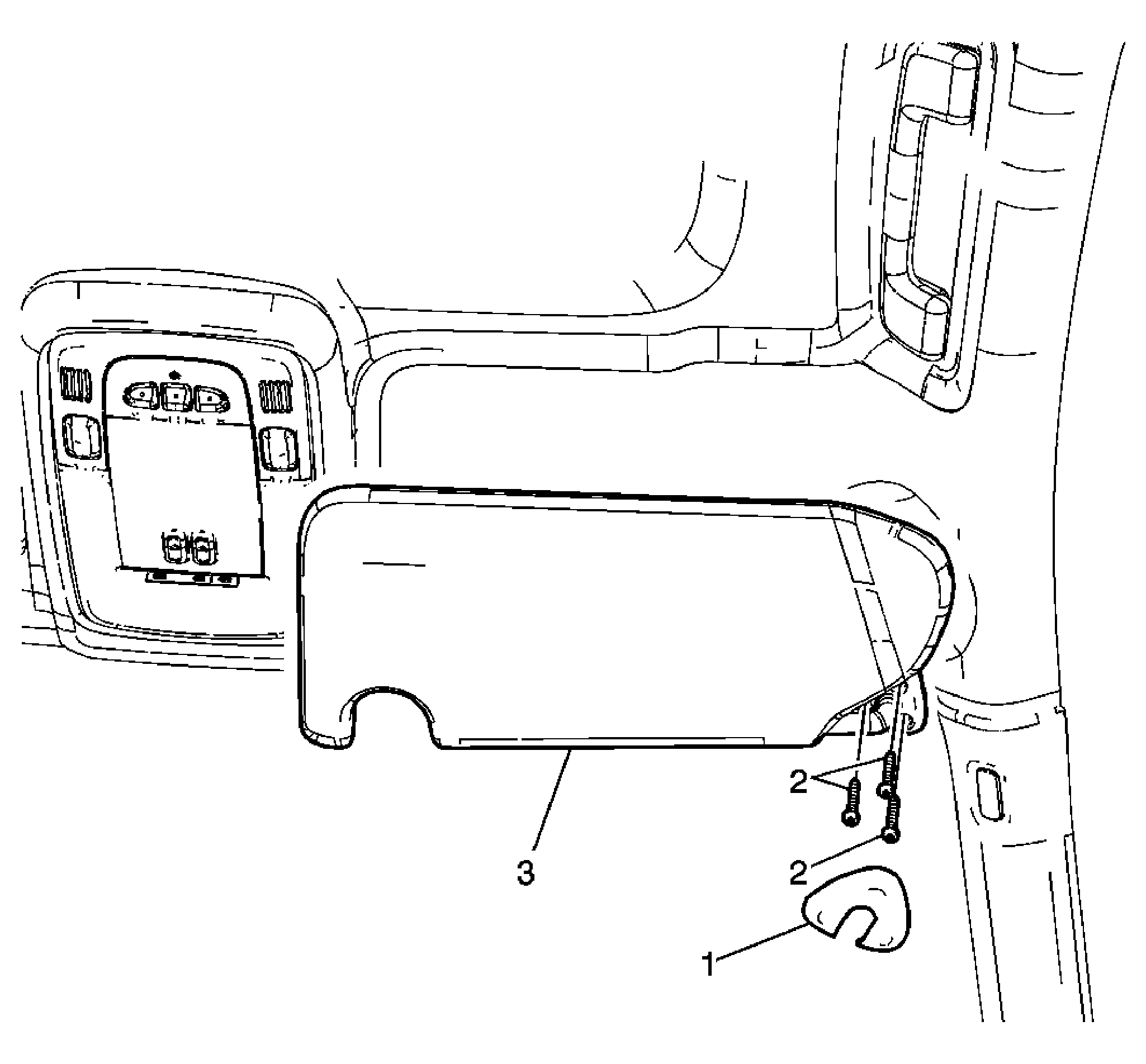

| Callout | Component Name |
|---|---|
| 1 | Sunshade Support Bolt Cover Tip: Use a plastic trim removal tool to carefully remove the sunshade support bolt cover. |
| 2 | Sunshade Bolt
CAUTION:
Refer to Fastener Caution
.
Tighten: 3 N.m (25 lb in) |
| 3 | Sunshade Assembly Tip: Disconnect the electrical connector. |
