Coat Hook Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

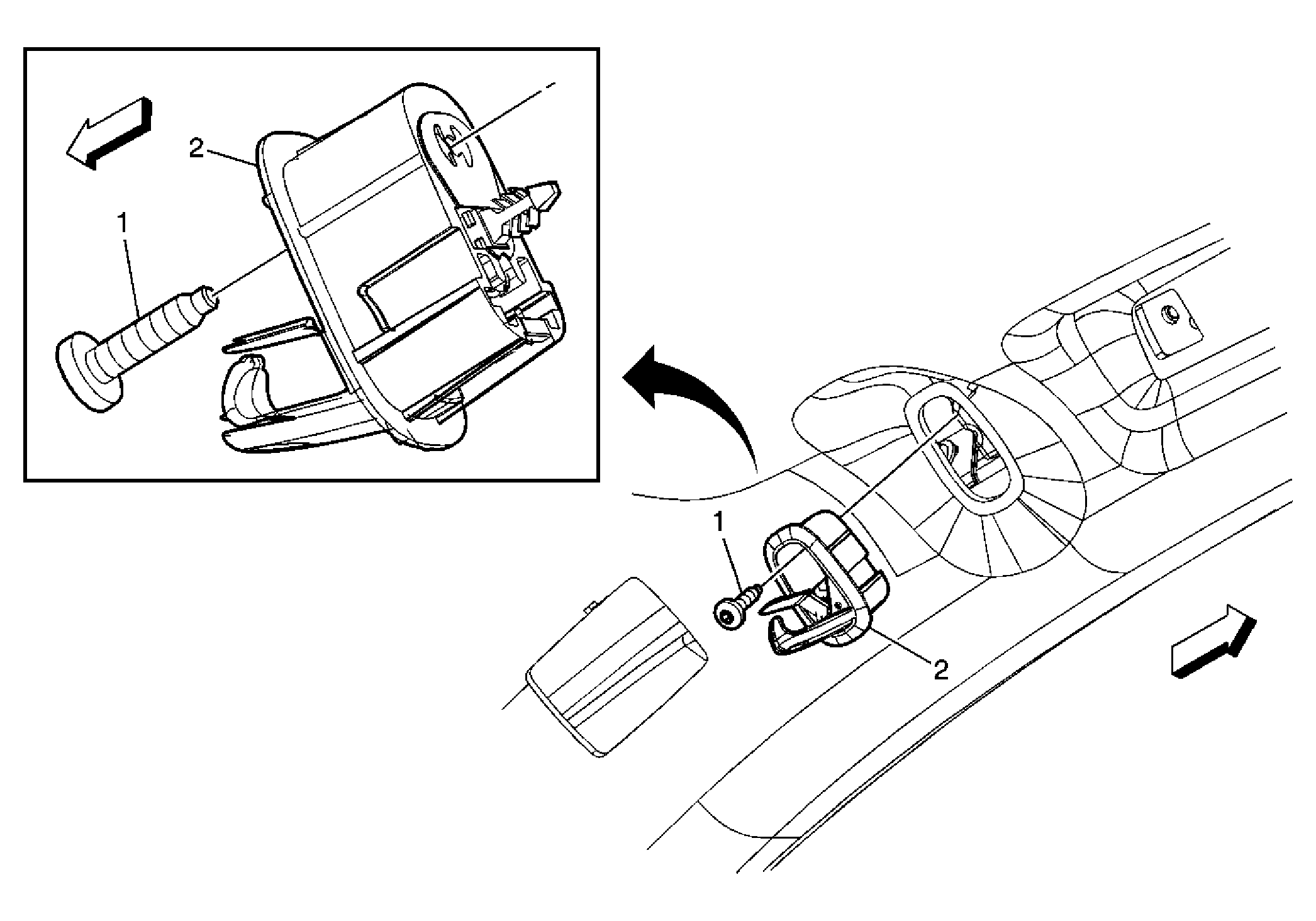

Fig 1: Removing/Installing Coat Hook

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Coat Hook Screw CAUTION: Refer to Fastener Caution . Tip: Open the screw access door. Tighten: 9 N.m (80 lb in)
2	Coat Hook Tip: Pull down to disengage the retainer.
