Assist Handle Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

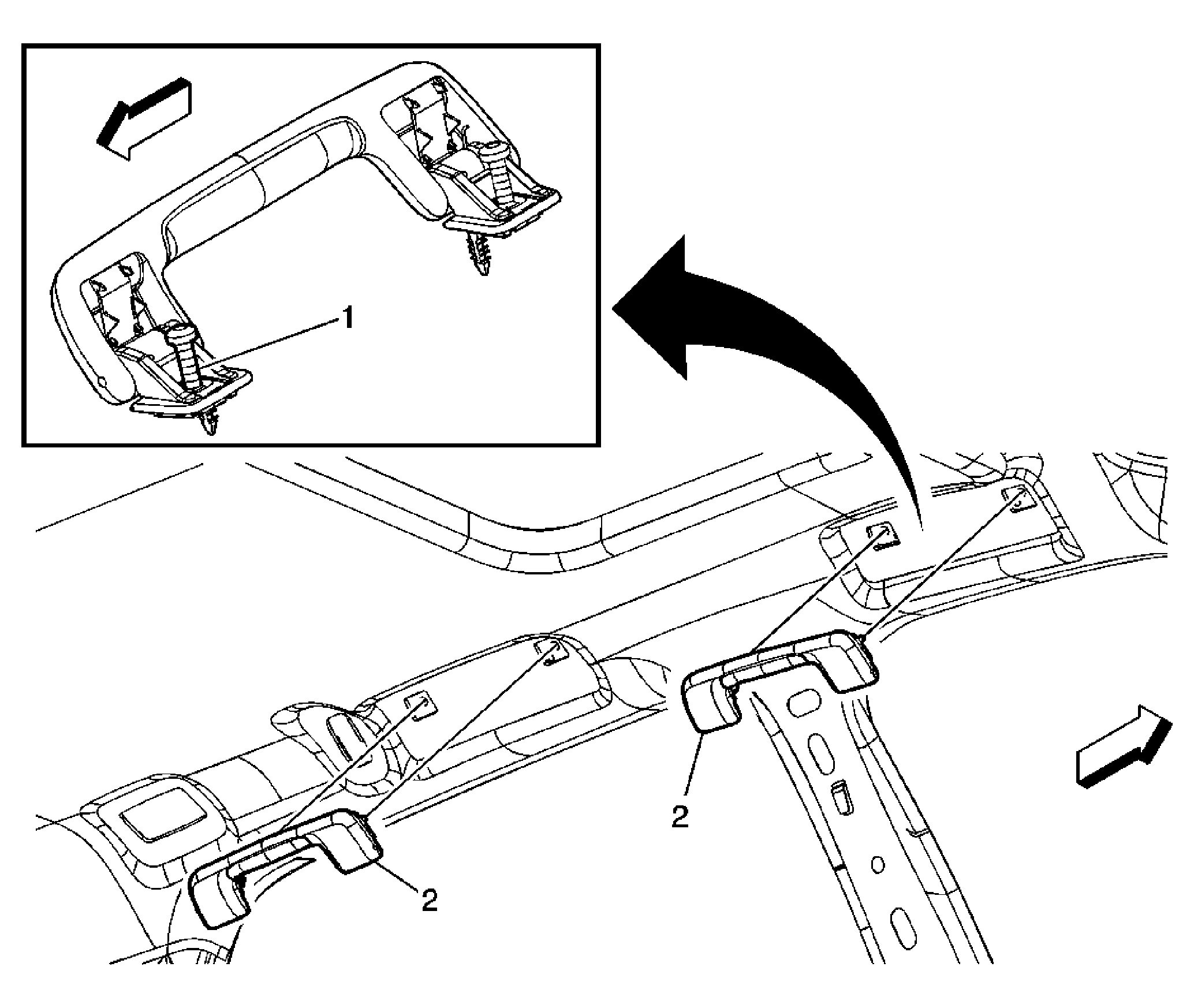

Fig 1: Assist Handle Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Handle Assembly Assist Screw CAUTION: Refer to Fastener Caution . Tip: Pull down the assist handle and open cover to access the screws. Tighten: 6 N.m (53 lb in)
2	Handle Assembly Assist
