Instrument Panel Insulator Panel Replacement - Right Side
WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

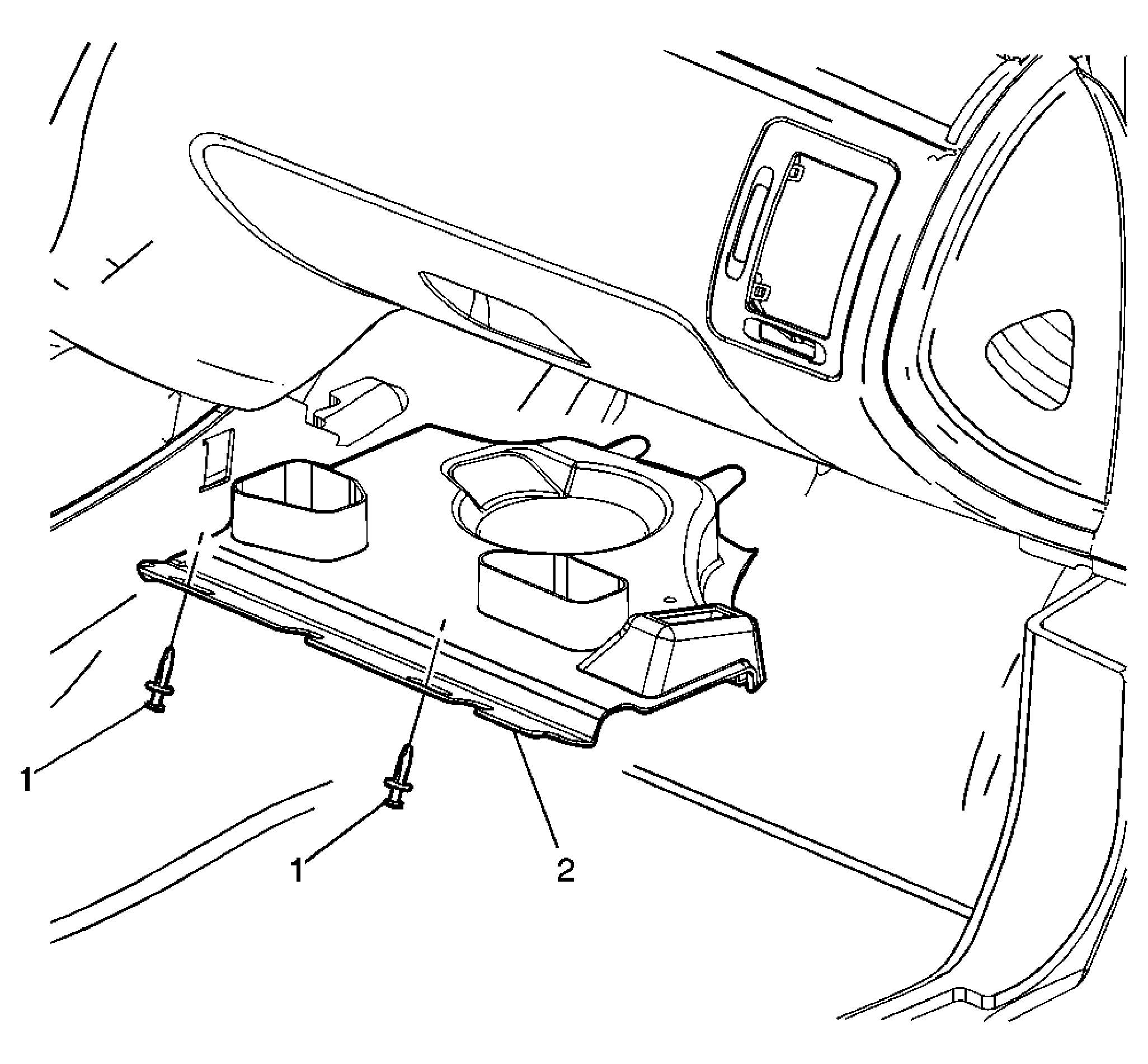

Fig 1: Closeout/Insulator Panel - Right
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Push Pin Retainer (Qty: 2)
2
Instrument Panel Insulator Trim Panel Assembly Procedure: Disconnect the courtesy lamp, if equipped.
