Instrument Panel Center Support Bracket Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

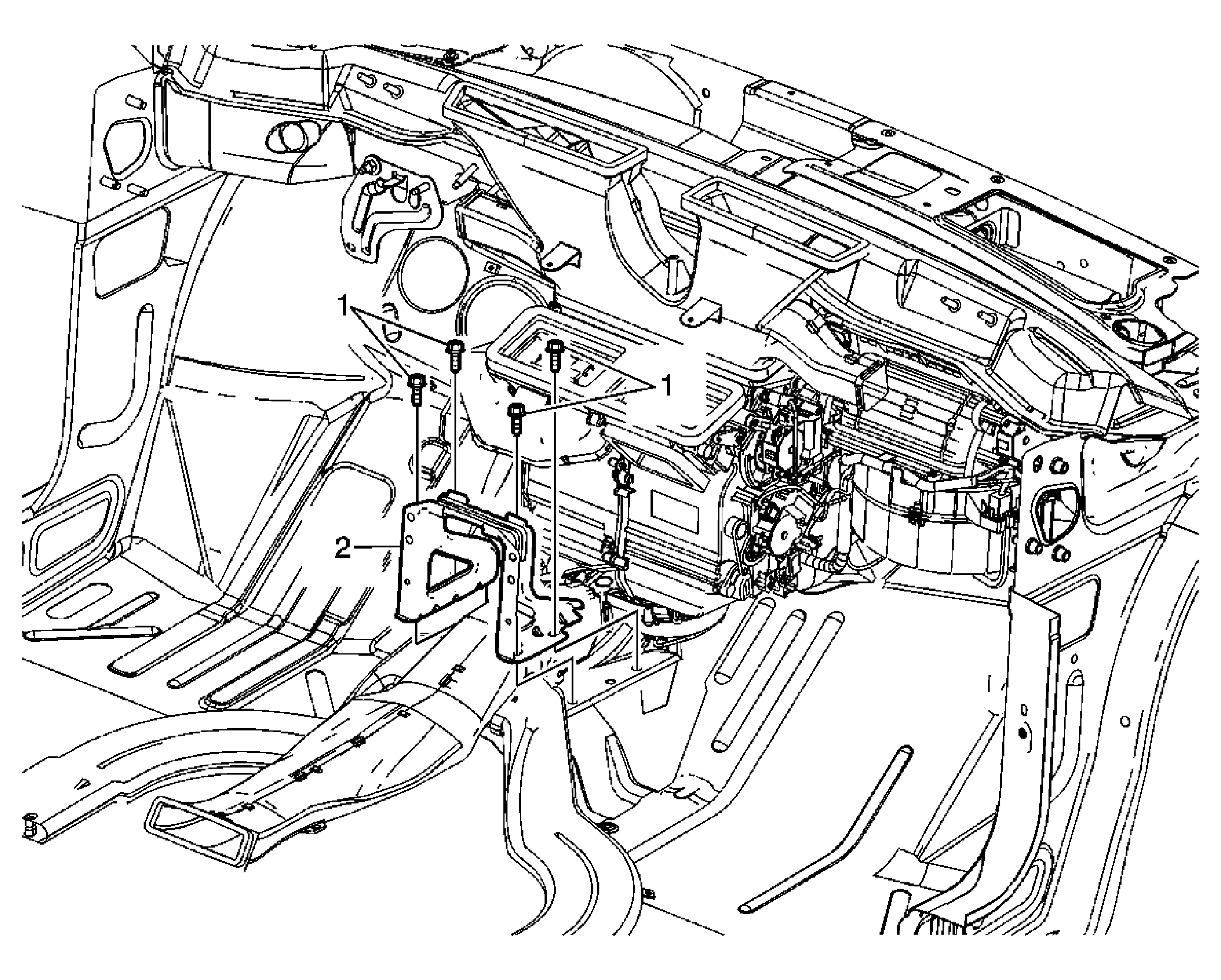

Fig 1: Bracket - Instrument Panel (I/P) Center Support
GM1616962Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel carrier assembly. Refer to Instrument Panel Carrier Replacement .
  2. Pull the carpet back enough to expose the instrument panel center support bracket bolts.
1 Instrument Panel Center Support Bracket Bolt (Qty: 4)
CAUTION: Refer to Fastener Caution .

Tighten:  25 N.m (18 lb ft)
2 Instrument Panel Center Support Bracket Assembly
