Wiper/Washer Connector End Views

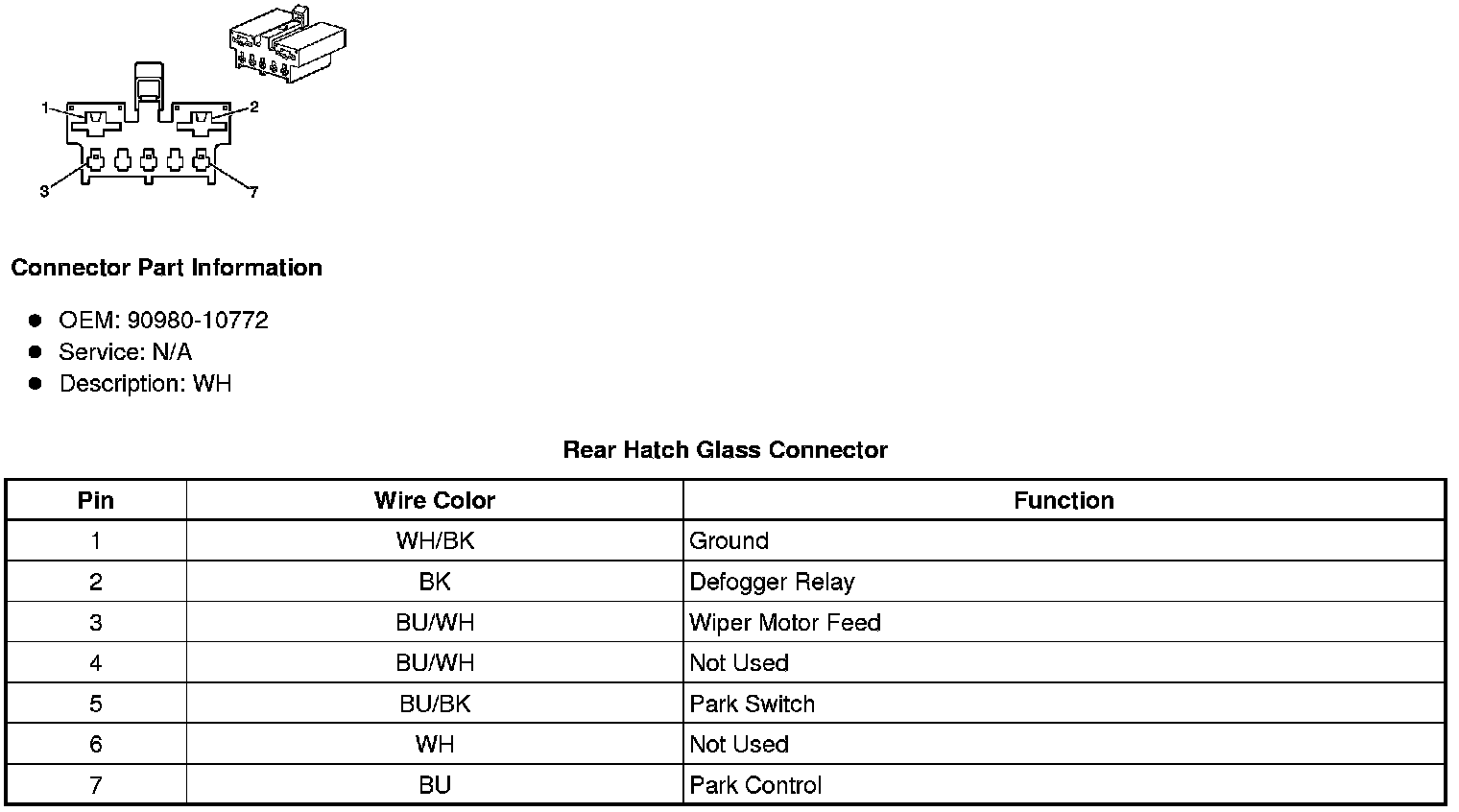

Rear Hatch Glass Connector

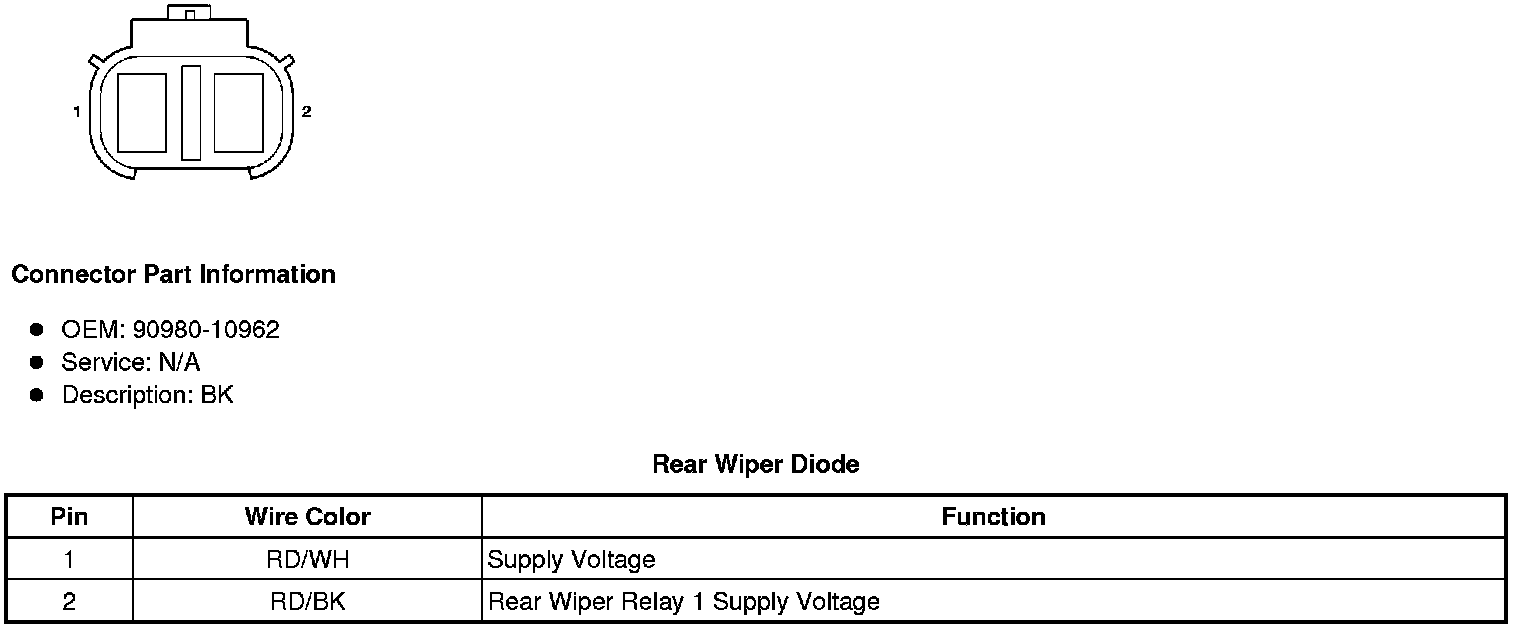

Rear Wiper Diode

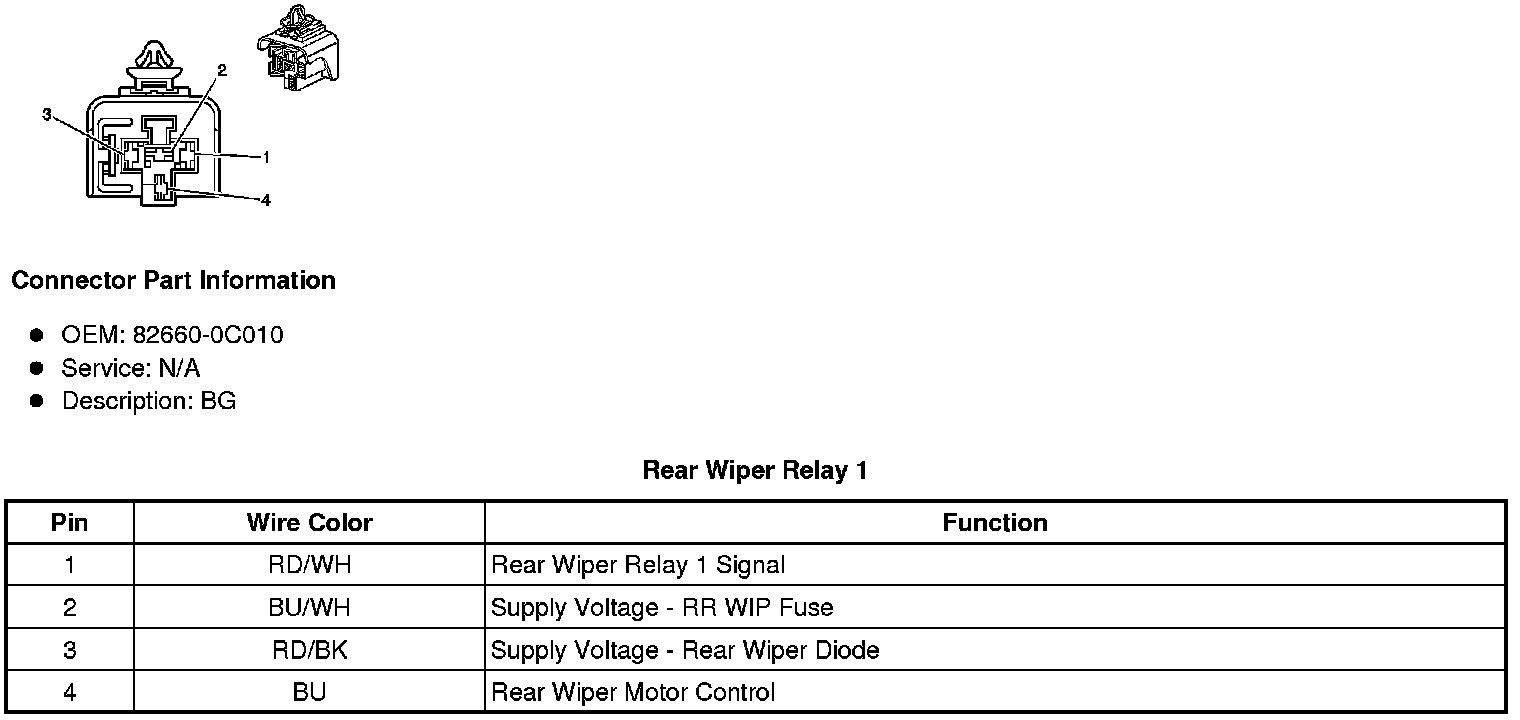

Rear Wiper Relay 1

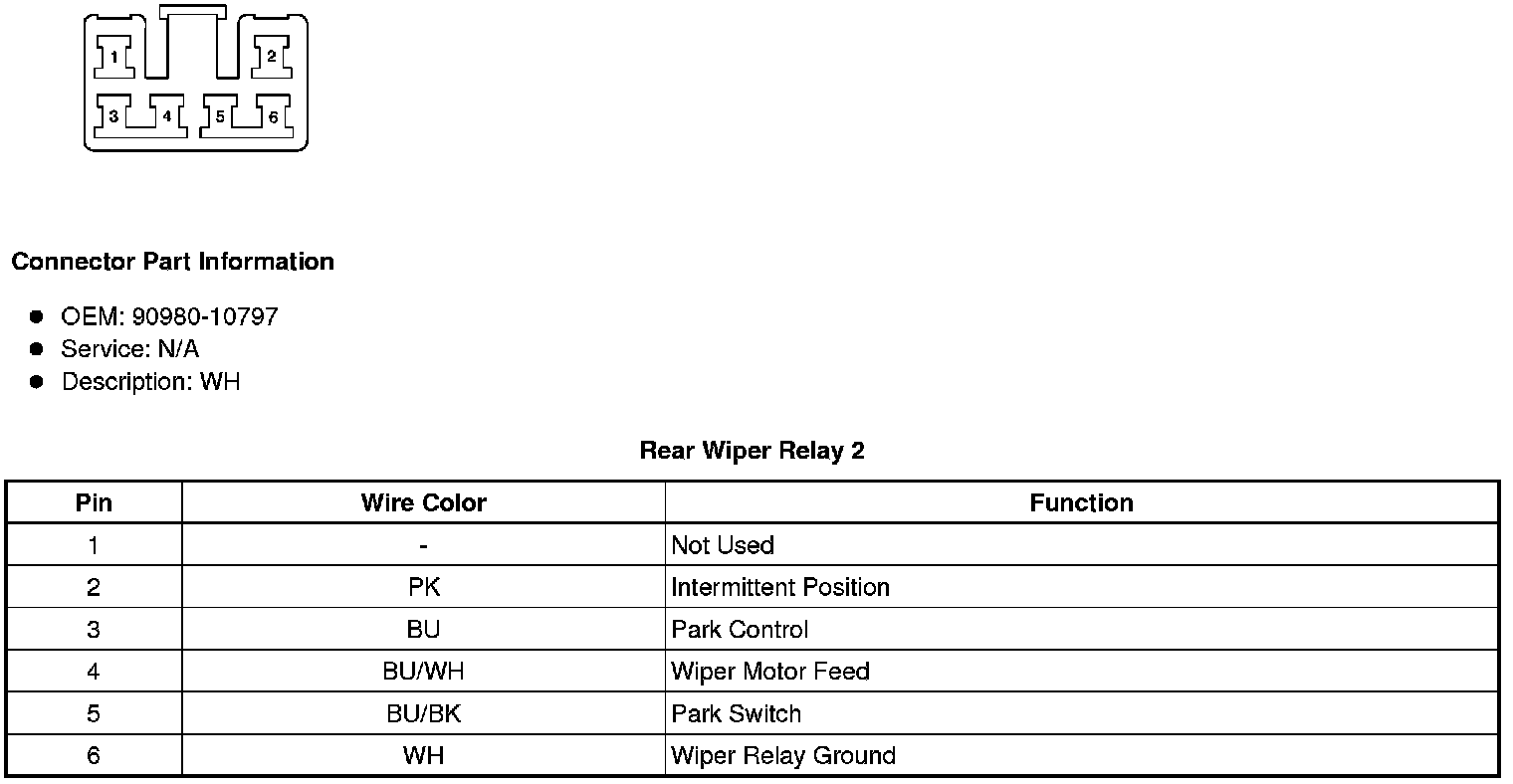

Rear Wiper Relay 2






Washer Motor - Rear






Washer Motor - Rear

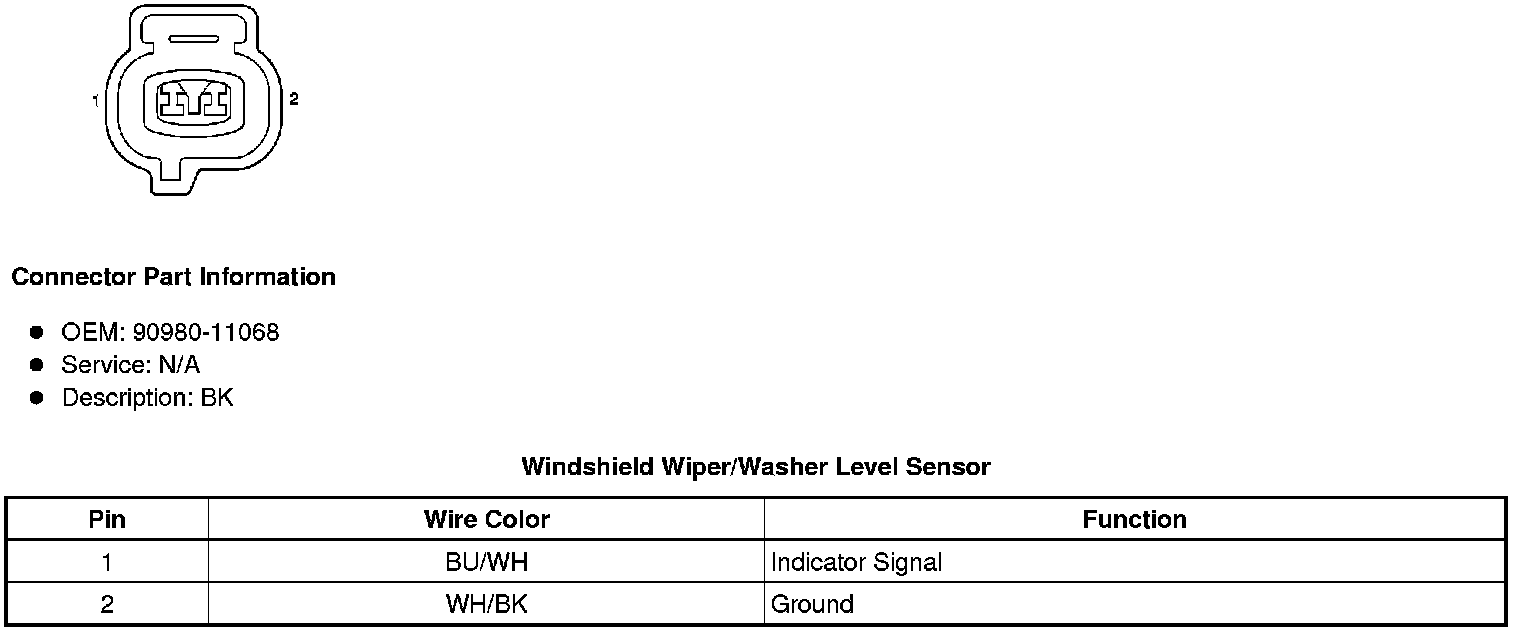

Windshield Wiper/Washer Level Sensor






Windshield Wiper/Washer Switch






Wiper Motor - Front
