Rear Door Window Belt Outer Sealing Strip Replacement

Rear Door Window Belt Outer Sealing Strip Replacement

Removal Procedure





1. Completely lower the window.

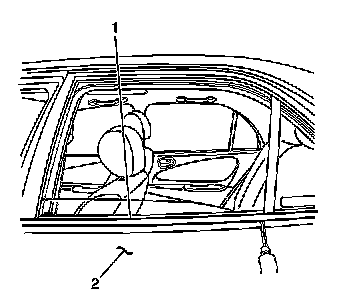

2. Gently pry the outer sealing strip (1) from the door (2) using a taped flat bladed tool.



Installation Procedure





1. Install the outer sealing strip (1) to the rear door (2).
2. Raise the window.
