Clutch Pedal Engine Start Switch Replacement



Clutch Pedal Engine Start Switch Replacement

Removal Procedure

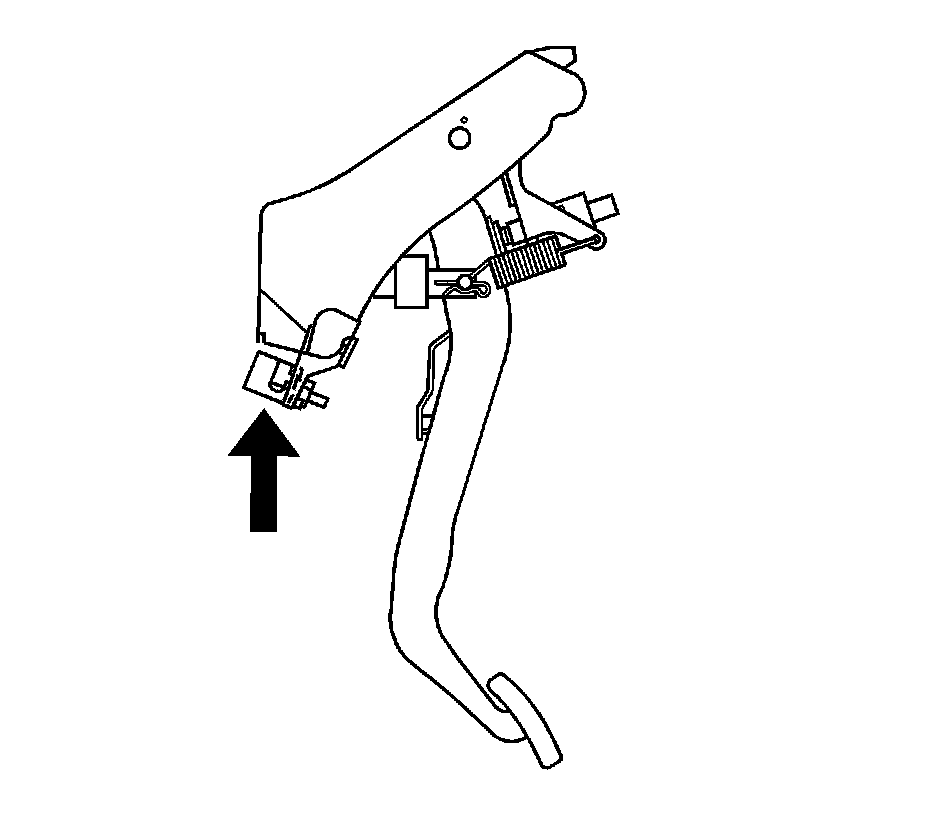

1. Disconnect the clutch start switch electrical connector.




2. Remove the clutch start switch retaining nut, then the start switch.



Installation Procedure


Notice: Refer to Fastener Notice (Fastener Notice).

1. Install the clutch start switch and retaining nut.

Tighten the retaining nut to 16 N.m (12 lb ft).

2. Connect the clutch start switch electrical connector.
3. Check the clutch start switch for proper operation.
