Torque Converter Housing with Fluid Pump Assembly Removal

Torque Converter Housing with Fluid Pump Assembly Removal

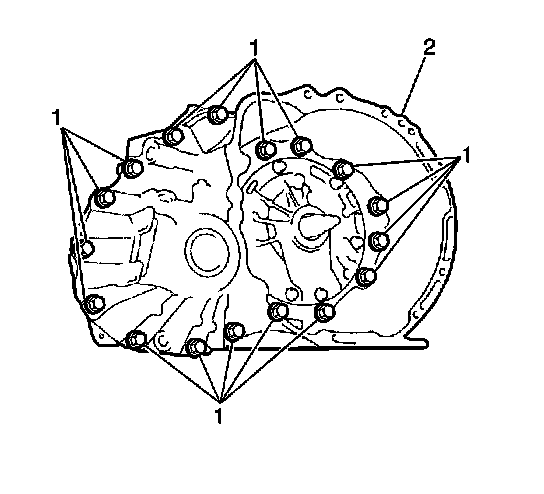

1. Remove the 17 bolts (1) and the torque converter housing (2) from the transaxle case.

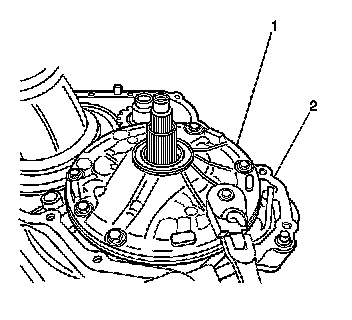

2. Remove the 6 bolts from the transaxle case (2).

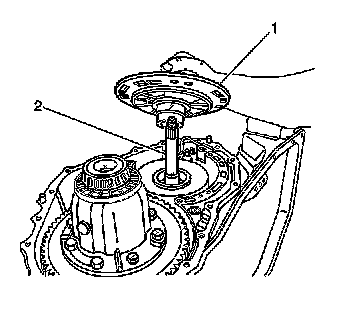

3. Remove the fluid pump assembly (1) from the transaxle case.

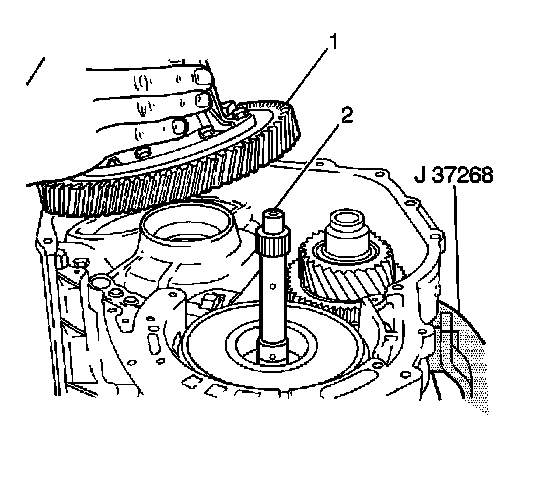

4. Remove the differential assembly (1) from the transaxle case.

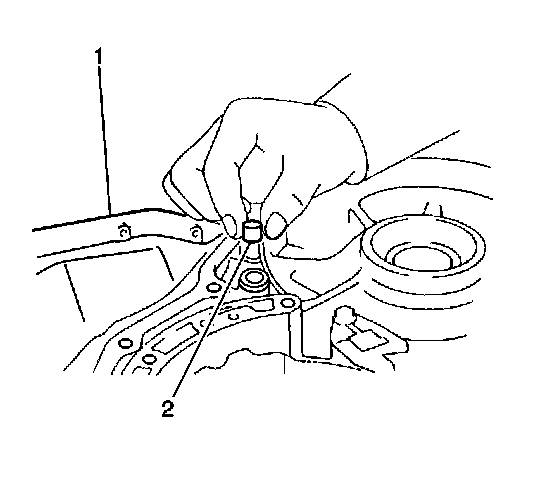

5. Remove the differential lubrication seal (2) from the transaxle case (1).
