Rear Suspension

Stabilizer Shaft Replacement (FWD)

Removal Procedure

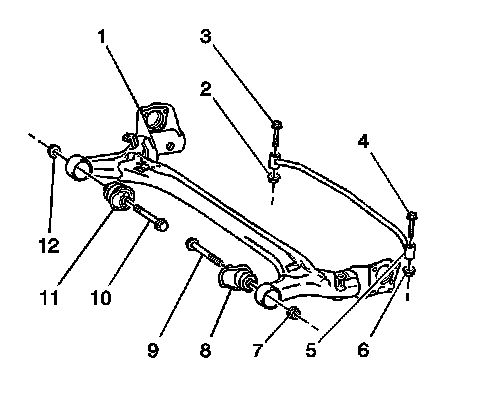

1. Remove the 2 nuts (2, 6).
2. Remove the 2 bolts (3, 4).
3. Remove the stabilizer shaft (5).



Installation Procedure





1. Use the mark on the left rear side of the stabilizer shaft (5) in order to position the shaft on the rear axle (1).

Notice: Refer to Fastener Notice (Fastener Notice).

2. Install the 2 bolts (3, 4) and the 2 nuts (2, 6) in order to retain the shaft to the axle.

Tighten the nuts and the bolts to 195 N.m (143.8 lb ft).
