Electrical Diagrams
Starting and Charging
Schematics

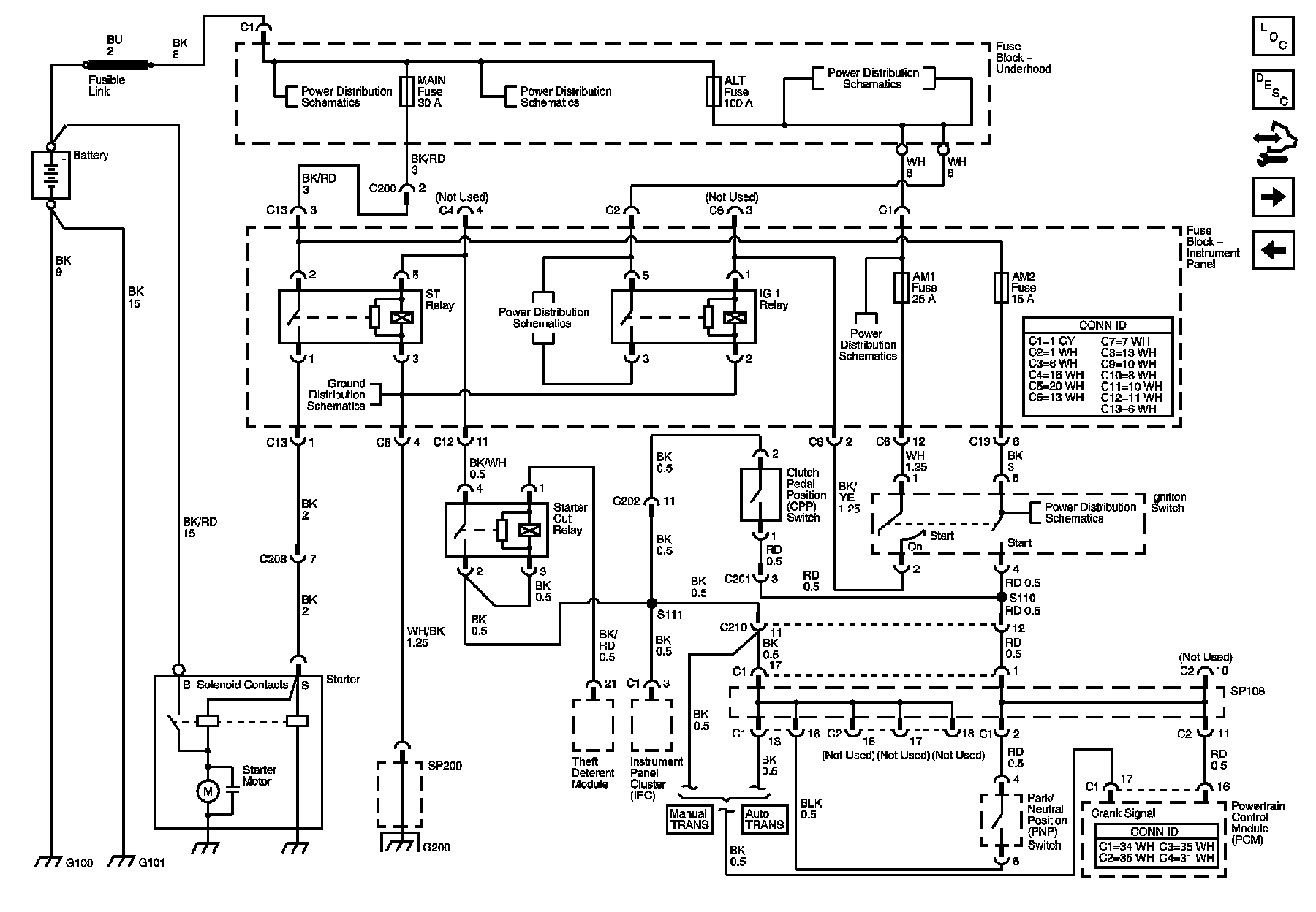

Starting System
Starting System

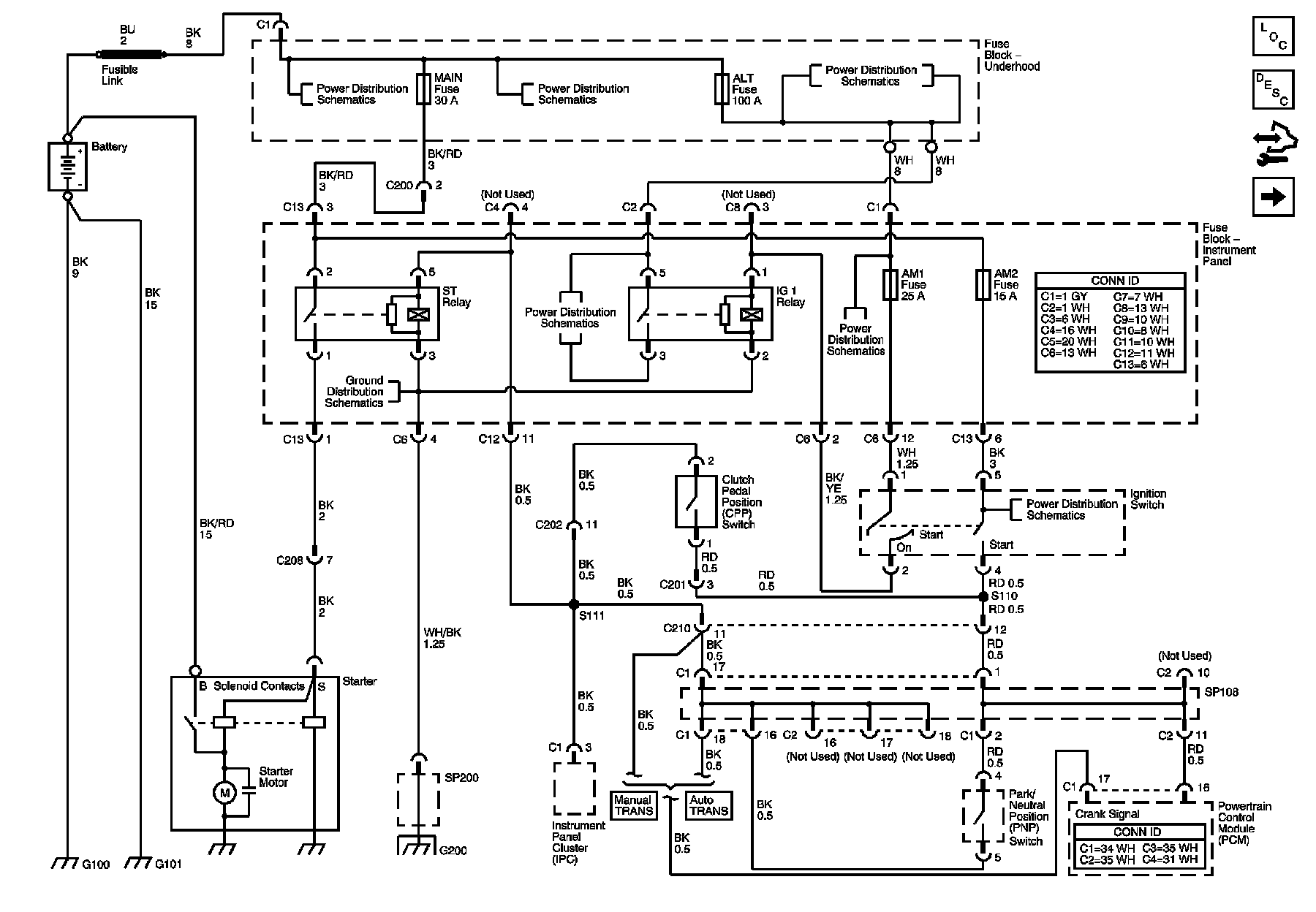

with Theft Deterrent

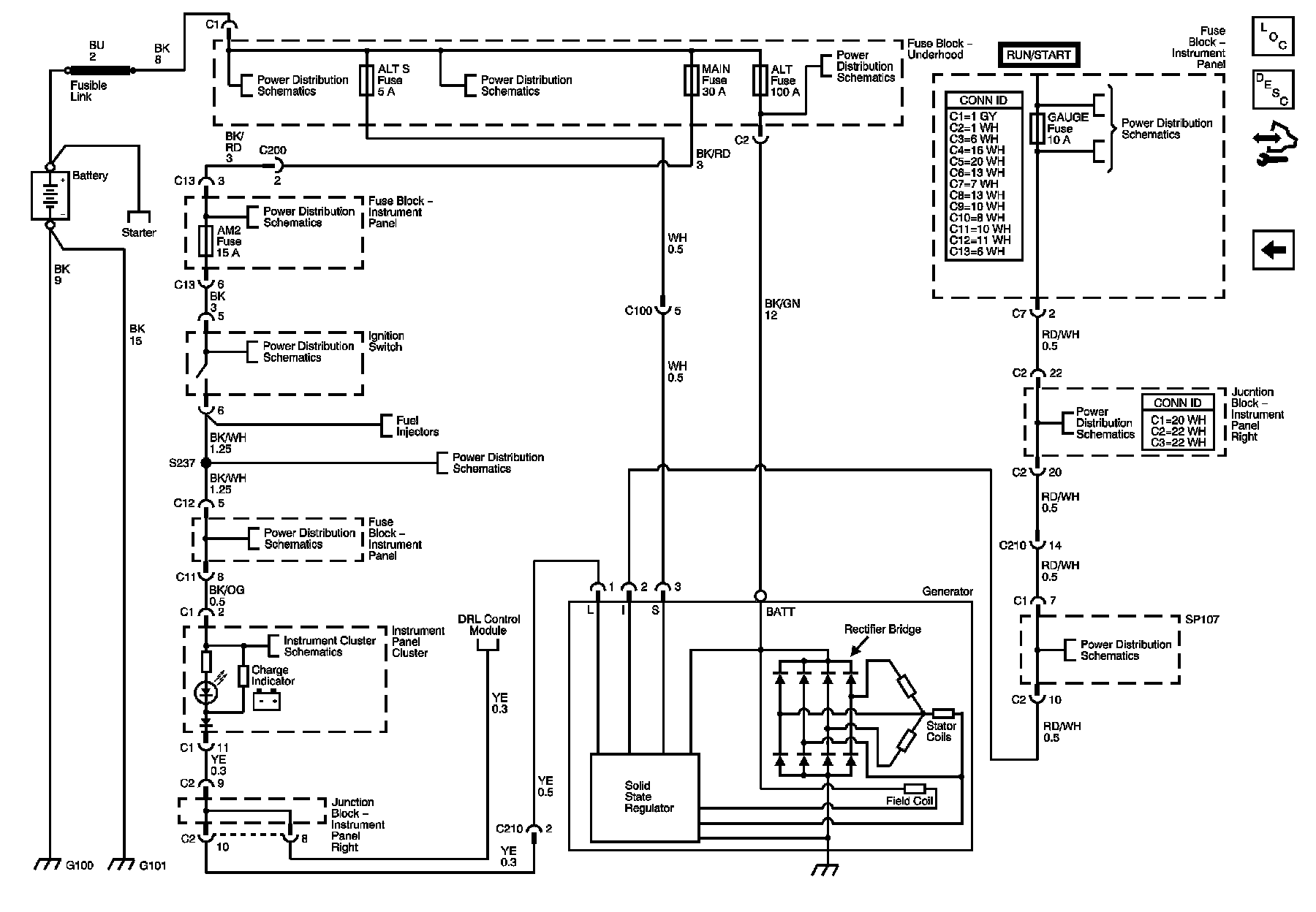

Charging System
