Seat Occupant Sensor: Diagrams



Seat Belt Connector End Views

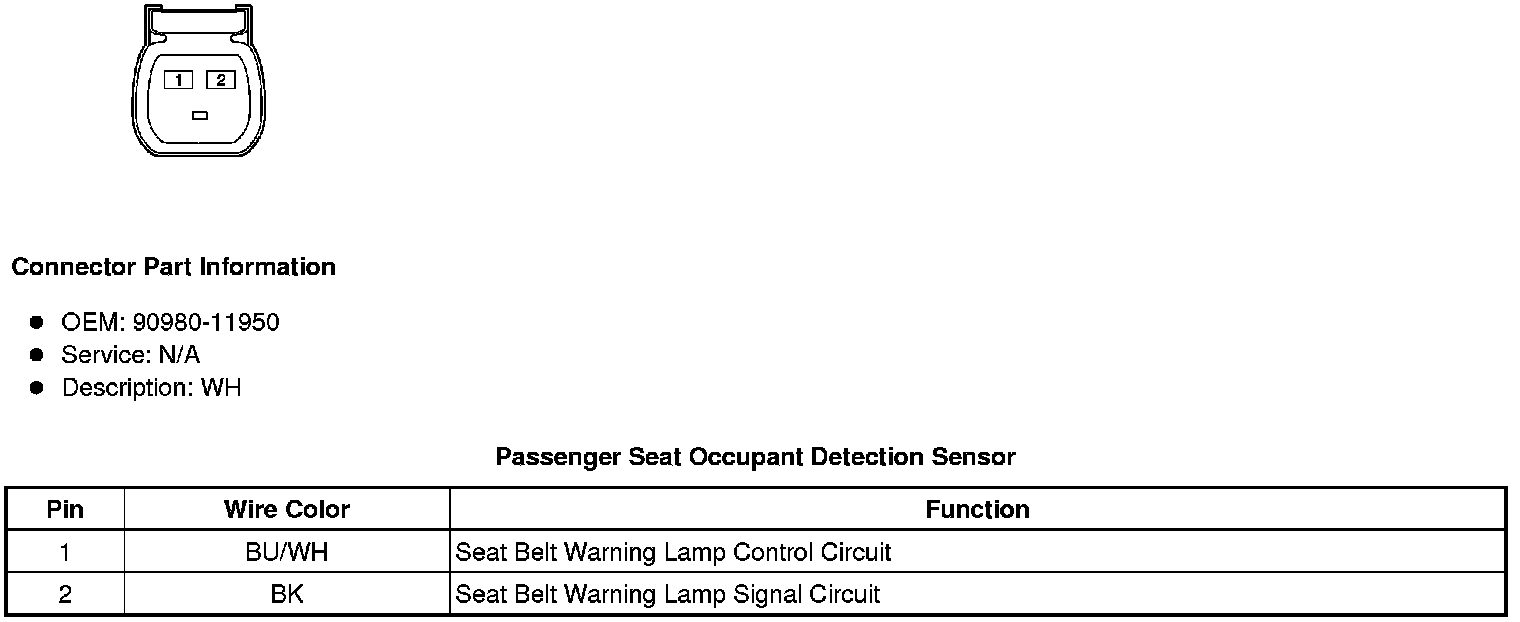

Passenger Seat Occupant Detection Sensor

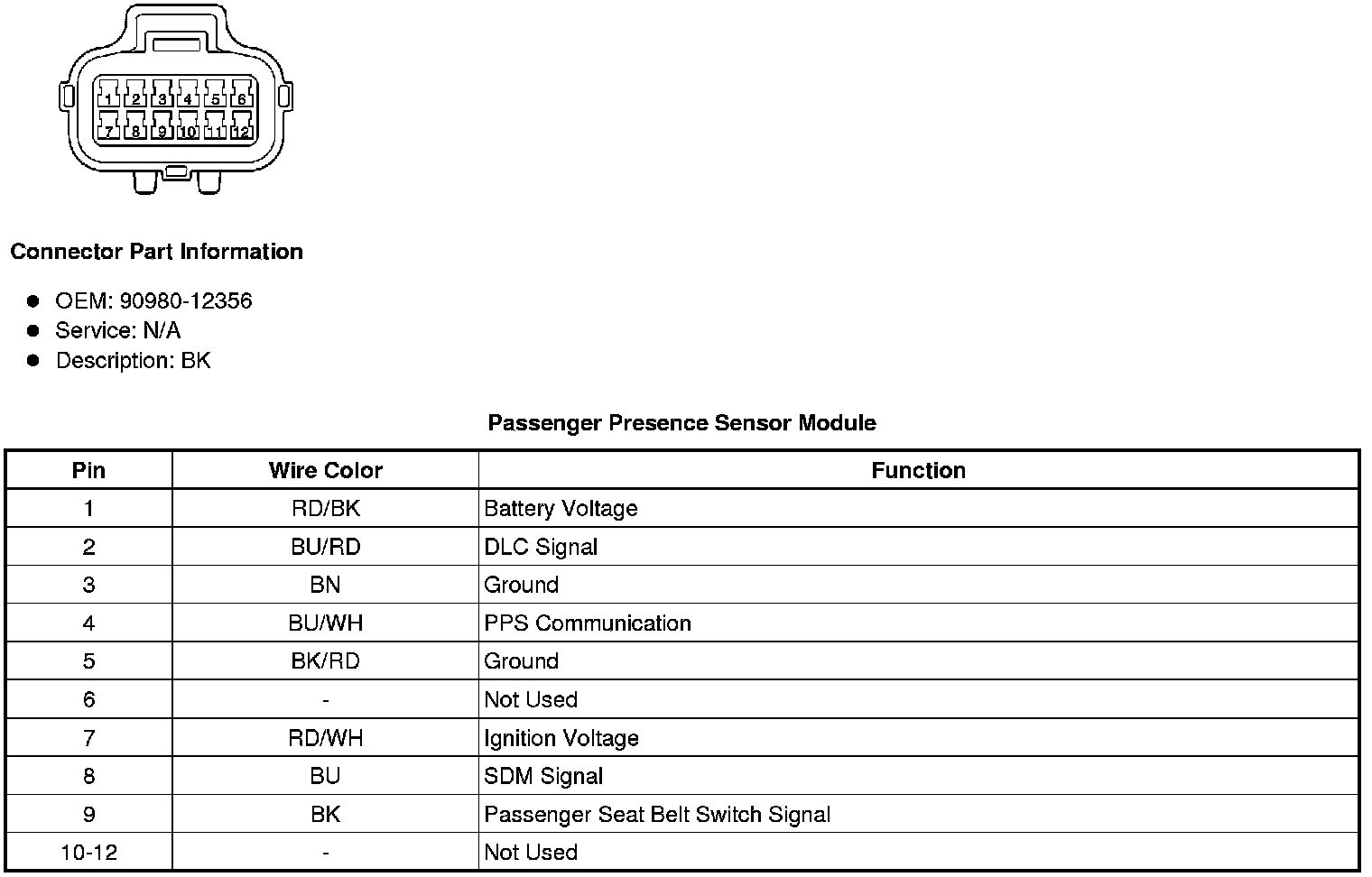

Passenger Presence Sensor Module





Passenger Seat Occupant Detection Sensor
